Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

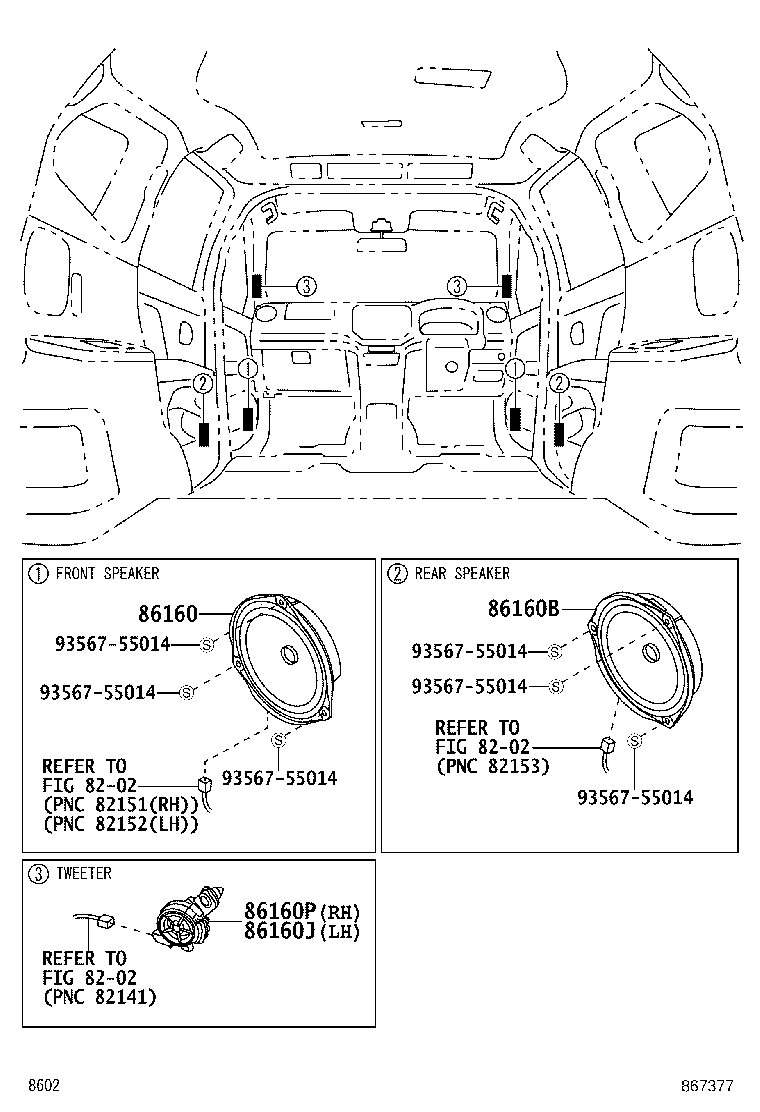

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-BZ230 |
Speaker Assy, Front NO.1
2018-12 → 2022-11
ended
|
F850 | — | |
| 86160-BZ232 |
Speaker Assy, Front NO.1
2022-12 → 2023-10
ended
|
F850 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-BZ230 |
Speaker Assy, Rear
2018-12 → 2022-11
ended
|
F850 | — | |
| 86160-BZ232 |
Speaker Assy, Rear
2022-12 → 2023-10
ended
|
F850 | — | |
| 86160J — Speaker Assy, Front NO.3 | ||||
| 86150-BZ130 |
Speaker Assy, Front NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86150-BZ120 |
Speaker Assy, Front NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
