Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

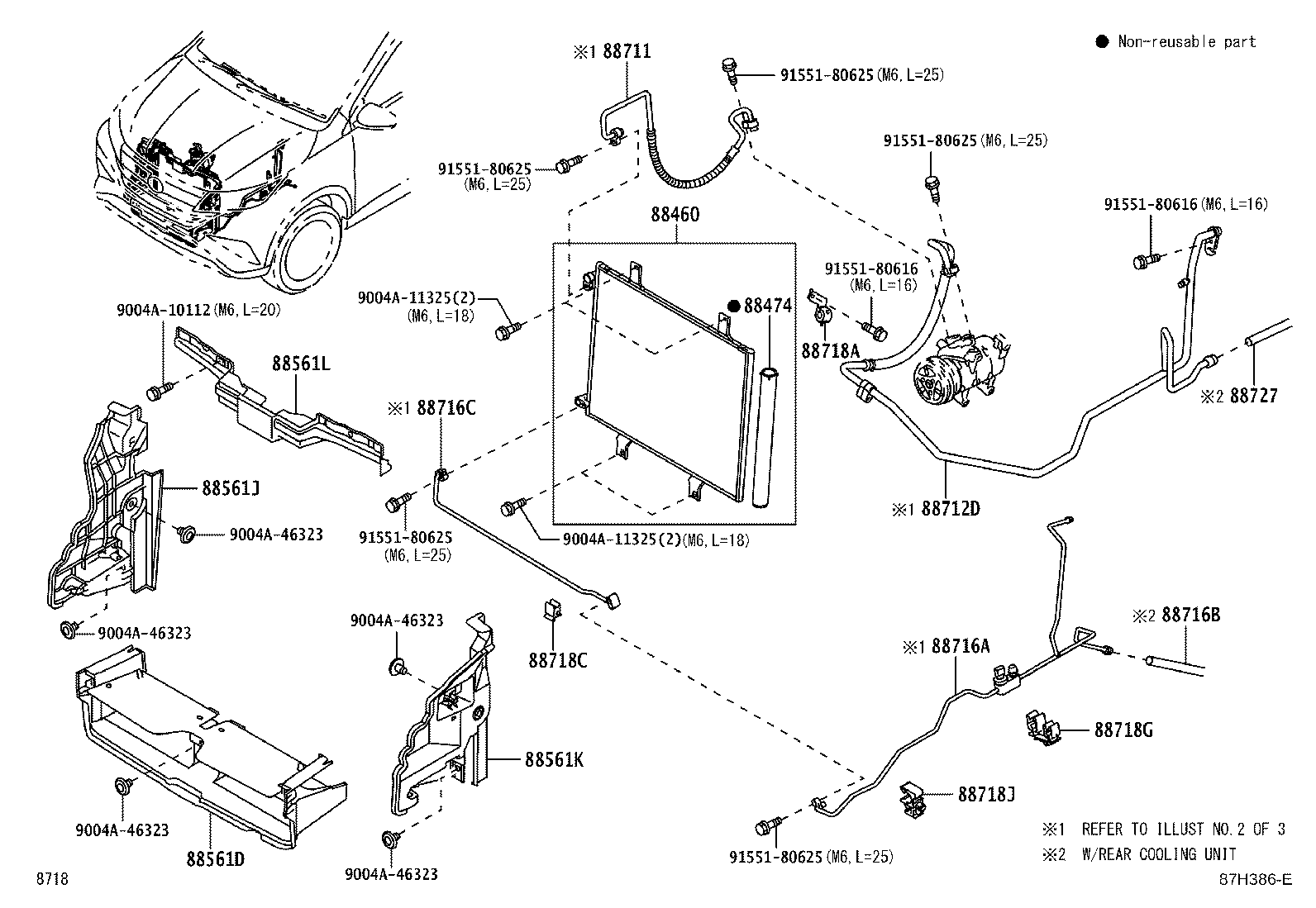

Exploded illustration 87H386E 9004A10112 — not listed in this catalogue 88718C — CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) (1 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (1 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (1 parts) 88718J — CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) (1 parts) 88718G — CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) (1 parts) 88712D — HOSE, SUCTION (1 parts) 88716B — PIPE, COOLER REFRIGERANT LIQUID, B (2 parts) 88727 — TUBE, SUCTION, NO.2 (2 parts) 88561D — GRILLE, AIR INLET NO.3 (1 parts) 88561K — GRILLE, AIR INLET NO.2 (1 parts) 88561J — GRILLE, AIR INLET NO.1 (1 parts) 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180616 — not listed in this catalogue 9004A11325 — not listed in this catalogue 9155180616 — not listed in this catalogue 9004A11325 — not listed in this catalogue 88716C — PIPE, COOLER REFRIGERANT LIQUID, C (1 parts) 88460 — CONDENSER ASSY, COOLER (1 parts) 88474 — DRYER, COOLER (1 parts) 88718A — CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) (1 parts) 88561L — GRILLE, AIR INLET NO.4 (1 parts) 9004A46323 — not listed in this catalogue 9004A46323 — not listed in this catalogue 9004A46323 — not listed in this catalogue 9004A46323 — not listed in this catalogue 9004A46323 — not listed in this catalogue
87H386E · 16 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
88460 — Condenser Assy, Cooler
88460-BZ240 Condenser Assy, Cooler
2018-12 → 2023-10 ended
F850 —
88474 — Dryer, Cooler
88474-B2010 Dryer, Cooler
2018-12 → 2023-10 ended
F850 —
88561D — Grille, Air Inlet NO.3
88561-BZ460 Grille, Air Inlet NO.3
2018-12 → 2023-10 ended
F850 —
88561J — Grille, Air Inlet NO.1
88561-BZ440 Grille, Air Inlet NO.1
2018-12 → 2023-10 ended
F850 —
88561K — Grille, Air Inlet NO.2
88561-BZ450 Grille, Air Inlet NO.2
2018-12 → 2023-10 ended
F850 —
88561L — Grille, Air Inlet NO.4
88561-BZ510 Grille, Air Inlet NO.4
2018-12 → 2023-10 ended
F850 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-BZ561 Hose, Cooler Refrigerant Discharge, NO.1
2018-12 → 2023-10 ended
F850 —
88712D — Hose, Suction
88712-BZ591 Hose, Suction
2018-12 → 2023-10 ended
F850 —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-BZE20 Pipe, Cooler Refrigerant Liquid, A
2018-12 → 2023-10 ended
F850 —
88716B — Pipe, Cooler Refrigerant Liquid, B
88716-BZ730 Pipe, Cooler Refrigerant Liquid, B
2018-12 → 2019-11 ended
F850 —
88716-BZE90 Pipe, Cooler Refrigerant Liquid, B
2019-12 → 2023-10 ended
F850 —
88716C — Pipe, Cooler Refrigerant Liquid, C
88716-BZB70 Pipe, Cooler Refrigerant Liquid, C
2018-12 → 2023-10 ended
F850 —
88718A — Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-BZ620 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2018-12 → 2023-10 ended
F850 —
88718C — Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-BZ280 Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
2018-12 → 2023-10 ended
F850 —
88718G — Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-BZ550 Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
2018-12 → 2023-10 ended
F850 —
88718J — Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88718-BZ660 Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
2018-12 → 2023-10 ended
F850 —
88727 — Tube, Suction, NO.2
88717-BZ401 Tube, Suction, NO.2
2018-12 → 2019-11 ended
F850 —
88717-BZ460 Tube, Suction, NO.2
2019-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
