Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

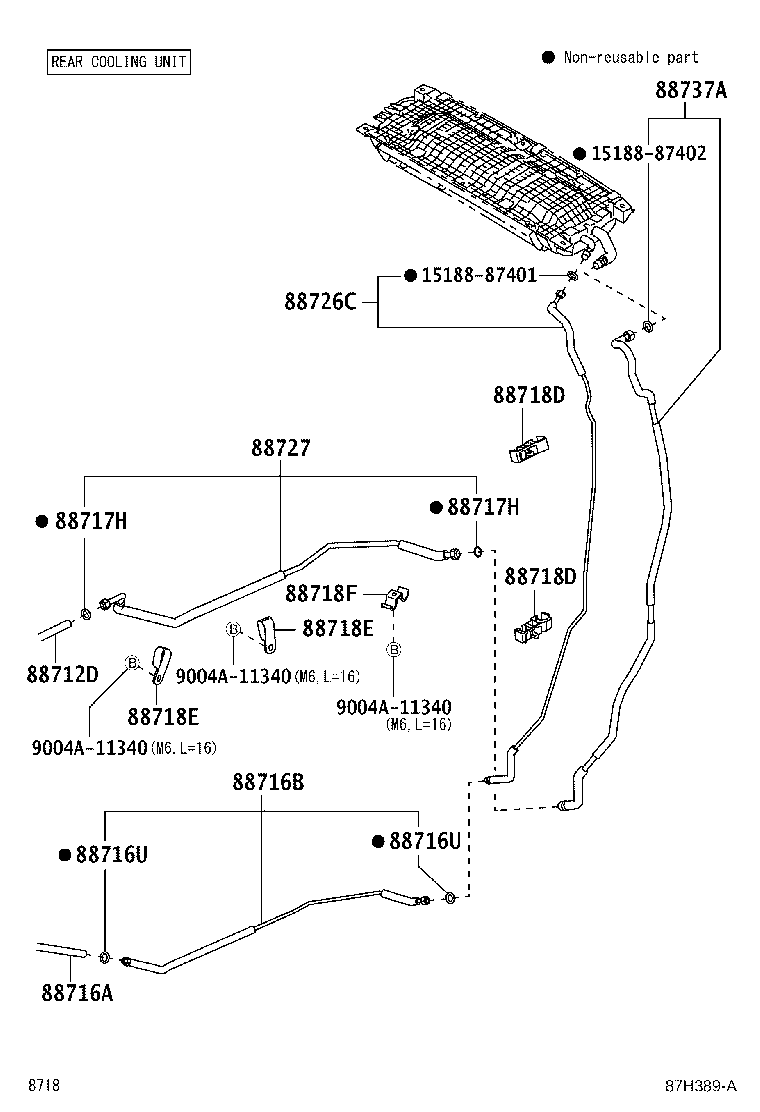

Exploded illustration 87H389A 1518887402 — not listed in this catalogue 1518887401 — not listed in this catalogue 88737A — TUBE, SUCTION, A(FOR COOL BOX) (2 parts) 88726C — PIPE, COOLER REFRIGERANT LIQUID, C (2 parts) 88718D — CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) (2 parts) 88718D — CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) (2 parts) 88712D — HOSE, SUCTION (1 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (1 parts) 88718E — CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) (1 parts) 88718E — CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) (1 parts) 88718F — CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) (1 parts) 88716U — RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) (1 parts) 88716B — PIPE, COOLER REFRIGERANT LIQUID, B (2 parts) 88717H — RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) (1 parts) 88717H — RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) (1 parts) 88727 — TUBE, SUCTION, NO.2 (2 parts) 9004A11340 — not listed in this catalogue 9004A11340 — not listed in this catalogue 9004A11340 — not listed in this catalogue 88716U — RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) (1 parts)
87H389A · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
88712D — Hose, Suction
88712-BZ591 Hose, Suction
2018-12 → 2023-10 ended
F850 —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-BZE20 Pipe, Cooler Refrigerant Liquid, A
2018-12 → 2023-10 ended
F850 —
88716B — Pipe, Cooler Refrigerant Liquid, B
88716-BZ730 Pipe, Cooler Refrigerant Liquid, B
2018-12 → 2019-11 ended
F850 —
88716-BZE90 Pipe, Cooler Refrigerant Liquid, B
2019-12 → 2023-10 ended
F850 —
88716U — Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
15188-87401 Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
2018-12 → 2019-12 ended
F850 —
88717H — Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
15188-87402 Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
2018-12 → 2019-12 ended
F850 —
88718D — Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-BZ720 Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
2018-12 → 2019-11 ended
F850 —
88718-BZ760 Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
2019-12 → 2023-10 ended
F850 —
88718E — Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-BZ030 Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
2018-12 → 2023-10 ended
F850 —
88718F — Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-BZ040 Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
2018-12 → 2023-10 ended
F850 —
88726C — Pipe, Cooler Refrigerant Liquid, C
88716-BZD80 Pipe, Cooler Refrigerant Liquid, C
2018-12 → 2019-11 ended
F850 —
88716-BZE80 Pipe, Cooler Refrigerant Liquid, C
2019-12 → 2023-10 ended
F850 —
88727 — Tube, Suction, NO.2
88717-BZ401 Tube, Suction, NO.2
2018-12 → 2019-11 ended
F850 —
88717-BZ460 Tube, Suction, NO.2
2019-12 → 2023-10 ended
F850 —
88737A — Tube, Suction, A(FOR COOL BOX)
88717-BZ440 Tube, Suction, A(FOR COOL BOX)
2018-12 → 2019-11 ended
F850 —
88717-BZ450 Tube, Suction, A(FOR COOL BOX)
2019-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
