Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

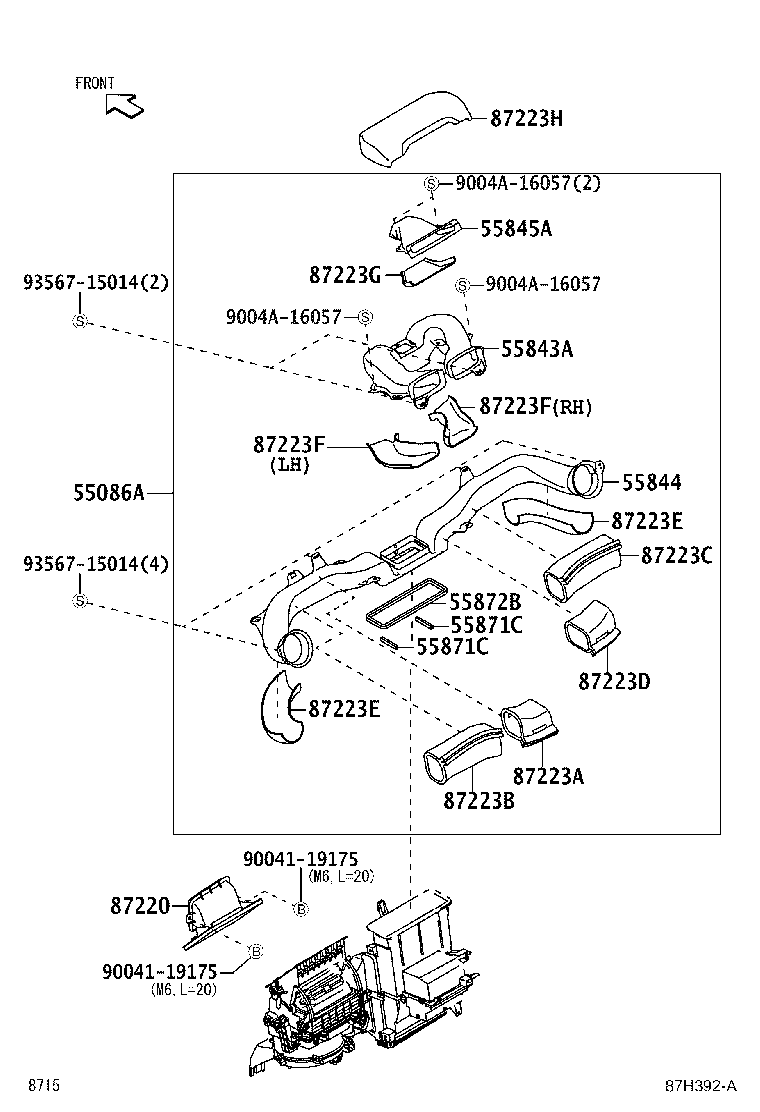

Exploded illustration 87H392A 87220 — DUCT ASSY, AIR (1 parts) 9004119175 — not listed in this catalogue 9004119175 — not listed in this catalogue 55871C — SEAL, AIR DUCT (1 parts) 55871C — SEAL, AIR DUCT (1 parts) 55872B — SEAL, AIR DUCT,NO.2 (1 parts) 87223E — PAD, AIR DUCT, NO.5 (1 parts) 87223E — PAD, AIR DUCT, NO.5 (1 parts) 87223A — PAD, AIR DUCT (1 parts) 87223B — PAD, AIR DUCT, NO.2 (1 parts) 87223C — PAD, AIR DUCT, NO.3 (1 parts) 87223D — PAD, AIR DUCT, NO.4 (1 parts) 55086A — DUCT SUB-ASSY, HEATER TO REGISTER, CENTER (1 parts) 55845A — DUCT, HEATER TO REGISTER, NO.3 (1 parts) 87223G — PAD, AIR DUCT, NO.7 (1 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (1 parts) 87223F — PAD, AIR DUCT, NO.6 (2 parts) 87223F — PAD, AIR DUCT, NO.6 (2 parts) 9004A16057 — not listed in this catalogue 9004A16057 — not listed in this catalogue 9004A16057 — not listed in this catalogue 9356715014 — not listed in this catalogue 9356715014 — not listed in this catalogue 55844 — DUCT, HEATER TO REGISTER, NO.2 (1 parts) 87223H — PAD, AIR DUCT, NO.8 (1 parts)
87H392A · 18 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
55086A — Duct Sub-assy, Heater TO Register, Center
55086-BZ250 Duct Sub-assy, Heater TO Register, Center
2018-12 → 2023-10 ended
F850 —
55843A — Duct, Heater TO Register, NO.1
55843-BZ050 Duct, Heater TO Register, NO.1
2018-12 → 2023-10 ended
F850 —
55844 — Duct, Heater TO Register, NO.2
55844-BZ090 Duct, Heater TO Register, NO.2
2018-12 → 2023-10 ended
F850 —
55845A — Duct, Heater TO Register, NO.3
55845-BZ070 Duct, Heater TO Register, NO.3
2018-12 → 2023-10 ended
F850 —
55871C — Seal, Air Duct
55871-BZ120 Seal, Air Duct
2018-12 → 2023-10 ended
F850 —
55872B — Seal, Air Duct,NO.2
55872-BZ110 Seal, Air Duct,NO.2
2018-12 → 2023-10 ended
F850 —
87220 — Duct Assy, Air
87220-BZ410 Duct Assy, Air
2018-12 → 2023-10 ended
F850 —
87223A — Pad, Air Duct
87223-BZ200 Pad, Air Duct
2018-12 → 2023-10 ended
F850 —
87223B — Pad, Air Duct, NO.2
87223-BZ350 Pad, Air Duct, NO.2
2018-12 → 2023-10 ended
F850 —
87223C — Pad, Air Duct, NO.3
87223-BZ360 Pad, Air Duct, NO.3
2018-12 → 2023-10 ended
F850 —
87223D — Pad, Air Duct, NO.4
87223-BZ370 Pad, Air Duct, NO.4
2018-12 → 2023-10 ended
F850 —
87223E — Pad, Air Duct, NO.5
87223-BZ380 Pad, Air Duct, NO.5
2018-12 → 2023-10 ended
F850 —
87223F — Pad, Air Duct, NO.6
87223-BZ400 note Pad, Air Duct, NO.6
2018-12 → 2023-10 ended
F850 —
87223-BZ530 note Pad, Air Duct, NO.6
2018-12 → 2023-10 ended
F850 —
87223G — Pad, Air Duct, NO.7
87223-BZ430 Pad, Air Duct, NO.7
2018-12 → 2023-10 ended
F850 —
87223H — Pad, Air Duct, NO.8
87223-BZ150 Pad, Air Duct, NO.8
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
