Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

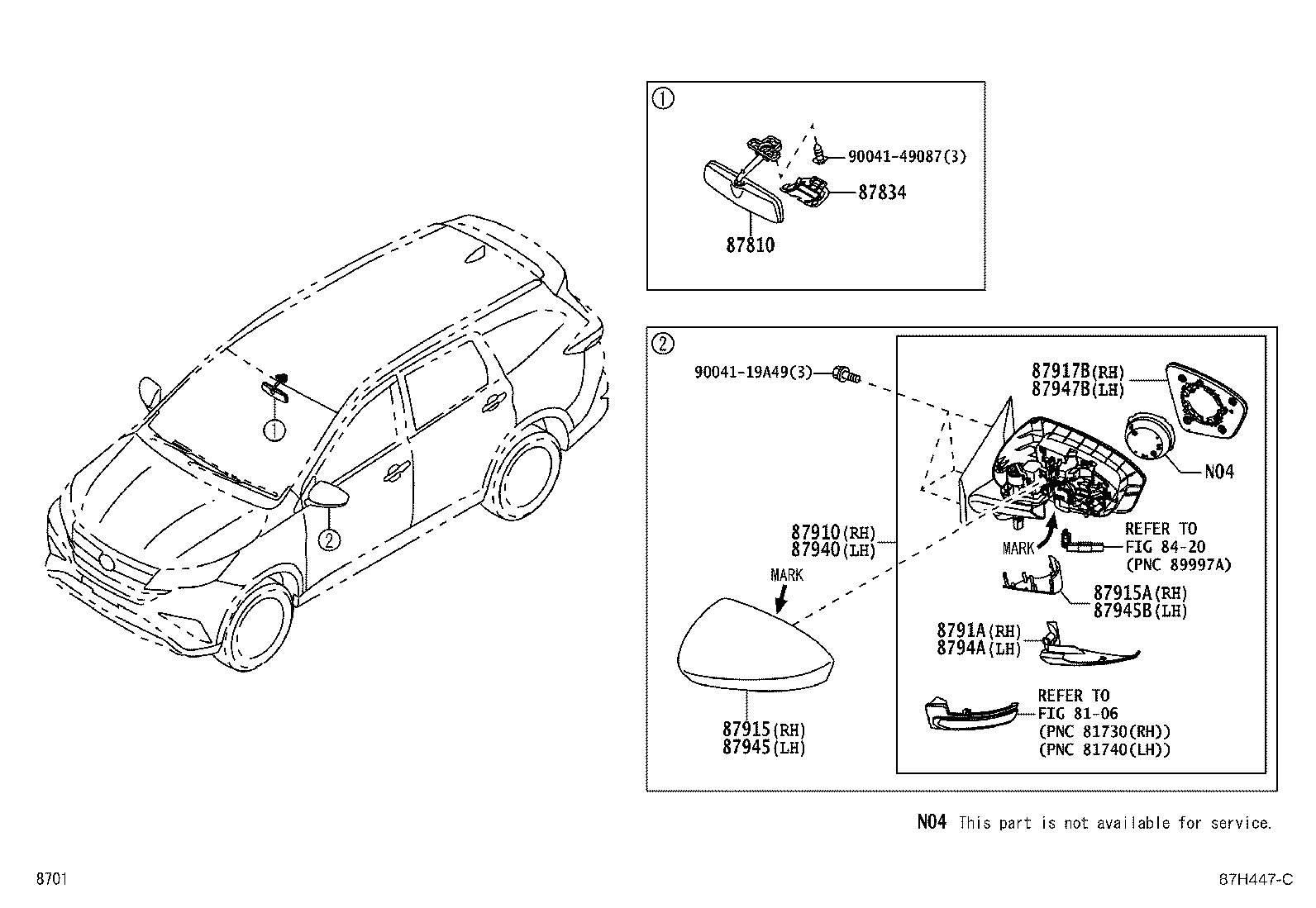

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-BZ280-C0 note |
Mirror Assy, Inner Rear View
2018-12 → 2023-10
ended
|
F850 | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87834-BZ140-B0 note |
Cover, Inner Rear View Mirror Stay Holder
2018-12 → 2023-10
ended
|
F850 | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-BZC20 note |
Mirror Assy, Outer Rear View, RH
2018-12 → 2019-12
ended
|
F850 | — | |
| 87910-BZC20 |
Mirror Assy, Outer Rear View, RH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-BZ520 note |
Cover, Outer Mirror, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 87915-BZ600 note |
Cover, Outer Mirror, RH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87915A — Cover, Outer Mirror, RH | ||||
| 8791B-BZ010 note |
Cover, Outer Mirror, RH
2018-12 → 2019-12
ended
|
F850 | — | |
| 8791B-BZ010 |
Cover, Outer Mirror, RH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87917B — Mirror, Outer Rear View, RH | ||||
| 87917-BZ180 note |
Mirror, Outer Rear View, RH
2018-12 → 2019-12
ended
|
F850 | — | |
| 87917-BZ180 |
Mirror, Outer Rear View, RH
2019-12 → 2023-10
ended
|
F850 | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791A-BZ010 |
Cover, Outer Mirror, RH NO.2
2019-12 → 2023-10
ended
|
F850 | — | |
| 8791A-BZ010 note |
Cover, Outer Mirror, RH NO.2
2018-12 → 2019-12
ended
|
F850 | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-BZB80 note |
Mirror Assy, Outer Rear View, LH
2018-12 → 2019-12
ended
|
F850 | — | |
| 87940-BZB80 |
Mirror Assy, Outer Rear View, LH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-BZ530 note |
Cover, Outer Mirror, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 87945-BZ600 note |
Cover, Outer Mirror, LH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87945B — Cover, Outer Mirror, LH | ||||
| 8794B-BZ010 note |
Cover, Outer Mirror, LH
2018-12 → 2019-12
ended
|
F850 | — | |
| 8794B-BZ010 |
Cover, Outer Mirror, LH
2019-12 → 2023-10
ended
|
F850 | — | |
| 87947B — Mirror, Outer Rear View, LH | ||||
| 87947-BZ180 note |
Mirror, Outer Rear View, LH
2018-12 → 2019-12
ended
|
F850 | — | |
| 87947-BZ180 |
Mirror, Outer Rear View, LH
2019-12 → 2023-10
ended
|
F850 | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794A-BZ010 note |
Cover, Outer Mirror, LH NO.2
2018-12 → 2019-12
ended
|
F850 | — | |
| 8794A-BZ010 |
Cover, Outer Mirror, LH NO.2
2019-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
