Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

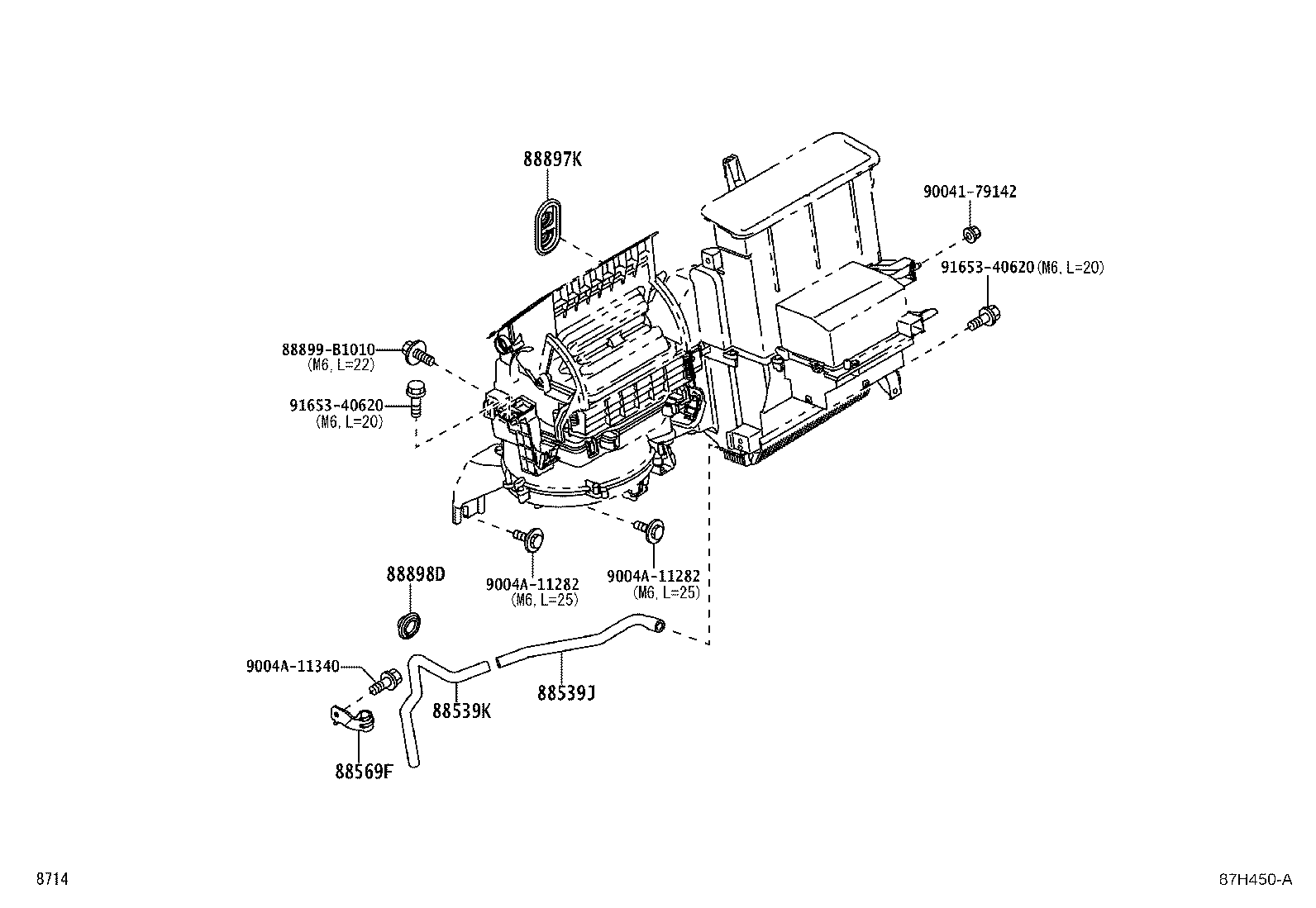

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88539J — Hose, Drain Cooler | ||||
| 88539-BZ400 |
Hose, Drain Cooler
2018-12 → 2023-10
ended
|
F850 | — | |
| 88539K — Hose, Drain Cooler | ||||
| 88839-BZ011 |
Hose, Drain Cooler
2018-12 → 2023-10
ended
|
F850 | — | |
| 88569F — Clamp | ||||
| 88718-BZ731 |
Clamp
2018-12 → 2023-10
ended
|
F850 | — | |
| 88897K — Grommet, (FOR COOLER PIPE) | ||||
| 88897-BZ250 |
Grommet, (FOR COOLER PIPE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 88898D — Grommet | ||||
| 88897-87Z13 |
Grommet
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
