Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

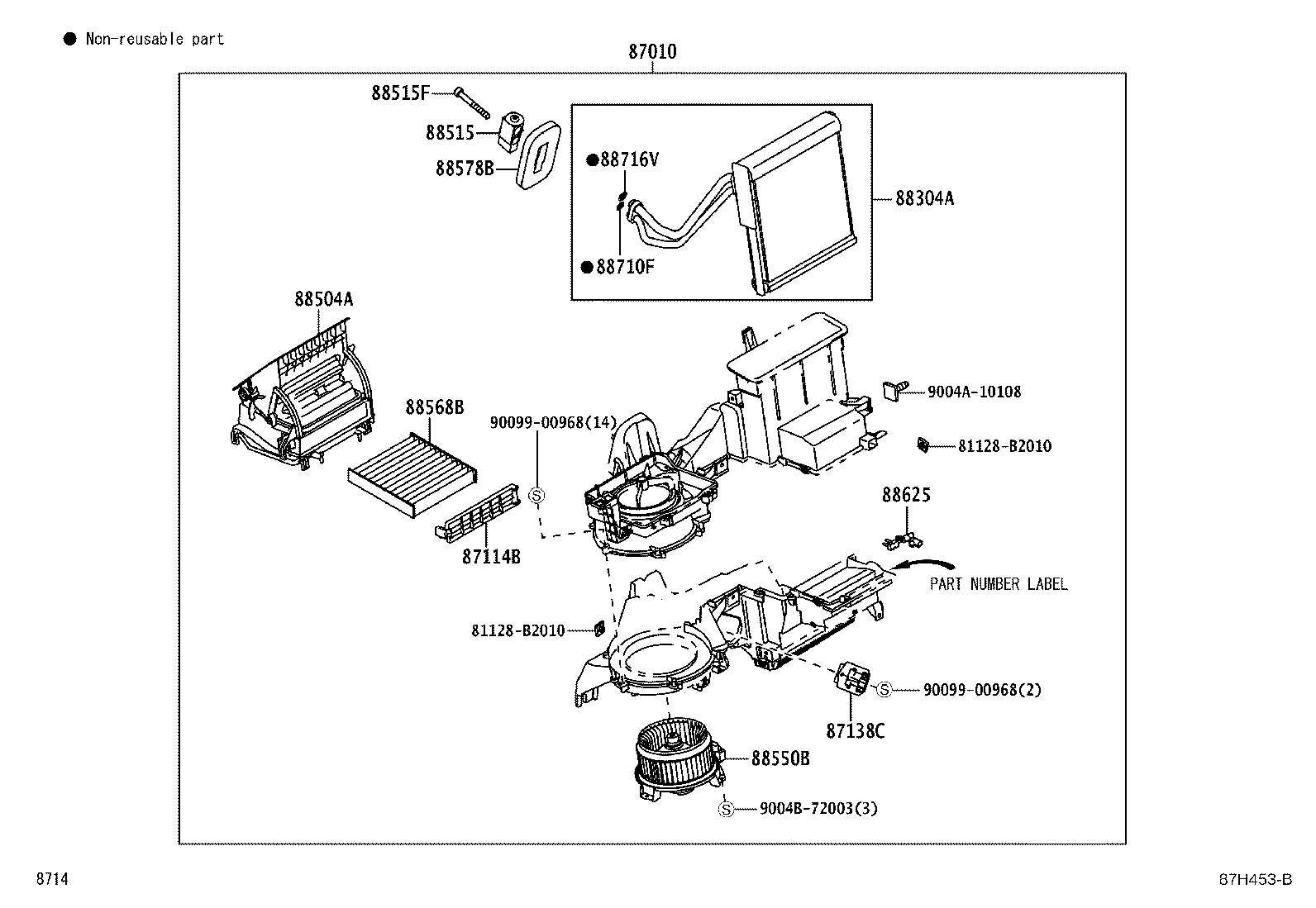

Exploded illustration 87H453B 87138C — RESISTOR, BLOWER (1 parts) 88550B — MOTOR ASSY, BLOWER (2 parts) 9004A10108 — not listed in this catalogue 81128B2010 — not listed in this catalogue 81128B2010 — not listed in this catalogue 88304A — COOLER, EVAPORATOR (1 parts) 88568B — FILTER, AIR (1 parts) 88504A — CASE SUB-ASSY, BLOWER (1 parts) 87114B — COVER, HEATER (1 parts) 88515 — VALVE, COOLER EXPANSION (1 parts) 88578B — PACKING, COOLING UNIT, NO.1 (1 parts) 88625 — THERMISTOR, COOLER, NO.1 (1 parts) 88515F — BOLT(FOR COOLER EXPANSION VALVE) (1 parts) 88716V — RING, O(FOR COOLER UNIT) (1 parts) 88710F — RING, O (1 parts) 87010 — UNIT ASSY, AIR CONDITIONER (2 parts) 9009900968 — not listed in this catalogue 9004B72003 — not listed in this catalogue 9009900968 — not listed in this catalogue
87H453B · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
87010 — Unit Assy, Air Conditioner
88510-BZ301 note Unit Assy, Air Conditioner
2018-12 → 2019-02 ended
F850 —
88510-BZ302 note Unit Assy, Air Conditioner
2019-02 → 2023-10 ended
F850 —
87114B — Cover, Heater
87114-BZ020 Cover, Heater
2018-12 → 2023-10 ended
F850 —
87138C — Resistor, Blower
87138-BZ140 Resistor, Blower
2018-12 → 2023-10 ended
F850 —
88304A — Cooler, Evaporator
88304-BZ070 Cooler, Evaporator
2018-12 → 2023-10 ended
F850 —
88504A — Case Sub-assy, Blower
87103-BZ140 Case Sub-assy, Blower
2018-12 → 2023-10 ended
F850 —
88515 — Valve, Cooler Expansion
88515-BZ150 Valve, Cooler Expansion
2018-12 → 2023-10 ended
F850 —
88515F — Bolt(FOR COOLER EXPANSION VALVE)
C9909-97201 Bolt(FOR COOLER EXPANSION VALVE)
2018-12 → 2023-10 ended
F850 —
88550B — Motor Assy, Blower
87103-BZ170 note Motor Assy, Blower
2018-12 → 2019-02 ended
F850 —
87103-BZ180 note Motor Assy, Blower
2019-02 → 2023-10 ended
F850 —
88568B — Filter, Air
88568-BZ050 Filter, Air
2018-12 → 2023-10 ended
F850 —
88578B — Packing, Cooling Unit, NO.1
88578-BZ570 Packing, Cooling Unit, NO.1
2018-12 → 2023-10 ended
F850 —
88625 — Thermistor, Cooler, NO.1
88625-BZ060 Thermistor, Cooler, NO.1
2018-12 → 2023-10 ended
F850 —
88710F — Ring, O
15188-87402 Ring, O
2018-12 → 2023-10 ended
F850 —
88716V — Ring, O(FOR COOLER UNIT)
15188-87403 Ring, O(FOR COOLER UNIT)
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
