Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

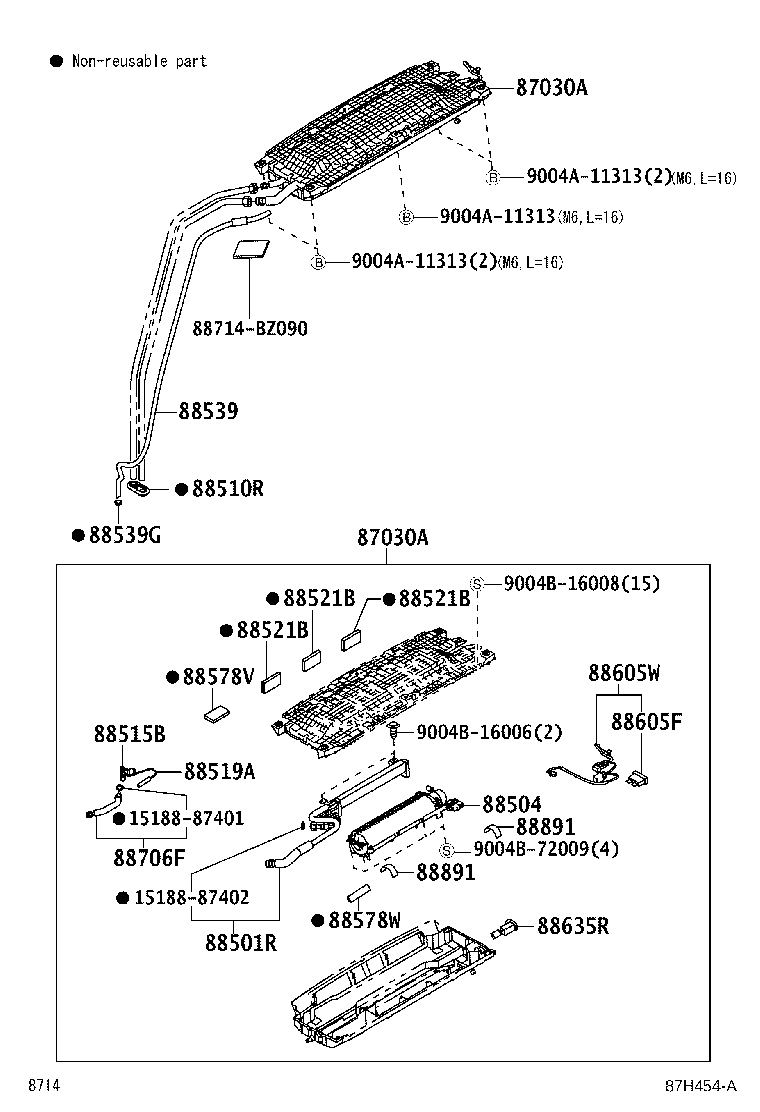

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87030A — Unit Assy, Cooling, Rear | ||||
| 87030-BZ200 |
Unit Assy, Cooling, Rear
2018-12 → 2023-10
ended
|
F850 | — | |
| 88501R — Evaporator Sub-assy (REAR) | ||||
| 88501-BZ270 |
Evaporator Sub-assy (REAR)
2018-12 → 2023-10
ended
|
F850 | — | |
| 88504 — Case Sub-assy, Cooler Blower | ||||
| 88504-BZ030 |
Case Sub-assy, Cooler Blower
2018-12 → 2023-10
ended
|
F850 | — | |
| 88510R — Grommet (FOR COOLER UNIT) | ||||
| 88897-87Z36 |
Grommet (FOR COOLER UNIT)
2018-12 → 2019-11
ended
|
F850 | — | |
| 88897-BZ260 |
Grommet (FOR COOLER UNIT)
2019-12 → 2023-10
ended
|
F850 | — | |
| 88515B — Valve, Rear Cooling Unit Expansion | ||||
| 88515-BZ010 |
Valve, Rear Cooling Unit Expansion
2018-12 → 2023-10
ended
|
F850 | — | |
| 88519A — Holder, Remote Bulb, Parts | ||||
| 88519-87701 |
Holder, Remote Bulb, Parts
2018-12 → 2023-10
ended
|
F850 | — | |
| 88521B — Packing (FOR COOLER UNIT CASE) | ||||
| 88578-BZ500 |
Packing (FOR COOLER UNIT CASE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-BZ380 |
Hose, Cooler Unit Drain, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 88539G — Grommet (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-BZ020 |
Grommet (FOR COOLER UNIT DRAIN HOSE)
2021-10 → 2023-10
ended
|
F850 | — | |
| 9004A-48053 |
Grommet (FOR COOLER UNIT DRAIN HOSE)
2018-12 → 2021-09
ended
|
F850 | — | |
| 88578V — Packing, Cooling Unit, NO.3 | ||||
| 88619-BZ080 |
Packing, Cooling Unit, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 88578W — Packing, Cooling Unit, NO.4 | ||||
| 88578-12100 |
Packing, Cooling Unit, NO.4
2018-12 → 2023-10
ended
|
F850 | — | |
| 88605F — Fuse(FOR COOLER WIRING HARNESS) | ||||
| 82606-B0010 |
Fuse(FOR COOLER WIRING HARNESS)
2018-12 → 2023-10
ended
|
F850 | — | |
| 88605W — Harness Sub-assy, Wiring Air Conditioner | ||||
| 88605-BZ150 |
Harness Sub-assy, Wiring Air Conditioner
2018-12 → 2023-10
ended
|
F850 | — | |
| 88635R — Resistor, Blower | ||||
| 88635-BZ010 |
Resistor, Blower
2018-12 → 2019-08
ended
|
F850 | — | |
| 88635-BZ020 |
Resistor, Blower
2019-08 → 2023-10
ended
|
F850 | — | |
| 88706F — Tube Sub-assy, Liquid, F | ||||
| 88716-BZE10 |
Tube Sub-assy, Liquid, F
2018-12 → 2023-10
ended
|
F850 | — | |
| 88891 — Packing (FOR COOLER) | ||||
| 88578-BZ490 |
Packing (FOR COOLER)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
