Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

17 part groups · 3 illustrations

Illustrations

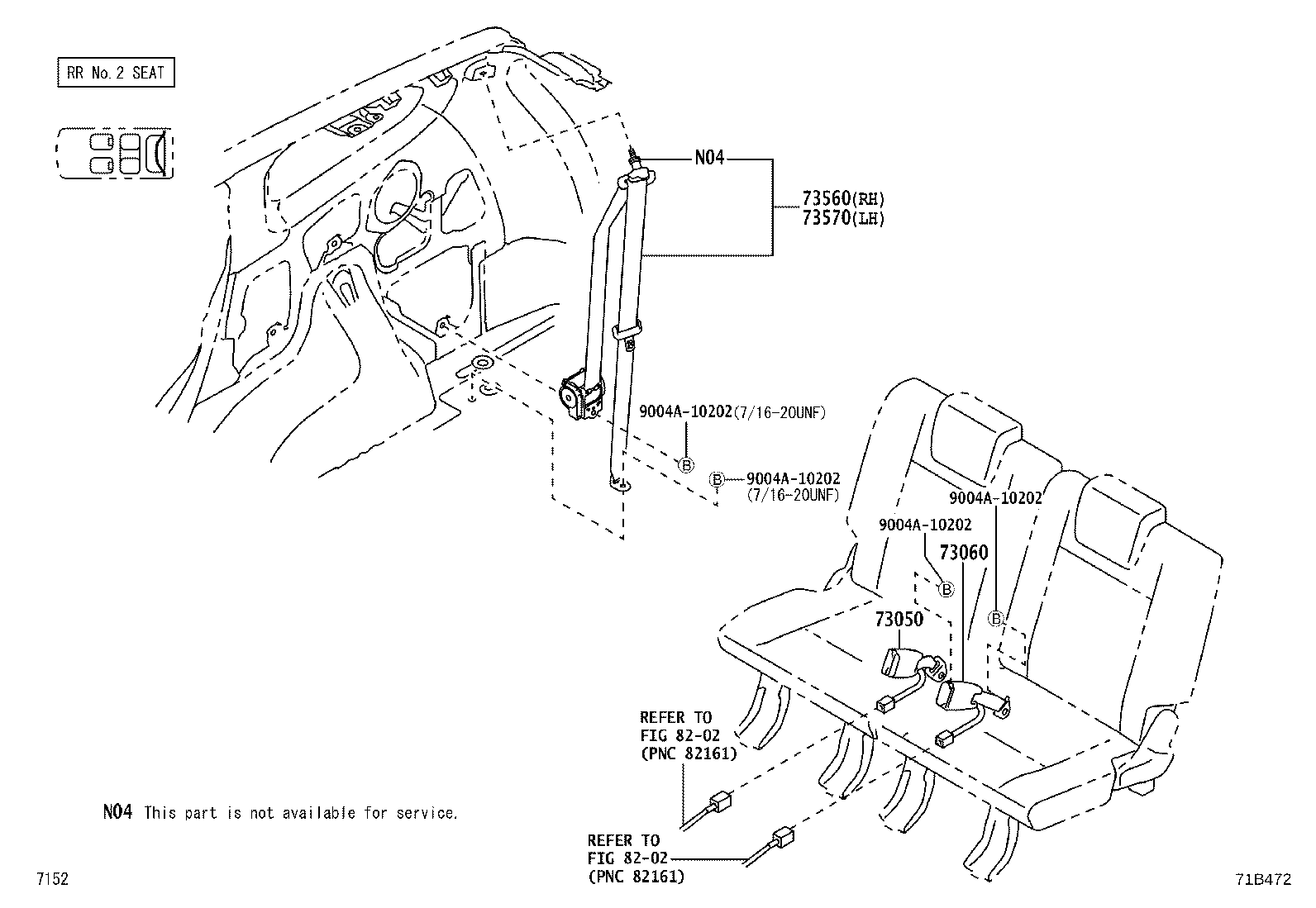

Figure 71B470B 71B470B 2018-12 → — Figure 71B471 71B471 2018-12 → — Figure 71B472 71B472 2018-12 → —

Part groups

PNCDescription
73050 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
73060 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
73137A Cover, Shoulder Belt Anchor, Upr
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73340 Belt Assy, Rear Seat Lap Type, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373G Clip, Rear Seat Shoulder Belt Cover
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
