Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 6 illustrations

Illustrations

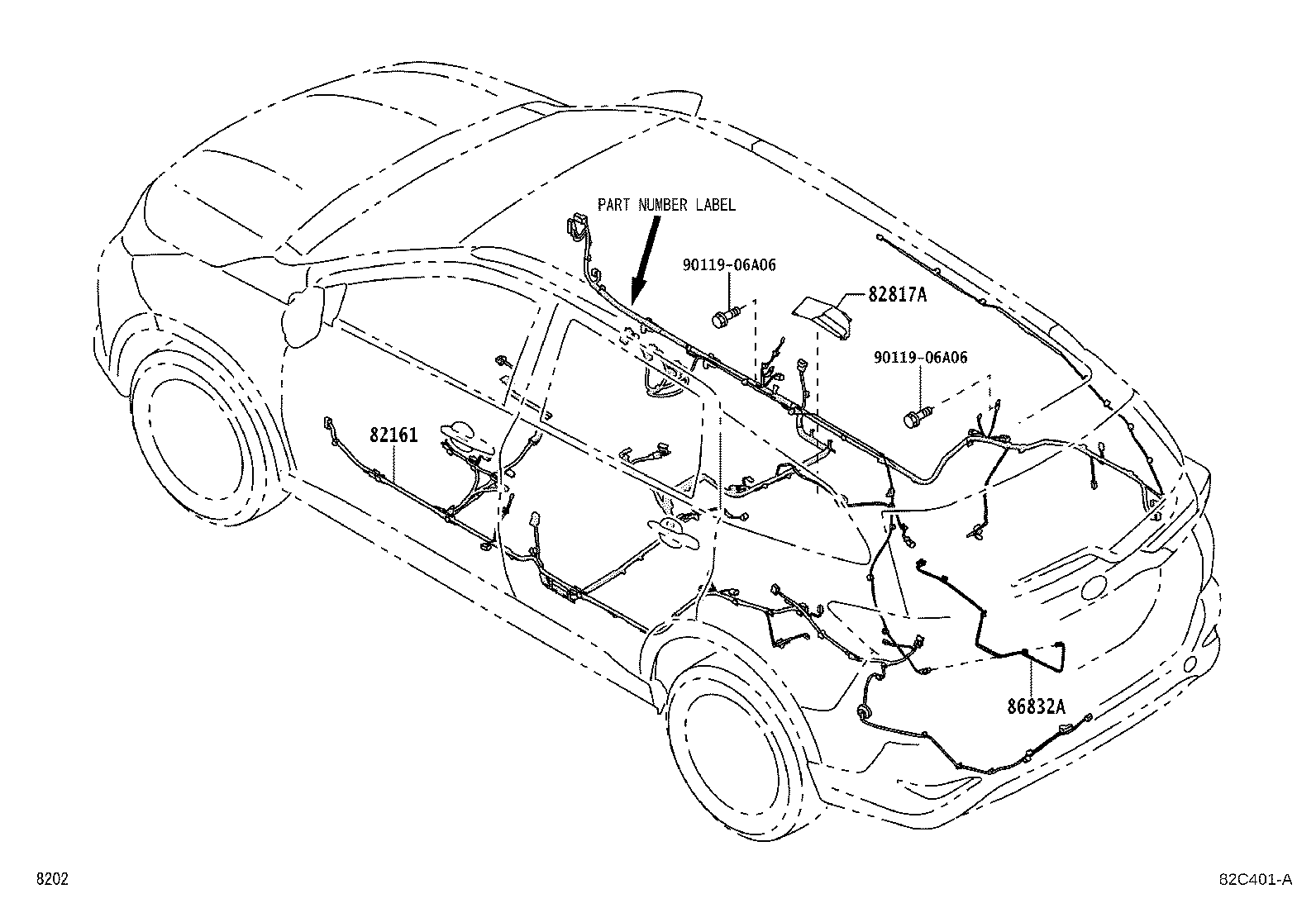

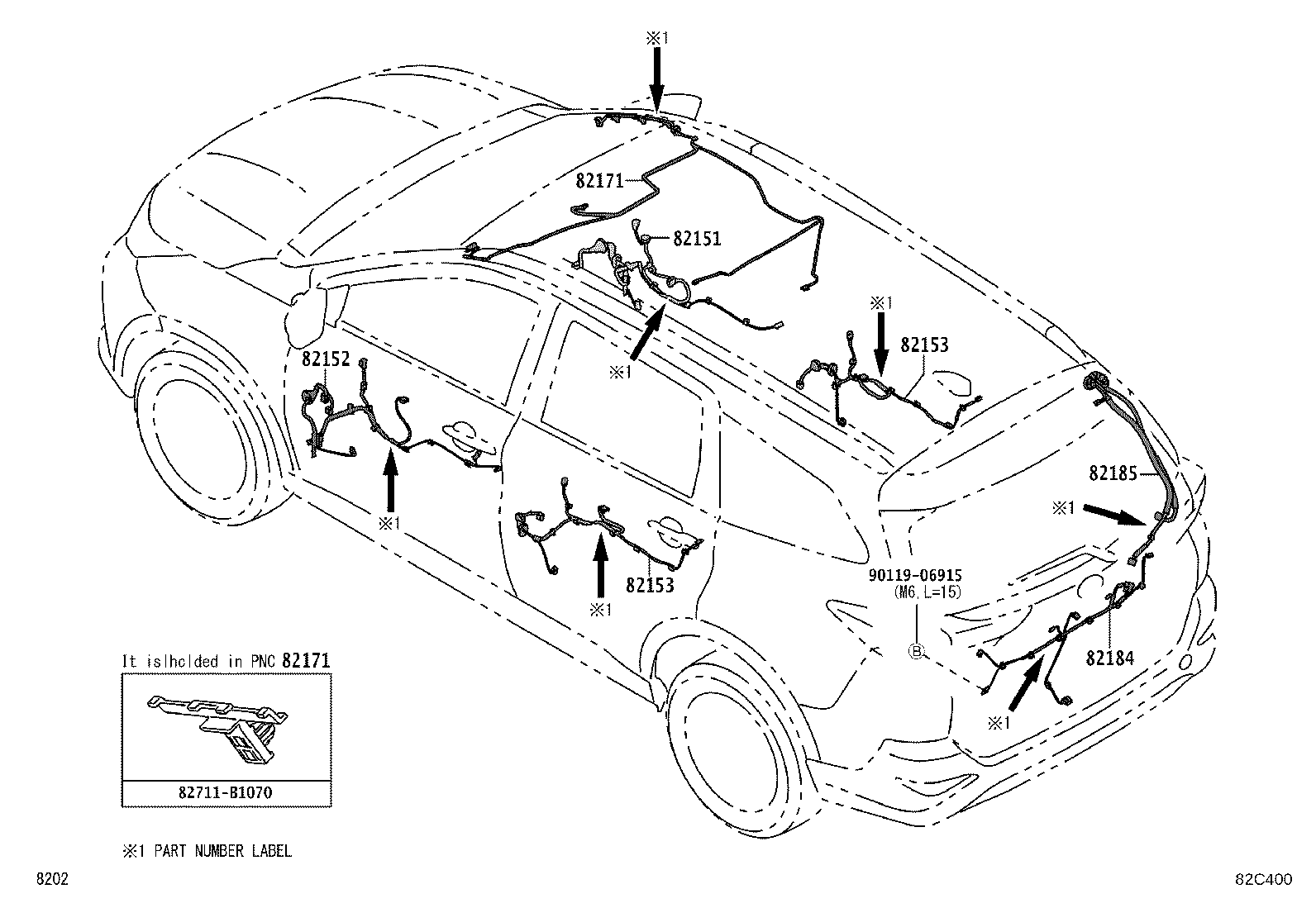

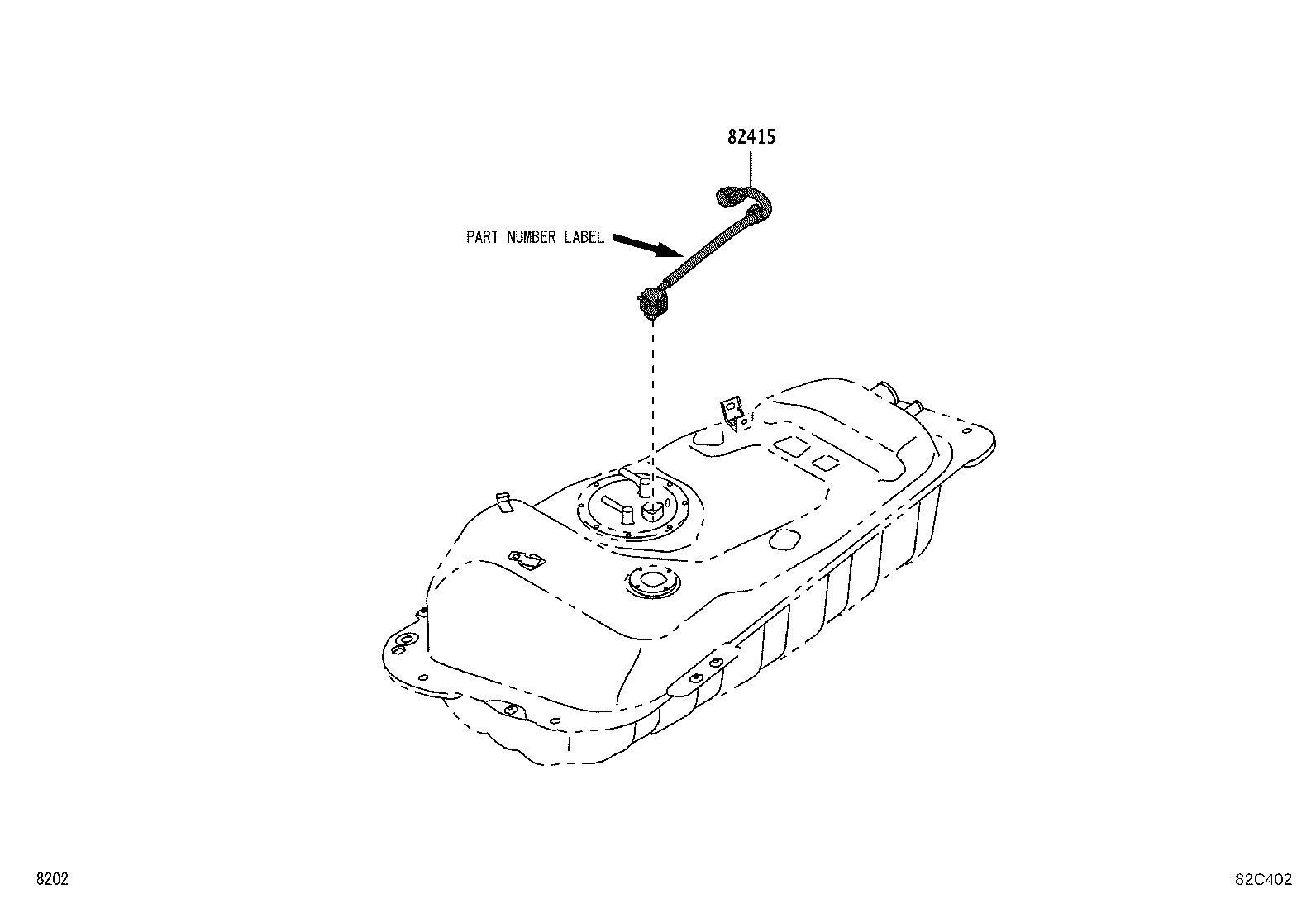

Figure 82C397A 82C397A 2018-12 → — Figure 82C398A 82C398A 2018-12 → — Figure 82C399A 82C399A 2018-12 → — Figure 82C400 82C400 2018-12 → — Figure 82C401A 82C401A 2018-12 → — Figure 82C402 82C402 2018-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82349 Wire, Light Control Rheostat
82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82817A Protector, Wiring Harness, NO.2
86832A Wire, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
