Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05

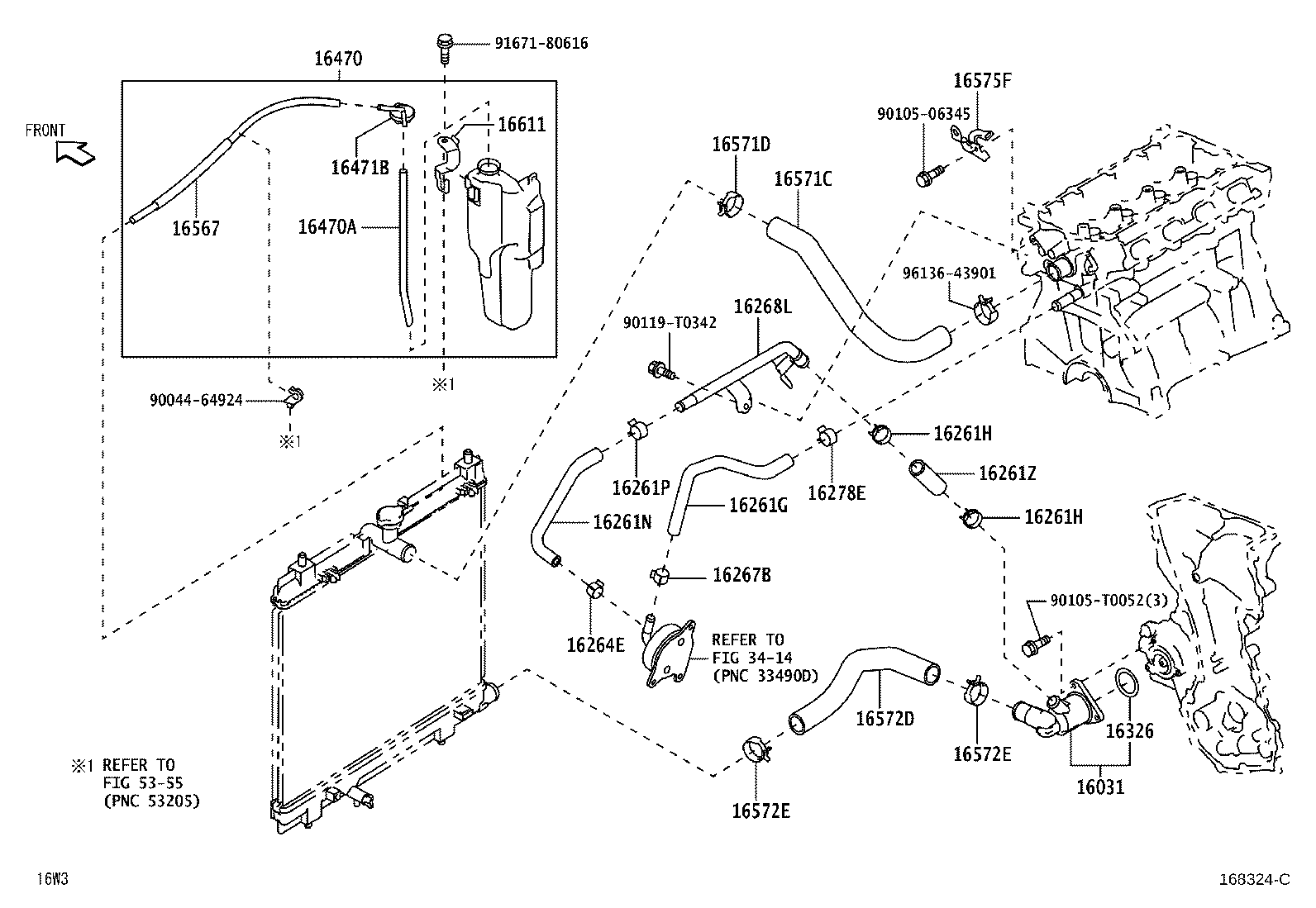

Radiator & Water Outlet
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16261Z | Hose, Water By-pass, NO.1 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268L | Pipe, Water By-pass |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16360A | Fan Assy, W/Motor |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16363J | Bolt(FOR COOLING FAN MOTOR) |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470M | Grommet |
| 16471B | Cap, Reserve Tank |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575F | Bracket, Water Hose Clamp, NO.3 |
| 16611 | Bracket, Radiator Reserve Tank |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
