Toyota Veloz

2022-06 → present · chassis W151 · catalogue 618210 · General

Supported model Data version 2022-05

Front Floor Panel & Front Floor Member

34 part groups · 2 illustrations

PNC	Description
53078A	Extension Sub-assy, Front Fender Apron, LH
57025C	Member Sub-assy, Front Side, Outer RH
57026B	Member Sub-assy, Front Side, Outer LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57105A	Plate Sub-assy, Front Side Member, RH
57106A	Plate Sub-assy, Front Side Member, LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57117F	Plate, Front Side Member, NO.2 RH
57118B	Plate, Front Side Member, NO.2 LH
57141A	Support, Front Bumper Arm, RH
57401C	Member Sub-assy, Floor Side, Inner RH
57406	Member Sub-assy, Main Floor Side, RH
57409	Member Sub-assy, Main Floor Side, LH
57412A	Member, Floor Side, Inner LH
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57419B	Reinforcement, Front Floor Under, Rear
57429D	Reinforcement, Front Floor Under, Rear LH
57451	Member, Front Floor Cross
58011	Panel Sub-assy, Front Floor Side, RH
58012	Panel Sub-assy, Front Floor Side, LH
58105D	Retainer Sub-assy, Seat Rail, Rear RH
58106F	Bracket Sub-assy, Front Seat Mounting, Outside LH

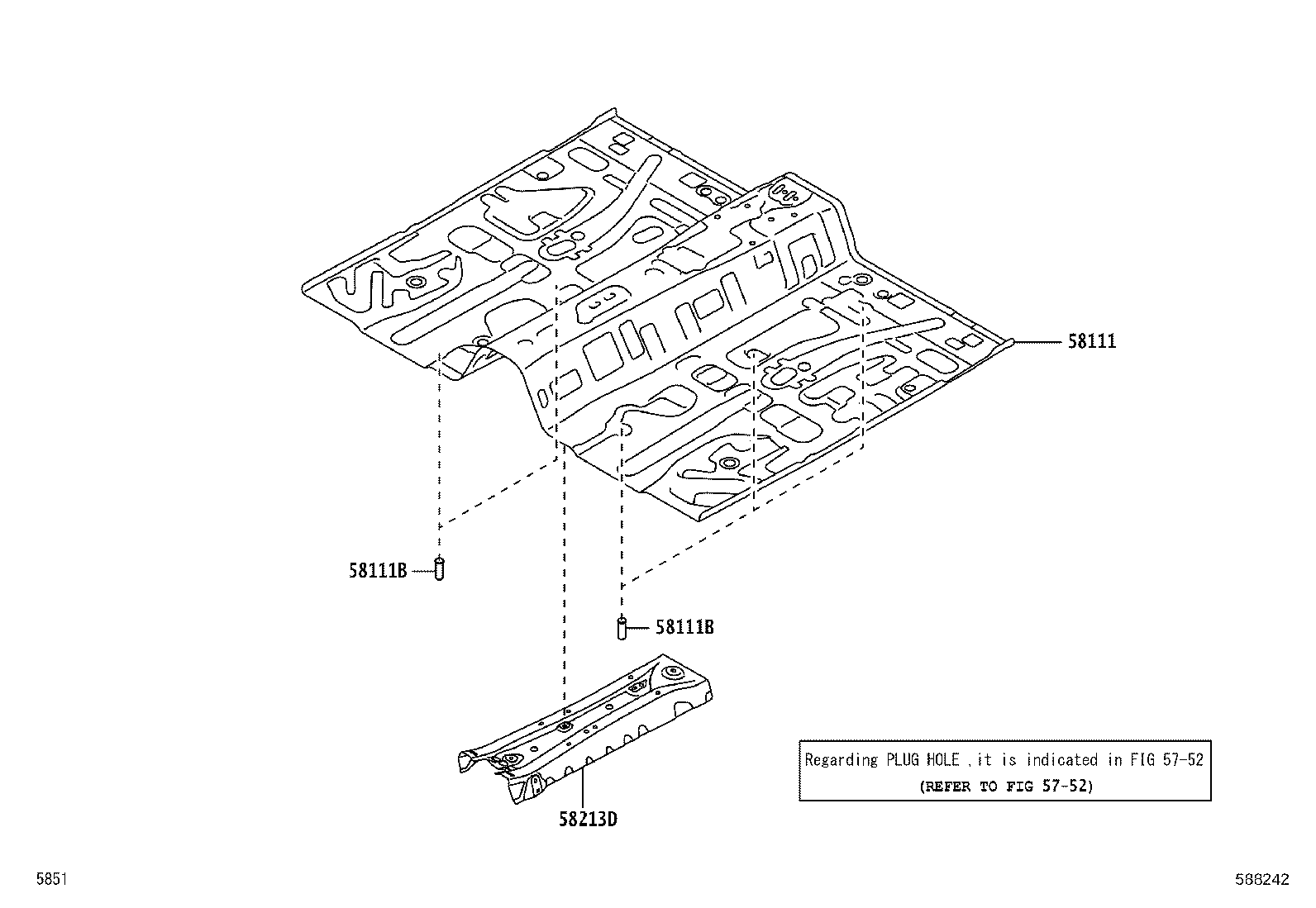

58111	Pan, Front Floor
58111B	Bolt, Weld(FOR FRONT FLOOR PAN)
58114A	Reinforcement, Front Floor Panel
58115A	Reinforcement, Front Floor Panel
58203C	Bracket Sub-assy, Exhaust Pipe Mounting
58213D	Reinforcement, Center Floor Panel
82715J	Bracket, Wiring Harness Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
