Toyota Veloz

2022-06 → present · chassis W151 · catalogue 618210 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 2 illustrations

Illustrations

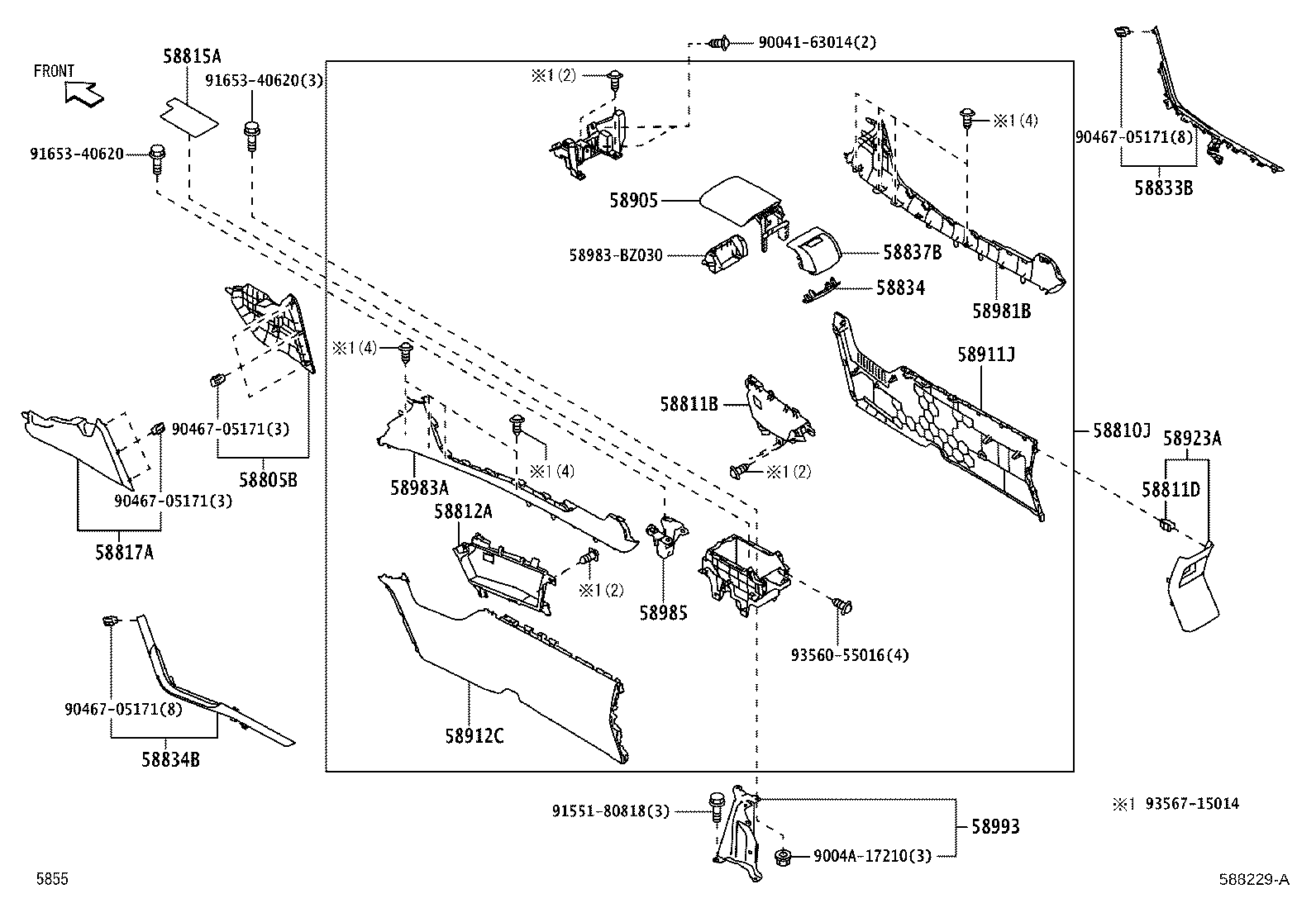

Figure 588228C 588228C 2022-06 → — Figure 588229A 588229A 2022-06 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58805B Panel Sub-assy, Console, Lower
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58812A Box, Console, Lower
58815A Carpet, Console Box
58817A Insert, Console Box, Front NO.2
58833B Garnish, Console Upper Panel, NO.1
58834 Panel, Console End
58834B Garnish, Console Upper Panel, NO.2
58835 Panel, Console, Upper
58837B Box, Console Cup Holder
58905 Door Sub-assy, Console Compartment
58911J Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58923A Panel, Console Rear End
58981B Retainer, Console Mounting, NO.1
58983A Retainer, Console Mounting
58985 Retainer, Console Box
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
