Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05

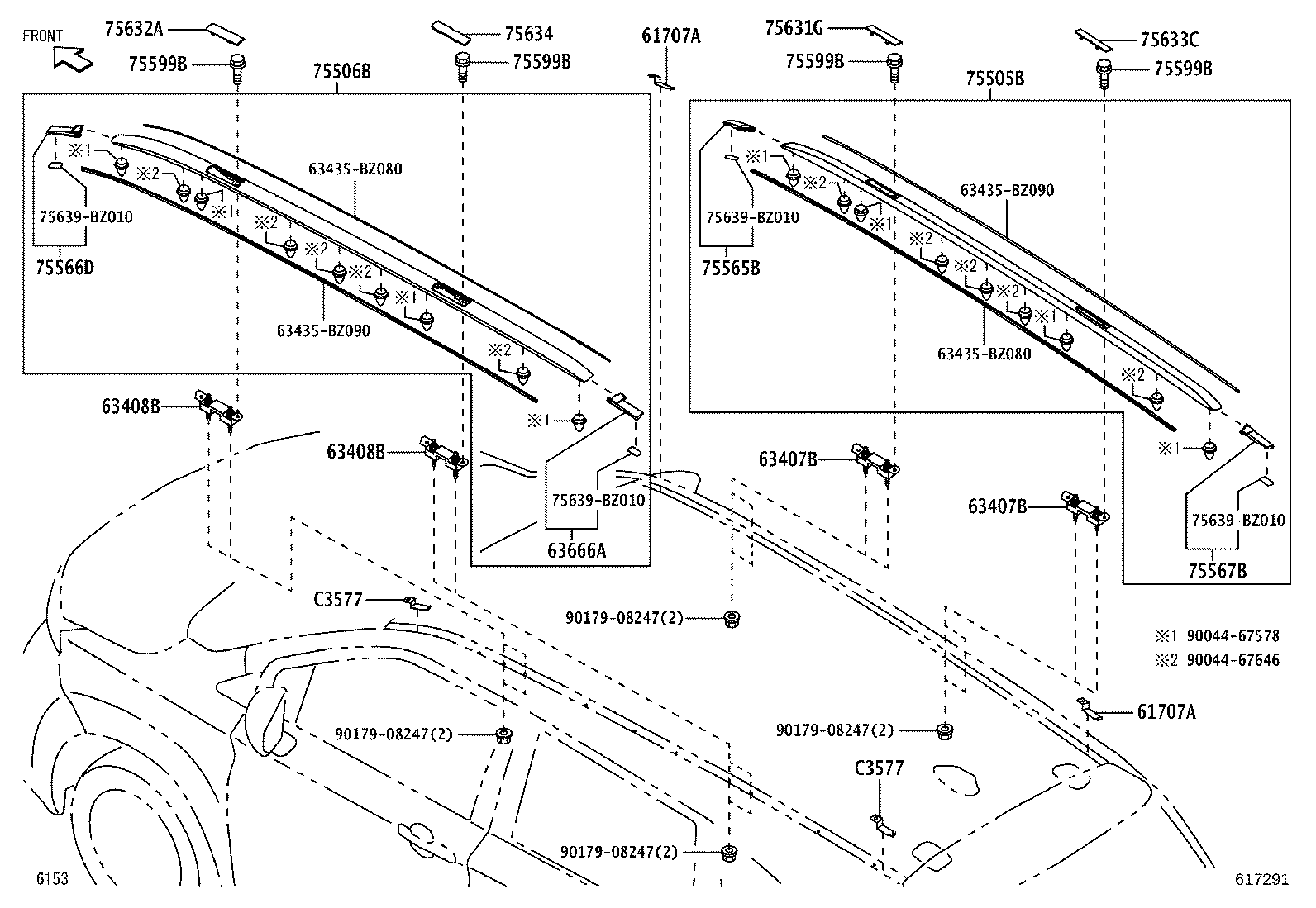

Roof Panel & Back Panel
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61707A | Bracket Sub-assy, Roof Side Rail |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63134C | Frame, Back Door Opening, Inner |
| 63141J | Reinforcement, Roof Panel |
| 63142B | Reinforcement, Roof Panel, Rear |
| 63143A | Reinforcement, Roof Panel |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63145D | Bracket, Roof Reinforcement |
| 63231 | Bracket, Room Lamp |
| 63407B | Support Sub-assy, Roof Rack, Front |
| 63408B | Support Sub-assy, Roof Rack, Front LH |
| 63666A | Protector, Roof, Rear |
| 75505B | Garnish Sub-assy, Roof Side, Front RH |
| 75506B | Garnish Sub-assy, Roof Side, Front LH |
| 75565B | Protector, Roof Side Garnish, Front RH |
| 75566D | Protector, Roof Side Garnish, Front LH |
| 75567B | Protector, Roof Side Garnish, Rear RH |
| 75599B | Bolt, Roof Side Garnish |
| 75631G | Lid, Roof Side Garnish, NO.1 RH |
| 75632A | Lid, Roof Side Garnish, NO.1 LH |
| 75633C | Lid, Roof Side Garnish, NO.2 RH |
| 75634 | Lid, Roof Side Garnish, NO.2 LH |
| C3577 | Bracket, Side Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
