Toyota Veloz

2022-06 → present · chassis W151 · catalogue 618210 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

6 part groups · 2 illustrations

Illustrations

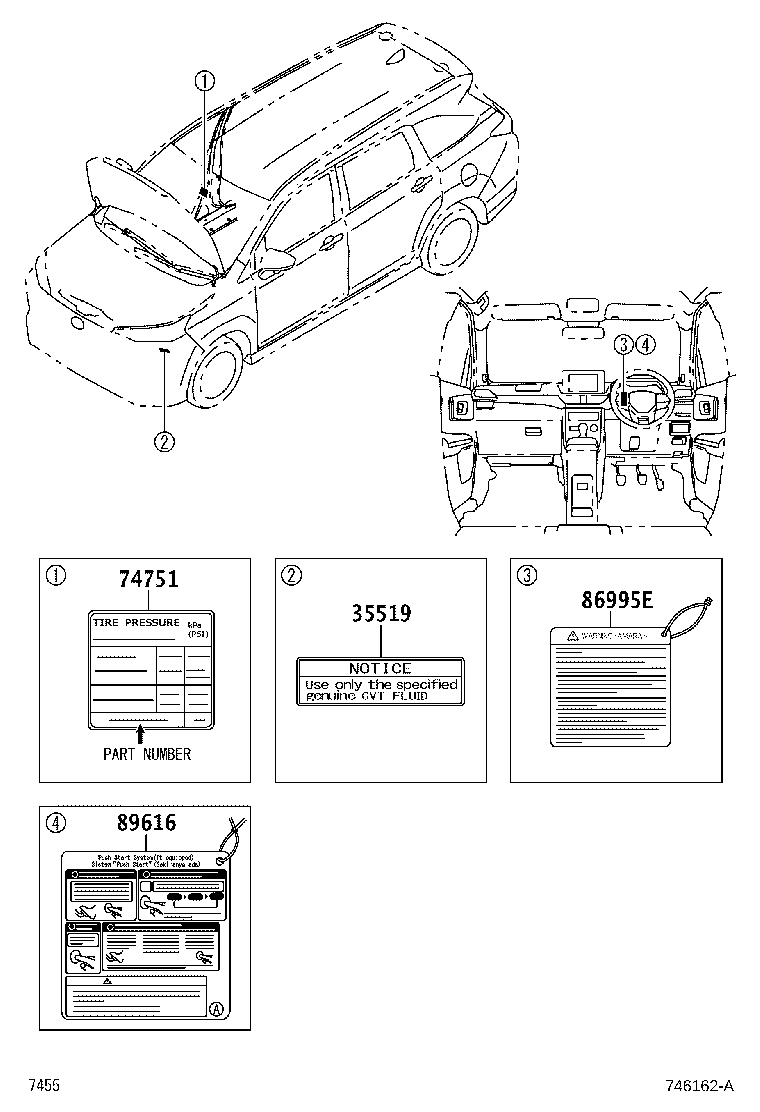

Figure 746161B 746161B 2022-06 → — Figure 746162A 746162A 2022-06 → —

Part groups

PNCDescription
11295B Label, Engine Service Notice, NO.1
16793E Label, Cooling Fan Caution
35519 Plate, Automatic Transmission Caution
74751 Label, Tire Pressure Information
86995E Label, Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
