Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05
Wiring & Clamp
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |

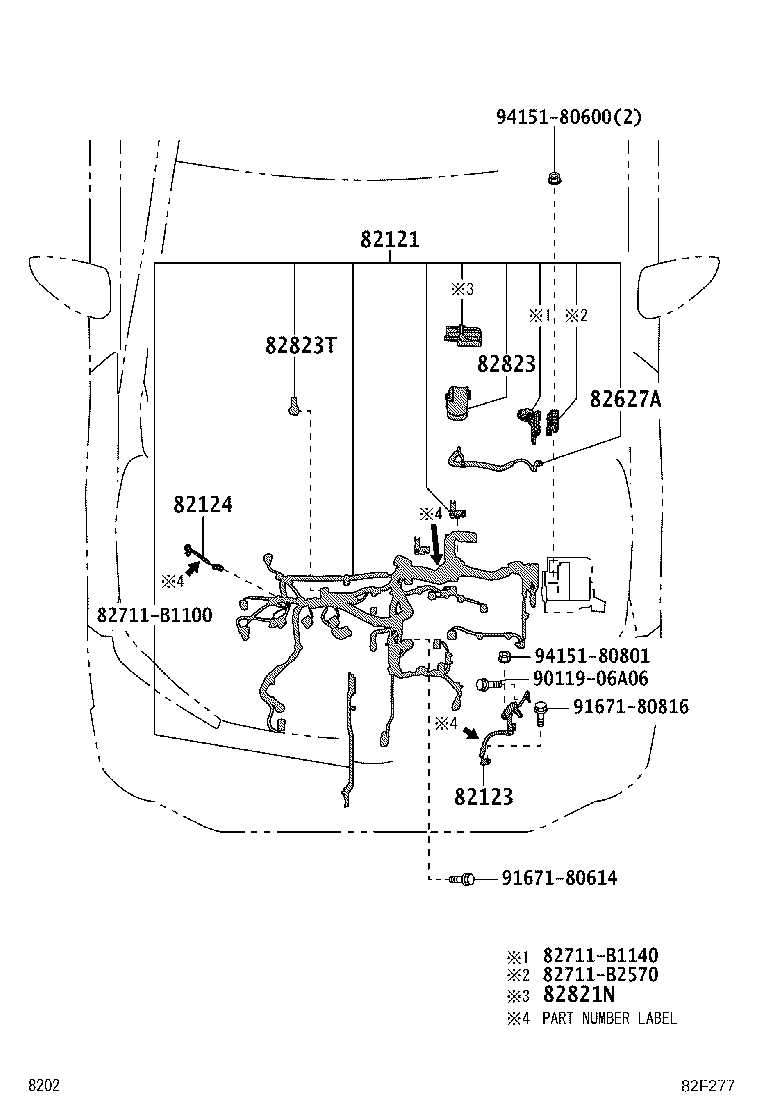

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |

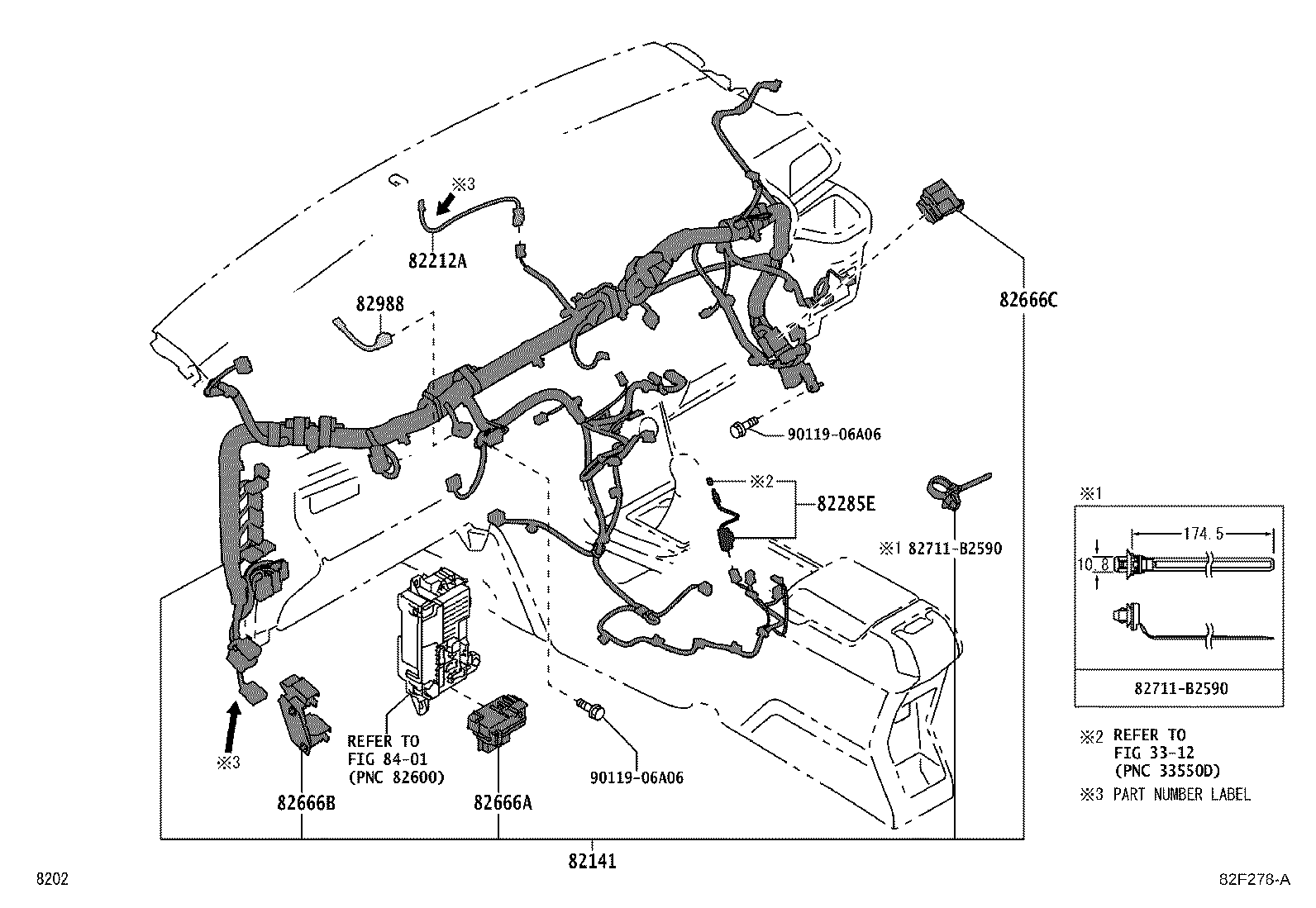

| 82141 | Wire, Instrument Panel |

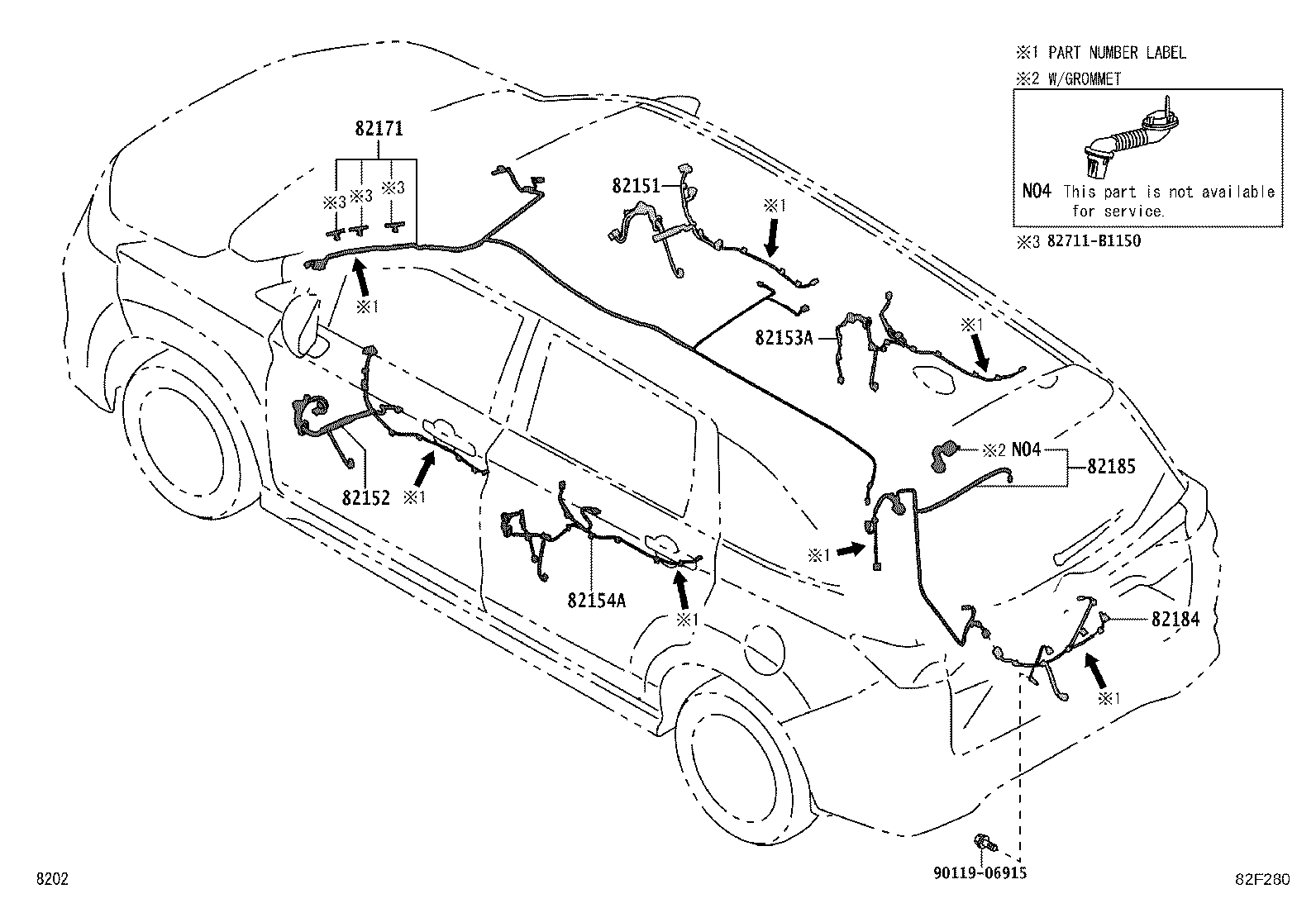

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |

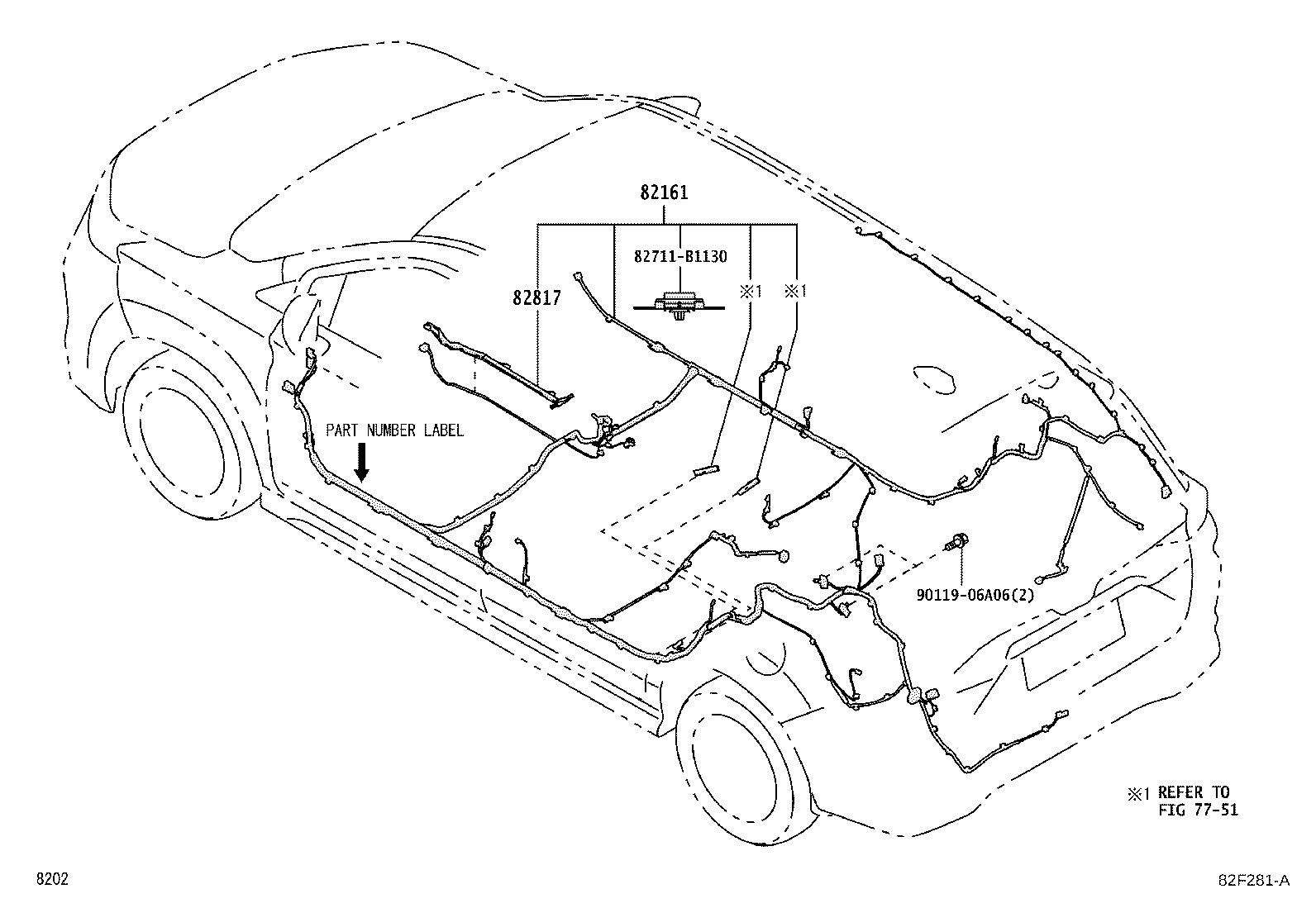

| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82212A | Harness, Air Conditioner |
| 82285E | Wire, Illumination |
| 82627A | Wire, Fusible Link |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82821N | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823T | Cap, Alternator Terminal |
| 82988 | Wire, Airbag Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
