Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05
Switch & Relay & Computer
50 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28850 | Sensor Assy, Battery Current |

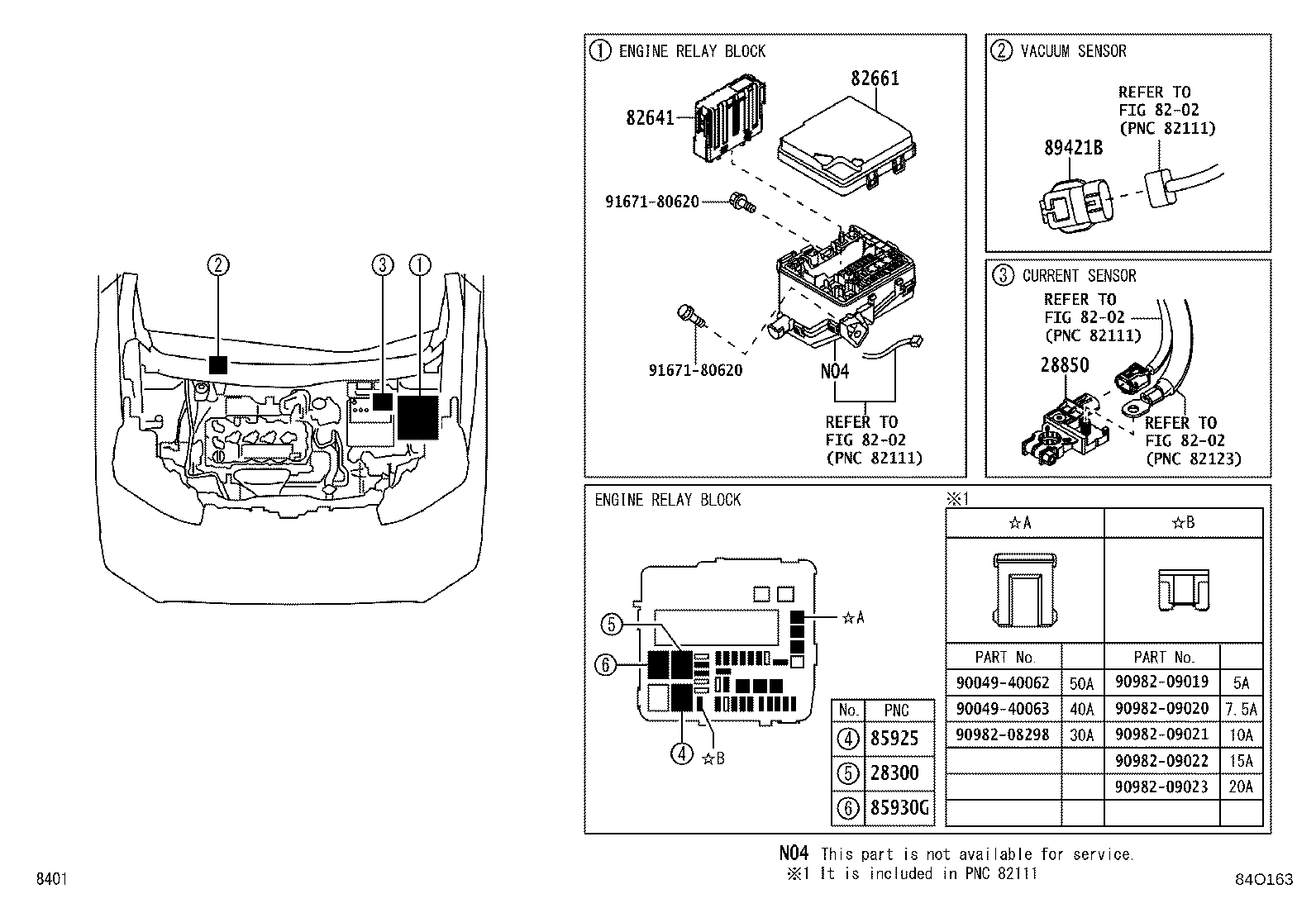

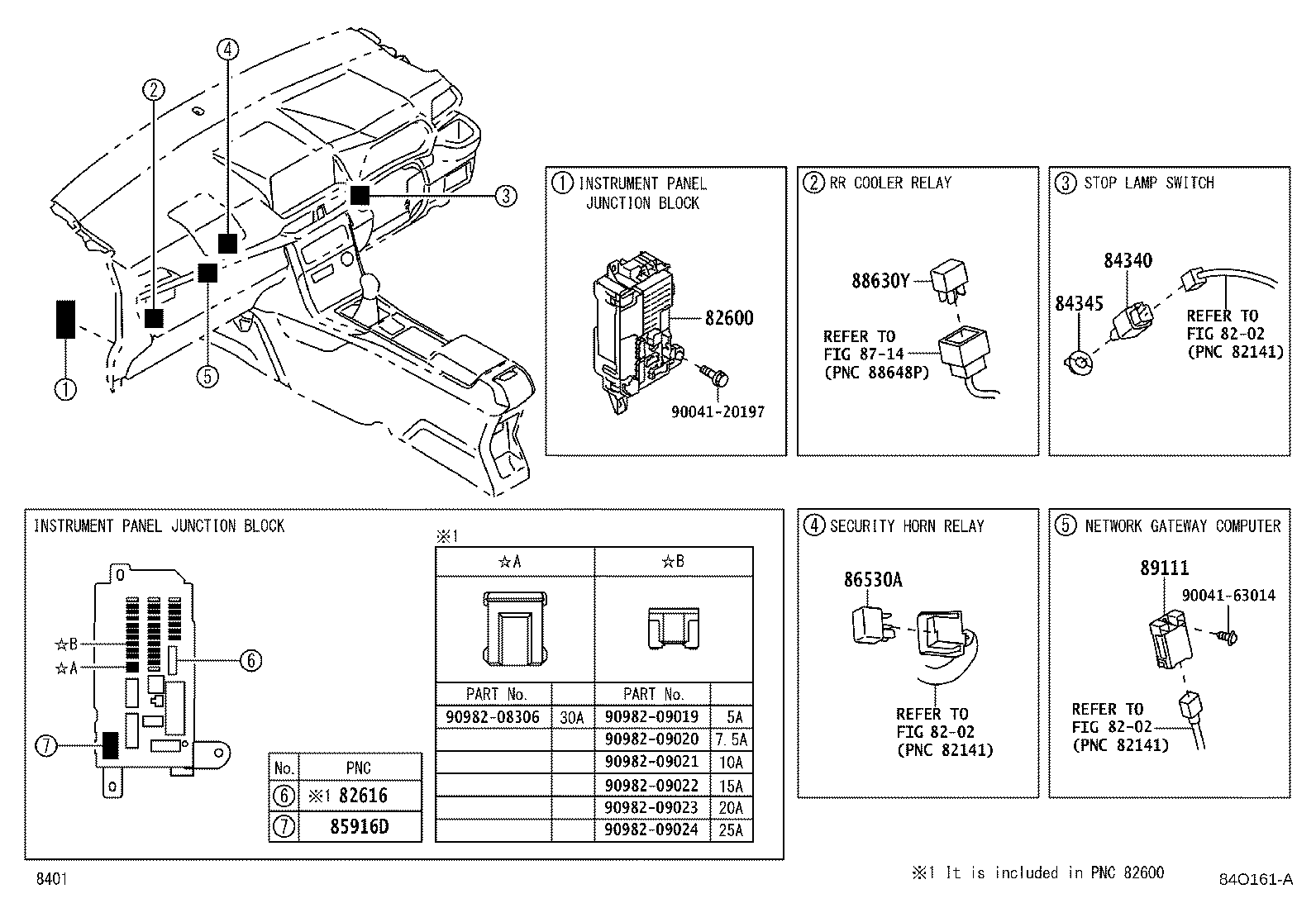

| 82600 | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83950M | Lamp Assy, Telltale |

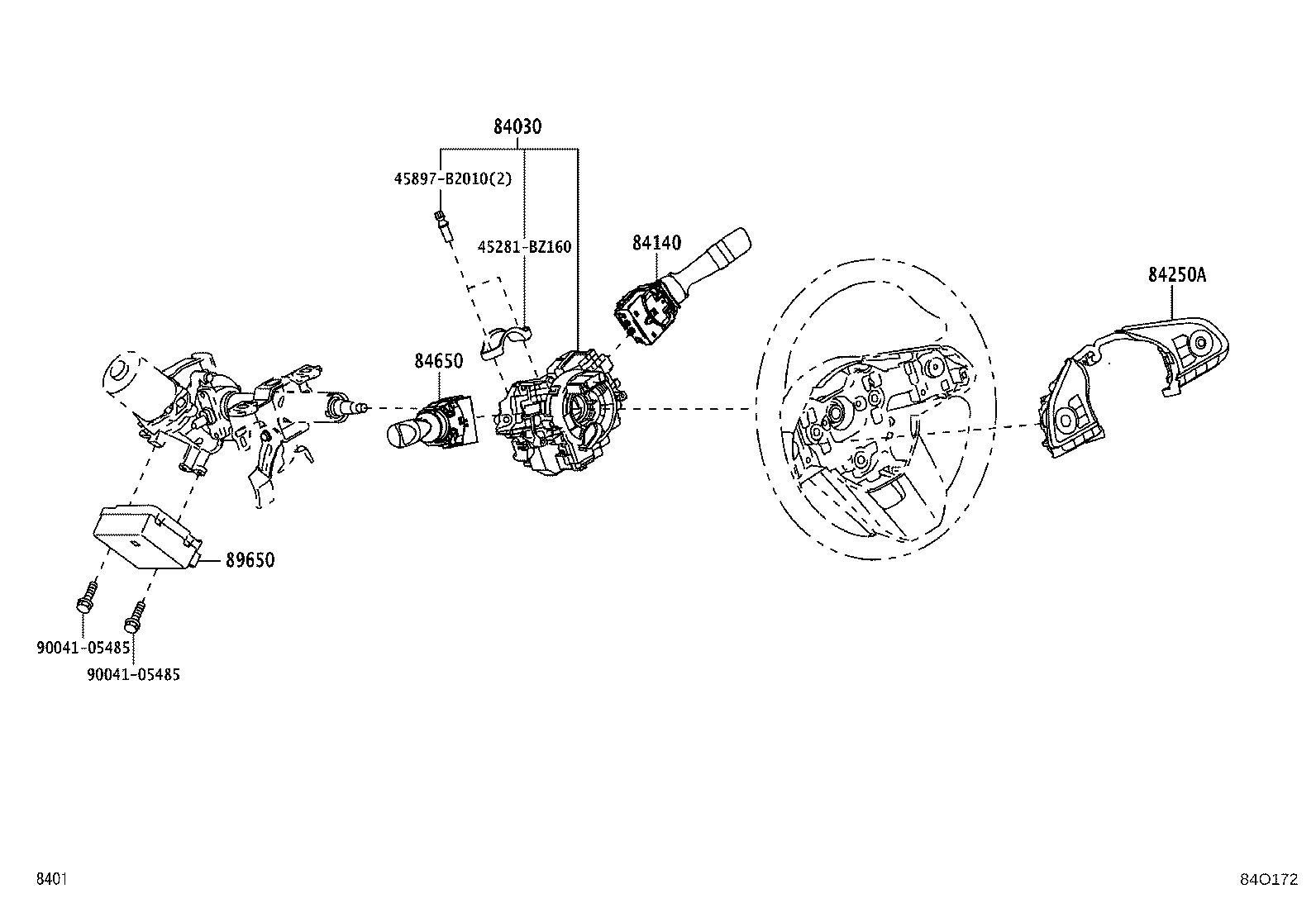

| 84030 | Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84153 | Switch, Auto High Beam |
| 84231A | Switch, Courtesy Lamp |
| 84250A | Switch Assy, Steering Pad |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |

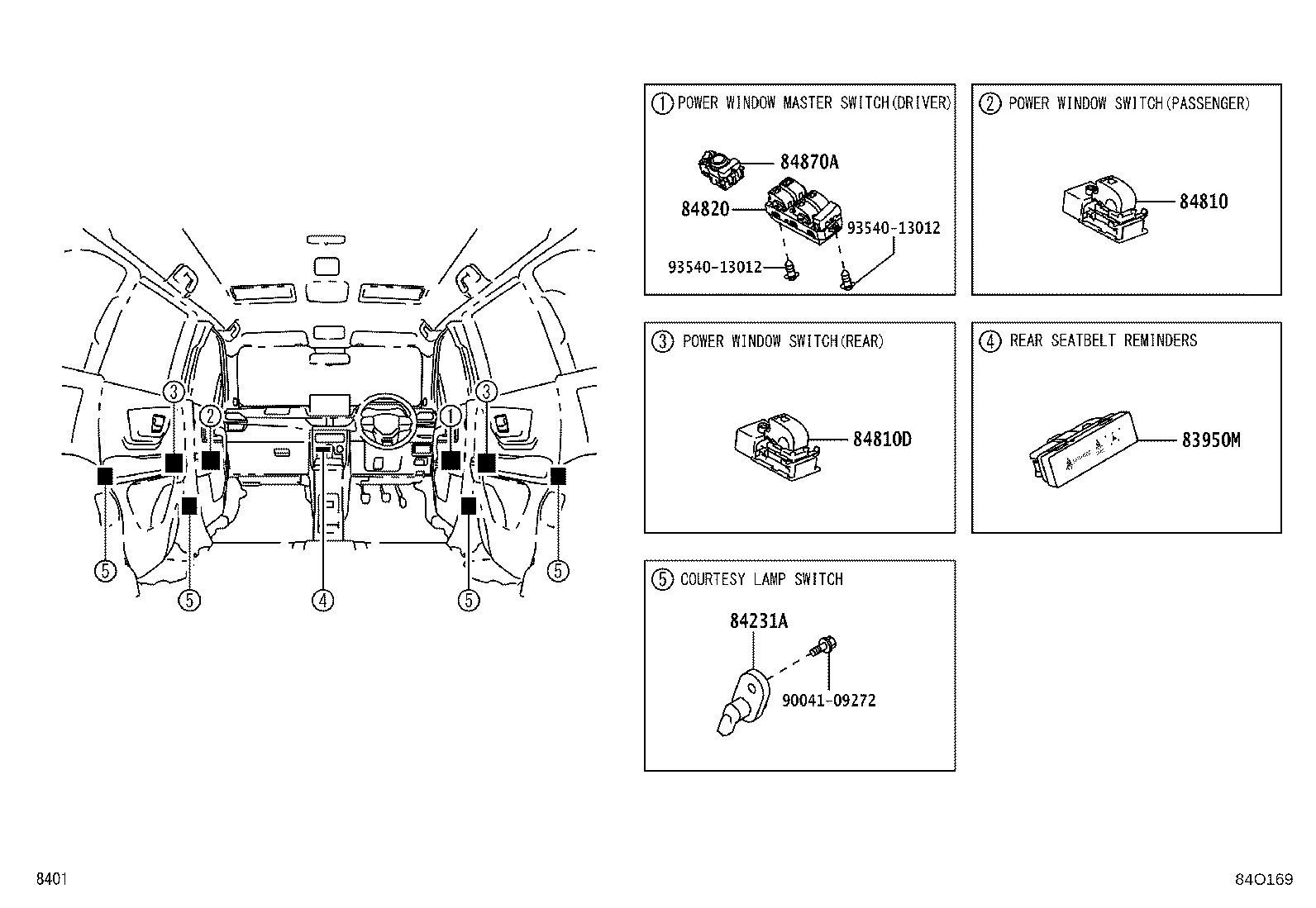

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |

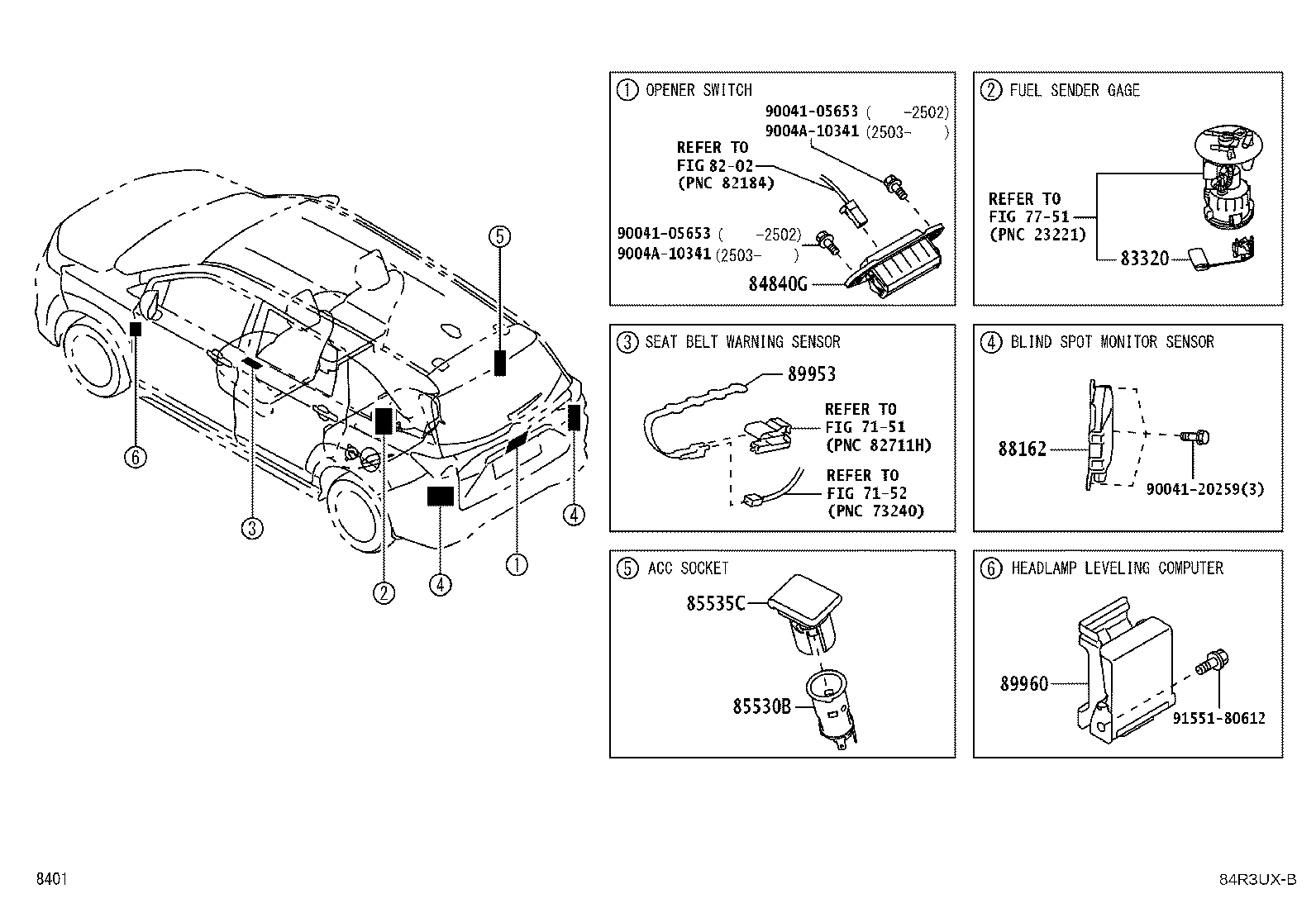

| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |

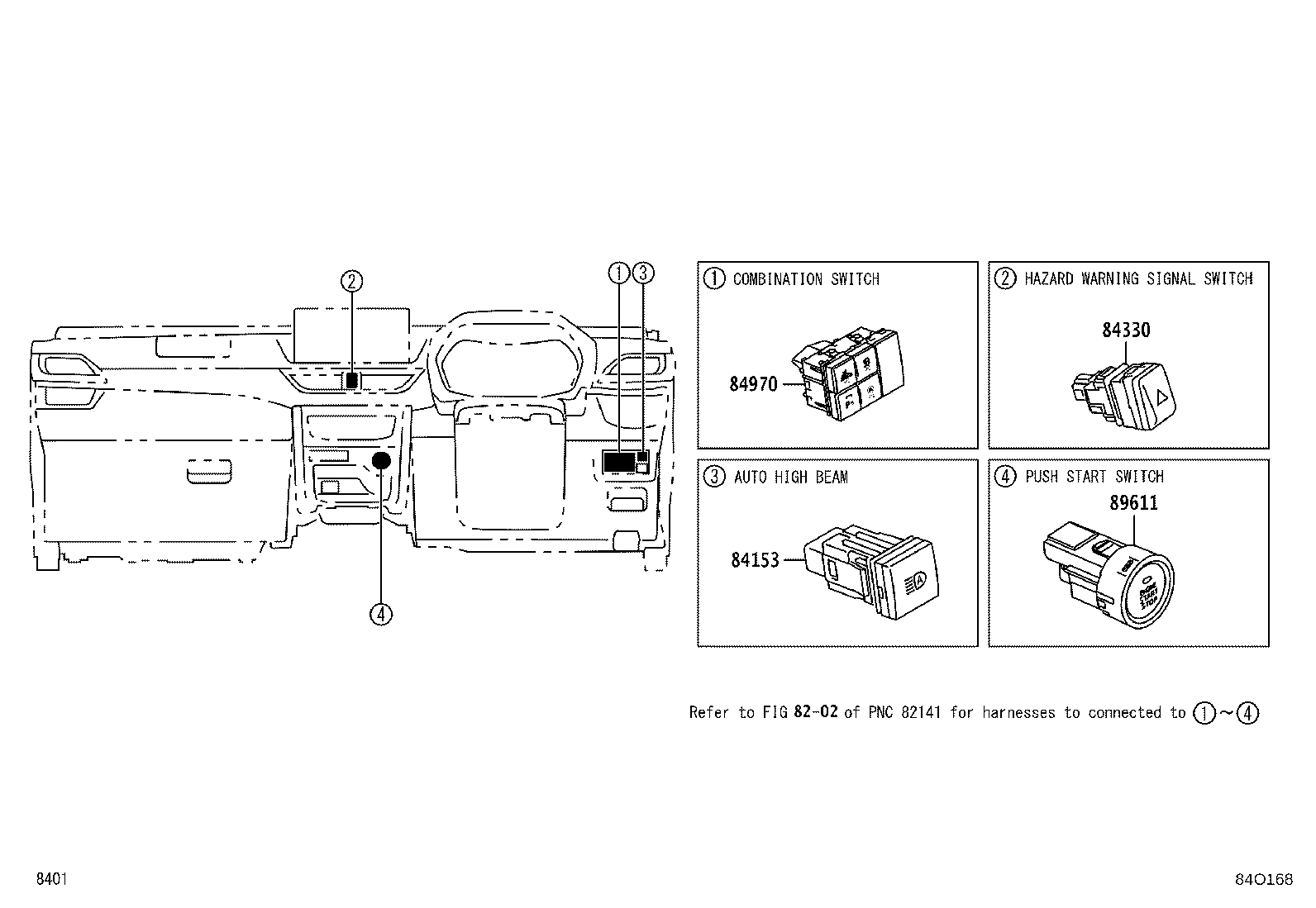

| 84970 | Switch Assy, Combination |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |

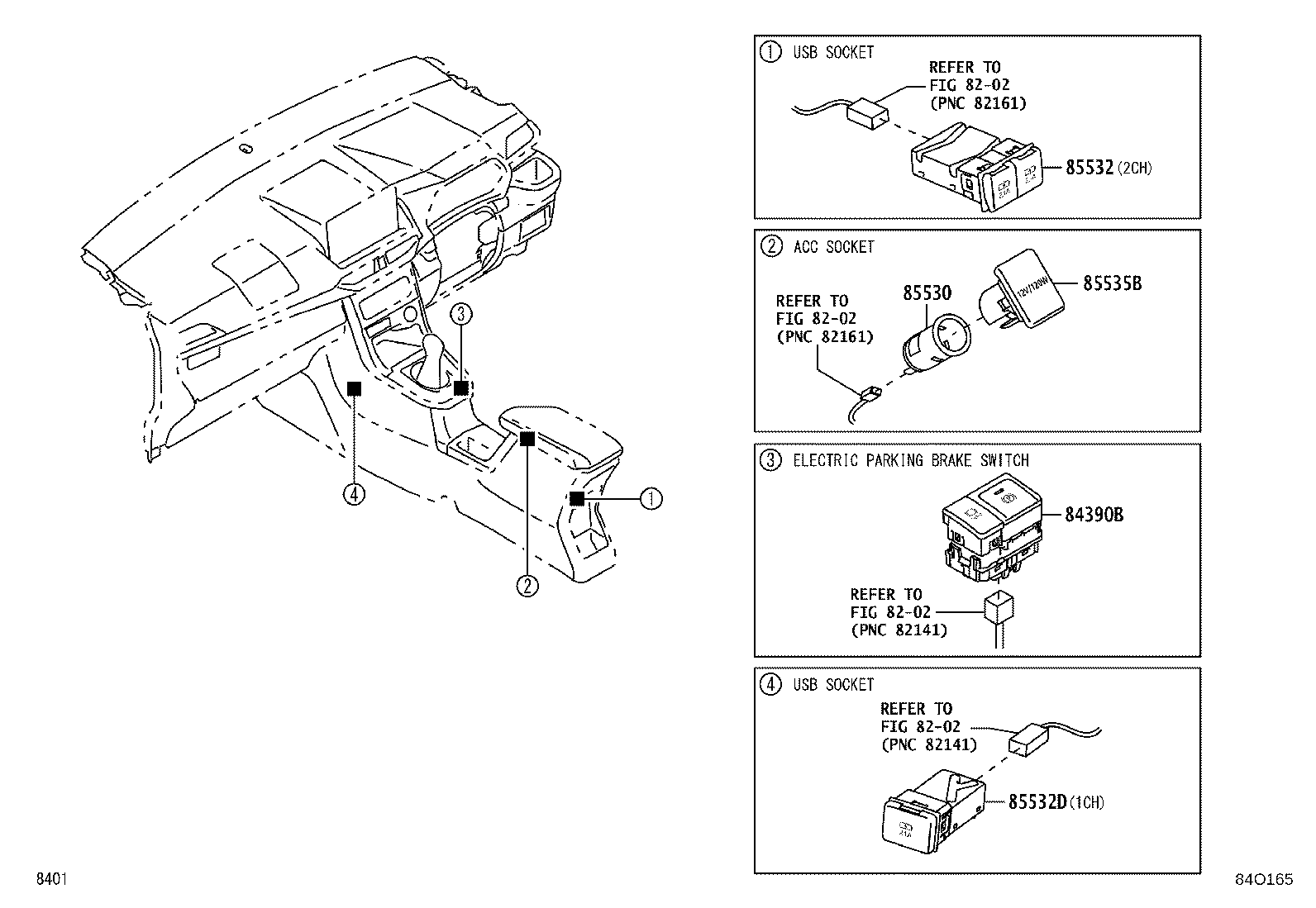

| 85532 | Socket, Usb Charger |
| 85532D | Socket, Usb Charger, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85916D | Relay, Fog Lamp |
| 85925 | Relay, Radiator Fan |
| 85930G | Relay, Acc |
| 86530A | Relay, Horn |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88630Y | Relay, Rear Cooler |
| 89111 | Computer, Network Gateway |
| 89421B | Sensor, Vacuum |
| 89422A | Sensor, Water Temperature |
| 89439 | Bracket, Sensor |
| 89439D | Bracket, Sensor, NO.1 |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89953 | Sensor, Belt Warning Occupant Detection |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
