Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05
Heating & Air Conditioning - Cooler Unit
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

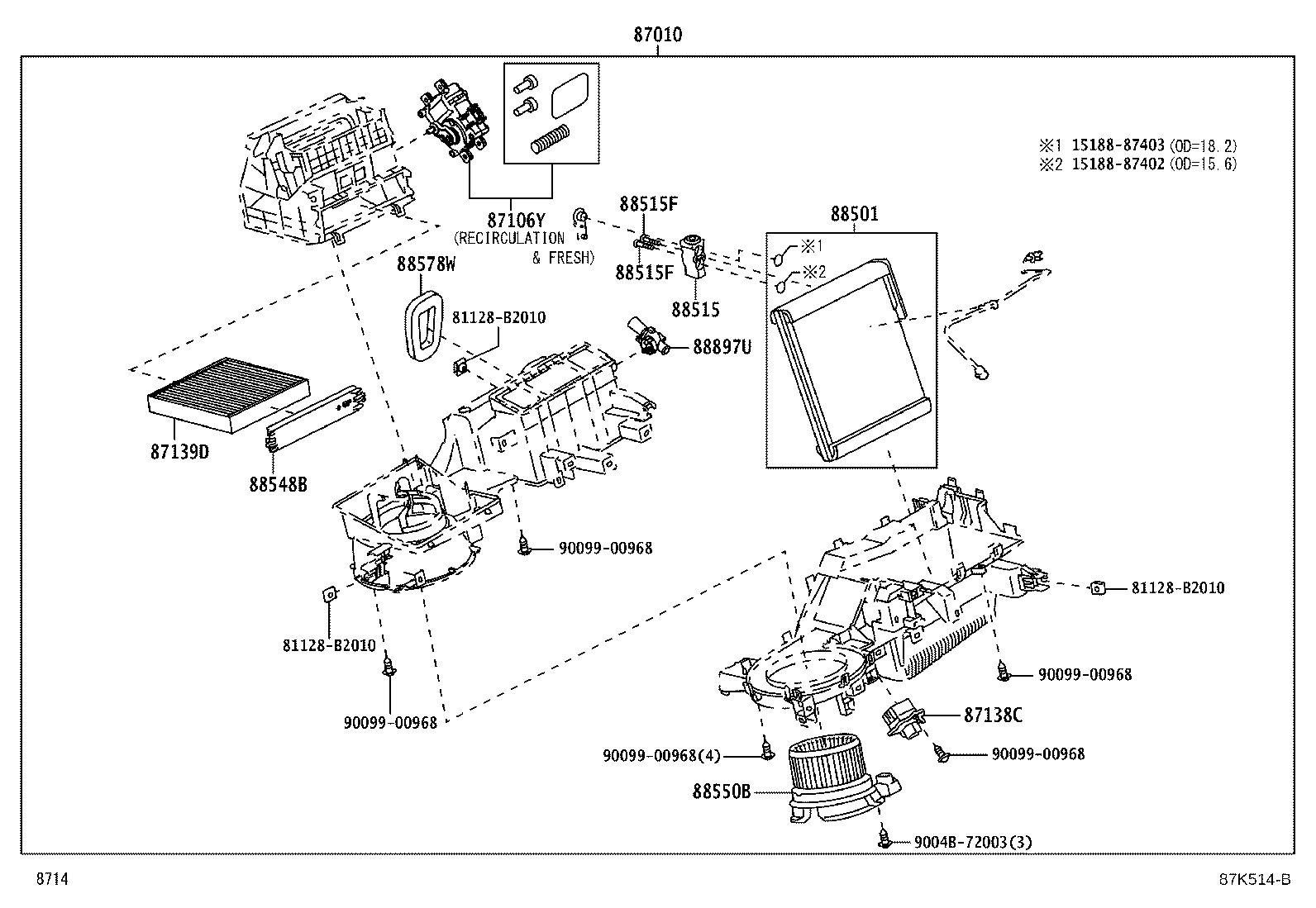

| 87010 | Unit Assy, Air Conditioner |
| 87010B | Screw(FOR AIR CONDITIONER UNIT) |

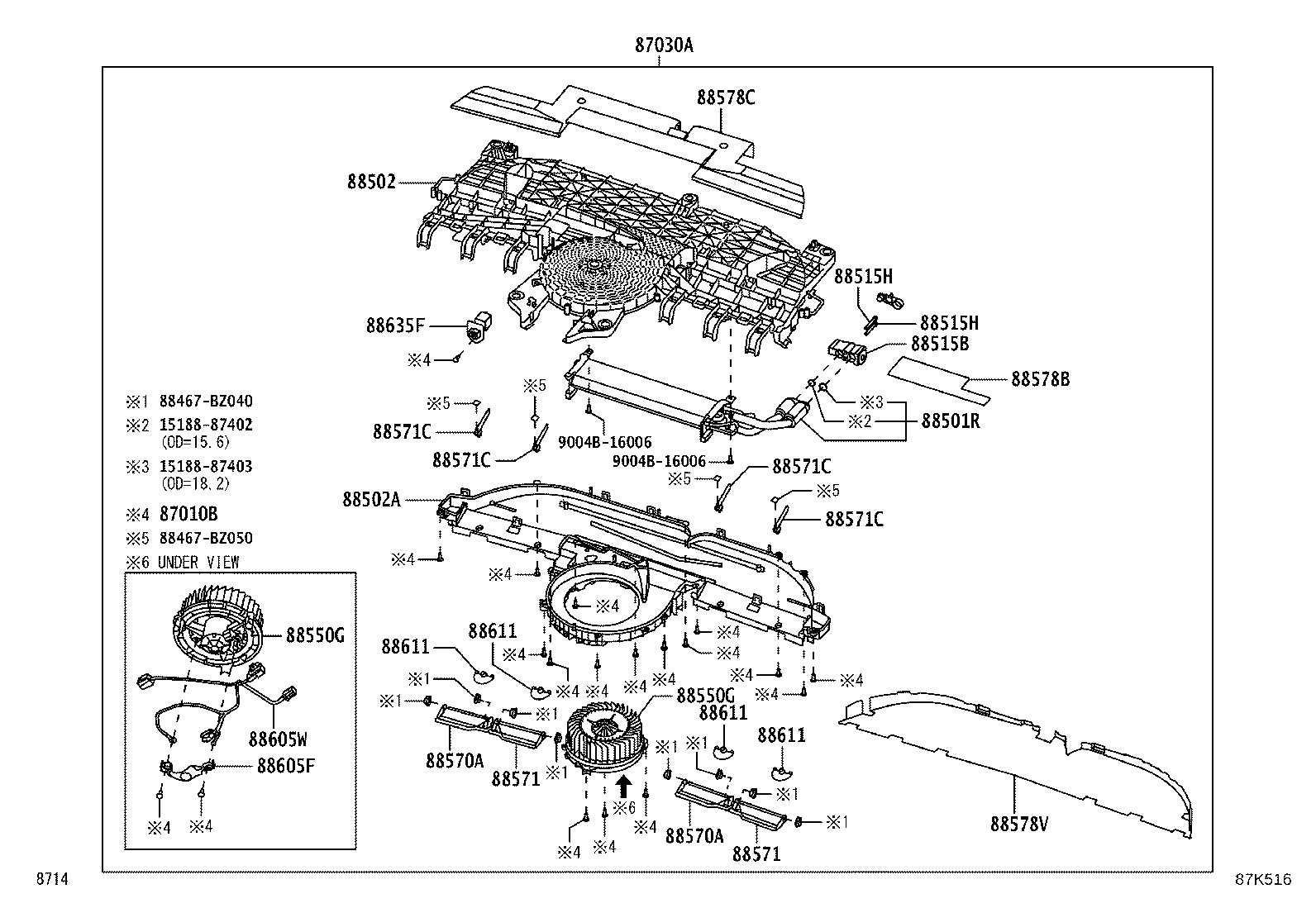

| 87030A | Unit Assy, Cooling, Rear |
| 87106Y | Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) |
| 87138C | Resistor, Blower |
| 87139D | Element, Air Refiner |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88502 | Case Sub-assy, Cooling Unit |
| 88502A | Case Sub-assy, Cooling Unit |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88515H | Bolt(FOR REAR COOLER EXPANSION VALVE) |

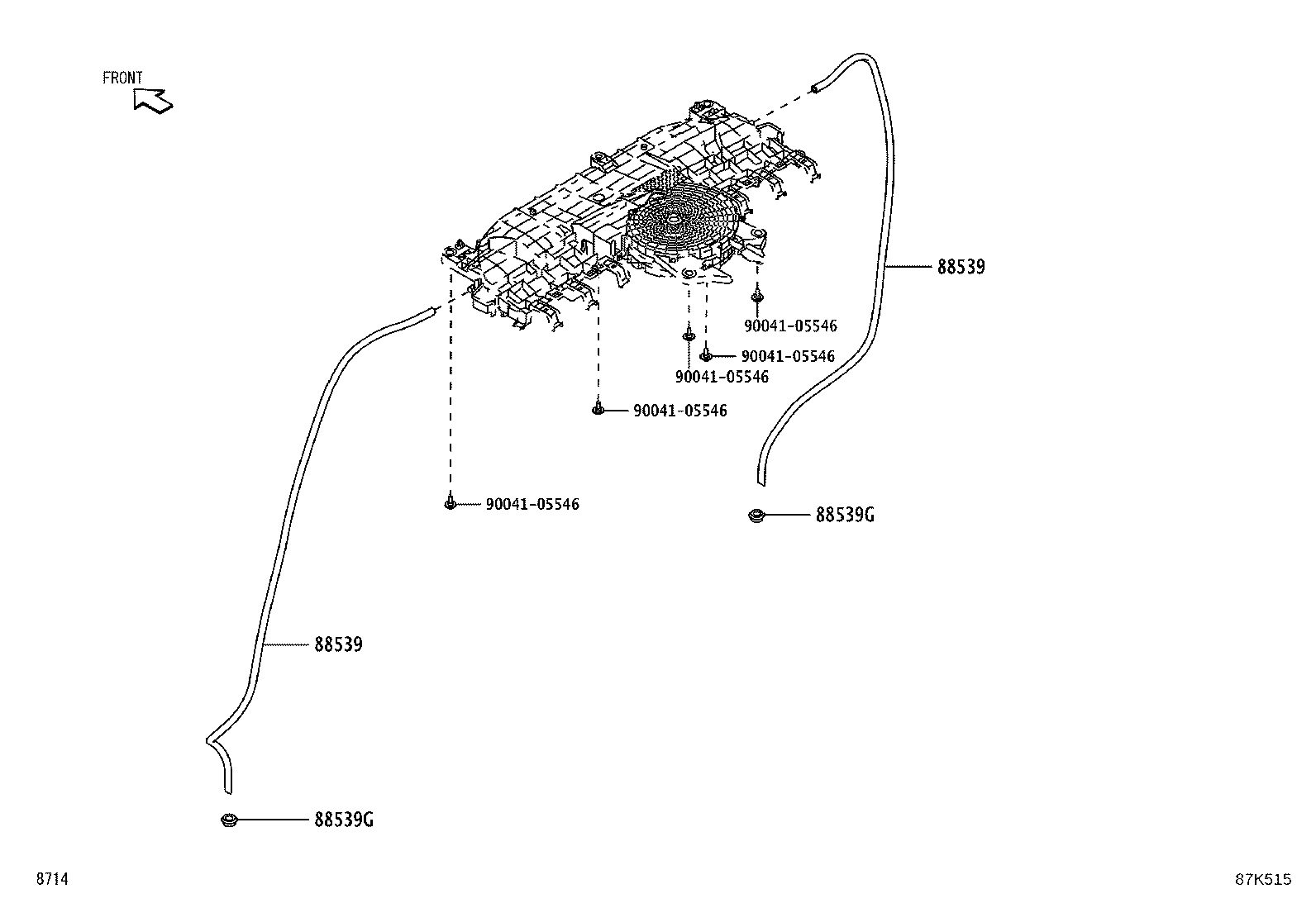

| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88550B | Motor Assy, Blower |
| 88550G | Motor Assy, Blower, Rear |
| 88569F | Clamp |
| 88570A | Grille Assy, Air Outlet |
| 88571 | Grille, Air Outlet |
| 88571C | Grille, Cooler Air Outlet |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88578W | Packing, Cooling Unit, NO.4 |
| 88605F | Fuse(FOR COOLER WIRING HARNESS) |
| 88605W | Harness Sub-assy, Wiring Air Conditioner |
| 88611 | Knob, Cooler Control Switch |
| 88635F | Resister, Cooler Blower |
| 88648P | Wire,Air Conditioner,NO.1 |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
