Toyota Veloz
2022-06 → present · chassis W151 · catalogue 618210 · General
Supported model
Data version 2022-05
Heating & Air Conditioning - Control & Air Duct
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

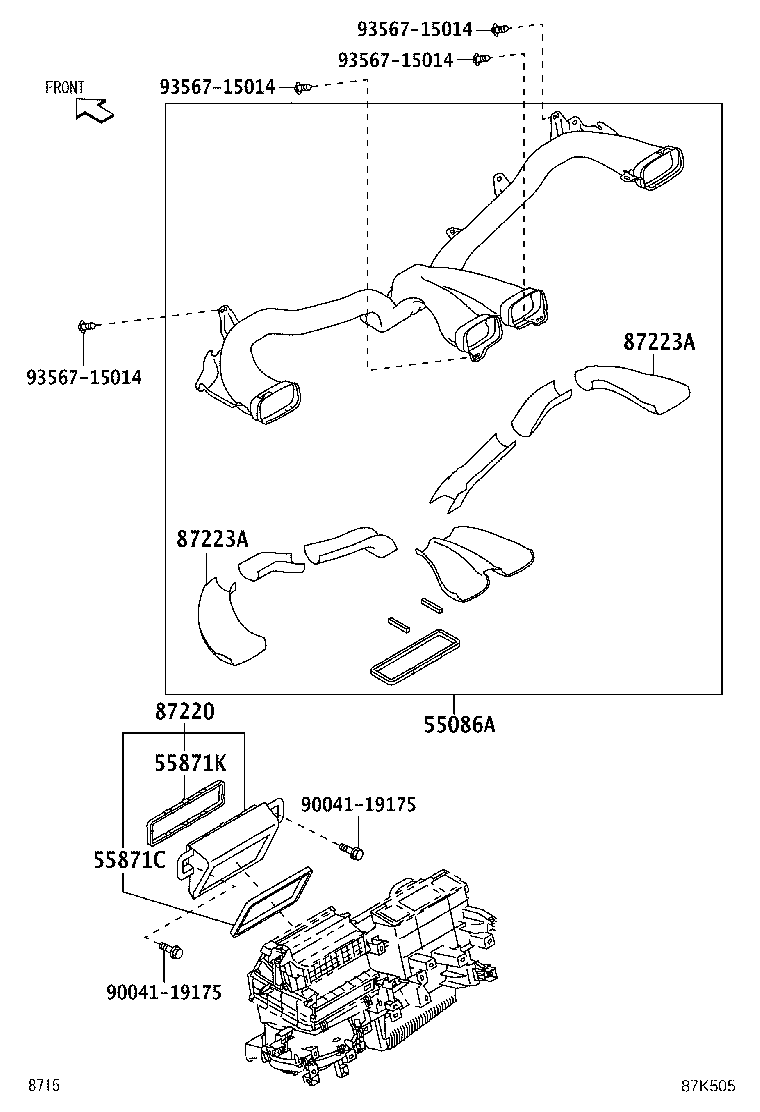

| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55871C | Seal, Air Duct |
| 55871K | Seal, Air Duct |
| 55910R | Control Assy, Heater |
| 84732H | Switch, Heater Blower |
| 87220 | Duct Assy, Air |
| 87223A | Pad, Air Duct |
| 87441B | Filter, Heater Air |
| 88568A | Filter, Air |
| 88611D | Knob, Cooler Control |

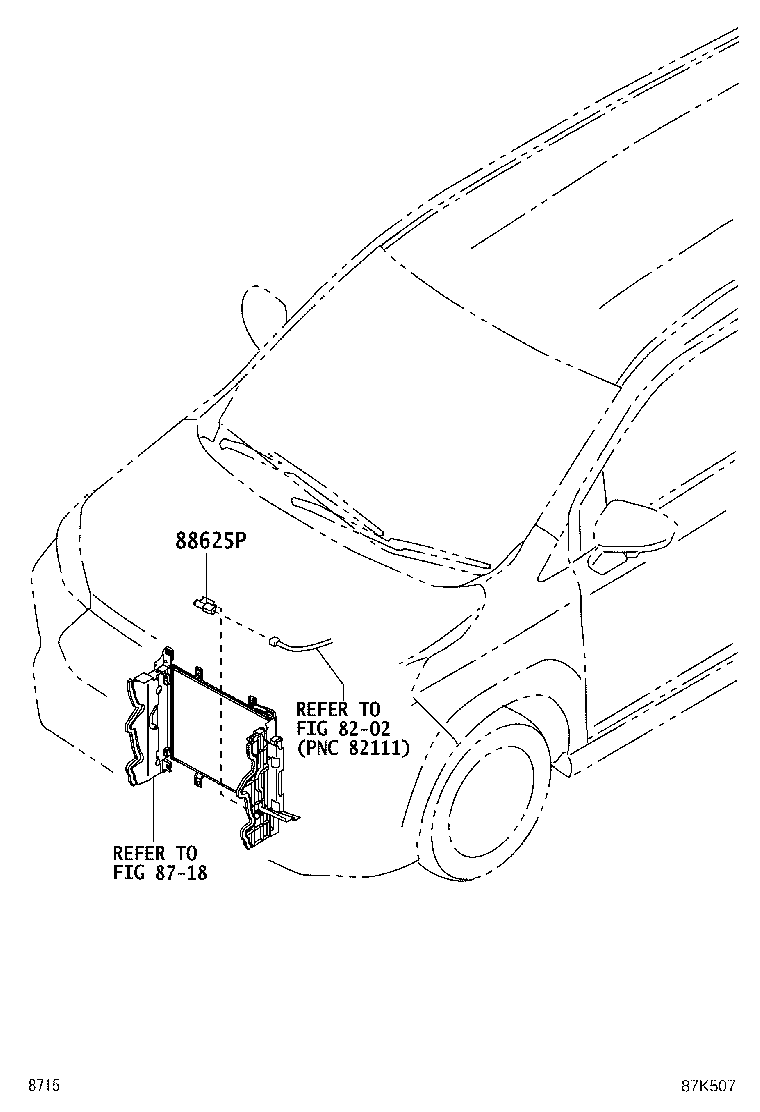

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88897A | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
