Toyota Sienna
2011-09 → 2020-09 · chassis ASL30,GSL3# · catalogue 622330 · General
Supported model
Data version 2020-09

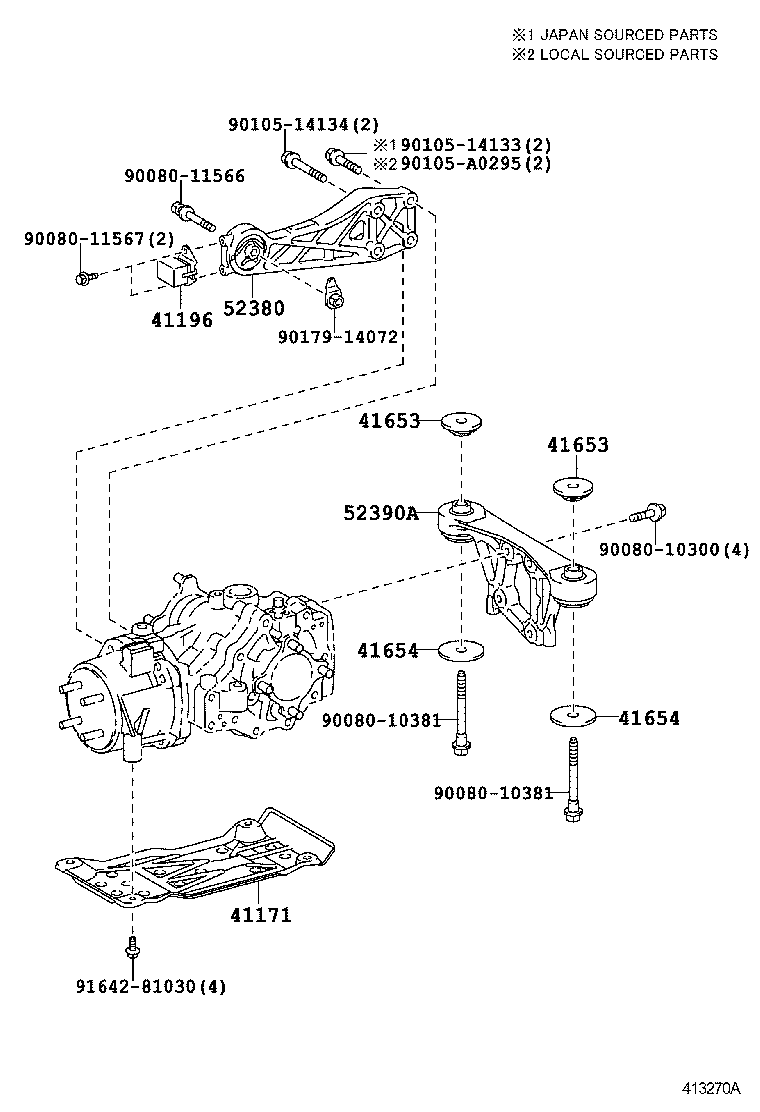

Rear Axle Housing & Differential
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41101E | Bolt (FOR REAR DIFFERENTIAL CARRIER) |
| 41108C | Plug, Breather (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41110J | Gasket (FOR REAR DIFFERENTIAL FILLER PLUG) |
| 41110X | Plug (FOR DIFFERENTIAL INSPECTION) |
| 41171 | Protector, Differential, Rear |
| 41183 | Deflector, Rear Differential Breather Plug Oil |
| 41196 | Damper, Rear Differential Dynamic |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41303 | Coupling Sub-assy, Electro Magnetic Control |
| 41309A | Shaft Sub-assy, Rear Differential Side Gear |
| 41309C | Bolt (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41330E | Washer, Conical Spring (FOR TRANSMISSION COUPLING) |
| 41330H | Spacer (FOR TRANSMISSION COUPLING) |
| 41334B | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334C | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334D | Ring, Shaft Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41336 | Cover, Dust(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41338 | Bracket, Connector Clamp |
| 41410D | Seal, Oil Diaphragm |
| 41653 | Stopper, Rear Differential Mount, Upper |
| 41654 | Stopper, Rear Differential Mount, Lower |
| 52380 | Support, Rear Differential, NO.1 |
| 52390A | Support Assy, Differential, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
