Toyota Sienna

2011-09 → 2020-09 · chassis ASL30,GSL3# · catalogue 622330 · General

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

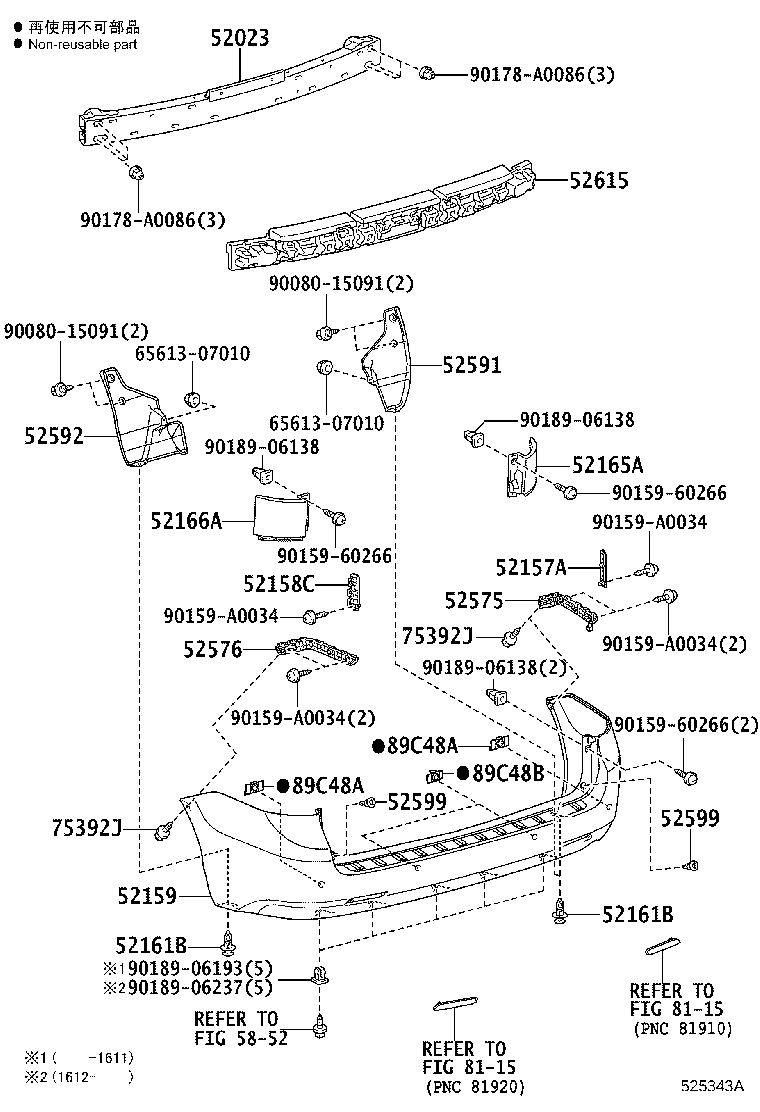

Figure 522217I 522217I 2011-09 → 2017-11 Figure 525343A 525343A 2017-11 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52615 Absorber, Rear Bumper Energy
75392J Retainer, Outside Moulding
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
