Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure 533556B

533556B 2011-09 → 2017-11

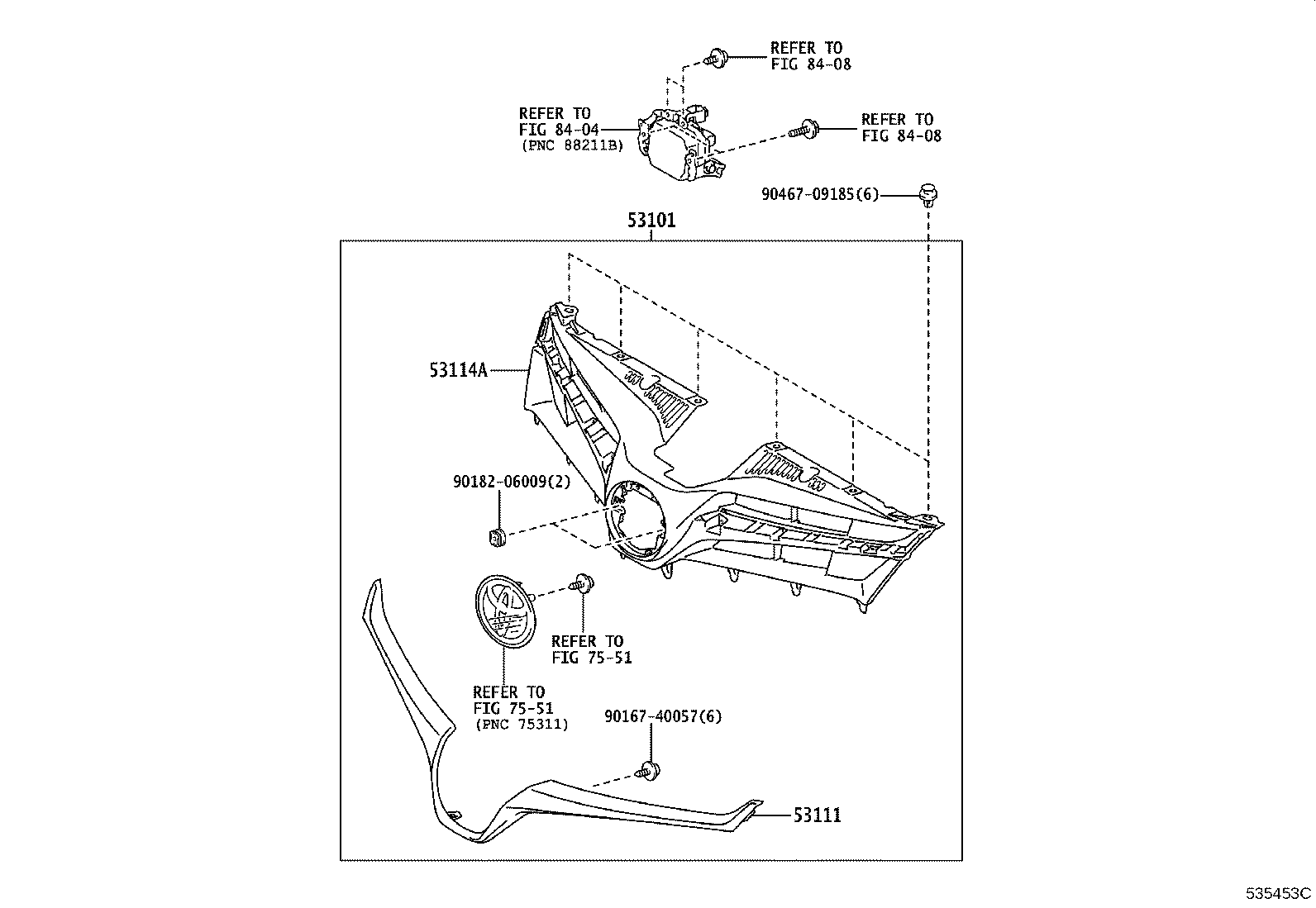

Figure 535453C

535453C 2017-11 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53111	Grille, Radiator
53114A	Grille, Radiator, Inner
53114B	Grille, Radiator, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
