Toyota Sienna

2011-09 → 2020-09 · chassis ASL30,GSL3# · catalogue 622330 · General

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

218 part groups · 17 illustrations

Illustrations

716653G 2011-09 → —

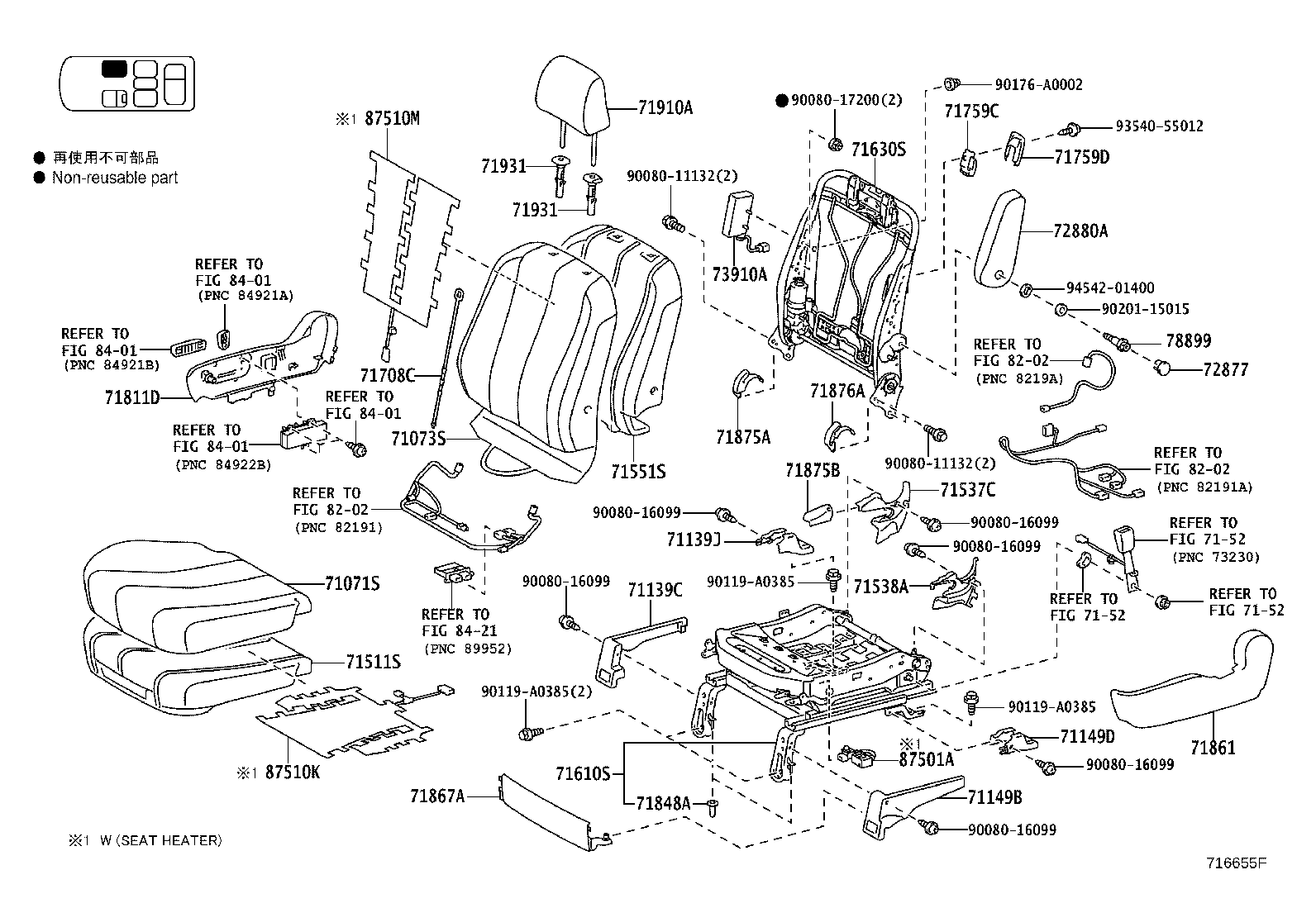

716655F 2011-09 → 2014-09

716642K 2011-09 → 2014-09

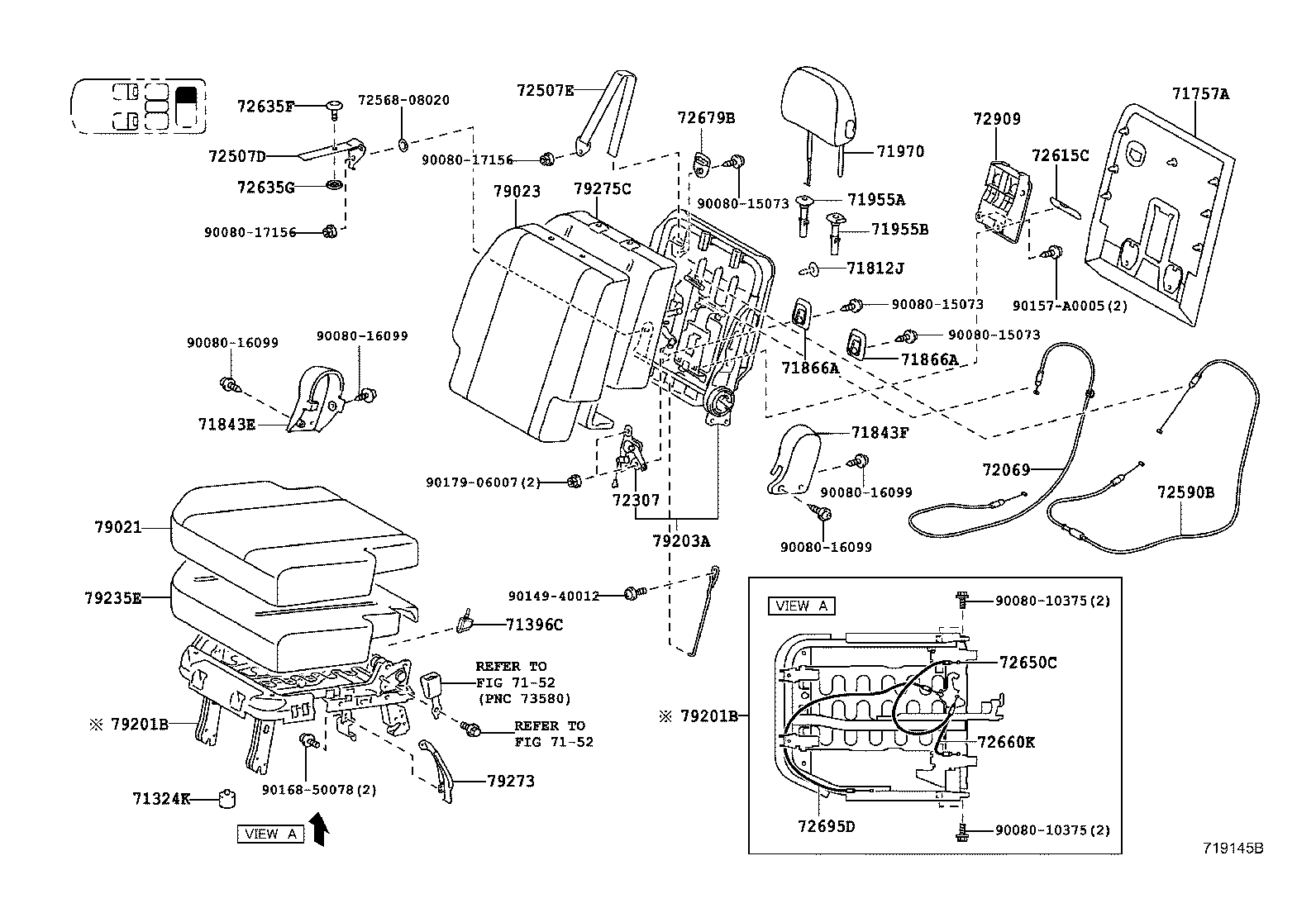

719145B 2014-09 → —

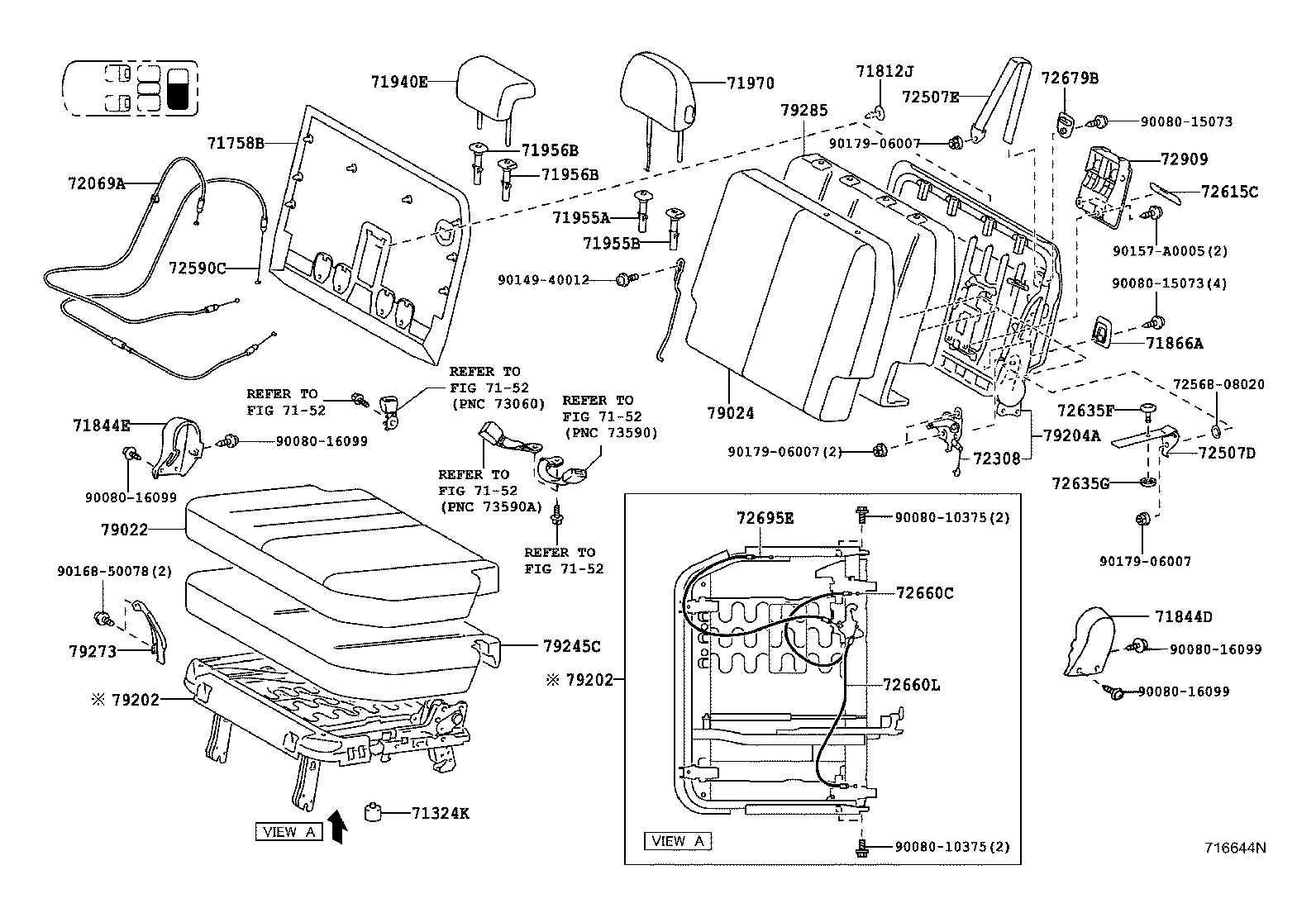

716644N 2011-09 → 2014-09

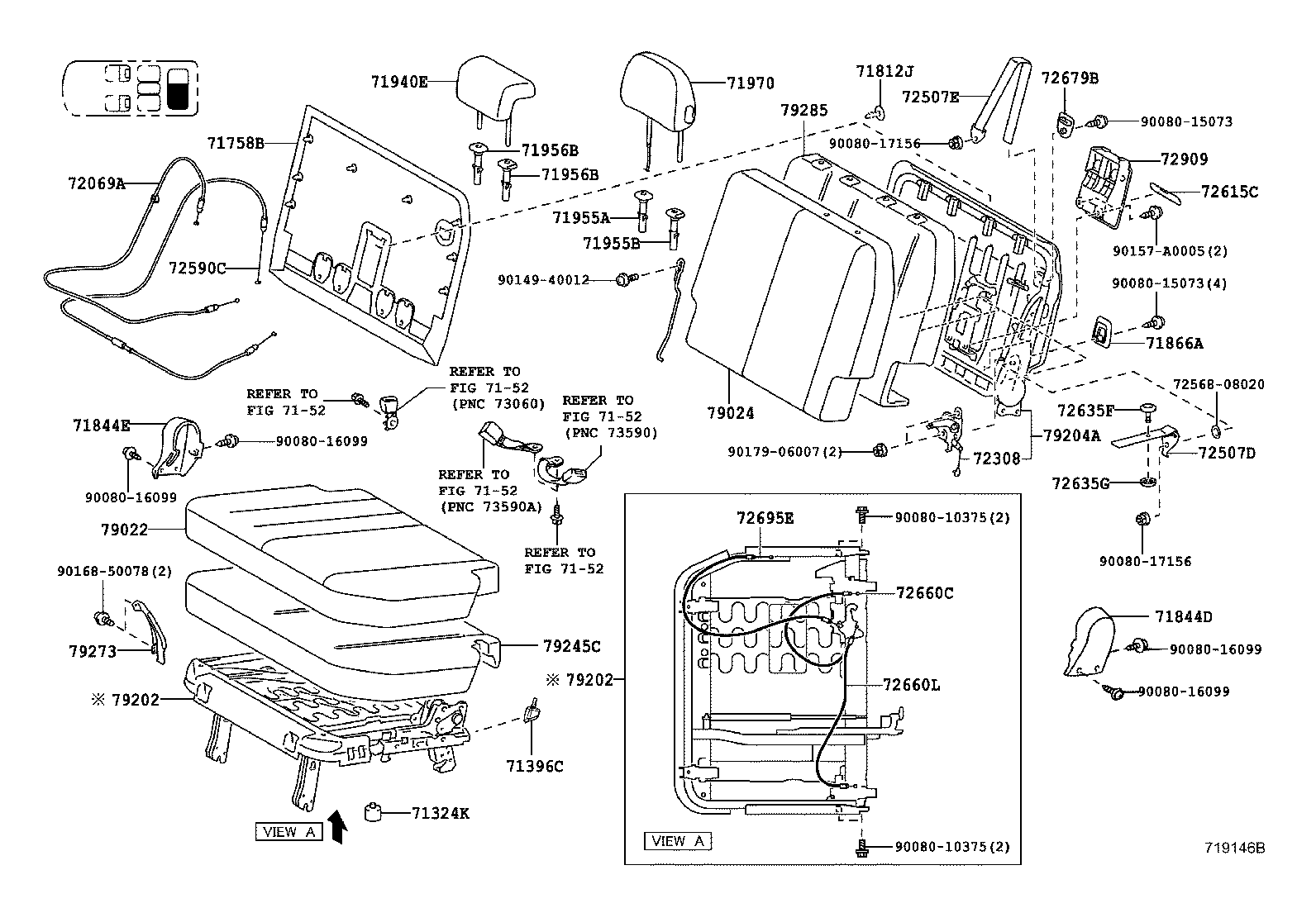

719146B 2014-09 → —

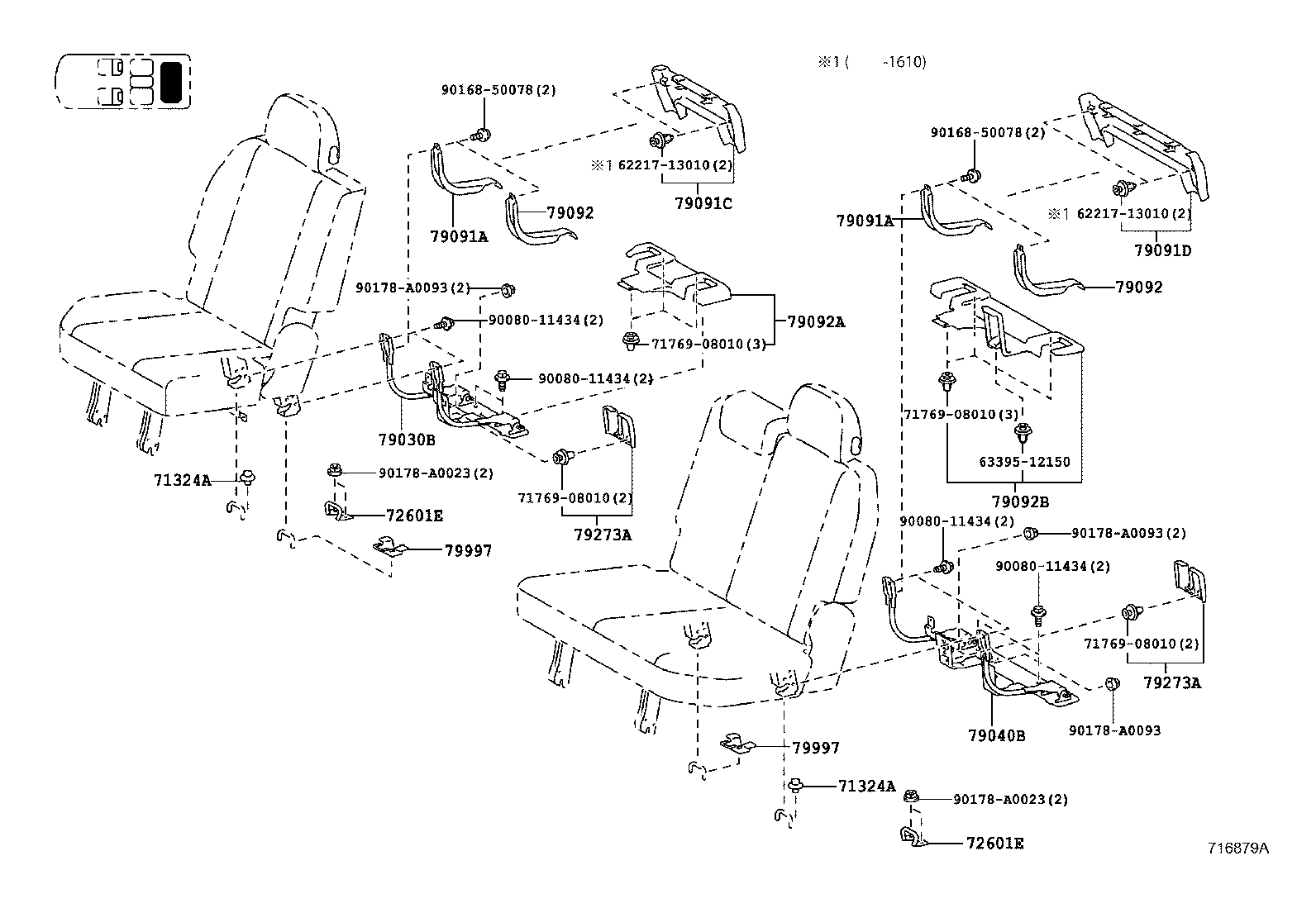

716879A 2011-09 → —

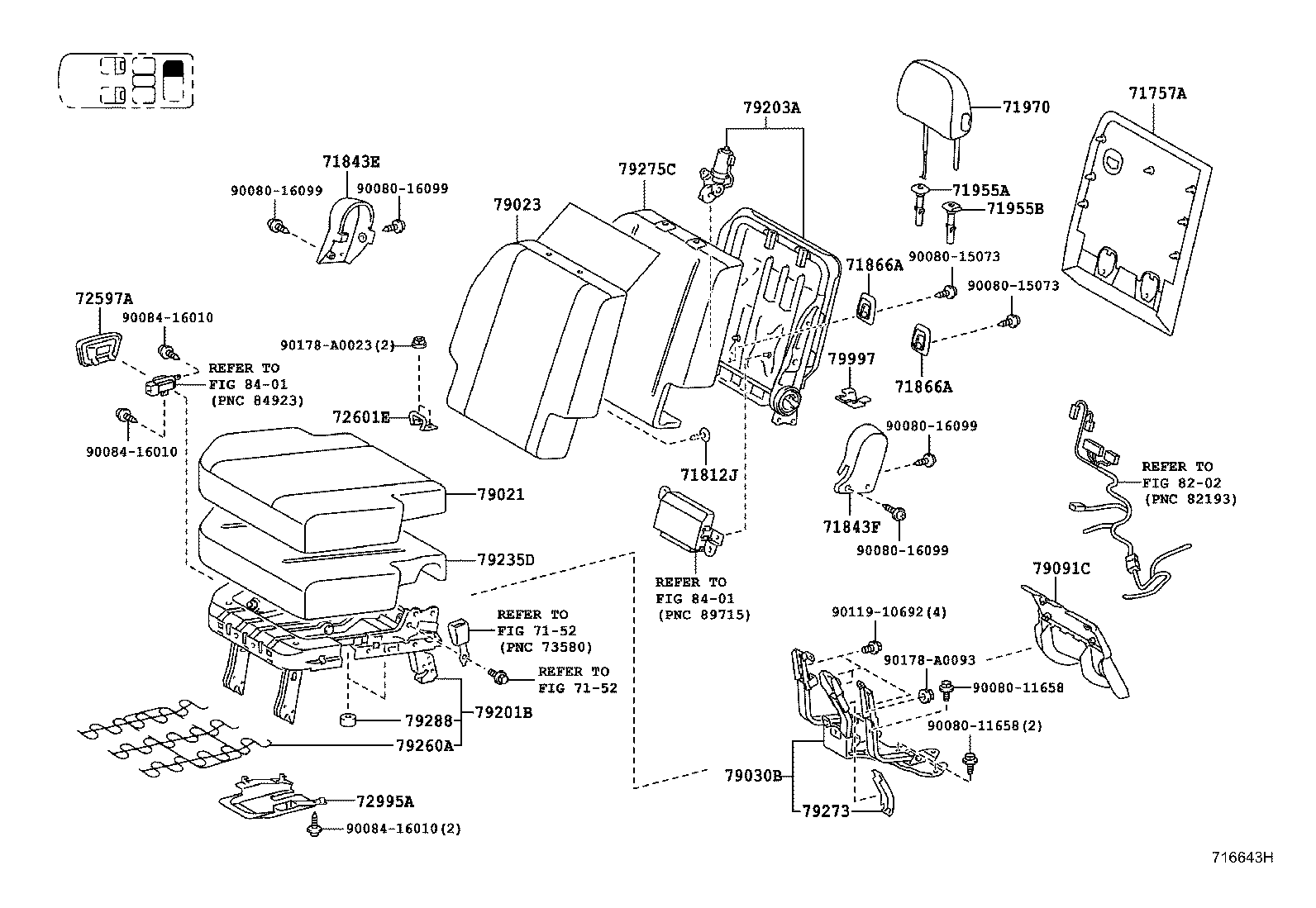

716643H 2011-09 → 2013-08

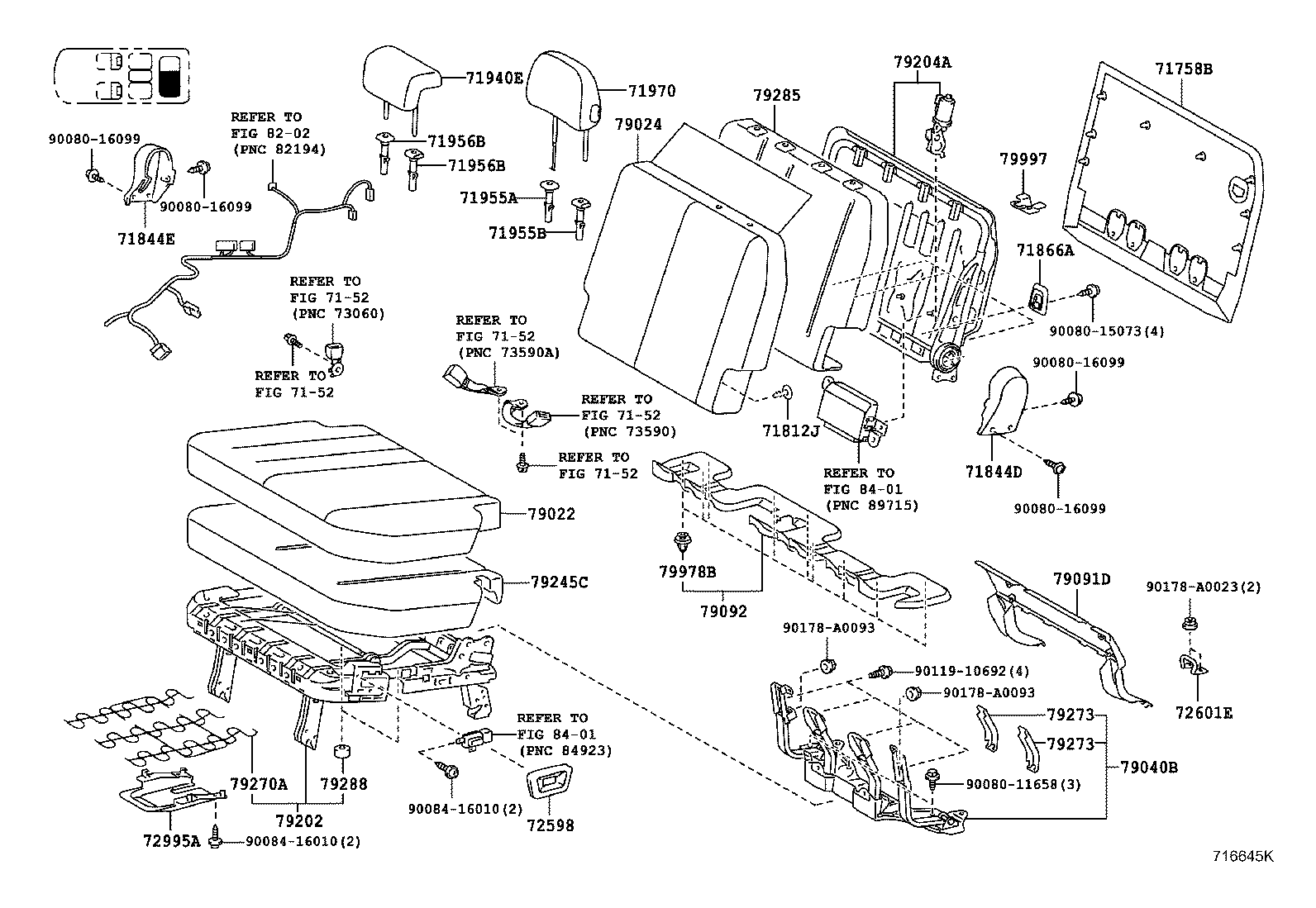

716645K 2011-09 → 2013-08

718467B 2013-08 → —

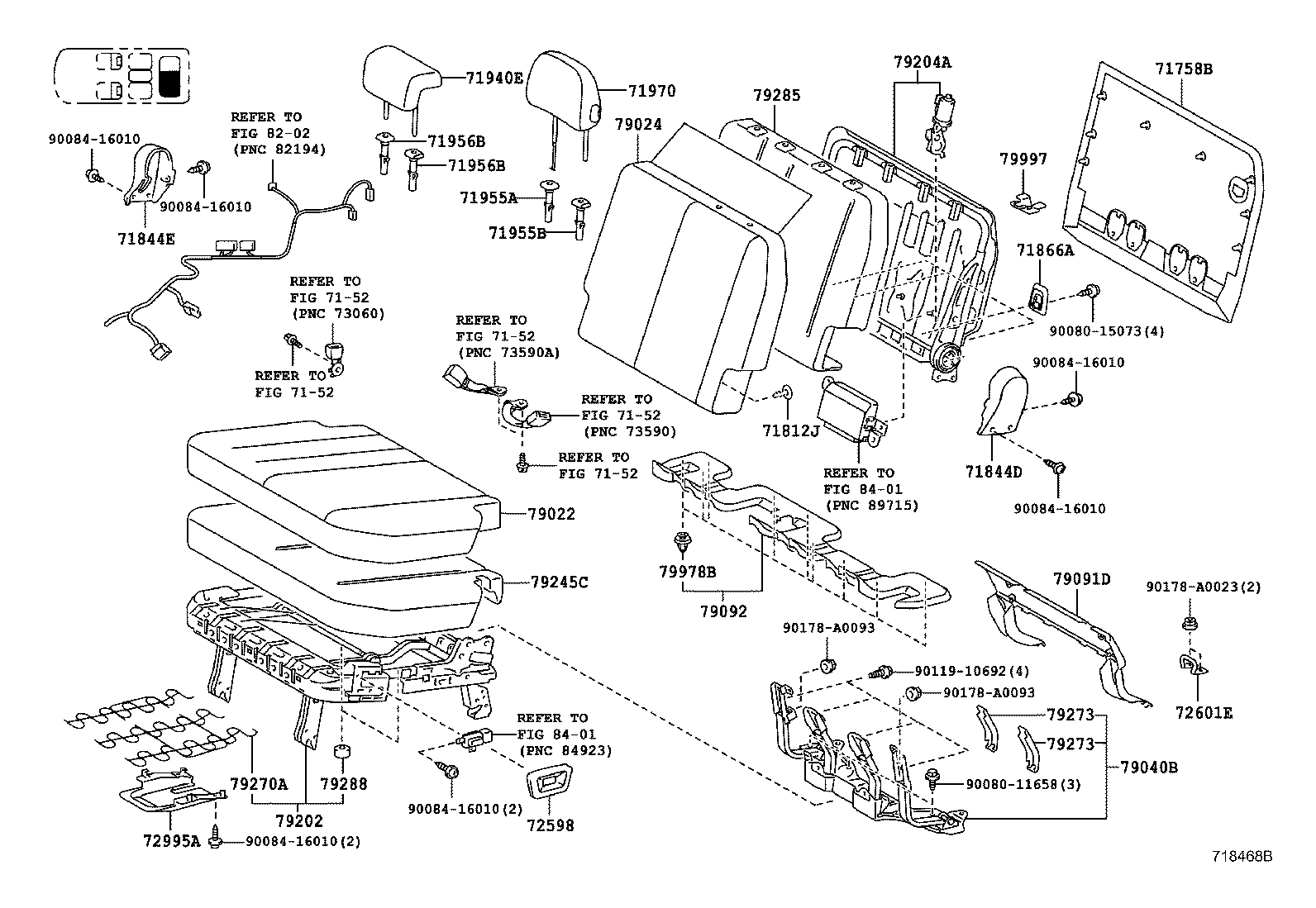

718468B 2013-08 → —

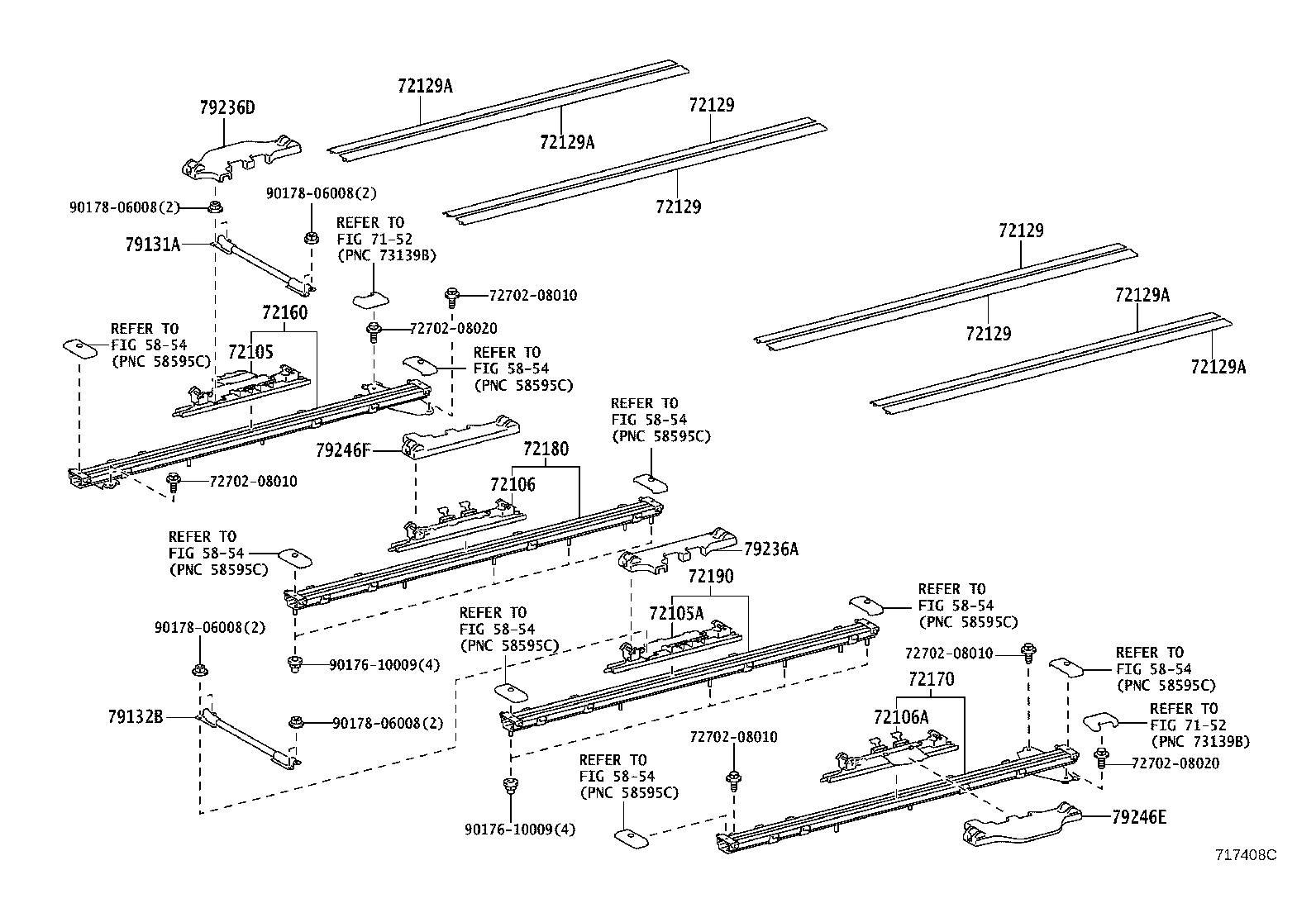

717408C 2011-09 → —

Part groups

PNC	Description
71033	Leg Sub-assy, Rear Seat Cushion
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71139C	Cover, Front Seat Leg, RH
71139G	Cover, Front Seat Leg
71139J	Cover, Front Seat Leg, RH(FOR RH SEAT)
71139L	Cover, Front Seat Leg, RH(FOR LH SEAT)
71149A	Cover, Front Seat Leg, LH
71149B	Cover, Front Seat Leg, LH (FOR RH SEAT)
71149C	Cover, Front Seat Leg, LH (FOR LH SEAT)
71149D	Cover, Front Seat Leg, Inner (FOR RH SEAT)
71324A	Cushion, Rear Seat
71324K	Cushion, Rear Seat
71396C	Cushion, NO.2 Seat Support, Rear
71396F	Cushion, NO.1 Seat Support, Rear
71499D	Damper, Rear Seatback Spring
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71708A	Strap Sub-assy, Seat Cover
71708B	Strap Sub-assy, Seat Cover
71708C	Strap Sub-assy, Seat Cover, RH
71708D	Strap Sub-assy, Seat Cover, LH
71708E	Strap Sub-assy, Rear Seat Cover
71757A	Cover, Rear Seatback Board, RH
71758B	Cover, Rear Seatback Board, LH
71759C	Hook, Front Seatback, NO.1
71759D	Hook, Front Seatback, NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71812J	Clip, Rear Seat Cover
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833J	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834H	Cover, Rear Seat Reclining, NO.1 LH
71843E	Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71843F	Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844D	Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E	Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71848A	Cap, Seat Adjuster Cover, RH
71848B	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71849A	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71866A	Bezel, Rear Seat Cover, NO.2
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873A	Shield, Front Seat Cushion, Lower
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875J	Cover, Reclining Adjuster Inside, RH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876J	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71930D	Support Assy, Rear Seat Legrest
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
71955A	Support, Rear Seat Headrest
71955B	Support, Rear Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72069	Cable Sub-assy, Rear Seatback Lock Control
72069A	Cable Sub-assy, Rear Seatback Lock Control, LH
72105	Rail Sub-assy, Rear Seat Track, Upper RH(FOR RH SEAT)
72105A	Rail Sub-assy, Rear Seat Track, Upper RH(FOR LH SEAT)
72106	Rail Sub-assy, Rear Seat Track, Upper LH(FOR RH SEAT)
72106A	Rail Sub-assy, Rear Seat Track, Upper LH(FOR LH SEAT)
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72215	Lever, Seat Track Handle Control, RH
72216A	Lever, Seat Track Handle Control, LH
72307	Link Sub-assy, Reclining Control, RH
72308	Link Sub-assy, Reclining Control, LH
72478A	Bush, Rear Seat Vertical Adjuster
72507D	Handle Sub-assy, NO.2 Seat Reclining Release
72507E	Handle Sub-assy, Reclining Release, NO.1
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525J	Handle, Reclining Adjuster Release, RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526E	Handle, Reclining Adjuster Release, LH
72590B	Cable Assy, Reclining Remote Control
72590C	Cable Assy, Reclining Remote Control
72597A	Bezel, Reclining Remote Control Lever, RH
72598	Bezel, Reclining Remote Control Lever, LH
72601E	Striker Sub-assy, Rear Seat Lock, NO.2
72615C	Cover, Rear Seatback Lock Striker
72630A	Lock Assy, Rear NO.1 Seat
72630E	Lock Assy, Rear NO.1 Seat
72635F	Hook, Rear Seatback Lock, NO.2(MALE)
72635G	Hook, Rear Seatback Lock, NO.2(FEMALE)
72650C	Cable Assy, Rear NO.2 Seat Lock, RH
72660C	Cable Assy, Rear NO.2 Seat Lock, LH
72660K	Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72660L	Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72663	Lever, Rear Seat Lock Control, NO.1
72667	Bezel, Rear Seatback Lock, Upper
72670B	Lock Assy, Rear Seat Cushion, RH
72679B	Bezel, Rear Seatback Lock Control
72680B	Lock Assy, Rear Seat Cushion, LH
72695A	Cable, Rear Seat Lock Control
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
72695D	Cable, Rear NO.2 Seat Lock Control, RH
72695E	Cable, Rear NO.2 Seat Lock Control, LH
72830D	Armrest Assy, Rear Seat, RH
72830J	Armrest Assy, Rear NO.1 Seat, RH
72840	Armrest Assy, Rear NO.1 Seat, LH
72840D	Armrest Assy, Rear Seat, LH
72848A	Cap, Seat Armrest, NO.1
72877	Cover, Seat Armrest, RH
72878	Cover, Seat Armrest, LH
72880A	Armrest Assy, Front Seat, Inner RH
72890A	Armrest Assy, Front Seat, Inner LH
72907B	Cover Sub-assy, Rear Seat Cushion Under, RH
72908B	Cover Sub-assy, Rear Seat Cush Under, LH
72909	Handle 3RD Seat
72995	Cover, Rear Seat Cushion, RH
72995A	Cover, Rear Seat
72998A	Cover, NO.1 Seat Cushion, LH
73373D	Cover, Rear Seat Shoulder Belt Hole, RH
73373F	Cover, Rear Seat Shoulder Belt Hole
73375B	Cover, Rear Seat Shoulder Belt Hole, LH
73905	Airbag Sub-assy, Front Seat, RH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
74611N	Strap, Assist Grip
78095	Lever Sub-assy, Fold Seat Lock, RH
78096A	Lever Sub-assy, Fold Seat Lock, LH
78608A	Cable Sub-assy, Legrest Control
78608B	Cable Sub-assy, Legrest Lock Control
78609	Cover Sub-assy, Rear Seat Legrest Lock
78656	Cover, Rear Seat Legrest
78656A	Cover, Rear Seat Legrest
78738A	Pin, Sub Seat Cushion Pin
78899	Bolt, Front Seat
78990	Adjuster Assy, Rear Seat Footrest
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79030B	Leg Assy, Rear NO.2 Seat, RH
79040B	Leg Assy, Rear NO.2 Seat, LH
79091A	Garnish Sub-assy, Rear Seat Leg Side
79091C	Garnish Sub-assy, Rear Seat Leg Side, RH
79091D	Garnish Sub-assy, Rear Seat Leg Side, LH
79092	Garnish Sub-assy, Rear Seat Leg Side, NO.2
79092A	Garnish Sub-assy, Rear Seat Leg Side, NO.2 RH
79092B	Garnish Sub-assy, Rear Seat Leg Side, NO.2 LH
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79103A	Frame Sub-assy, NO.1 Seatback, RH
79104	Frame Sub-assy, NO.1 Seatback, LH
79105	Leg Sub-assy, NO.1 Seat, RH
79106	Leg Sub Assy, NO.1 Seat, LH
79117	Carpet, NO.1 Seat Cushion
79131A	Leg, NO.1 Seat, Front RH
79132B	Leg, NO.1 Seat, Front LH
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79175E	Pad, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79235D	Pad, NO.2 Seat Cushion, RH
79235E	Pad, NO.2 Seat Cushion, RH
79236A	Cover, NO.2 Seat Leg
79236D	Cover, Rear Seat Leg, RH (FOR RH SEAT)
79245C	Pad, NO.2 Seat Cushion, LH
79246E	Cover, NO.2 Seat Leg, Rear LH (FOR LH SEAT)
79246F	Cover, NO.2 Rear Seat Leg, LH (FOR RH SEAT)
79260A	Spring Assy, NO.2 Seat Cushion, RH
79270A	Spring Assy, NO.2 Seat Cushion, LH
79273	Cover, NO.2 Seat Hinge
79273A	Cover, NO.2 Seat Hinge, NO.2
79275C	Pad, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79288	Stopper, NO.2 Seat Cushion
79957B	Pad, Rear Seat Leg Side
79978B	Clip, Rear Seat Leg Garnish Cover
79997	Protector, Seat Leg Box, NO.1
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
