Toyota Sienna
2011-09 → 2020-09 · chassis ASL30,GSL3# · catalogue 622330 · General
Supported model
Data version 2020-09

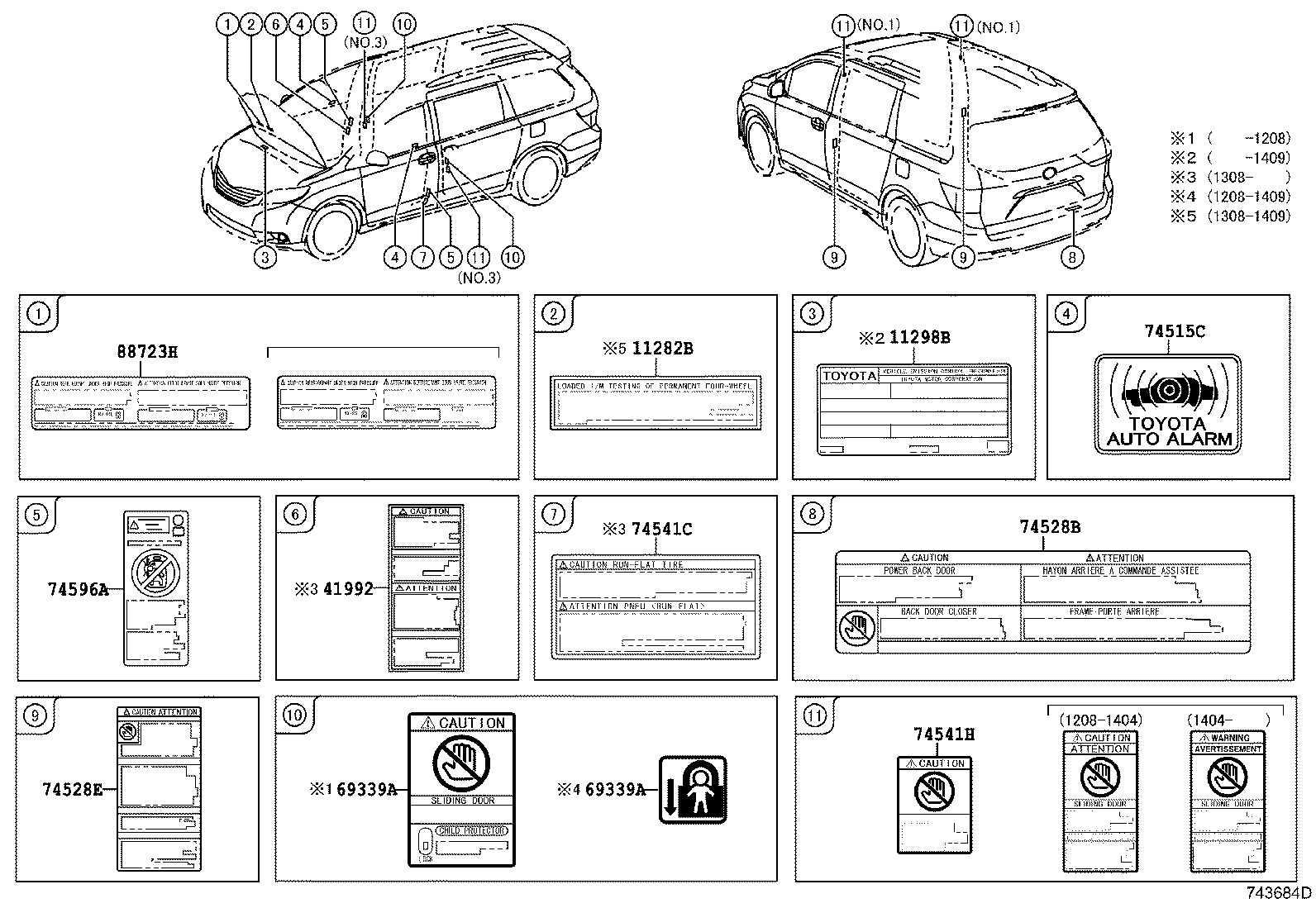

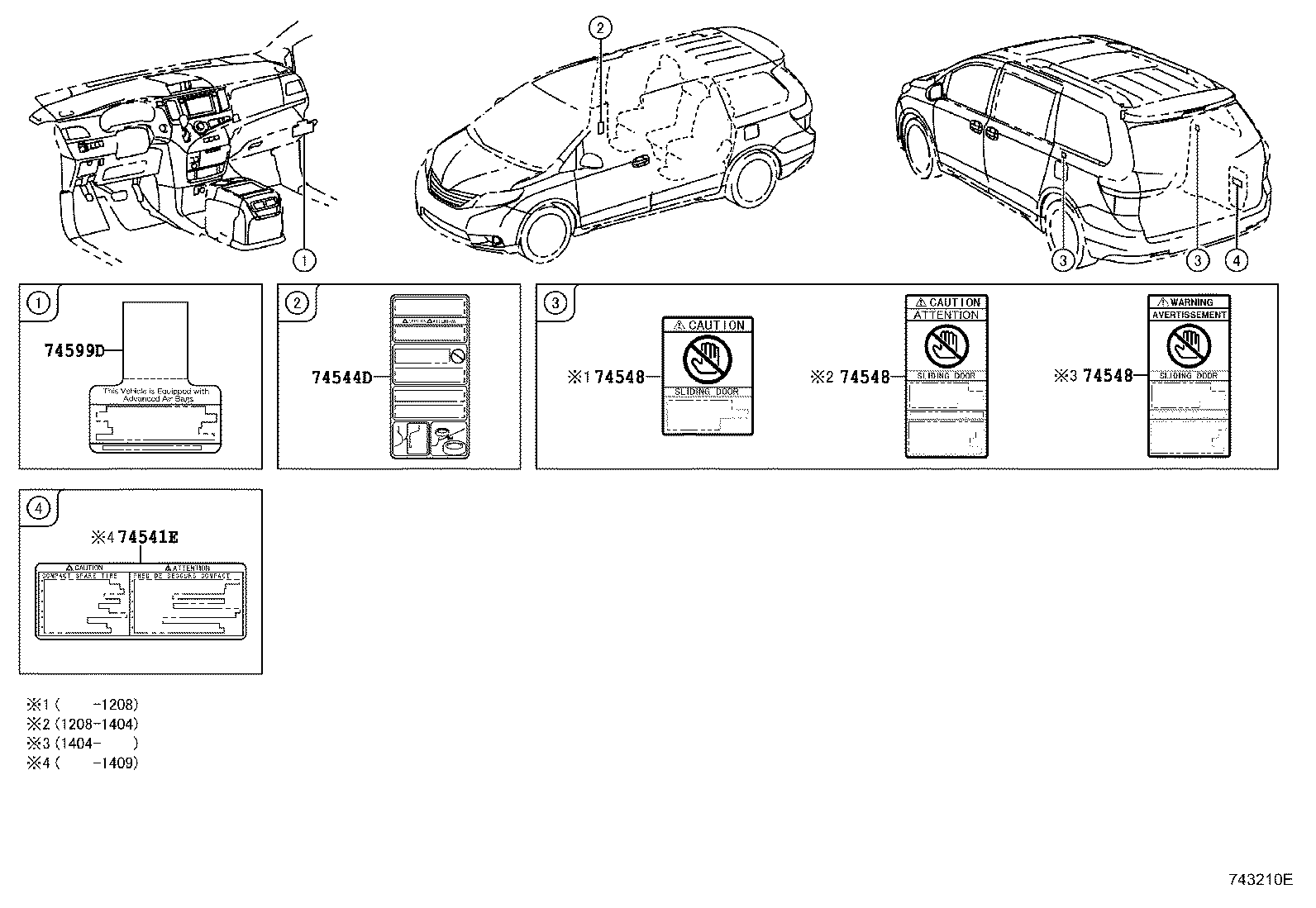

Caution Plate
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 69339A | Plate, Child Protector Lock Caution |
| 74515C | Label, Theft Warning Information |
| 74528B | Label, Back Door Caution |
| 74528E | Label, Power Slide Door Notice |
| 74541C | Plate, Runflat Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74548 | Plate, Body Caution |
| 74596A | Label, Side Airbag Caution |
| 74599D | Label, Driver & Passenger Airbag Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
