Toyota Sienna Hybrid
2021-12 → present · chassis AXLH4# · catalogue 623310 · General
Supported model
Data version 2024-03

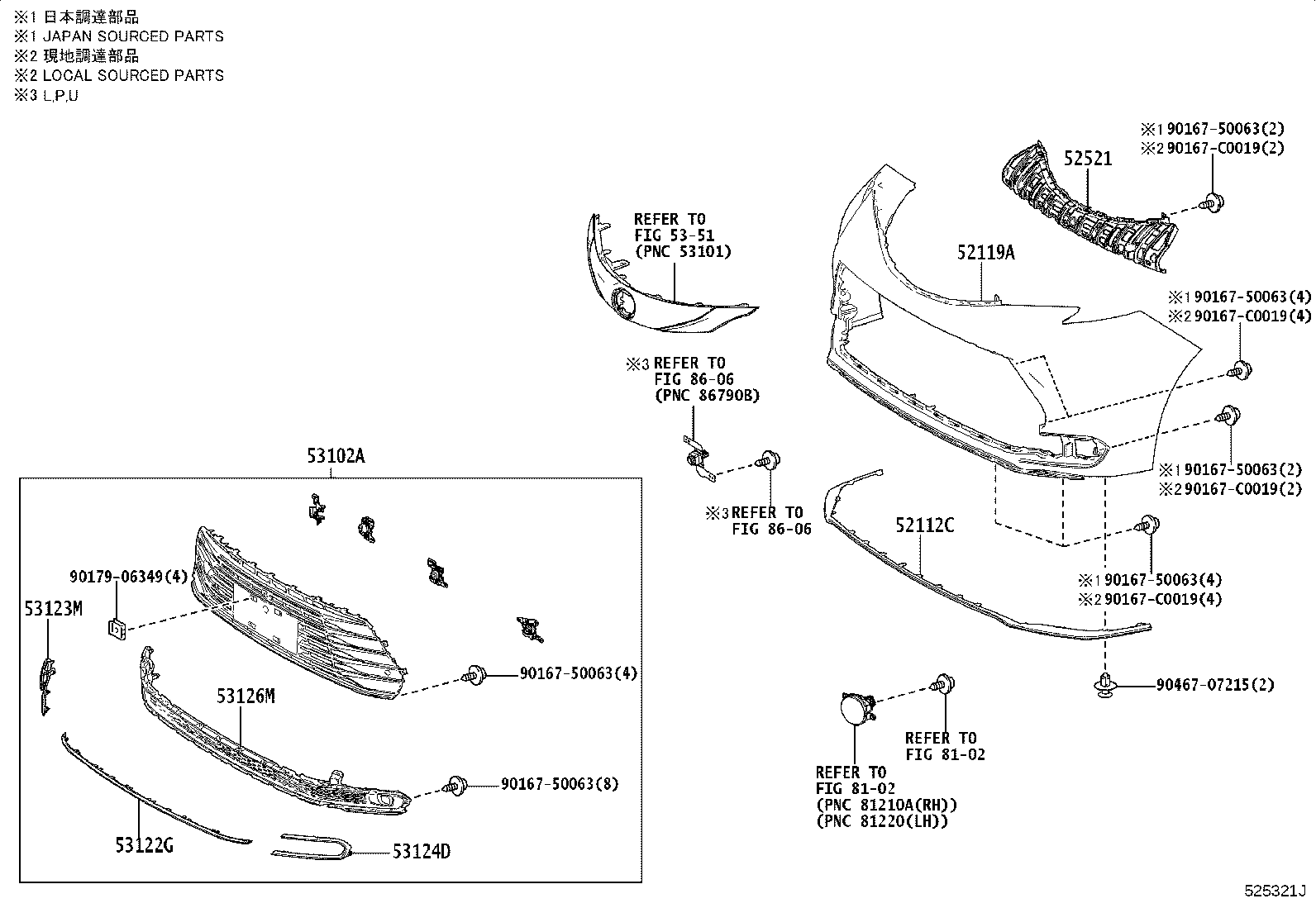

Front Bumper & Bumper Stay
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451F | Grommet, NO.1 |
| 51451G | Grommet, NO.2 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029C | Reinforcement Sub-assy, Front Bumper, NO.2 |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52102F | Extension Sub-assy, Front Bumper, RH |
| 52103C | Extension Sub-assy, Front Bumper, LH |
| 52112C | Extension, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52127C | Cover, Front Bumper Hole |
| 52137B | Plate, Front Bumper Bracket, NO.1 |
| 52145H | Stay, Front Bumper Side, RH |
| 52146C | Stay, Front Bumper Side, LH |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52527B | Retainer, Front Bumper, Lower NO.2 |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53122G | Moulding, Radiator Grille, Lower Center |
| 53123M | Moulding, Radiator Grille, Lower RH |
| 53124D | Moulding, Radiator Grille, Lower LH |
| 53126M | Moulding, Radiator Grille, NO.6 |
| 53879H | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
