Toyota Sienna Hybrid

2021-12 → present · chassis AXLH4# · catalogue 623310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

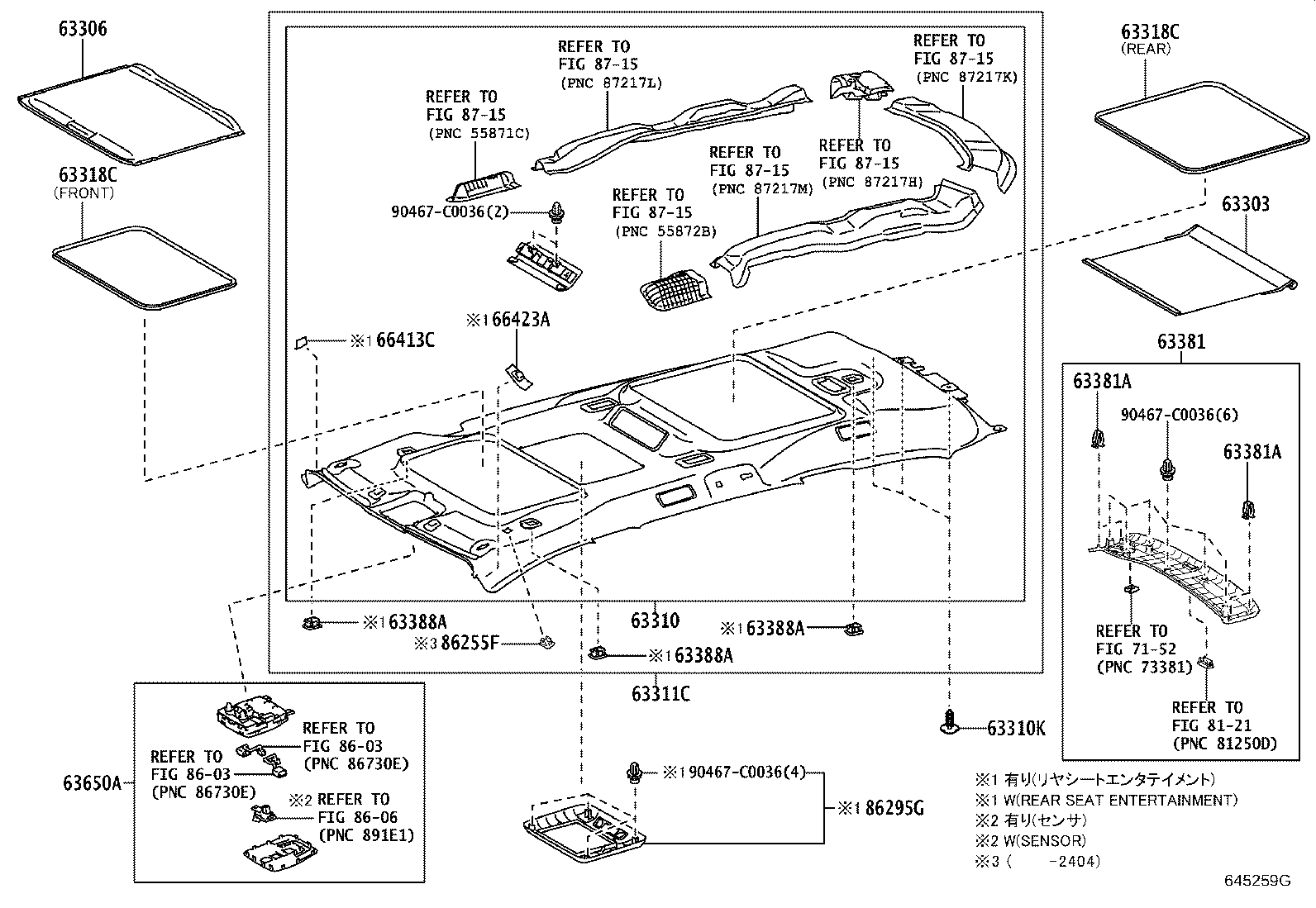

Figure 645258E 645258E 2021-12 → — Figure 645259G 645259G 2021-12 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63311C Headlining, Roof
63318C Moulding, Sun Roof Opening Trim
63381 Retainer, Headlining, Front
63381A Clip, Headlining Retainer
63388A Cover, Roof Headlining Holder
63650A Box Assy, Roof Console
66413C Spacer, Side Rail, Front RH
66423A Spacer, Side Rail, Front LH
86255F Case, Microphone
86295G Base, Television
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
