Toyota Sienna Hybrid
2021-12 → present · chassis AXLH4# · catalogue 623310 · General
Supported model
Data version 2024-03
Headlamp

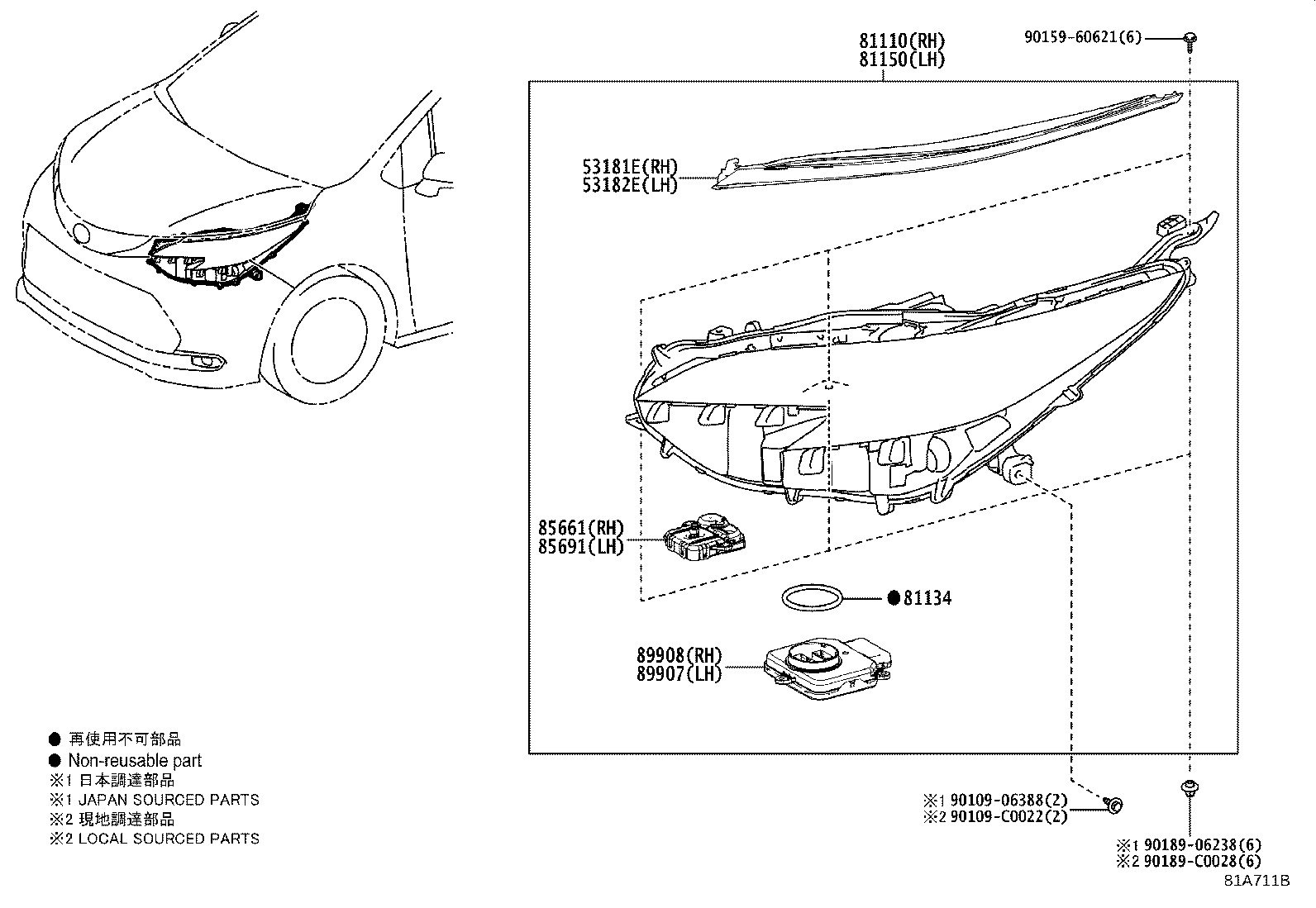

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81134 | Gasket, Headlamp |
| 81150 | Headlamp Assy, LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 89907 | Computer Sub-assy, Headlamp, LH |
| 89908 | Computer Sub-assy, Headlamp, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
