Toyota Sienna Hybrid

2021-12 → present · chassis AXLH4# · catalogue 623310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

23 part groups · 3 illustrations

Illustrations

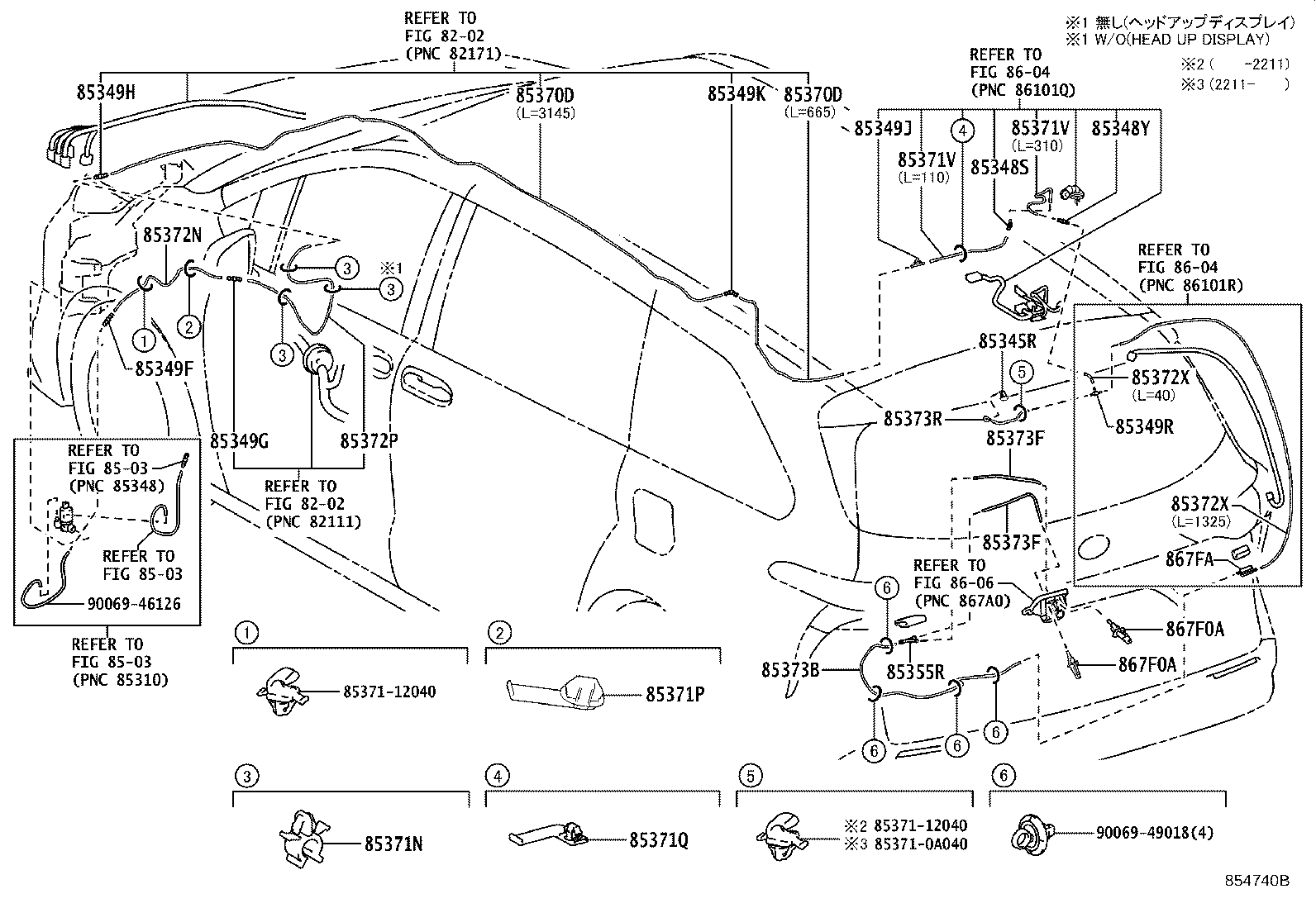

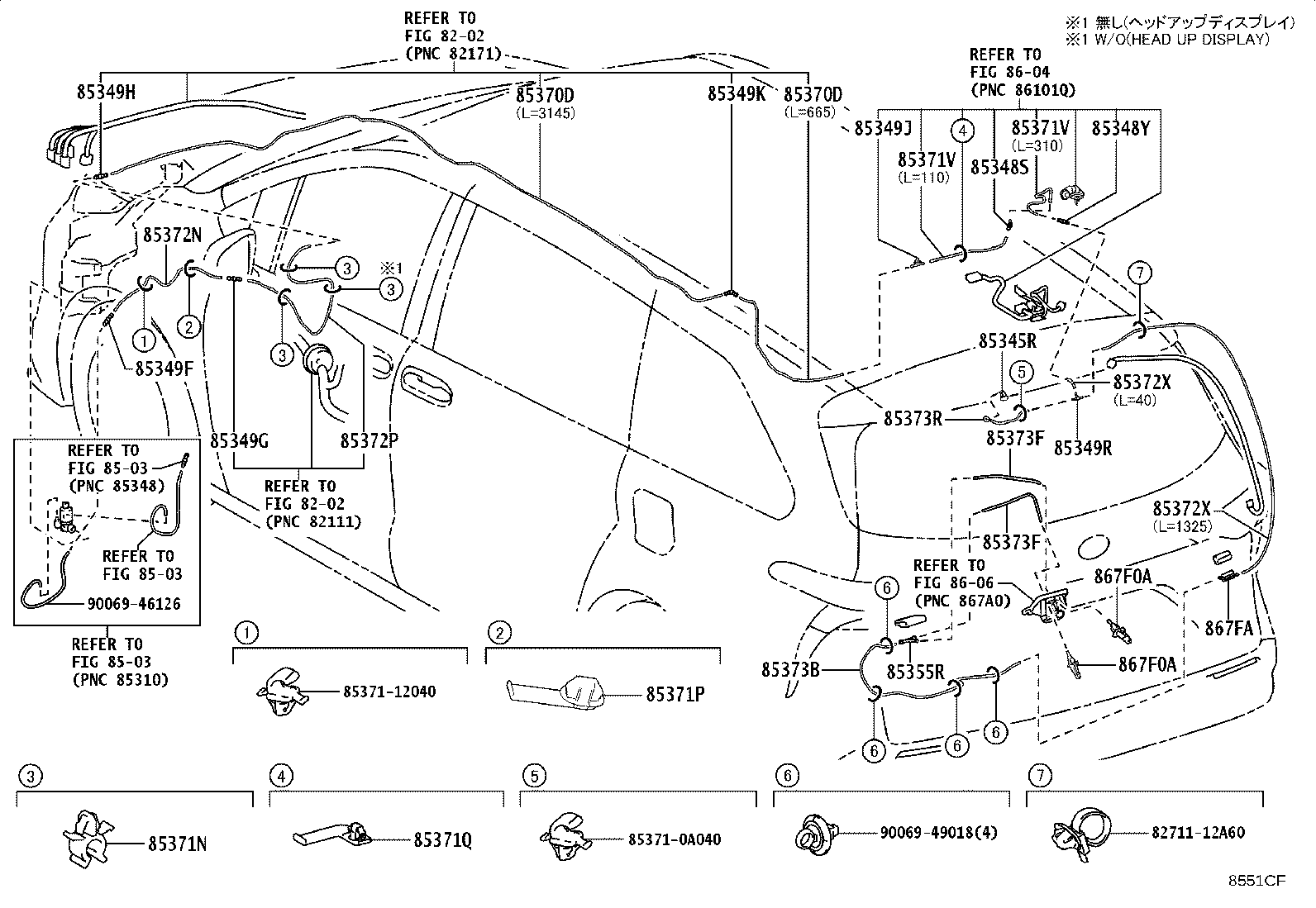

Figure 854735B 854735B 2021-12 → — Figure 854740B 854740B 2021-12 → 2024-04 Figure 8551CF 8551CF 2024-04 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348S Joint, Rear Washer Elbow, NO.1
85348Y Joint, Rear Washer Hose, NO.5
85349F Joint, Rear Washer Hose, NO.1
85349G Joint, Rear Washer Hose, NO.2
85349H Joint, Rear Washer Hose, NO.3
85349J Joint, Rear Washer Hose, NO.4
85349K Joint, Rear Washer Elbow, NO.2
85349R Joint, Rear Washer Hose, NO.5
85355R Valve, Rear Washer Hose
85370D Hose Assy, Rear Washer, NO.1
85371N Clamp, Rear Washer Hose
85371P Clamp, Rear Washer Hose, NO.2
85371Q Clamp, Rear Washer Hose, NO.3
85371V Hose, Rear Washer (FROM JOINT TO JOINT)
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372X Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
85373B Hose, Rear Washer(FROM JOINT TO JOINT), NO.7
85373F Hose, Rear Washer(FROM JOINT TO JOINT), NO.8
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
867F0A Nozzle Assy, Camera Cleaner, NO.1
867FA Filter, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
