Toyota Granvia Hybrid

2022-11 → present · chassis AXLH4# · catalogue 624310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

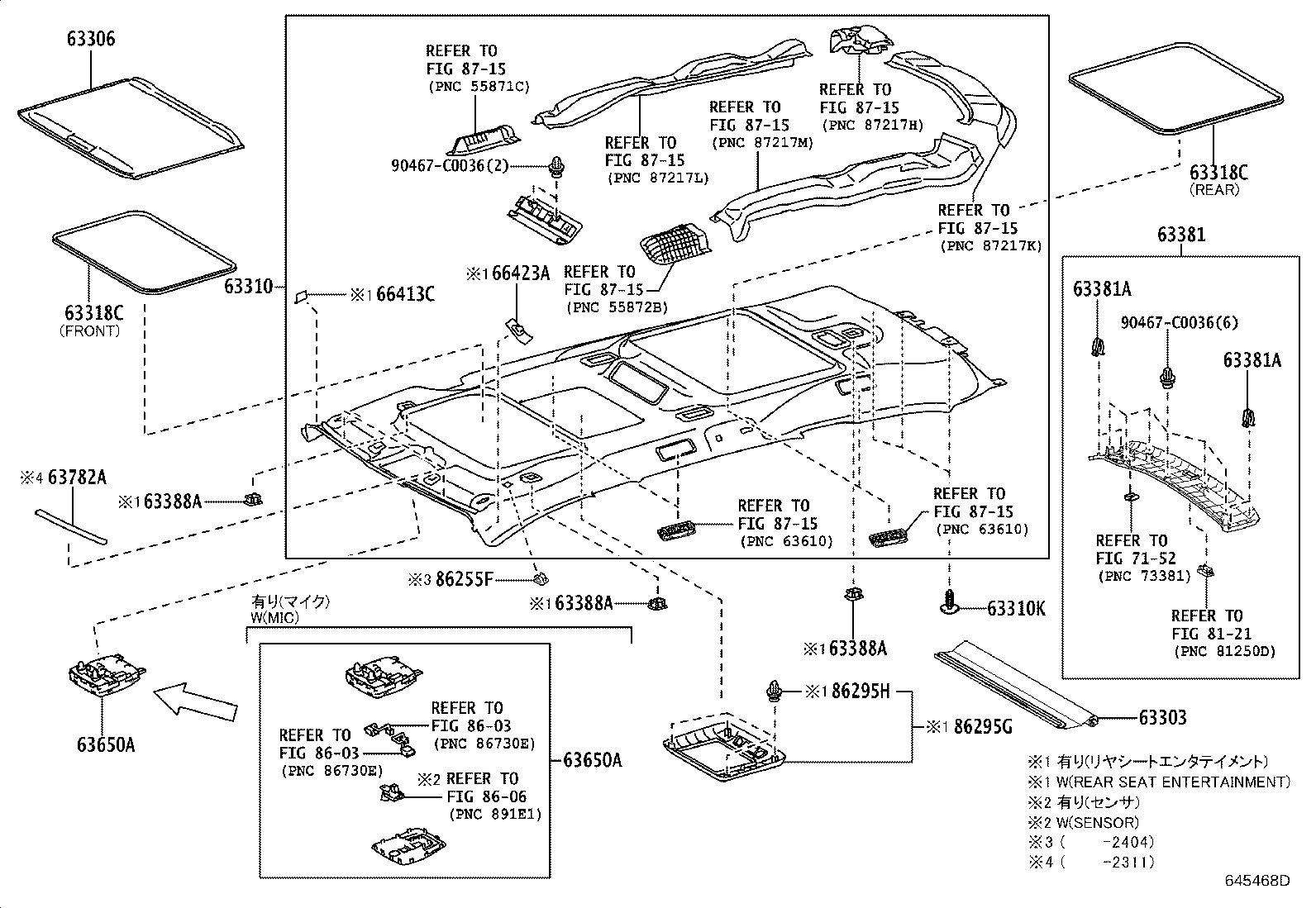

Figure 645467C 645467C 2022-11 → — Figure 645468D 645468D 2022-11 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63318C Moulding, Sun Roof Opening Trim
63381 Retainer, Headlining, Front
63381A Clip, Headlining Retainer
63388A Cover, Roof Headlining Holder
63650A Box Assy, Roof Console
63782A Seal, Roof Air Deflector
66413C Spacer, Side Rail, Front RH
66423A Spacer, Side Rail, Front LH
86255F Case, Microphone
86295G Base, Television
86295H Clip, Television Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
