Toyota Granvia Hybrid

2022-11 → present · chassis AXLH4# · catalogue 624310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

24 part groups · 2 illustrations

Illustrations

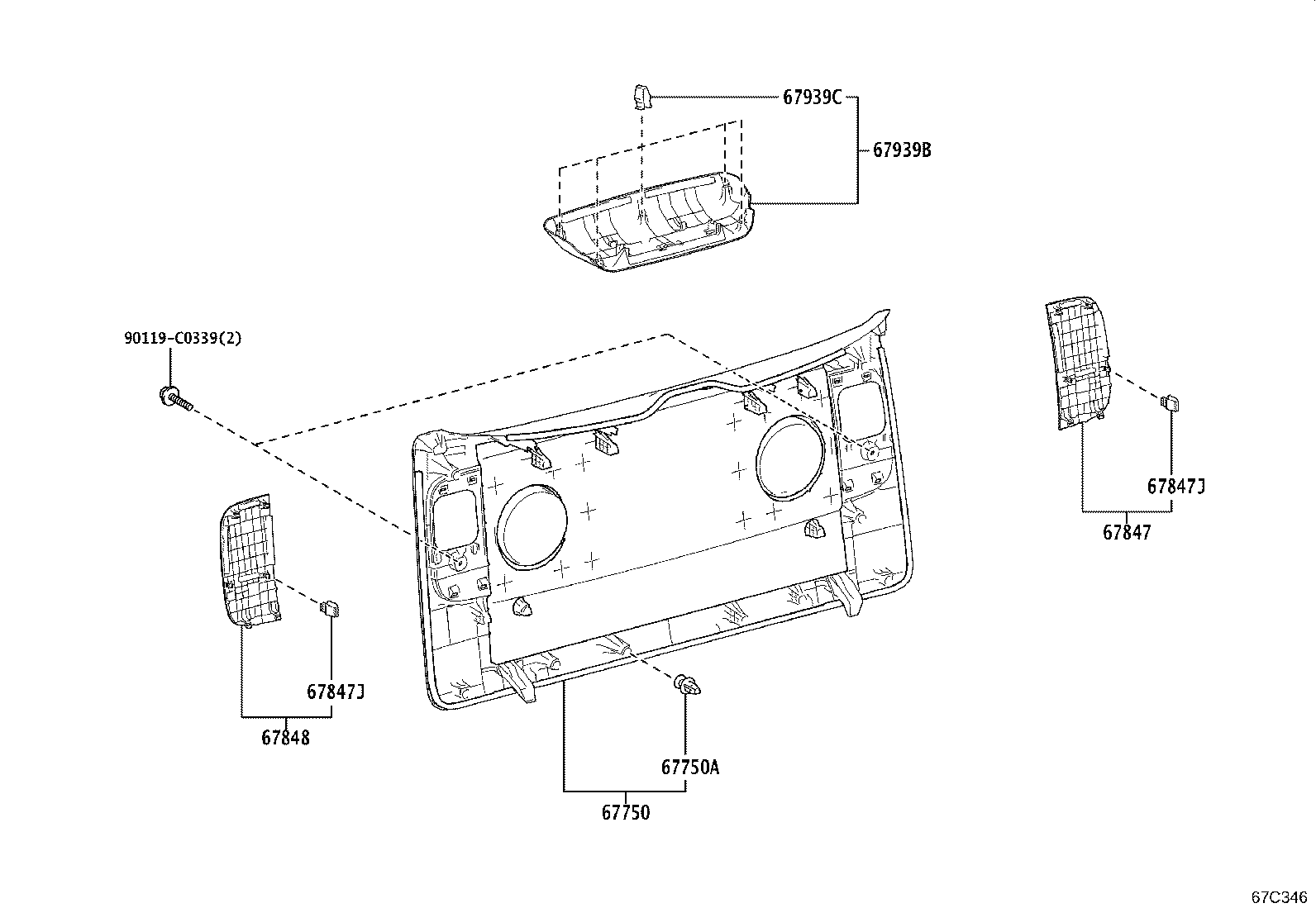

Figure 67C345A 67C345A 2022-11 → — Figure 67C346 67C346 2022-11 → —

Part groups

PNCDescription
55E39 Cover, Spare Switch Hole
62785F Spacer, Back Door Glass
64827B Clip, Back Window Glass, RH
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67847 Cover, Back Door Service Hole, RH
67847J Clip(FOR BACK DOOR SERVICE HOLE COVER)
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
69477 Cushion, Back Door Upper Stopper
69478A Cushion, Back Door Lower Stopper
74811G Handle, Door Pull
75496C Clip, Back Window Outside Moulding, RH
75497B Clip, Back Window Outside Moulding, LH
75573C Moulding, Back Window, Outside
75575D Moulding, Back Window, Lower
76831A Cover, Back Door Finish Panel, RH
76832A Cover, Back Door Finish Panel, LH
76835A Protector, Back Door Finish Panel, NO.1
89437V Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
