Toyota Granvia Hybrid

2022-11 → present · chassis AXLH4# · catalogue 624310 · General

Supported model Data version 2024-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

342 part groups · 29 illustrations

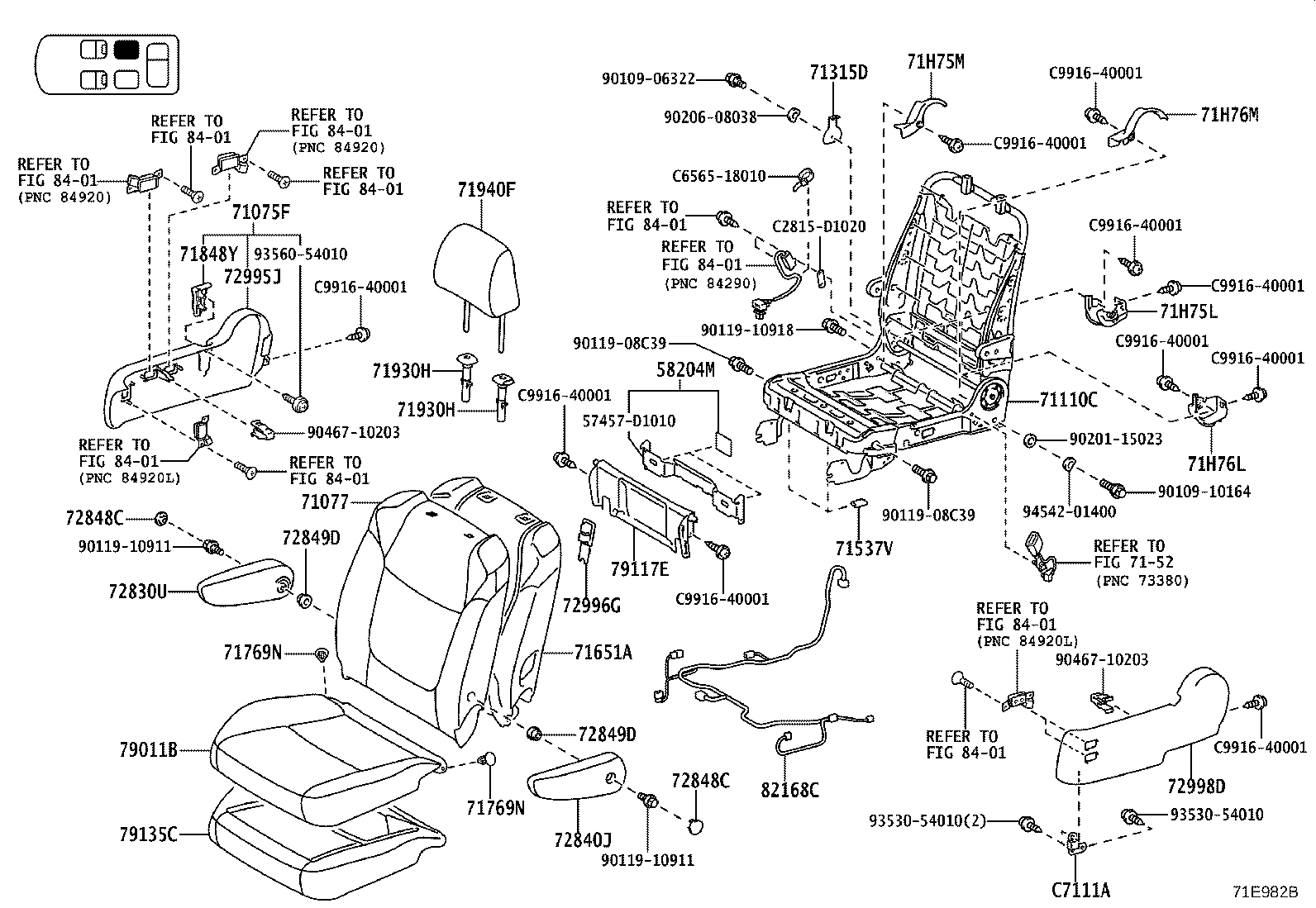

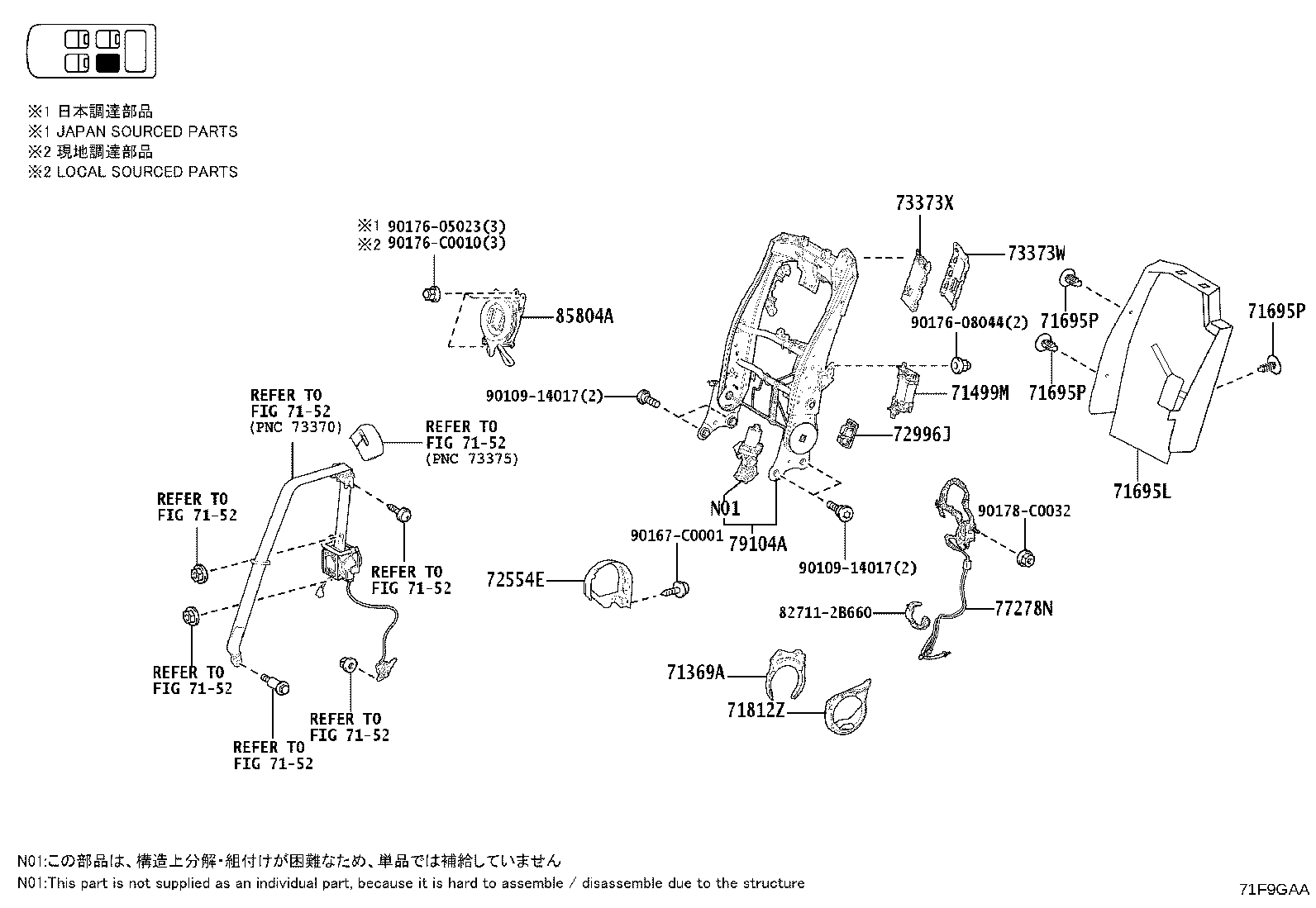

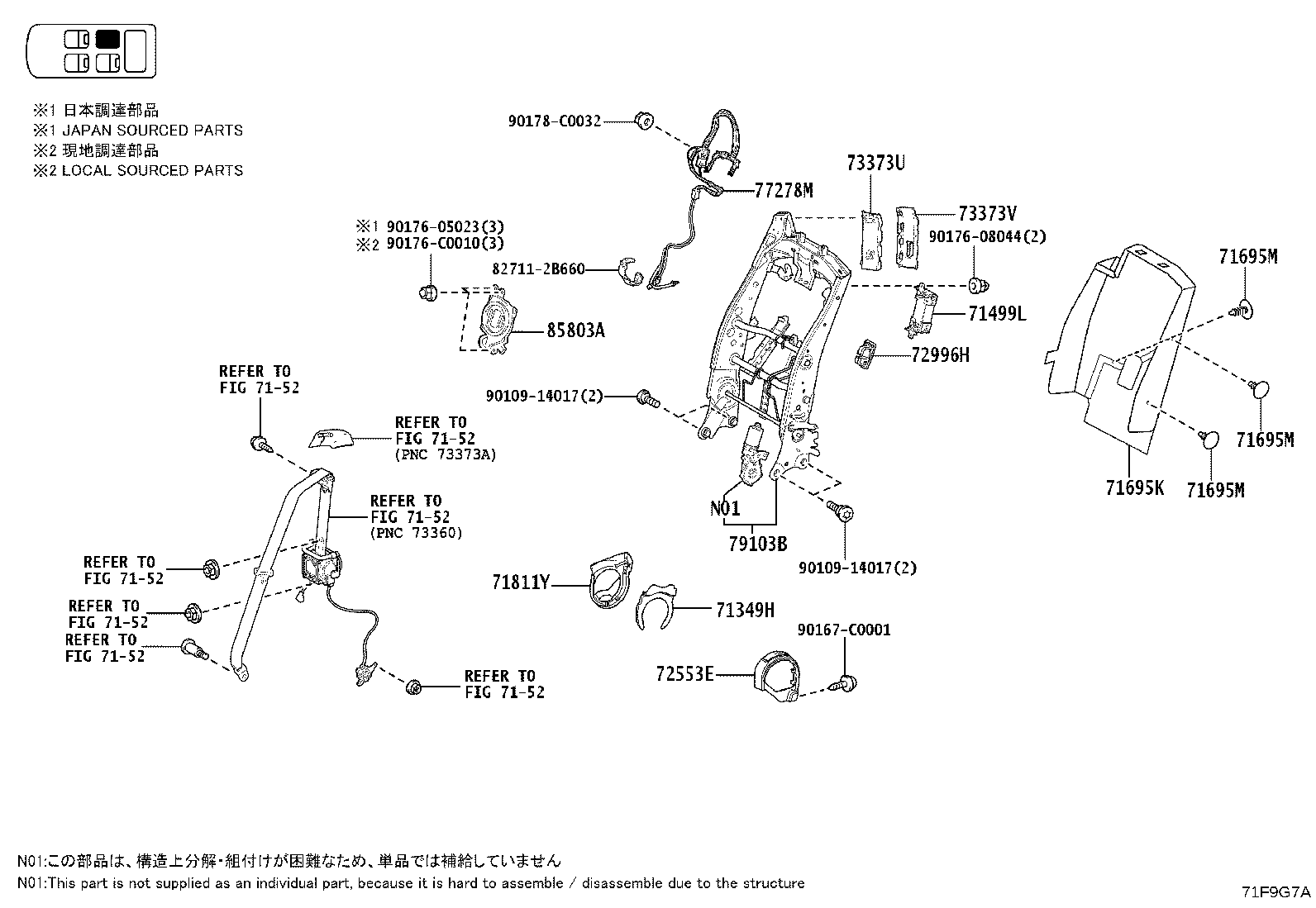

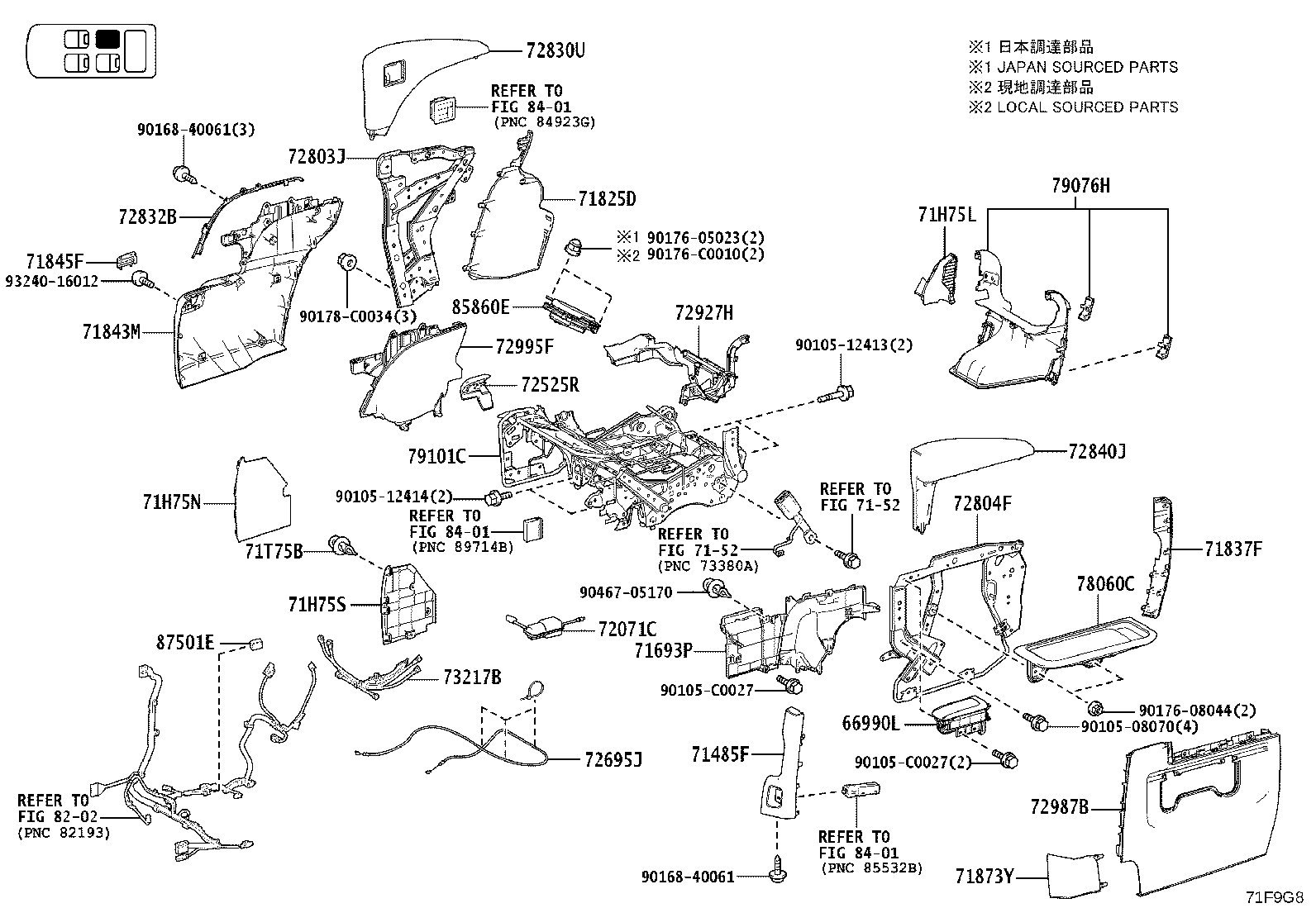

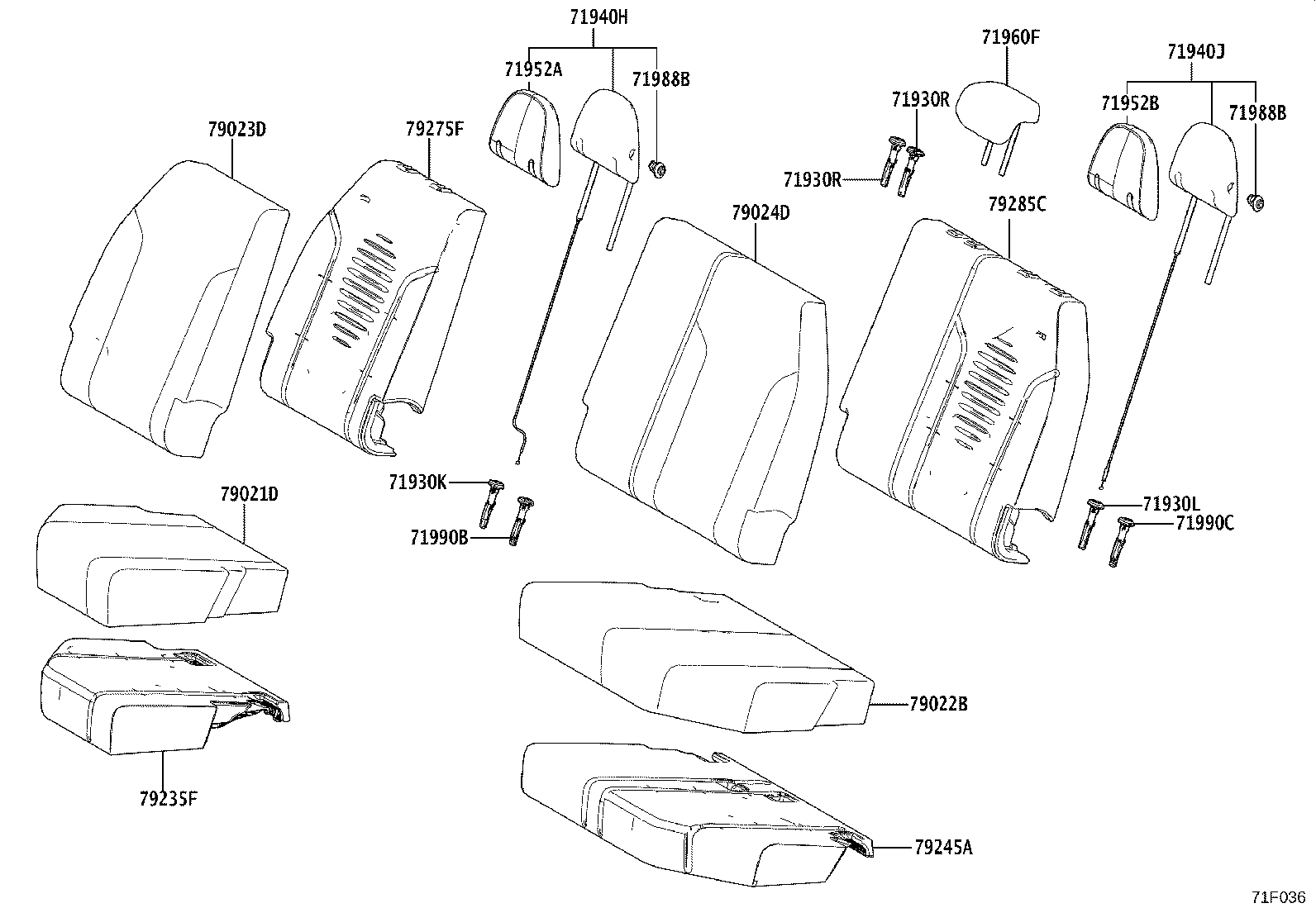

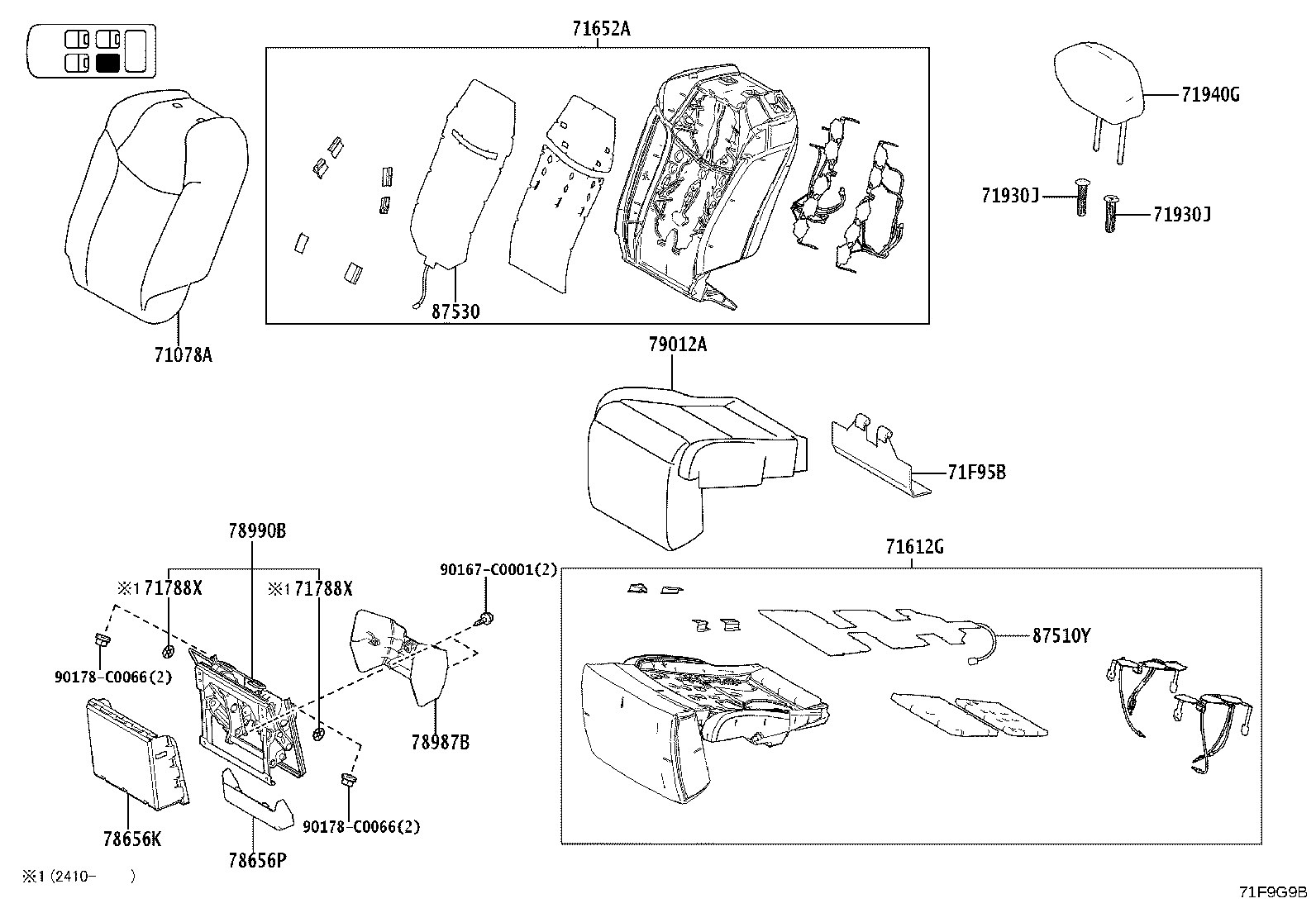

Illustrations

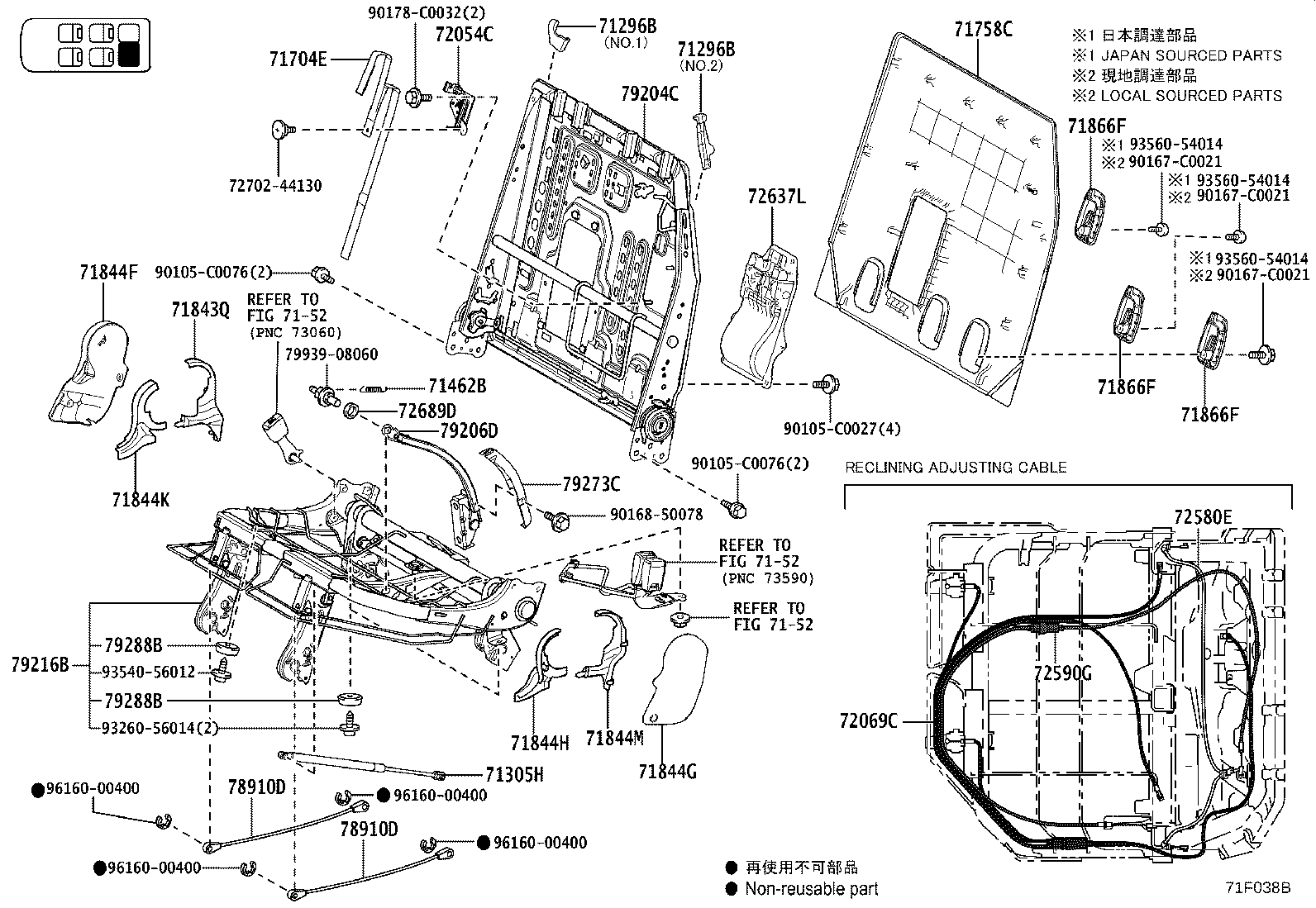

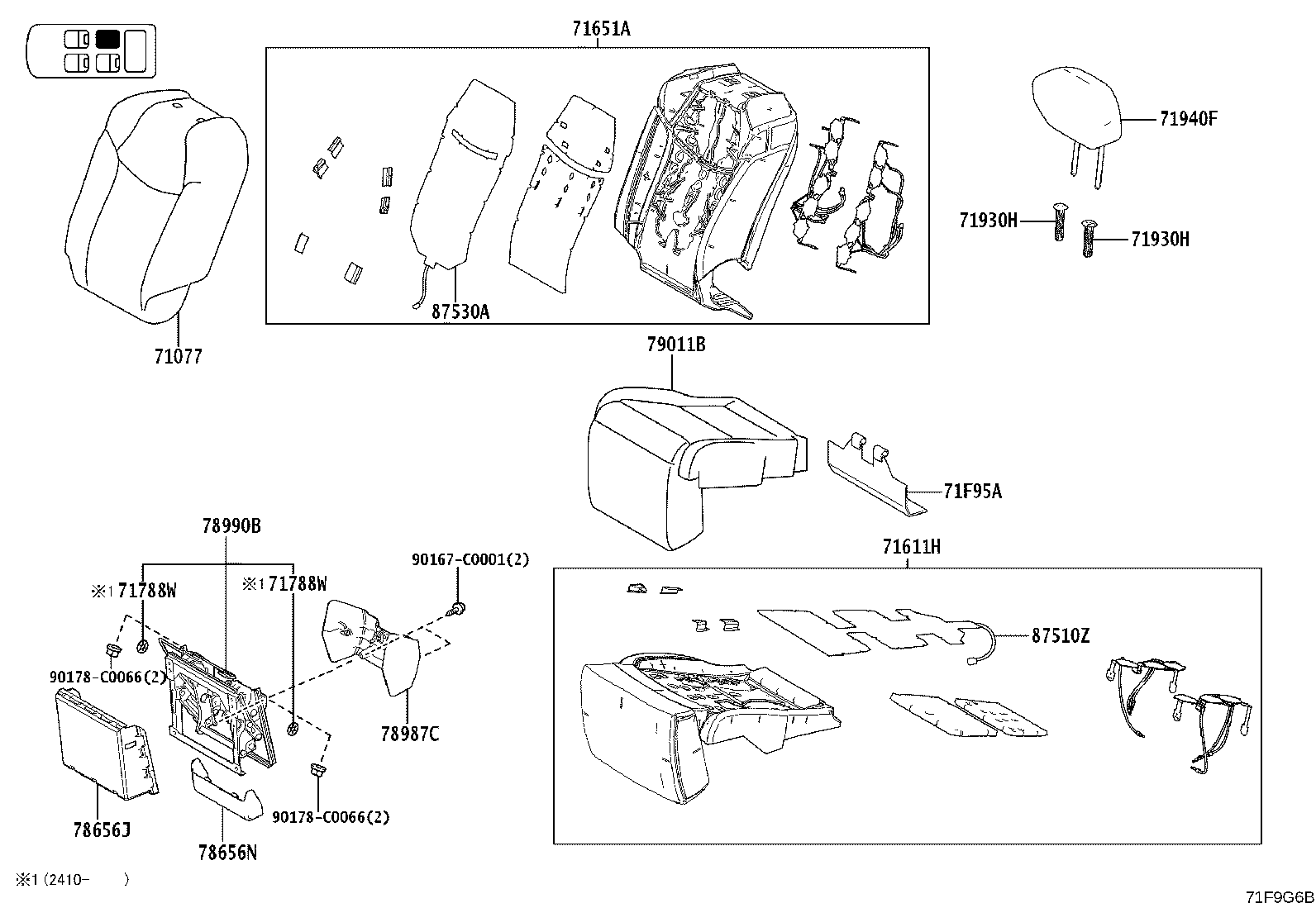

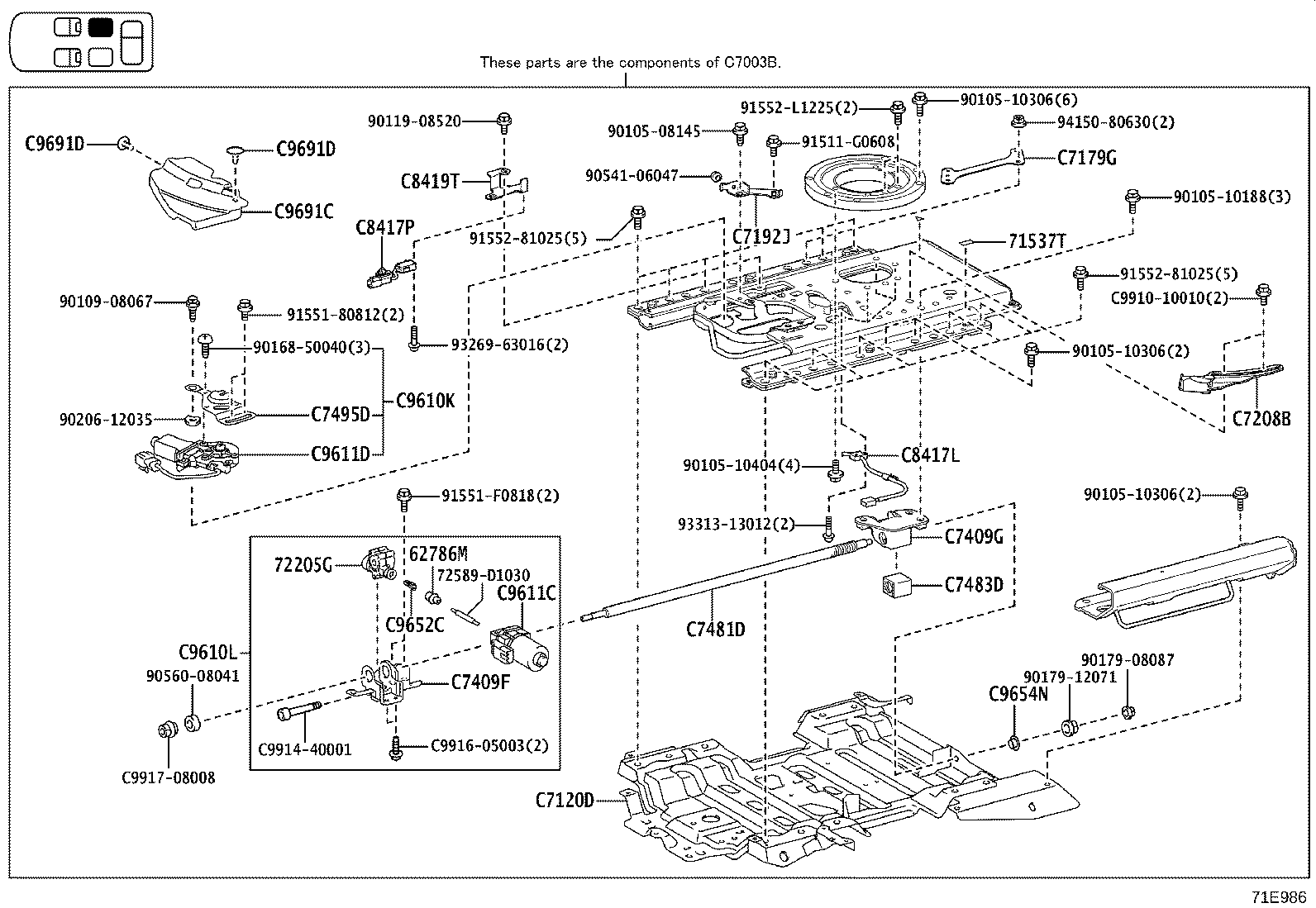

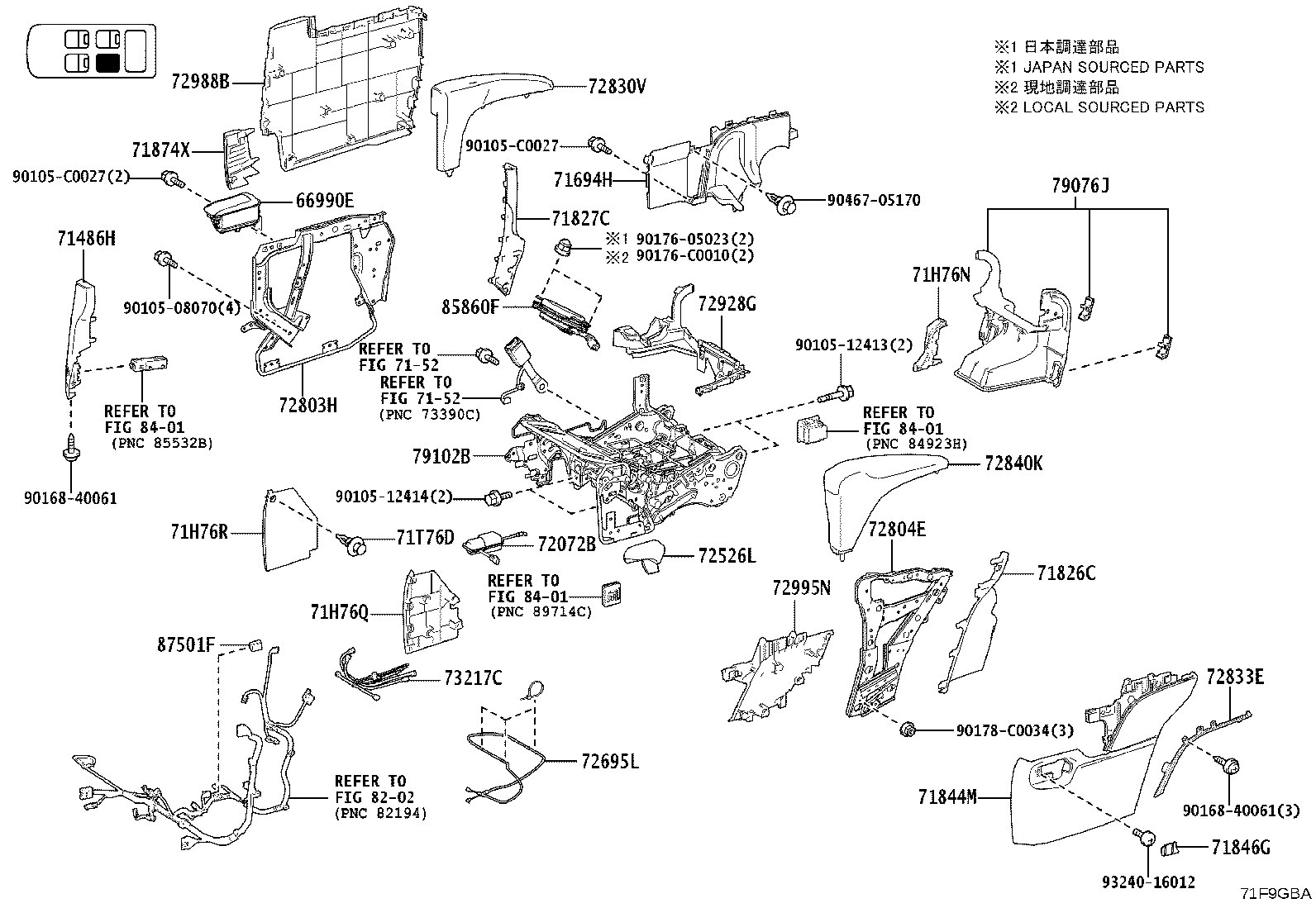

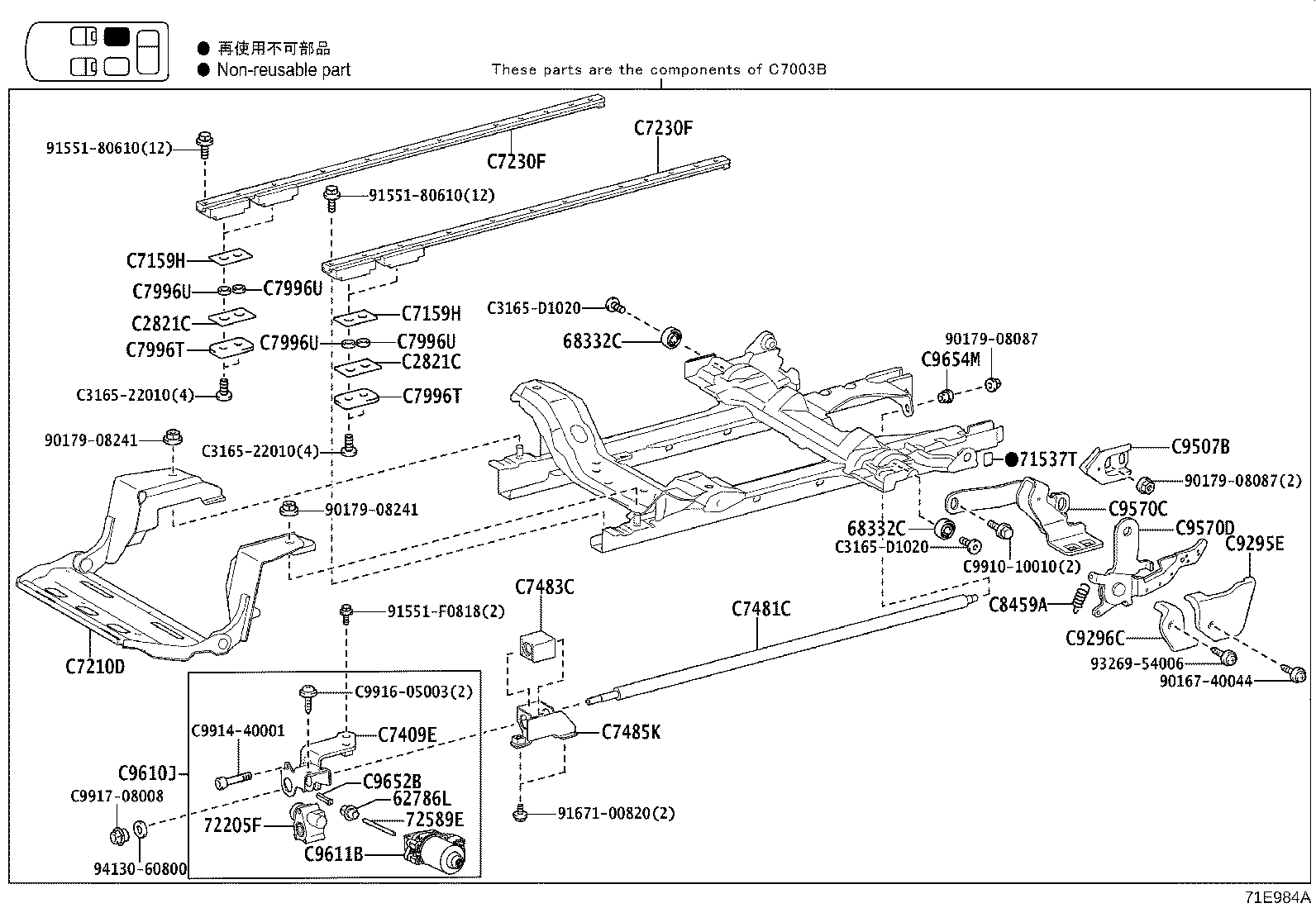

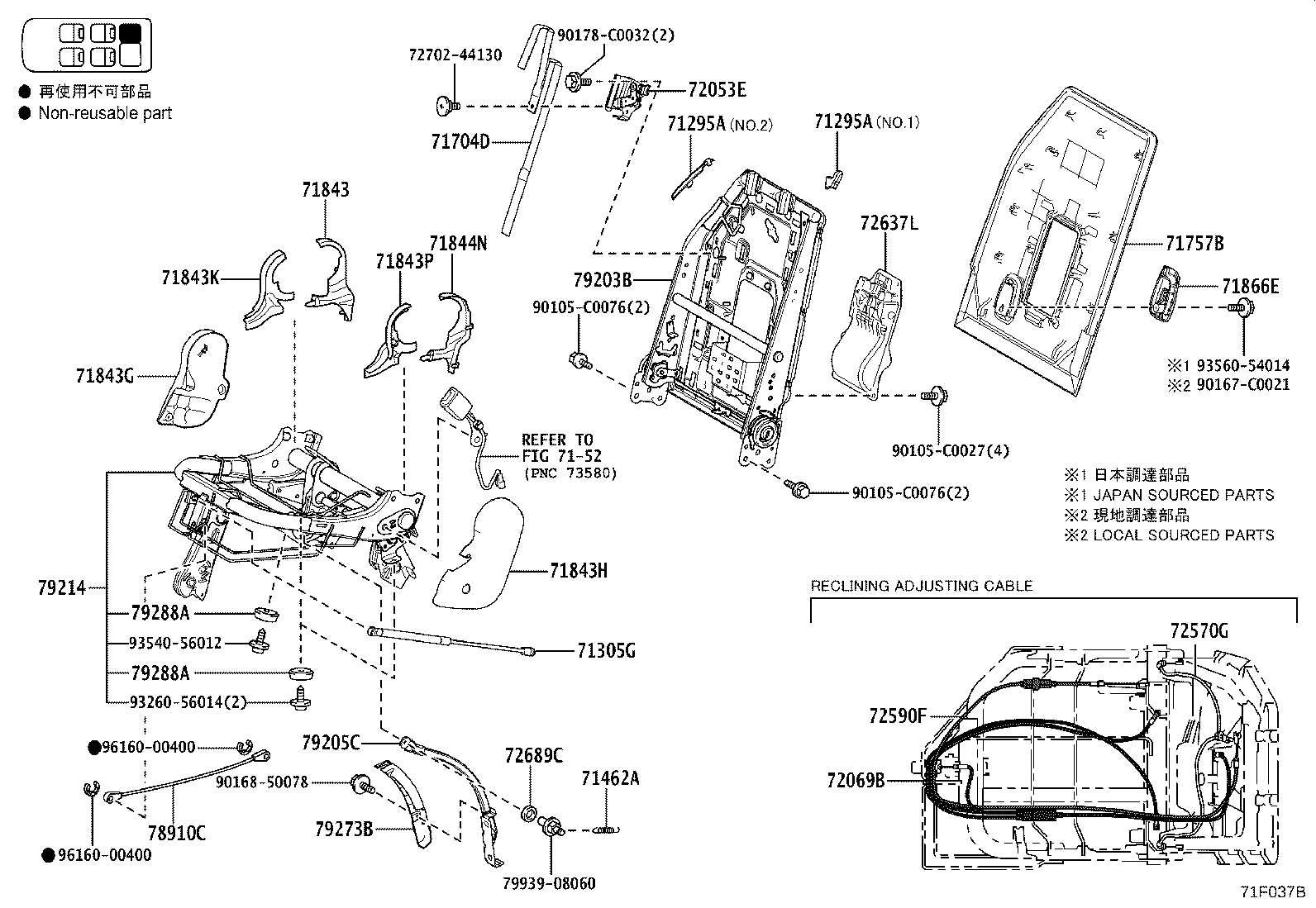

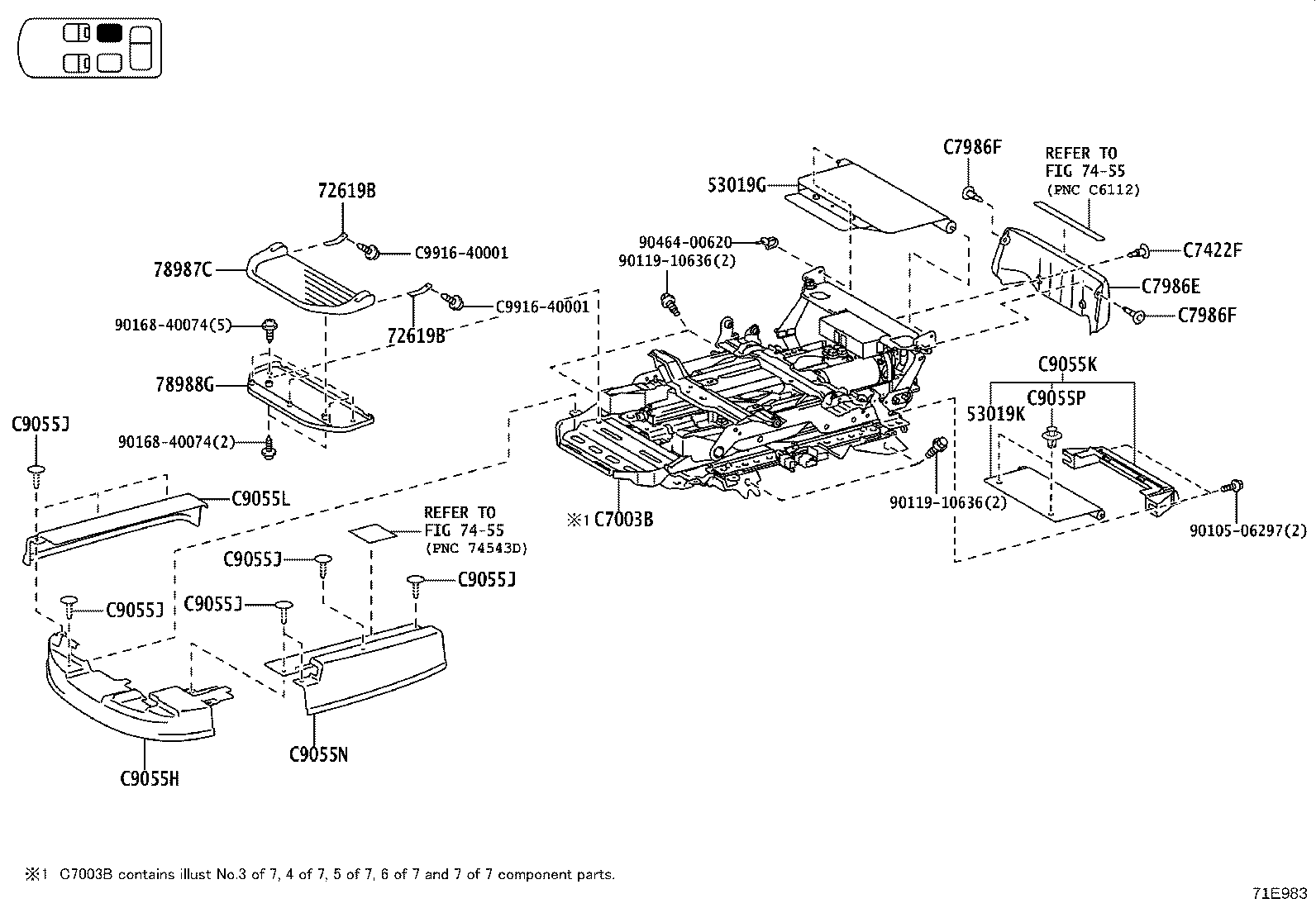

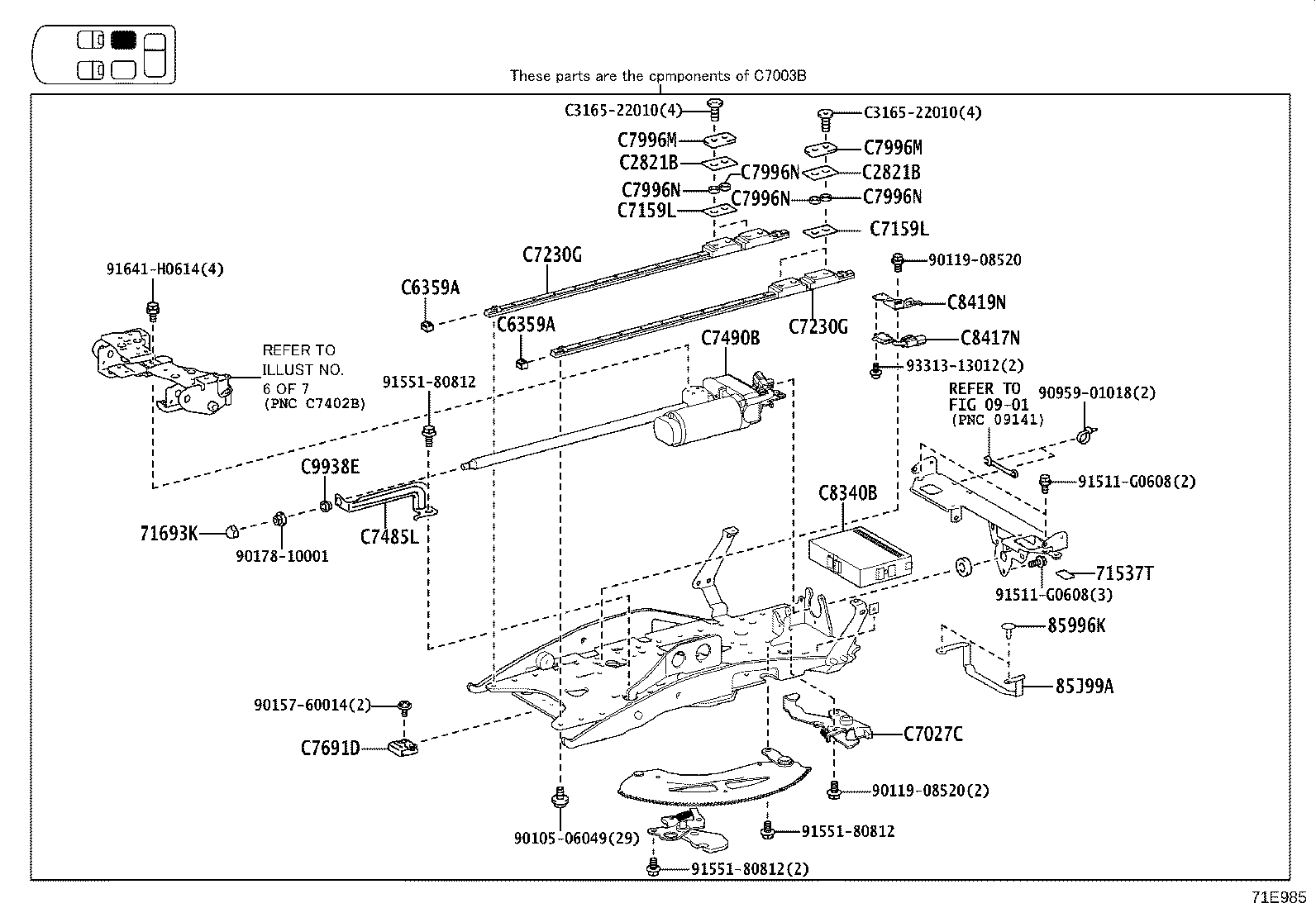

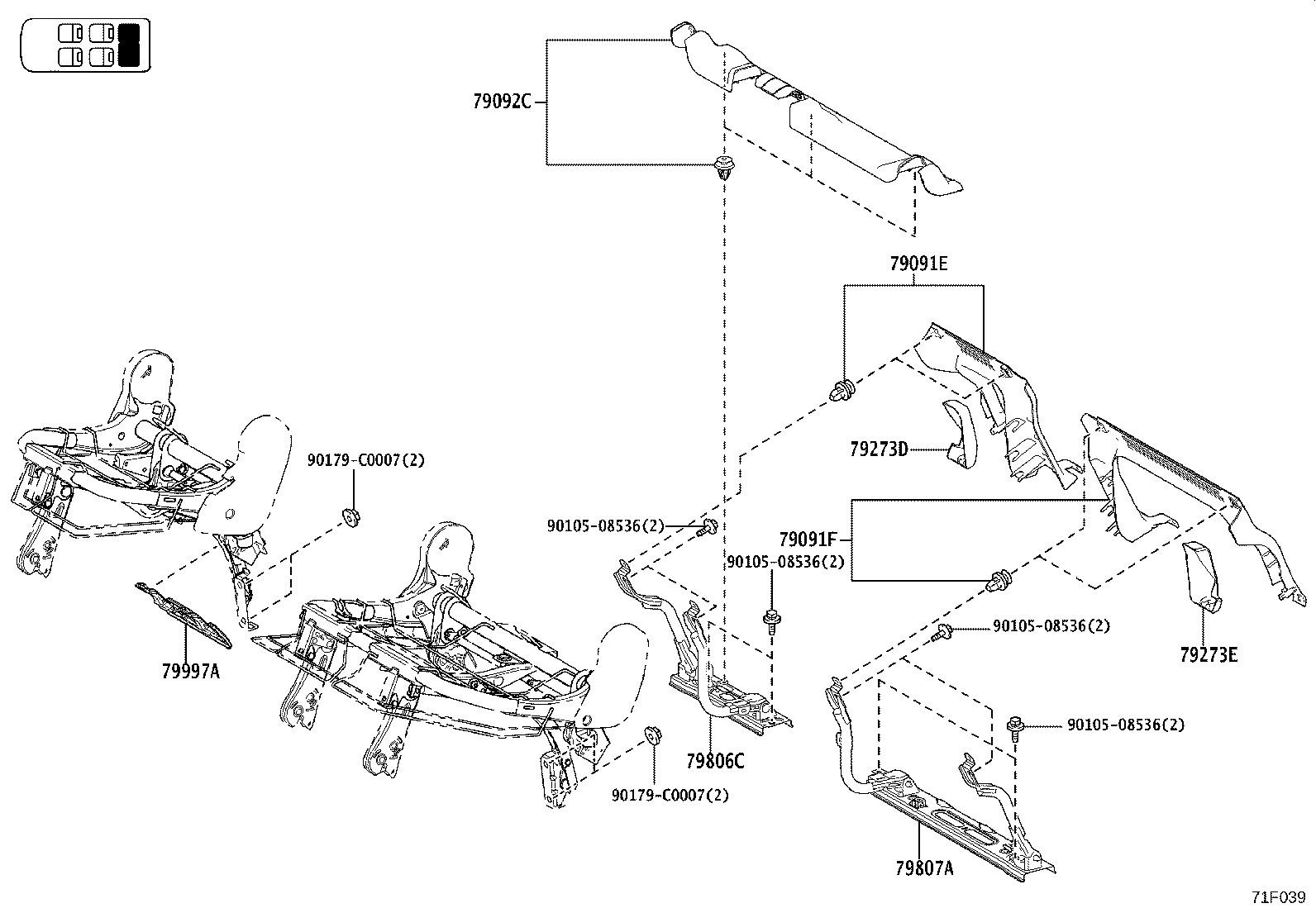

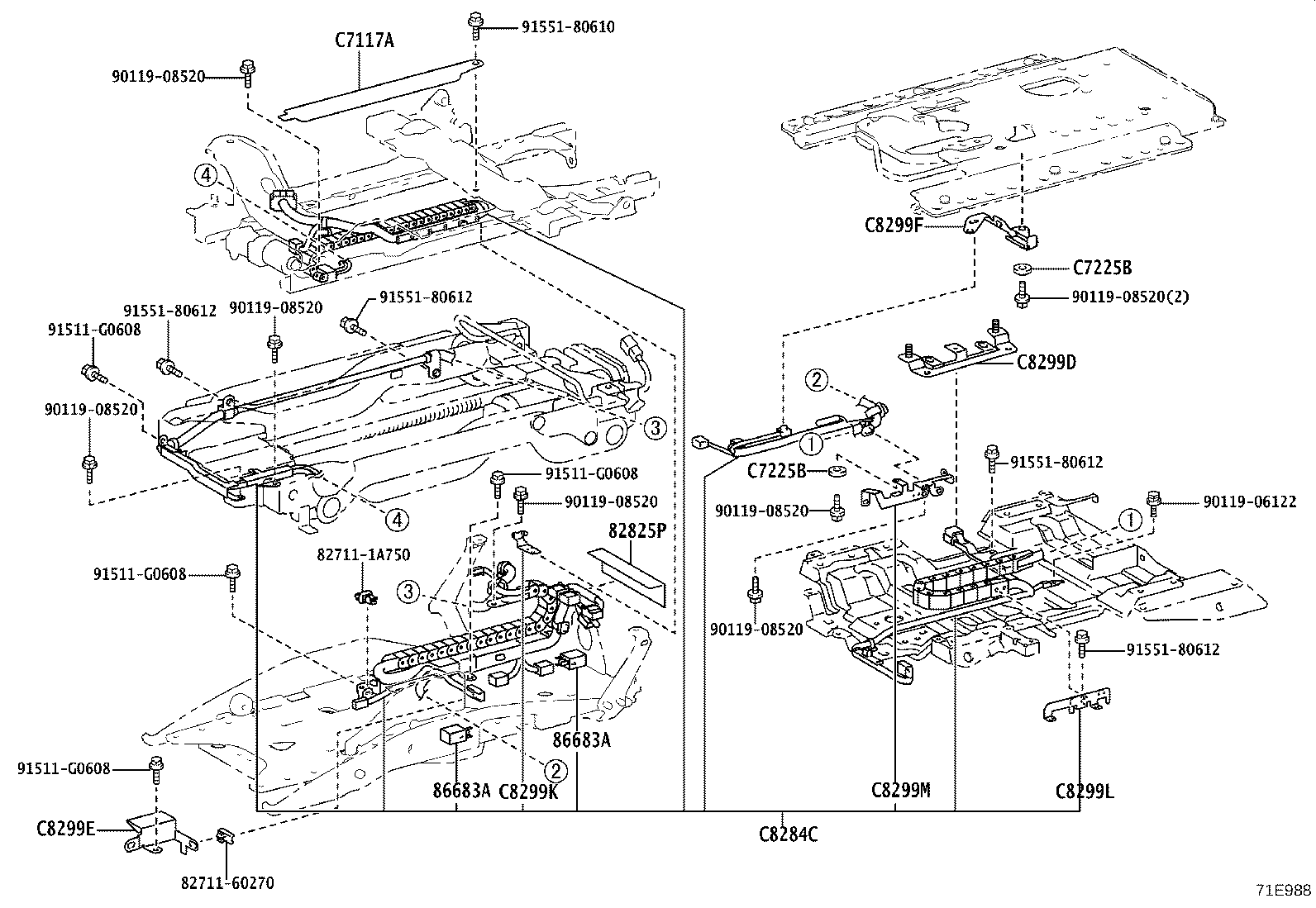

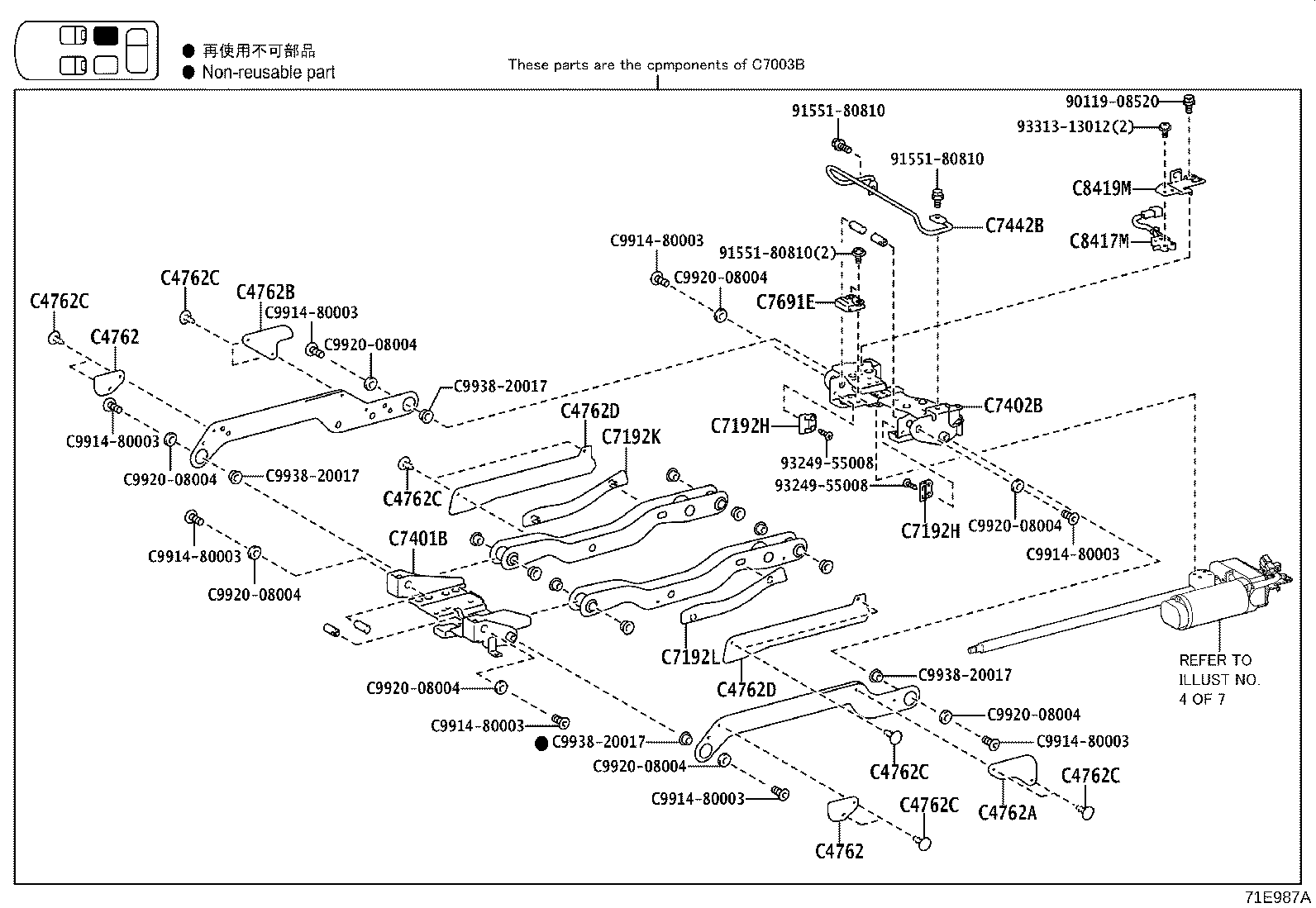

71F041 2022-11 → 2024-04

71F041 2022-11 → —

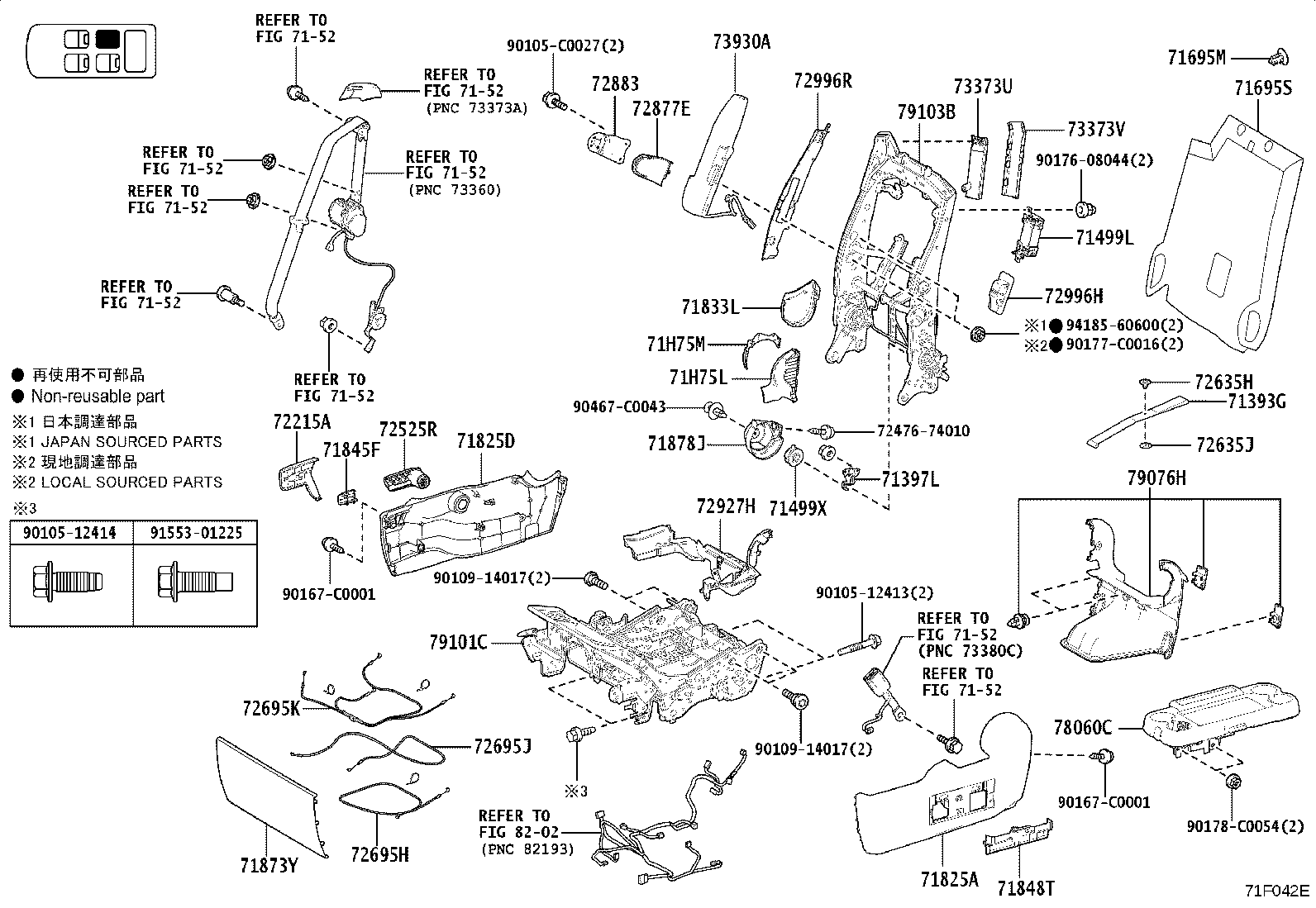

71F042E 2022-11 → 2025-09

71F042E 2022-11 → —

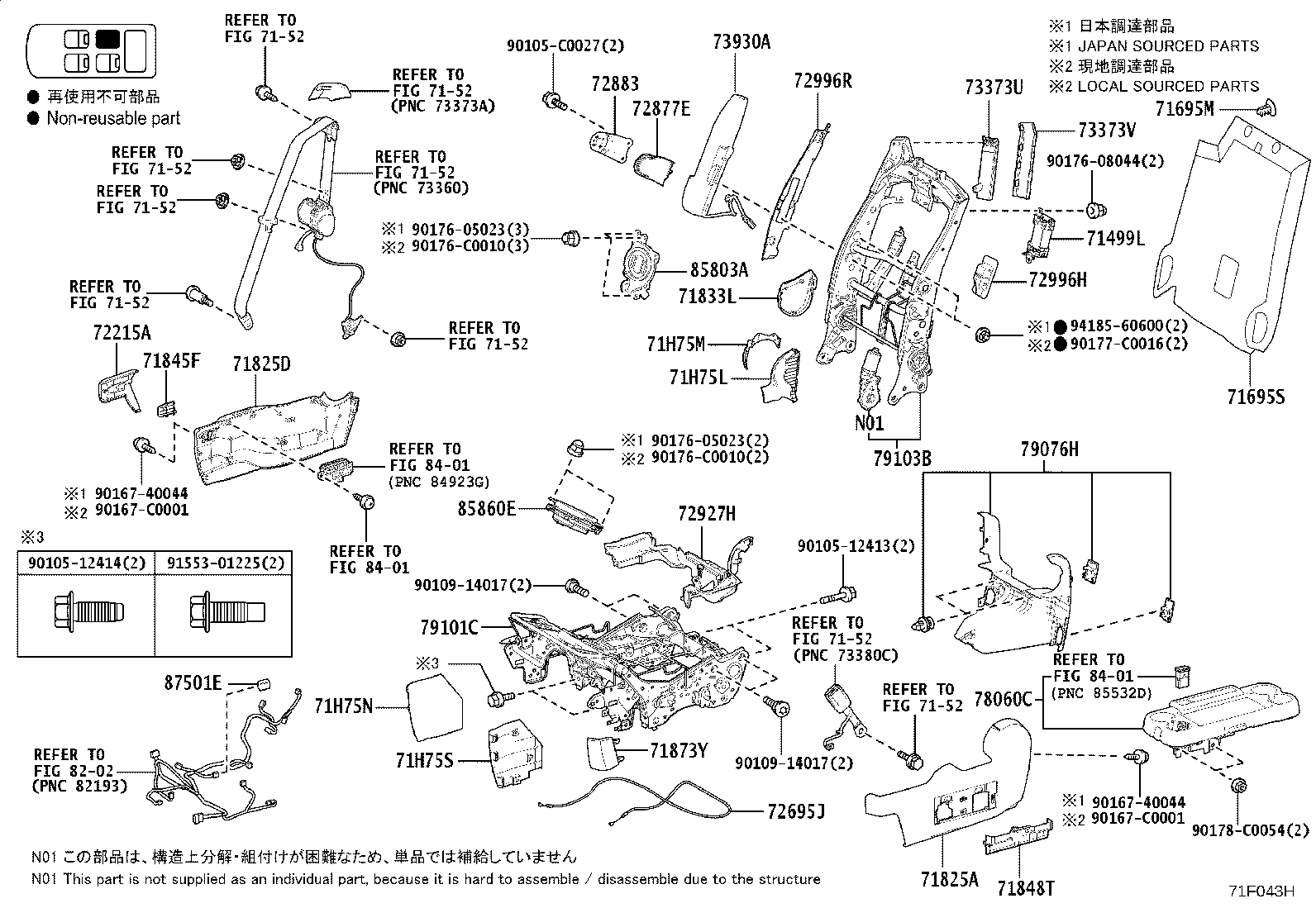

71F043H 2022-11 → 2024-04

71F043H 2022-11 → —

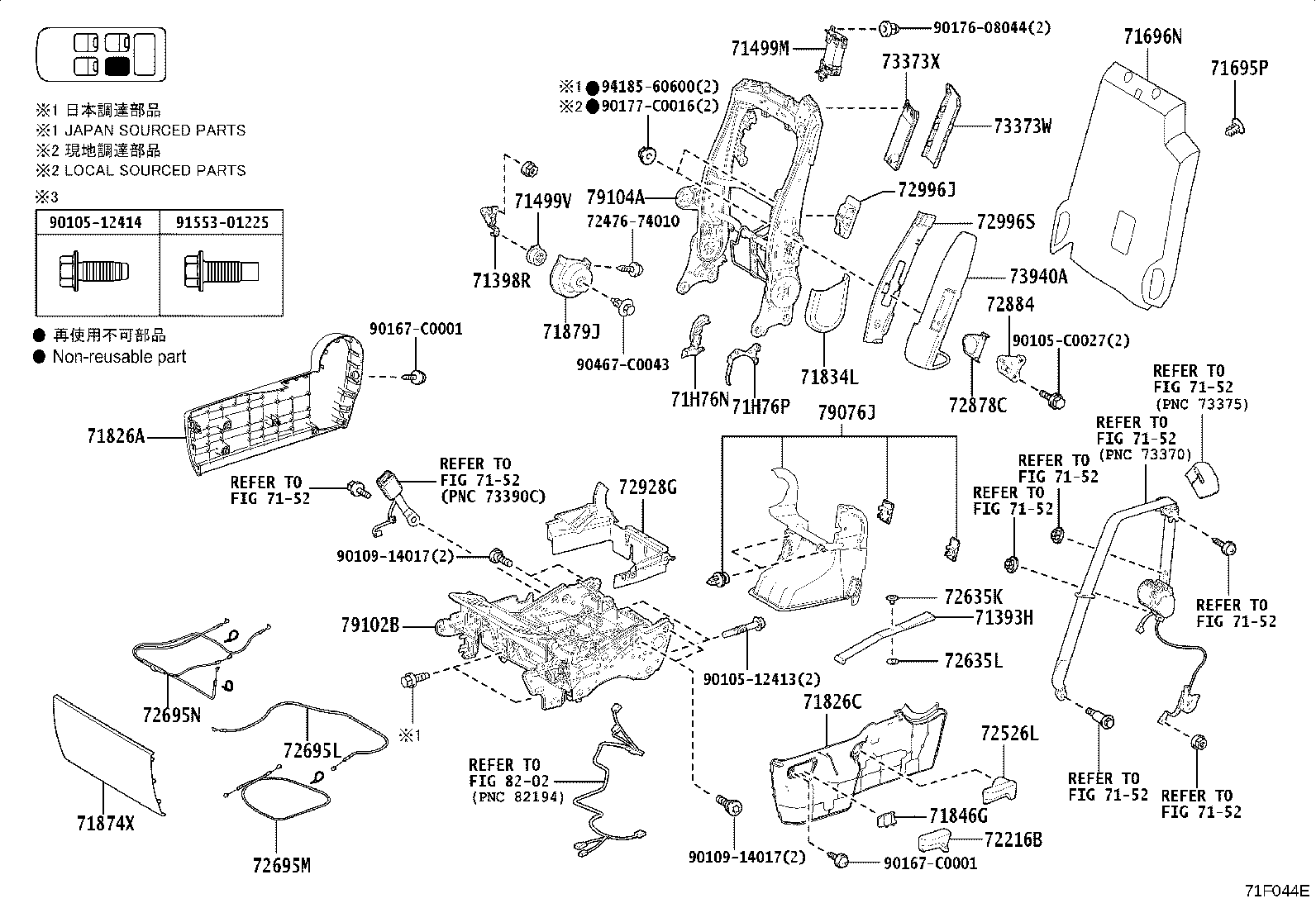

71F044E 2022-11 → 2025-09

71F044E 2022-11 → —

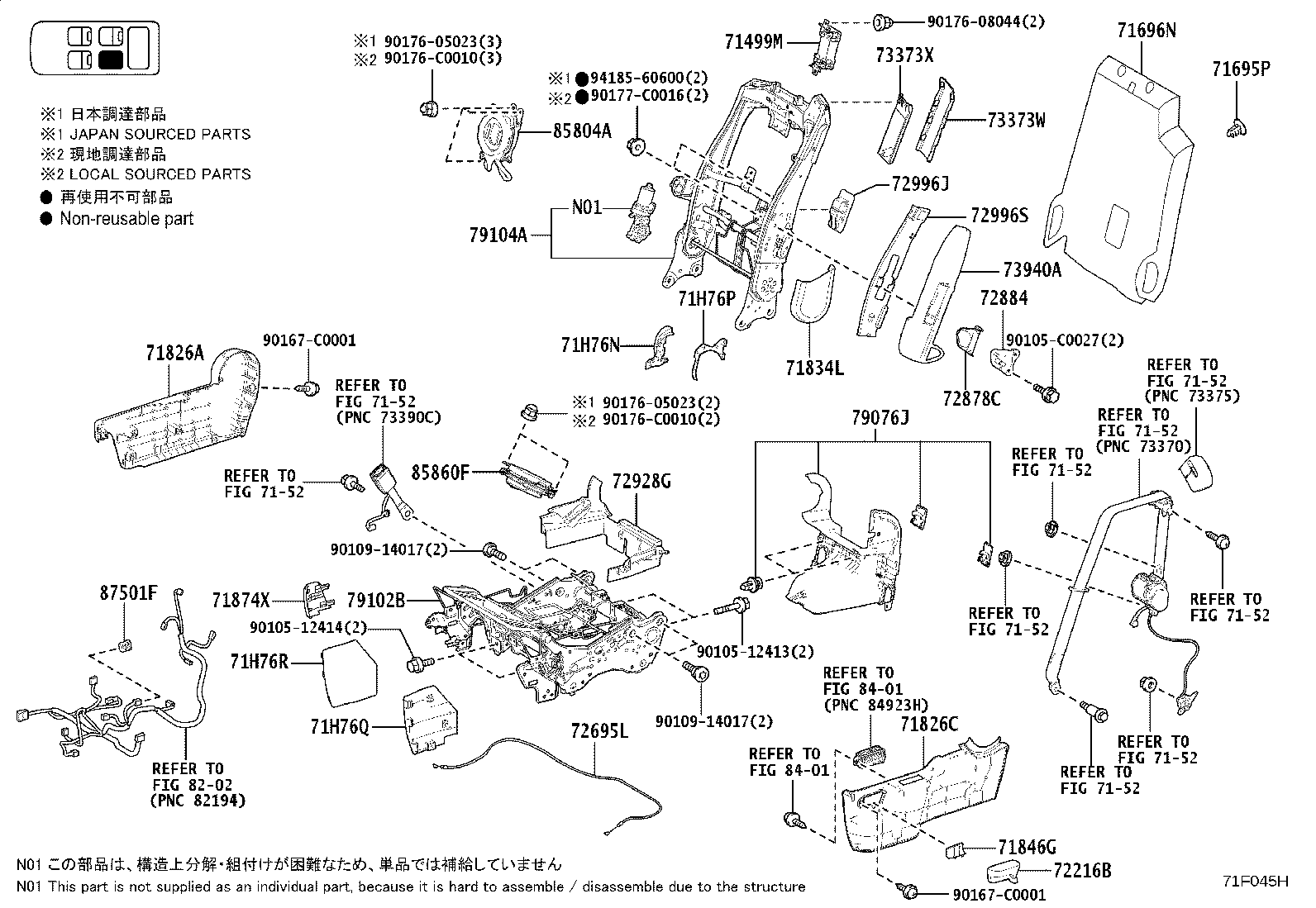

71F045H 2022-11 → 2024-04

71F045H 2022-11 → —

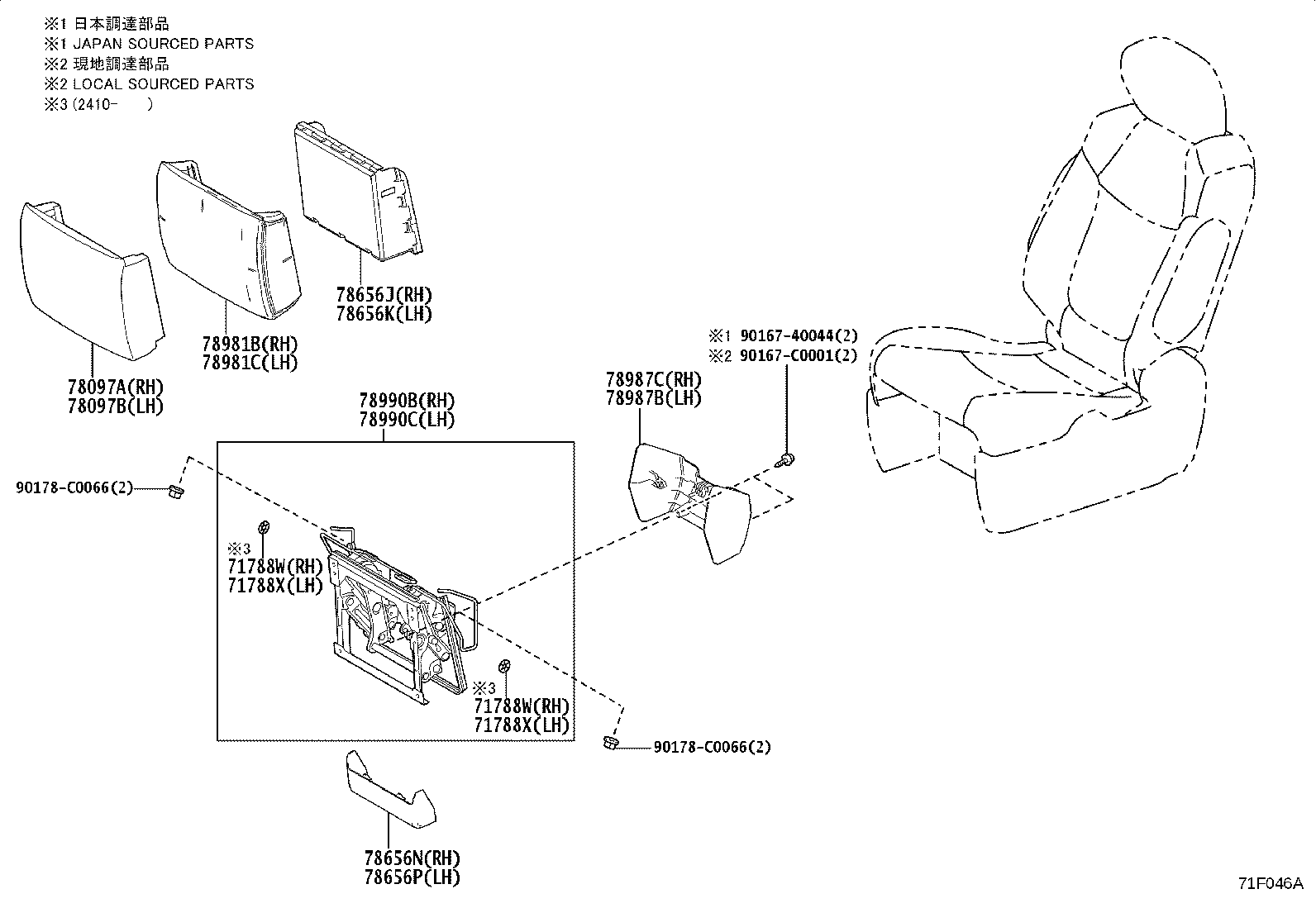

71F046A 2022-11 → 2024-04

Part groups

PNC	Description
53019G	Shutter Sub-assy, Radiator
53019K	Shutter Sub-assy, Radiator, NO.2
58204M	Bracket Sub-assy, Rear Seat
62786L	Case, Side Window Lock, NO.1
62786M	Case, Side Window Lock, NO.2
66990E	Holder Assy, Rear NO.1 Seat Cup, LH
66990L	Holder Assy, Rear NO.1 Seat Cup, RH
68332C	Roller, Slide Door, Lower
71075F	Cover Sub-assy, NO.1 Seat Cushion, RH
71077	Cover Sub-assy, Rear NO.1 Seatback, RH
71078A	Cover Sub-assy, Rear NO.1 Seatback, LH
71110C	Frame Assy, Front Seat W/Adjuster, RH
71295A	Plate, Rear Seatback, Upper RH
71296B	Plate, Rear Seatback, Upper LH
71305G	Stay Sub-assy, Rear NO.2 Seat(FOR RH SEAT)
71305H	Stay Sub-assy, Rear NO.2 Seat(FOR LH SEAT)
71315D	Plate, Rear Seat Hinge, Lower
71349H	Cover, NO.1 Seatback Stay, RH
71369A	Cover, NO.1 Seatback Stay, LH
71393G	Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H	Band, NO.1 Seat Cushion(FOR LH SEAT)
71397L	Holder, Rear Seatback, RH
71398R	Holder, Rear Seatback, LH
71462A	Spring, Rear Seat Cushion, NO.2(FOR RH SEAT)
71462B	Spring, Rear Seat Cushion, NO.2(FOR LH SEAT)
71485F	Cover, Rear Seat Hinge, NO.1 RH
71486H	Cover, Rear Seat Hinge, NO.1 LH
71499L	Damper, NO.1 Seatback Spring, RH
71499M	Damper, NO.1 Seatback Spring, LH
71499V	Damper, NO.1 Seatback Spring, LH NO.2
71499X	Damper, NO.1 Seatback Spring, RH NO.2
71537T	Protector, Rear Seat Cushion, NO.1
71537V	Protector, Rear Seat Cushion Edge
71611H	Pad, Rear NO.1 Seat Cushion, RH
71612G	Pad, Rear NO.1 Seat Cushion, LH
71651A	Pad, Rear NO.1 Seatback, RH
71652A	Pad, Rear NO.1 Seatback, LH
71693K	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71693P	Cover, Rear Seat Cushion Hinge, Lower RH NO.1
71694H	Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71695K	Protector, NO.1 Seatback, RH
71695L	Protector, NO.1 Seatback, LH
71695M	Clip, Rear NO.1 Seat Protector, NO.1 RH
71695P	Clip, Rear NO.1 Seat Protector, NO.1 LH
71695S	Protector, Rear Seat, NO.1
71696N	Protector, Rear Seat, NO.2
71704D	Band Sub-assy, Rear Side Seat, RH
71704E	Band Sub-assy, Rear Side Seat, LH
71757B	Cover, Rear NO.2 Seatback Board, RH
71758C	Cover, Rear NO.2 Seatback Board, LH
71769N	Clip, Rear Seat Cover, RH
71788W	Washer, Front Seatback Board Setting, RH
71811Y	Cover, Reclining Adjuster, RH
71812Z	Cover, Reclining Adjuster, LH
71825A	Moulding, NO.1 Seat Cushion, RH Inner
71825D	Moulding, Rear NO.1 Seat Cushion, RH
71826A	Moulding, NO.1 Seat Cushion, LH Inner
71826C	Moulding, Rear Seat Cushion, LH
71827C	Moulding, Rear Seat Cushion, Rear LH
71833L	Cover, Rear Seat Reclining, RH
71834L	Cover, Rear Seat Reclining, LH
71837F	Moulding, Rear Seat Cushion, Rear RH
71843	Cover, Rear Seat Reclining, NO.2 RH
71843G	Cover, NO.2 Seat Reclining, NO.2 RH Outer
71843H	Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843K	Cover, Rear NO.2 Seat Reclining, NO.2 RH
71843M	Cover, Rear Seat Reclining, NO.2 RH
71843P	Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR RH SEAT)
71843Q	Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR LH SEAT)
71844F	Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844G	Cover, NO.2 Seat Reclining, NO.2 LH Outer
71844H	Cover, Rear Seat Reclining, NO.2 LH
71844K	Cover, Rear NO.2 Seat Reclining, NO.2 LH
71844M	Cover, Rear Seat Reclining, NO.2 LH
71844N	Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR RH SEAT)
71845F	Cap, Rear Seat Cover
71846G	Cap, Rear Seat Cover, LH
71848T	Cap, NO.1 Seat Adjuster Cover, RH
71848Y	Cap, Seat Adjuster Cover, RH NO.1(FOR RH SEAT)
71866E	Bezel, Rear NO.2 Seat Cover, NO.2(FOR RH SEAT)
71866F	Bezel, Rear NO.2 Seat Cover, NO.2(FOR LH SEAT)
71873Y	Shield, Rear Seat Cushion, Lower
71874X	Shield, Rear Seat Cushion, Lower LH
71878J	Cover, Rear NO.1 Seat Reclining, Inner RH
71879J	Cover, Rear NO.1 Seat Reclining, Inner LH
71930H	Support Assy, NO.1 Seat Headrest, RH
71930J	Support Assy, NO.1 Seat Headrest, LH
71930K	Support Assy, NO.2 Seat Headrest, RH
71930L	Support Assy, NO.2 Seat Headrest, LH
71930R	Support Assy, Rear NO.2 Seat Headrest, Center
71940F	Headrest Assy, NO.1 Seat, RH
71940G	Headrest Assy, NO.1 Seat, LH
71940H	Headrest Assy, NO.2 Seat, RH
71940J	Headrest Assy, NO.2 Seat, LH
71952A	Cover, Rear Seat Headrest Under(FOR RH SEAT)
71952B	Cover, Rear Seat Headrest Under(FOR LH SEAT)
71960F	Headrest Assy, Rear NO.2 Seat, Center
71988B	Knob, Rear Seat Headrest
71990B	Support Assy, Rear NO.2 Seat Headrest, RH
71990C	Support Assy, Rear NO.2 Seat Headrest, LH
71F95A	Protector, NO.1 Seat Cushion Under, RH
71F95B	Protector, NO.1 Seat Cushion Under, LH
71H75L	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M	Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75N	Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT)
71H75S	Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT)
71H76L	Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M	Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N	Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76P	Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71H76Q	Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT)
71H76R	Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71T75B	Clip, Reclining Adjuster Inside Cover, RH
71T76D	Clip, Reclining Adjuster Inside Cover, LH
72053E	Lever Sub-assy, Reclining Remote Control, RH
72054C	Lever Sub-assy, Reclining Remote Control, LH
72069B	Cable Sub-assy, Rear Seatback Lock Control(FOR RH SEAT)
72069C	Cable Sub-assy, Rear Seatback Lock Control(FOR LH SEAT)
72071C	Pump Sub-assy, Lumber Support, RH
72072B	Pump Sub-assy, Lumber Support, LH
72205F	Housing Sub-assy, Power Seat, NO.1
72205G	Housing Sub-assy, Power Seat, NO.2
72215A	Lever, NO.1 Seat Track Handle Control, RH
72216B	Lever, NO.1 Seat Track Handle Control, LH
72525R	Handle, Reclining Adjuster Release, RH
72526L	Handle, Reclining Adjuster Release, LH
72553E	Protector, Reclining Cover, RH NO.1
72554E	Protector, Reclining Cover, LH NO.1
72570G	Cable Assy, NO.2 Seat Reclining Adjusting, RH
72580E	Cable Assy, Reclining Adjusting, LH
72589E	Cable Assy, Reclining Remote Control, NO.1
72590F	Cable Assy, Reclining Remote Control, RH
72590G	Cable Assy, Reclining Remote Control, LH
72619B	Guard, Lock
72635H	Hook, Rear NO.1 Seatback Lock, NO.1(FOR RH SEAT)
72635J	Hook, Rear NO.1 Seatback Lock, NO.2(FOR RH SEAT)
72635K	Hook, Rear NO.1 Seatback Lock, NO.1(FOR LH SEAT)
72635L	Hook, Rear NO.1 Seatback Lock, NO.2(FOR LH SEAT)
72637L	Handle, Rear Seat Lock
72689C	Roller, Rear Seat Cushion, Lower
72689D	Roller, Rear Seat Cushion, Lower(FOR LH SEAT)
72695H	Cable, Rear NO.1 Seat Lock Control, RH
72695J	Cable, Rear NO.1 Seat Lock Control, RH(FOR SLIDE)
72695K	Cable, Rear NO.1 Seat Lock Control, RH(FOR RECLINING)
72695L	Cable, Rear NO.1 Seat Lock Control, LH(FOR SLIDE)
72695M	Cable, Rear NO.1 Seat Lock Control, LH
72695N	Cable, Rear NO.1 Seat Lock Control, LH(FOR RECLINING)
72803H	Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT)
72803J	Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804E	Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72804F	Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT)
72830U	Armrest Assy, Rear Seat, RH
72830V	Armrest Assy, Rear NO.1 Seat, RH
72832B	Plate, Rear Seat Armrest
72833E	Plate, Rear Seat Armrest, NO.2
72840J	Armrest Assy, Rear Seat, LH
72840K	Armrest Assy, Rear NO.1 Seat, LH
72848C	Cap, NO.1 Seat Armrest, NO.1 RH
72848D	Cap, NO.1 Seat Armrest, NO.1 LH
72849D	Cap, Seat Armrest, NO.2
72877E	Cover, NO.1 Seat Armrest, RH
72878C	Cover, NO.1 Seat Armrest, LH
72883	Bracket, Rear Seat Center Armrest, RH
72884	Bracket, Rear Seat Center Armrest, LH
72927H	Cover, Rear NO.1 Seat Cushion Under, RH NO.1
72928G	Cover, Rear NO.1 Seat Cushion Under, LH NO.1
72987B	Cover, Rear Seat Center Armrest
72988B	Cover, NO.1 Seat Center Armrest, NO.2
72995F	Cover, Rear Seat Cushion, RH
72995J	Cover, Rear NO.1 Seat Cushion
72995N	Cover, Rear Seat Cushion, LH
72996G	Cover, Rear Seat, NO.2 RH
72996H	Cover, Rear Seatback
72996J	Cover, Rear Seatback, NO.2
72996R	Cover, Rear NO.1 Seatback, RH
72996S	Cover, Rear NO.1 Seatback, LH
72998D	Cover, Rear Seat Cushion, LH
73217B	Tube, Rear Seat Adjuster
73217C	Tube, Adjuster, LH
73373U	Cover, NO.1 Seat Shoulder Belt, RH NO.1
73373V	Cover, NO.1 Seat Shoulder Belt, RH NO.2
73373W	Cover, NO.1 Seat Shoulder Belt, LH NO.2
73373X	Cover, NO.1 Seat Shoulder Belt, LH NO.1
73930A	Airbag Assy, Rear Seat, RH
73940A	Airbag Assy, Rear Seat, LH
77278M	Valve, Check W/Hose, RH NO.1(FOR SEATBACK)
77278N	Valve, Check W/Hose, LH NO.1(FOR SEATBACK)
78060C	Table Assy, NO.1 Seat Side
78097A	Cover Sub-assy, NO.1 Seat Footrest(FOR RH SEAT)
78097B	Cover Sub-assy, NO.1 Seat Footrest(FOR LH SEAT)
78656J	Cover, Rear Seat Legrest, RH
78656K	Cover, Rear Seat Legrest, LH
78656N	Cover, Rear Seat Legrest, RH NO.2
78656P	Cover, Rear Seat Legrest, LH NO.2
78910C	Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910D	Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78981B	Panel, NO.1 Seat Footrest(FOR RH SEAT)
78981C	Panel, NO.1 Seat Footrest(FOR LH SEAT)
78987B	Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C	Cover, Rear NO.1 Seat Footrest, NO.1 RH
78988G	Cover, Rear Seat Footrest, NO.2
78990B	Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C	Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B	Cover Sub-assy, NO.1 Seat Cushion, RH
79012A	Cover Sub-assy, NO.1 Seat Cushion, LH
79021D	Cover Sub-assy, NO.2 Seat Cushion, RH
79022B	Cover Sub-assy, NO.2 Seat Cushion, LH
79023D	Cover Sub-assy, NO.2 Seatback, RH
79024D	Cover Sub-assy, NO.2 Seatback, LH
79076H	Cover Sub-assy, NO.1 Seat Leg, RH
79076J	Cover Sub-assy, NO.1 Seat Leg, LH
79091E	Garnish Sub-assy, Rear Seat Leg Side, RH
79091F	Garnish Sub-assy, Rear Seat Leg Side, LH
79092C	Garnish Sub-assy, Rear Seat Leg Side, NO.2
79101C	Frame Sub-assy, NO.1 Seat Cushion, RH
79102B	Frame Sub-assy, NO.1 Seat Cushion, LH
79103B	Frame Sub-assy, NO.1 Seatback, RH
79104A	Frame Sub-assy, NO.1 Seatback, LH
79117E	Cover, NO.1 Seat Cushion
79135C	Pad, NO.1 Seat Cushion, RH
79203B	Frame Sub-assy, NO.2 Seatback, RH
79204C	Frame Sub-assy, NO.2 Seatback, LH
79205C	Leg Sub-assy, NO.2 Seat, RH
79206D	Leg Sub-assy, NO.2 Seat, LH
79214	Frame, NO.2 Seat Cushion, Rear RH
79216B	Frame, NO.2 Seat Cushion, Rear LH
79235F	Pad, NO.2 Seat Cushion, RH
79245A	Pad, NO.2 Seat Cushion, LH
79273B	Cover, NO.2 Seat Hinge, NO.3
79273C	Cover, NO.2 Seat Hinge, NO.4
79273D	Cover, NO.2 Seat Hinge, Rear RH
79273E	Cover, NO.2 Seat Hinge, Rear LH
79275F	Pad, NO.2 Seatback, RH
79285C	Pad, NO.2 Seatback, LH
79288A	Stopper, NO.2 Seat Cushion(FOR RH SEAT)
79288B	Stopper, NO.2 Seat Cushion(FOR LH SEAT)
79806C	Leg Sub-assy, Fold Seat, Rear RH
79807A	Leg Sub-assy, Fold Seat, Rear LH
79997A	Protector, Seat Leg Box, NO.1
82168C	Wire, Seat, NO.2
82825P	Cover, Relay
85803A	Blower Sub-assy, Seatback Climate, RH
85804A	Blower Sub-assy, Seatback Climate, LH
85860E	Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F	Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85996K	Clip(FOR RELAY BRACKET)
85J99A	Bracket, Relay, NO.1
86683A	Relay, Power Lift
87501E	Control Sub-assy, Seat Heater, RH
87501F	Control Sub-assy, Seat Heater, LH
87510Y	Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z	Heater Assy, Rear NO.1 Seat Cushion, RH
87530	Heater Assy, Rear NO.1 Seatback, LH
87530A	Heater Assy, Rear NO.1 Seatback, RH
C2821B	Seal, Front Panel, NO.1
C2821C	Seal, Front Panel, NO.2
C4762	Cover, Shutter Lock, Lower NO.1
C4762A	Cover, Shutter Lock, Lower NO.2
C4762B	Cover, Shutter Lock, Lower NO.3
C4762C	Clip, Shutter Lock Cover
C4762D	Cover, Shutter Lock, Upper
C6359A	Cap, Protector Bar
C7003B	Lift Unit, Rear Seat
C7027C	Lock Sub-assy, Welcab Seat Turn
C7111A	Bracket, Seat Holder, Front
C7117A	Plate, Seat Holder, RH
C7120D	Leg Assy, Welcab Seat
C7159H	Cushion, Welcab Seat Leg Stopper
C7159L	Cushion, Welcab Seat Leg Stopper, NO.1
C7179G	Bracket, Welcab Seat Cover NO.1
C7192H	Plate, Seat Holder Stopper, NO.1
C7192J	Plate, Seat Holder Stopper, NO.2
C7192K	Plate, Seat Holder Stopper, NO.3
C7192L	Plate, Seat Holder Stopper, NO.4
C7208B	Plate Sub-assy, Seat Turn Lock
C7210D	Footrest Assy, Welcab Seat
C7225B	Plate, Welcab Seat Footrest Step, NO.1
C7230F	Track Assy, Welcab Seat, NO.1
C7230G	Track Assy, Welcab Seat, NO.2
C7401B	Guide Sub-assy, Welcab Seat, Front
C7402B	Guide Sub-assy, Welcab Seat, Rear
C7409E	Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409F	Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7409G	Bracket Sub-assy, Welcab Seat Rod Support, NO.3
C7422F	Pin, Welcab Seat Arm Guide, NO.2
C7442B	Guard, Welcab Seat Cable
C7481C	Rod, Welcab Seat, NO.1
C7481D	Rod, Welcab Seat, NO.2
C7483C	Gear Welcab Seat Leg, NO.1
C7483D	Gear Welcab Seat Leg, NO.2
C7485K	Bracket, Welcab Seat Rod Support, NO.1
C7485L	Bracket, Welcab Seat Rod Support, NO.2
C7490B	Cylinder Assy, Welcab Seat
C7495D	Bracket, Welcab Seat Motor, NO.1
C7691D	Cushion, Seat Flat, NO.1
C7691E	Cushion, Seat Flat, NO.2
C7986E	Cover, Rear Seat Turn Guard
C7986F	Clip, Rear Seat Turn Guard Cover
C7996M	Spacer, Turn Seat
C7996N	Spacer, Turn Seat, NO.2
C7996T	Spacer, Turn Seat, NO.3
C7996U	Spacer, Turn Seat, NO.4
C8284C	Wire, Power Lift Main
C8299D	Bracket, Welcab Seat Harness Connector, NO.1
C8299E	Bracket, Welcab Seat Harness Connector, NO.2
C8299F	Bracket, Welcab Seat Harness Connector, NO.3
C8299K	Bracket, Welcab Seat Harness Connector, NO.4
C8299L	Bracket, Welcab Seat Harness Connector, NO.5
C8299M	Bracket, Welcab Seat Harness Connector, NO.6
C8340B	Computer Assy, Welcab Device Control
C8417L	Switch, Limit, NO.1
C8417M	Switch, Limit, NO.2
C8417N	Switch, Limit, NO.3
C8417P	Switch, Limit, NO.4
C8419M	Bracket, Limit Switch, NO.2
C8419N	Bracket, Limit Switch, NO.3
C8419T	Bracket, Limit Switch, NO.4
C8459A	Spring, Limit Switch
C9055H	Cover Sub-assy, Power Lift, NO.1
C9055J	Clip, Power Lift Cover, NO.1
C9055K	Cover Sub-assy, Power Lift Leg, Rear
C9055L	Cover Sub-assy, Power Lift, NO.2
C9055N	Cover Sub-assy, Power Lift, NO.3
C9055P	Clip, Power Lift Cover, Rear
C9295E	Cover, Power Lift Arm, RH
C9296C	Cover, Power Lift Arm, LH
C9507B	Lock Sub-assy, Platform, NO.1
C9570C	Lock Assy, Platform
C9570D	Lock Assy, Platform, NO.2
C9610J	Motor Assy, Power Lift
C9610K	Motor Assy, Lift UP Seat Turn
C9610L	Motor Assy, Lift UP Seat Slide
C9611B	Motor, Power Lift, NO.1
C9611C	Motor, Power Lift, NO.2
C9611D	Motor, Power Lift, NO.3
C9652B	Cap, Power Lift Cylinder, NO.1
C9652C	Cap, Power Lift Cylinder, NO.2
C9654M	Collar, Power Lift Cylinder, NO.1
C9654N	Collar, Power Lift Cylinder, NO.2
C9691C	Cover, Power Lift Motor
C9691D	Clip, Power Lift Motor Cover
C9938E	Bush, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
