Toyota Granvia Hybrid
2022-11 → present · chassis AXLH4# · catalogue 624310 · General
Supported model
Data version 2024-03

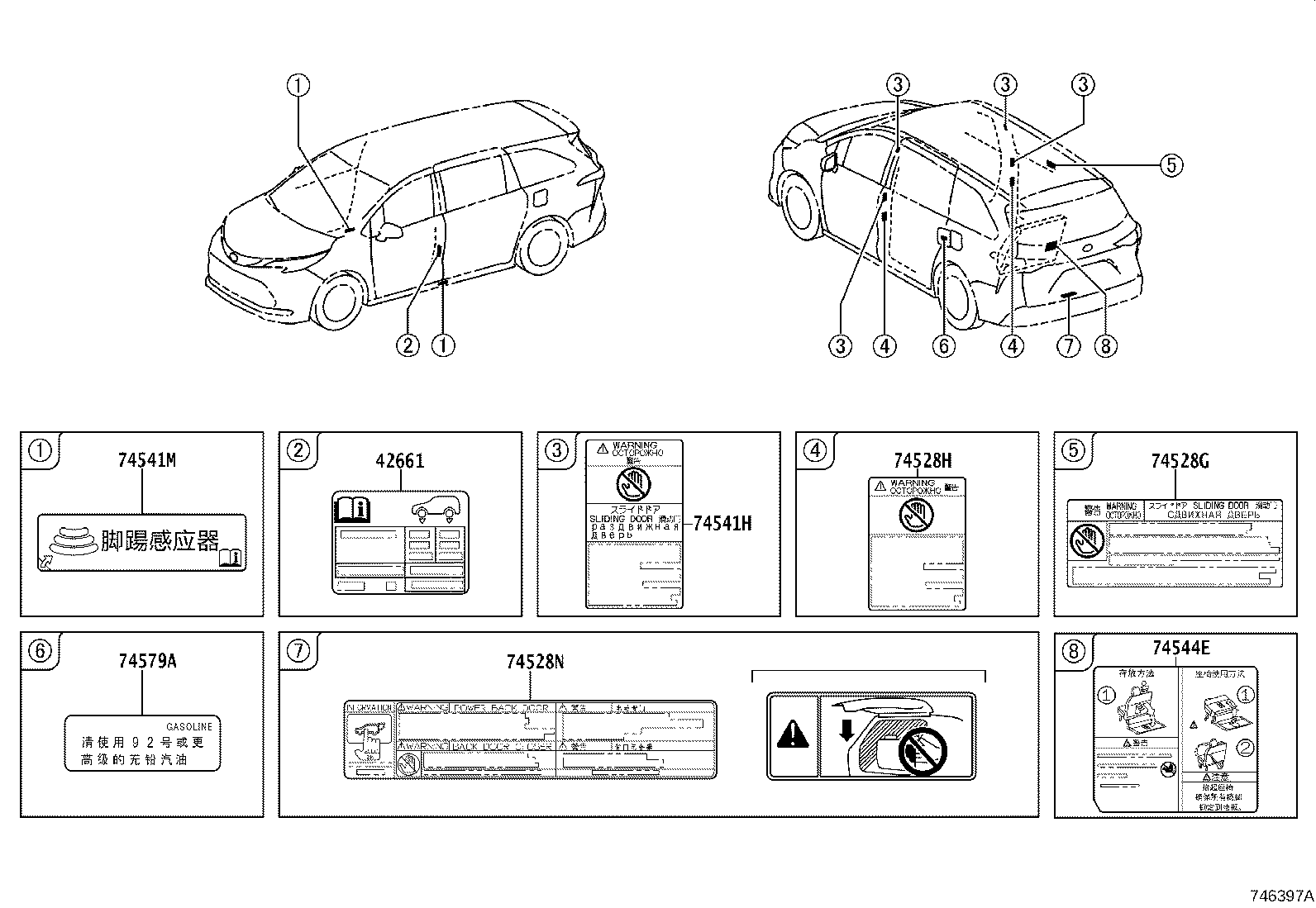

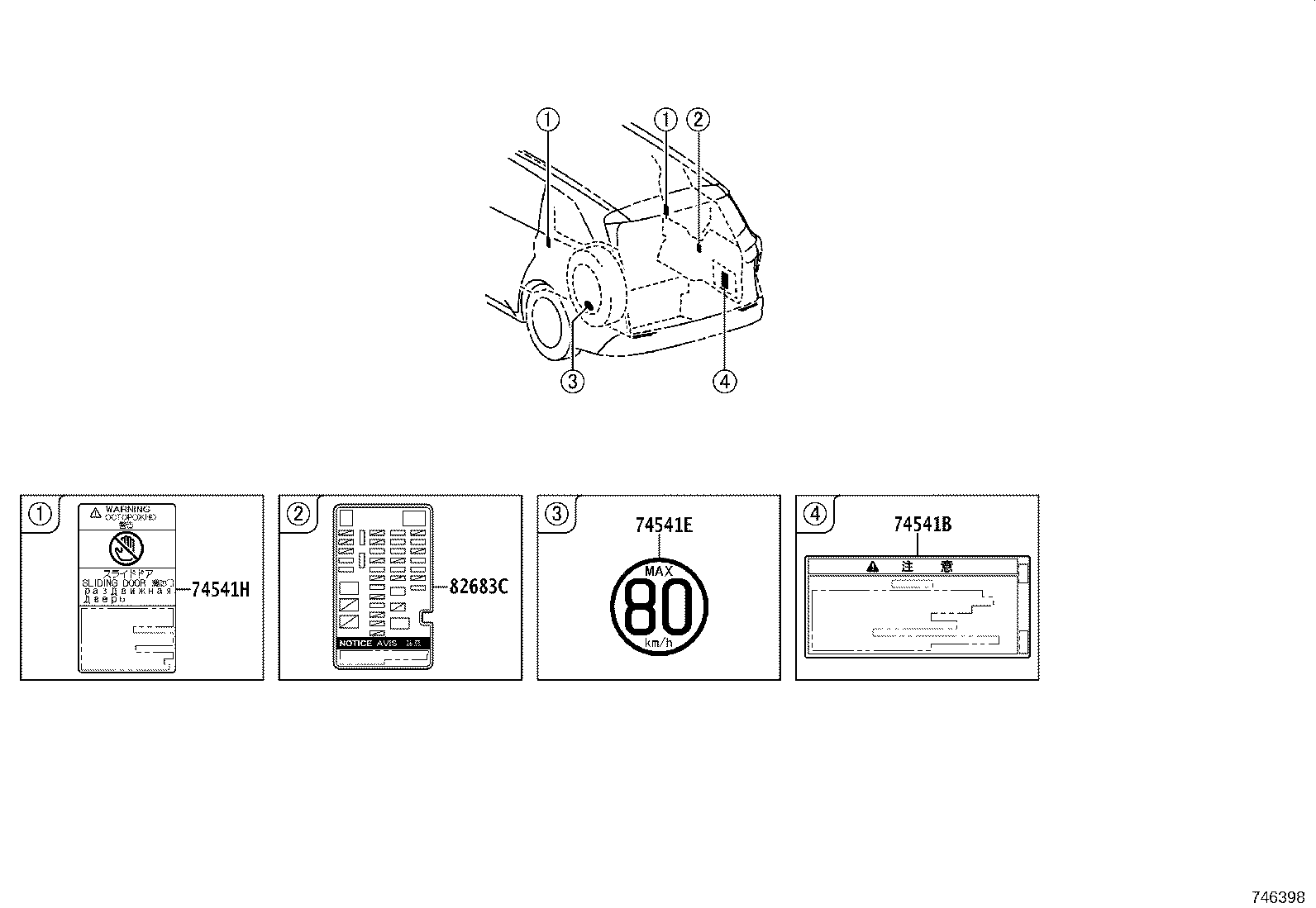

Caution Plate
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 288A2 | Label, Battery Location |
| 42661 | Label, Tire Pressure Information |
| 74528G | Label, Power Slide Door Caution |
| 74528H | Label, Power Slide Door Caution |
| 74528N | Label, Back Door Caution, NO.2 |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74541M | Label, Slide Door Information |
| 74544E | Label, Rear NO.2 Seat Information |
| 74579A | Label, Unleaded Fuel Information |
| 82683C | Label, Fuse Block Notice |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
