Toyota Granvia Hybrid

2022-11 → present · chassis AXLH4# · catalogue 624310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

29 part groups · 3 illustrations

Illustrations

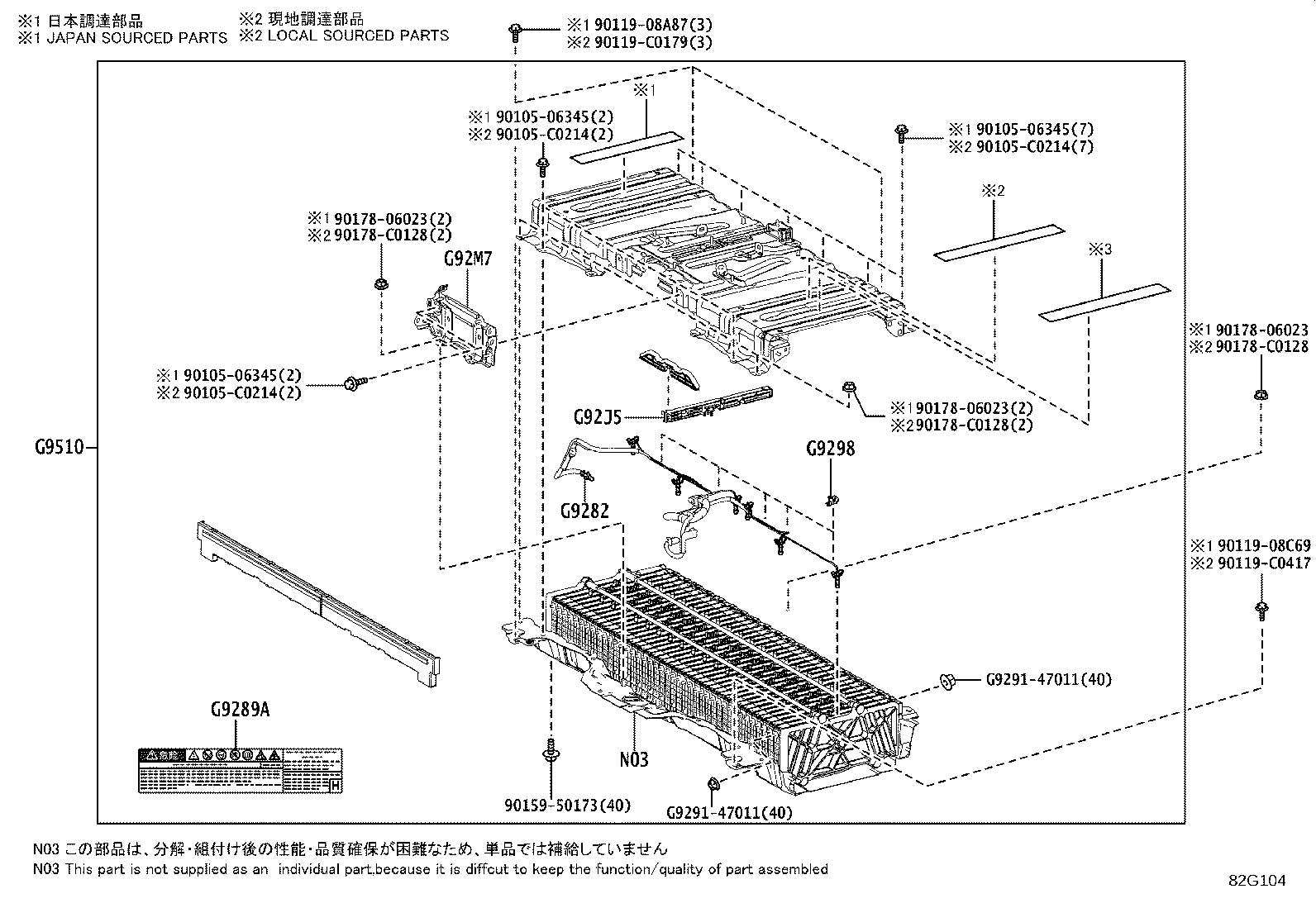

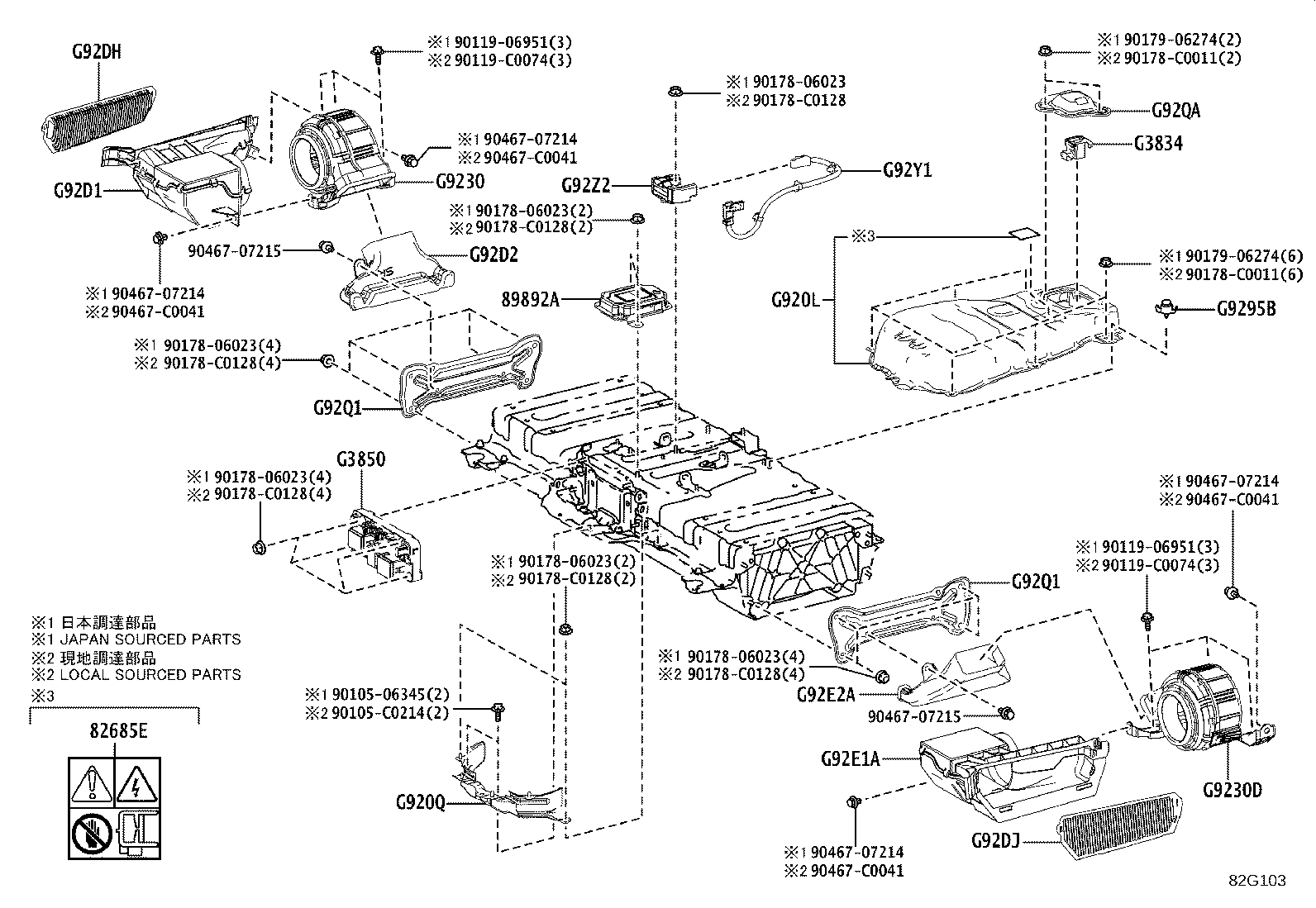

Figure 82G102 82G102 2022-09 → — Figure 82G103 82G103 2022-09 → — Figure 82G104 82G104 2022-09 → —

Part groups

PNCDescription
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800M Terminal, Battery Positive
28885B Hose, Battery
28899 Insulator, Battery
82685E Plate, Service Plug Caution
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G3850 Box Assy, Traction Battery Device, NO.1
G920L Cover Sub-assy, Hybrid Battery, Upper NO.1
G920Q Shield Sub-assy, Hybrid Battery, NO.1
G9230 Blower Assy, Battery Cooling
G9230D Blower Assy, Battery Cooling, NO.2
G9282 Thermistor, Hybrid Battery
G9289A Label, Battery Caution
G9295B Striker, Battery Cover Lock
G9298 Clamp, HV Battery
G92D1 Duct, Hybrid Battery Intake, NO.1
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DH Filter, HV Battery Intake, NO.1
G92DJ Filter, HV Battery Intake, NO.2
G92E1A Duct, HV Battery Intake, NO.1 LH
G92E2A Duct, HV Battery Intake, NO.2 LH
G92J5 Packing, Hybrid Battery, NO.1
G92M7 Bracket, HV Battery Upper Carrier, NO.1
G92Q1 Panel, HV Battery Shield, NO.1
G92QA Panel, HV Battery Shield, NO.8
G92Y1 Cable, HV Battery Pack, NO.1
G92Z2 Block, Hybrid Battery Terminal
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
