Toyota Granvia Hybrid
2022-11 → present · chassis AXLH4# · catalogue 624310 · General
Supported model
Data version 2024-03
Switch & Relay & Computer
140 part groups · 12 illustrations
Illustrations
Part groups

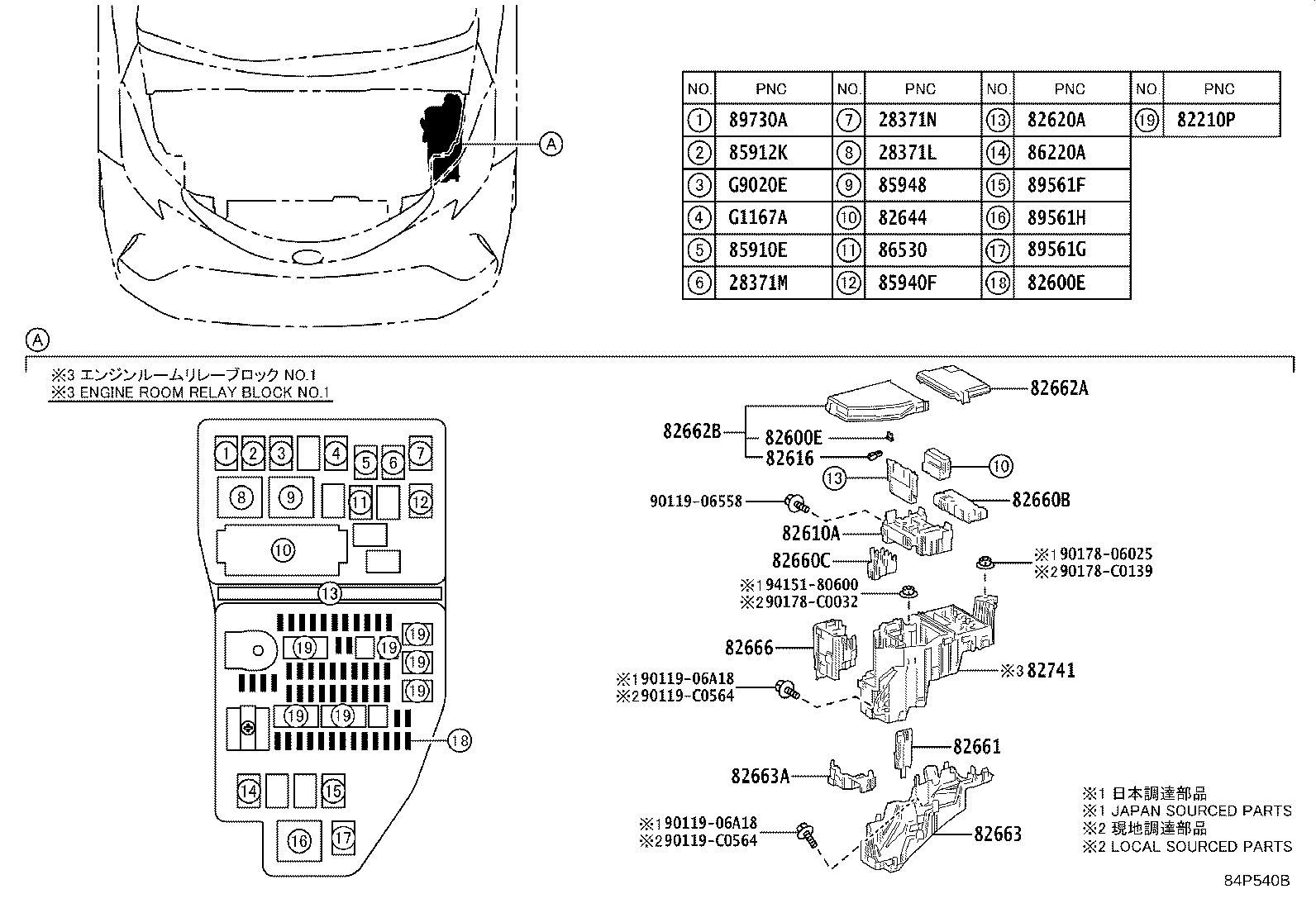

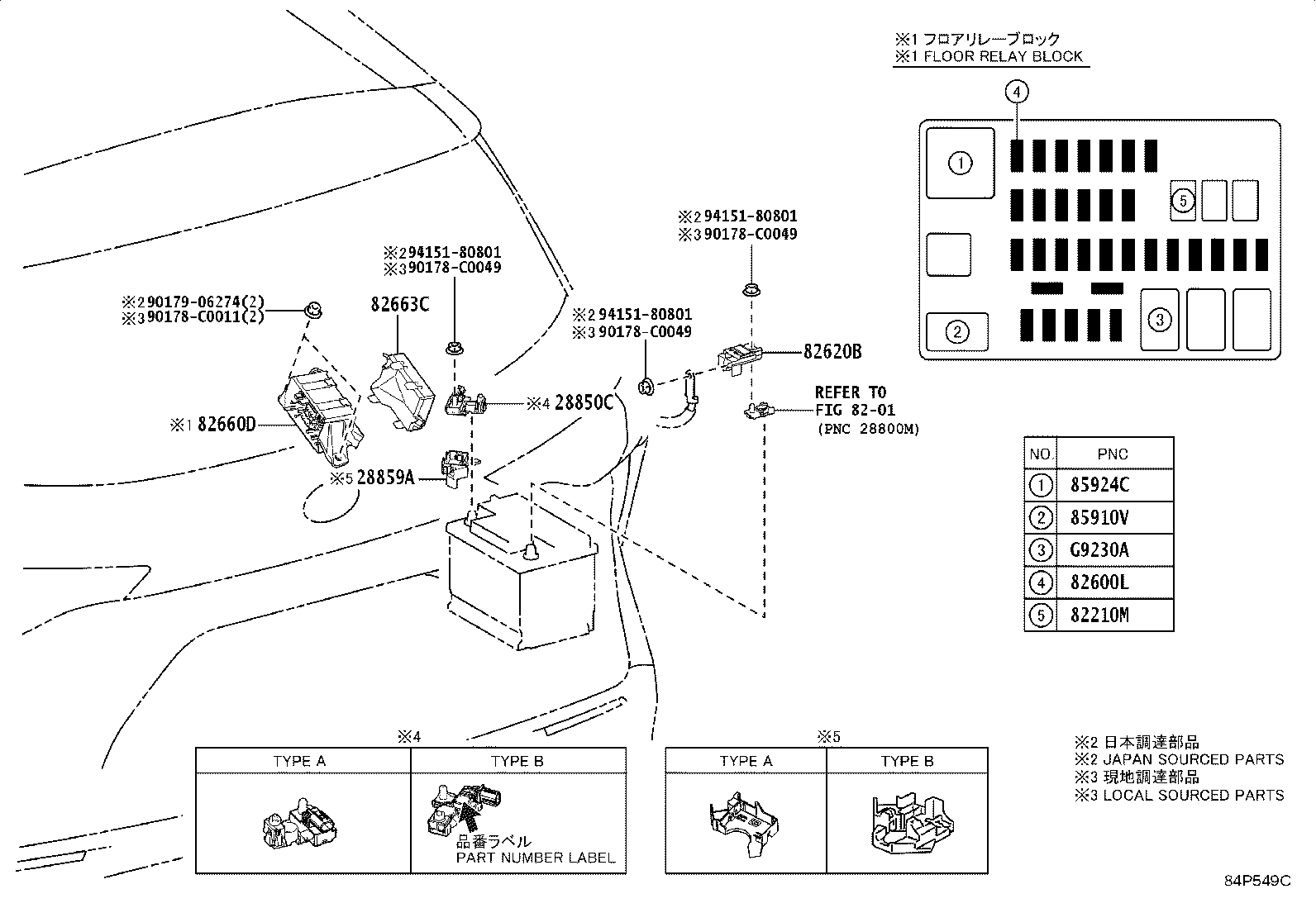

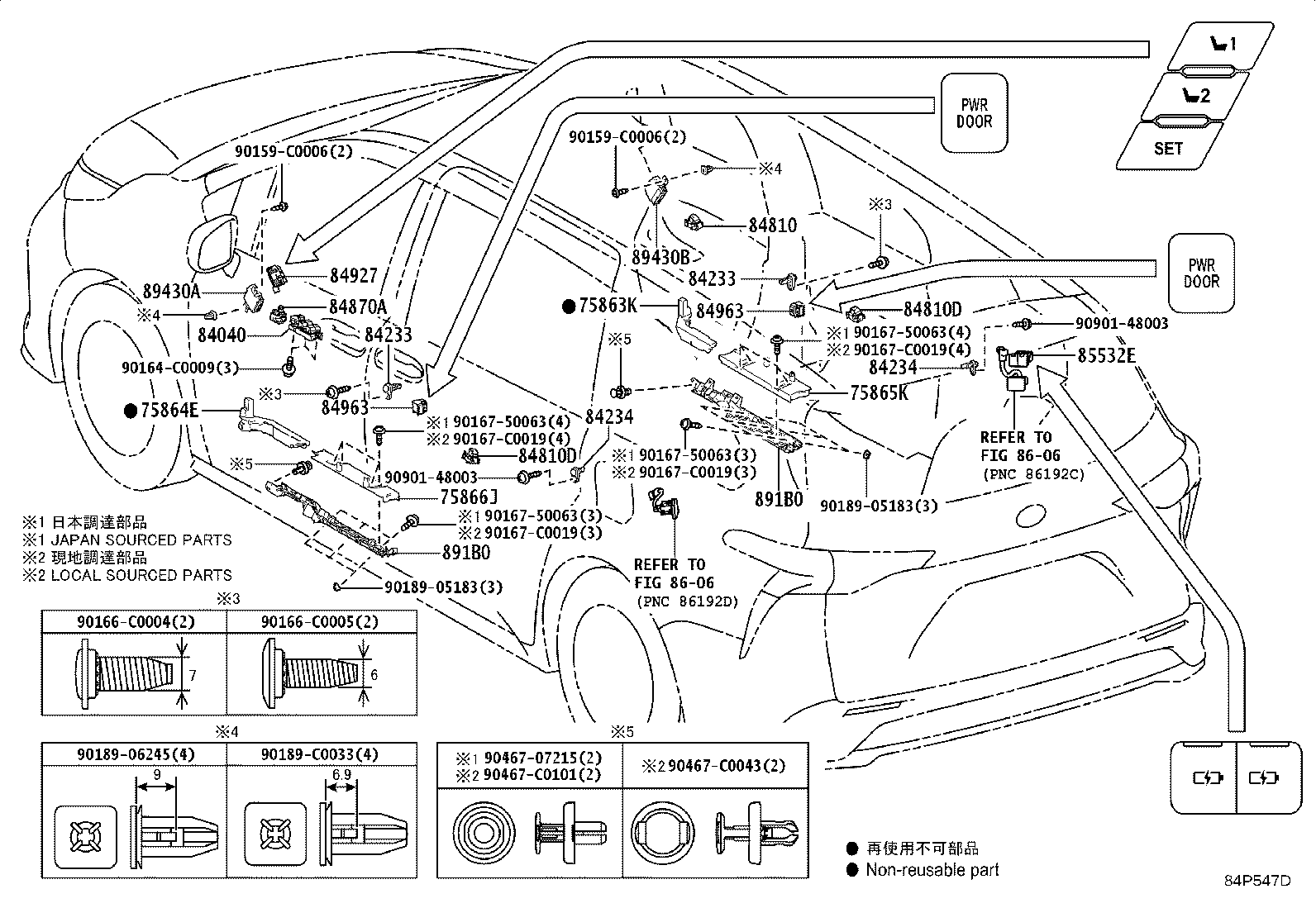

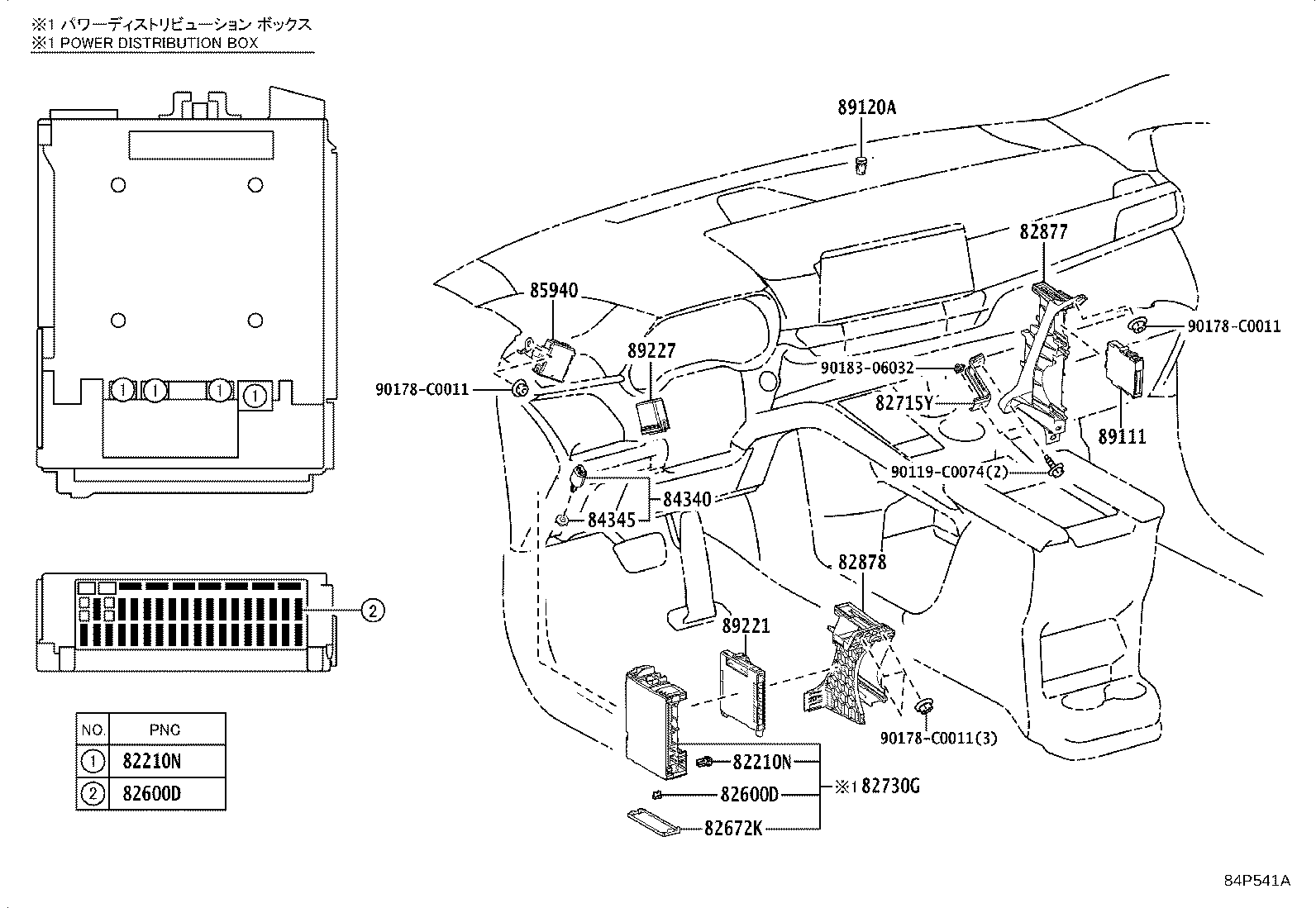

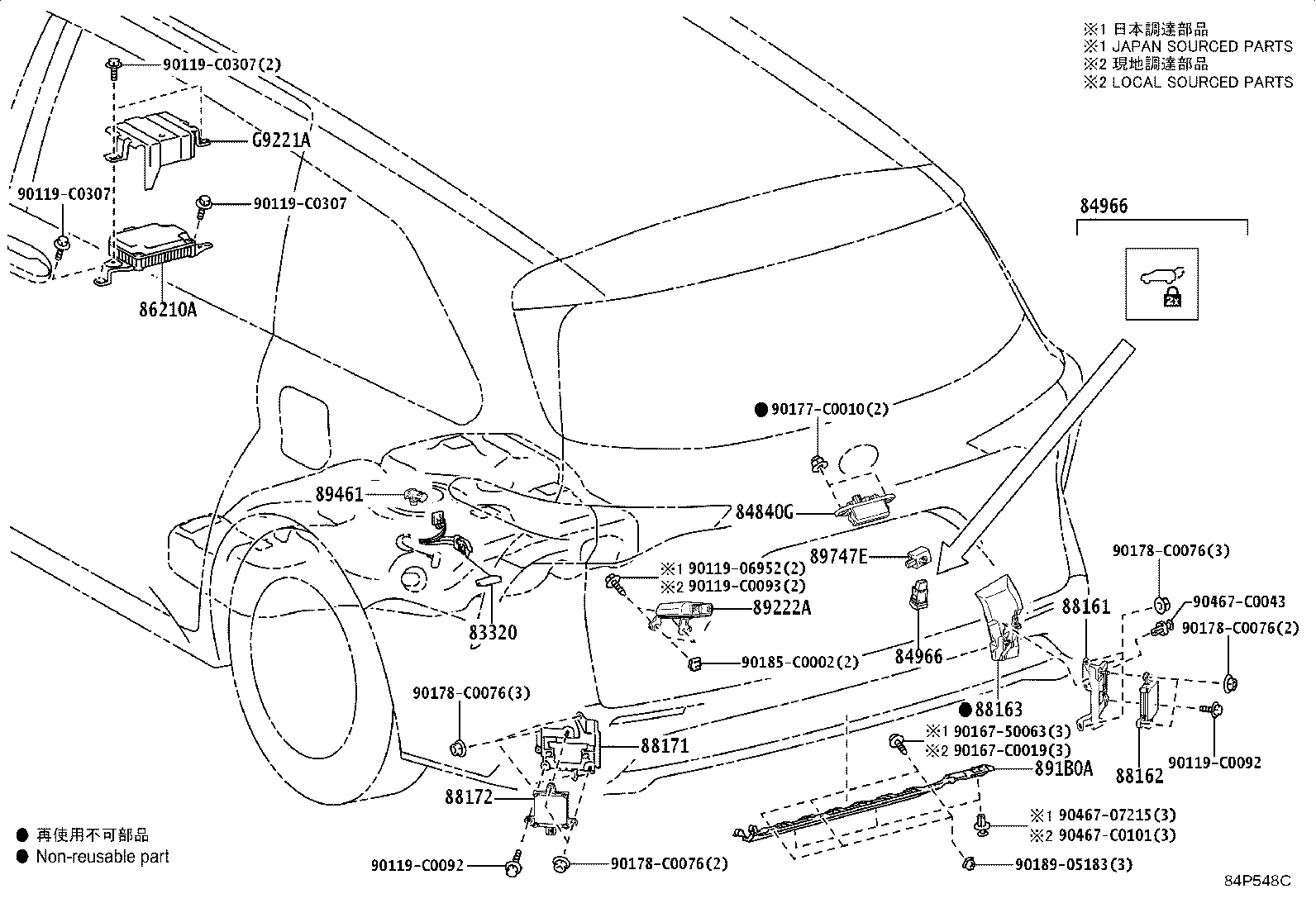

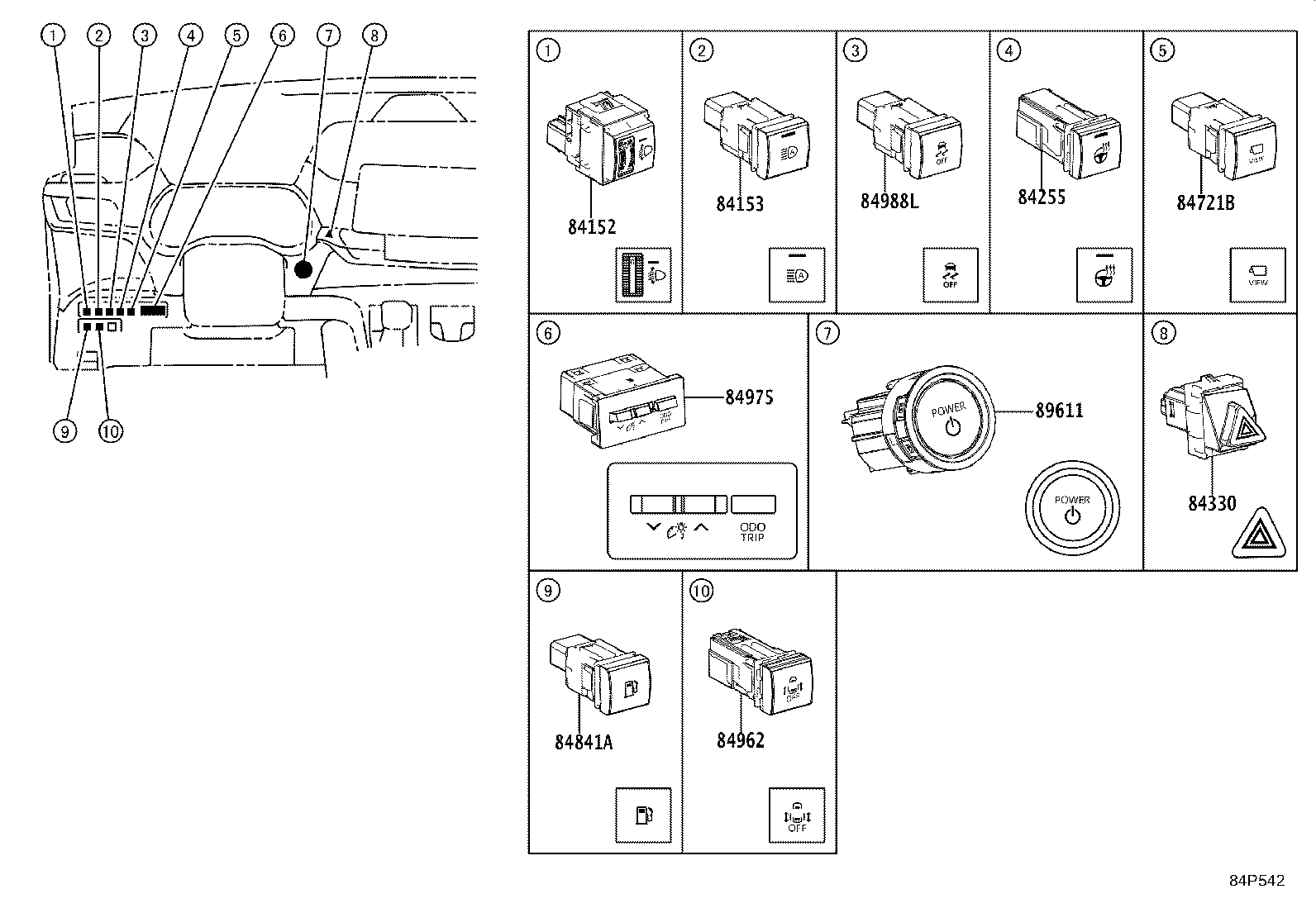

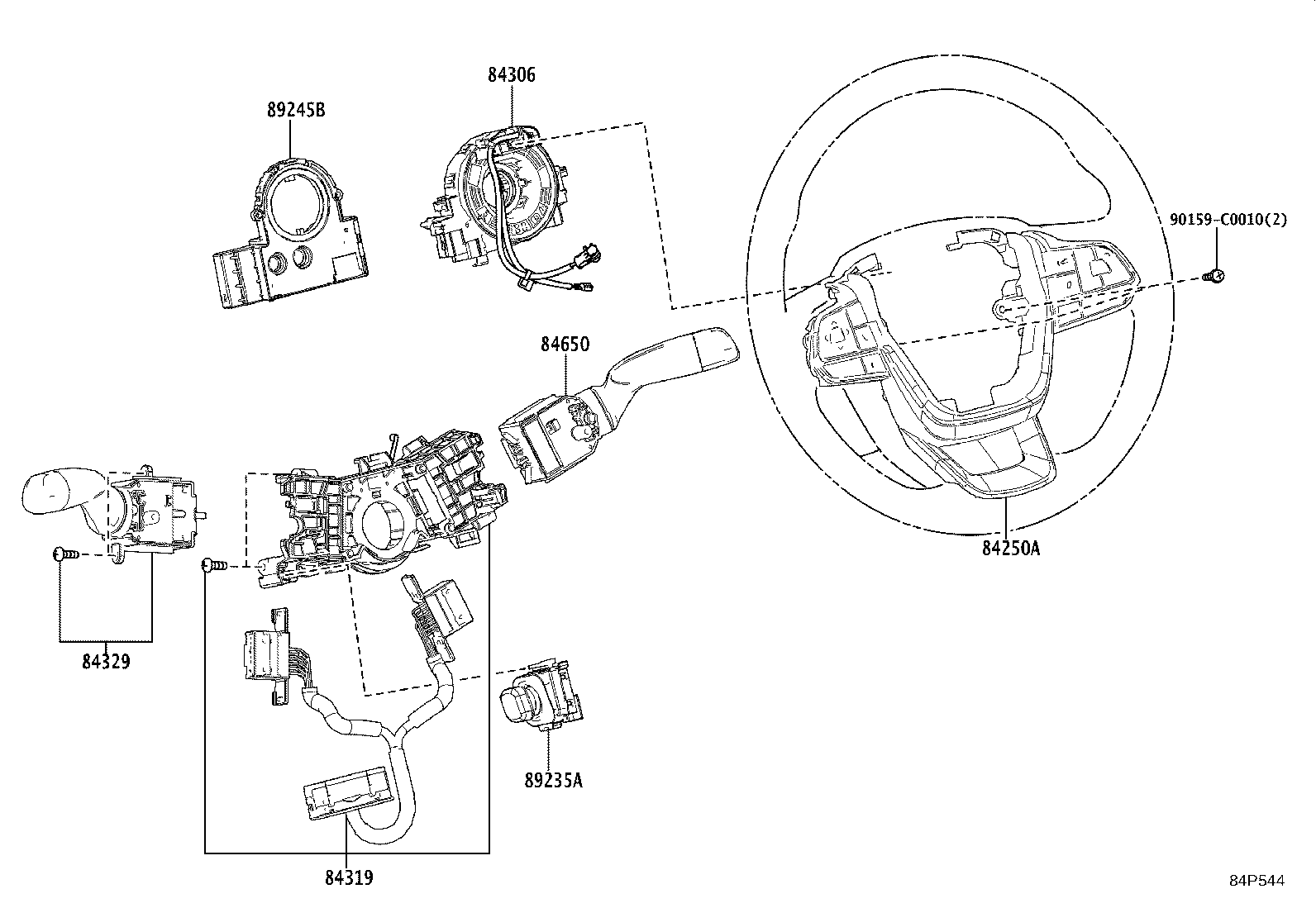

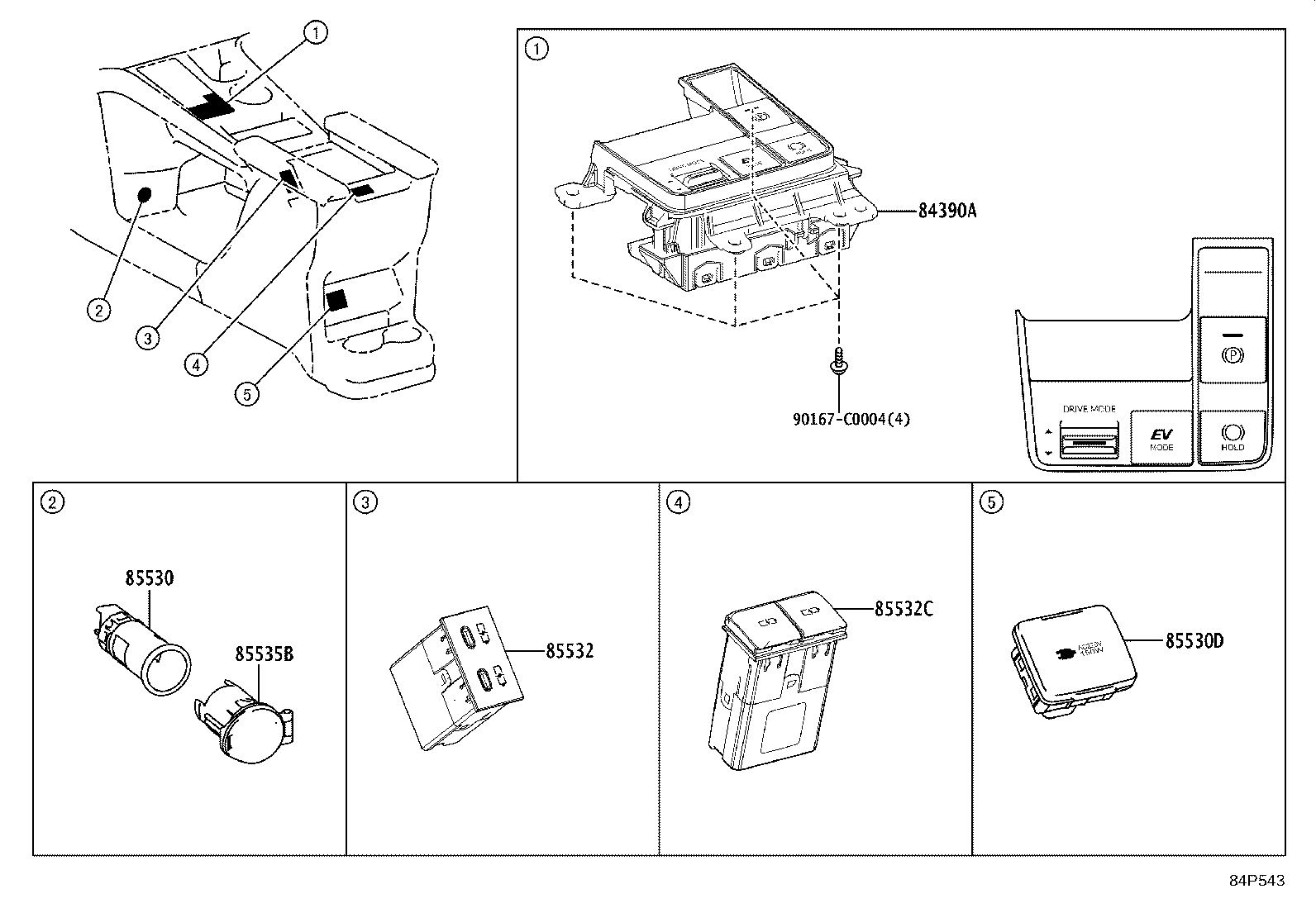

| PNC | Description |
|---|---|
| 28371L | Relay, Igp |
| 28371M | Relay, Igp, NO.2 |
| 28371N | Relay, Igp, NO.3 |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 75863K | Protector, Rocker Panel Moulding, NO.3 |
| 75864E | Protector, Rocker Panel Moulding, NO.4 |
| 75865K | Protector, Rocker Panel Moulding, NO.5 |
| 75866J | Protector, Rocker Panel Moulding, NO.6 |
| 82210M | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600L | Luggage Room Fuse |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82666 | Holder, Connector |
| 82672K | Cover, Power Distribution Box |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82730G | Box Assy, Power Distribution |
| 82741 | Block, Engine Room Relay |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 84040 | Master Switch Assy,Multiplex Network |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84290 | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390A | Switch Assy, Brake Warning |
| 84650 | Switch Assy, Windshield Wiper |
| 84721B | Switch, Panoramic View Monitor |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84920L | Switch Assy, Power Seat, NO.2 |

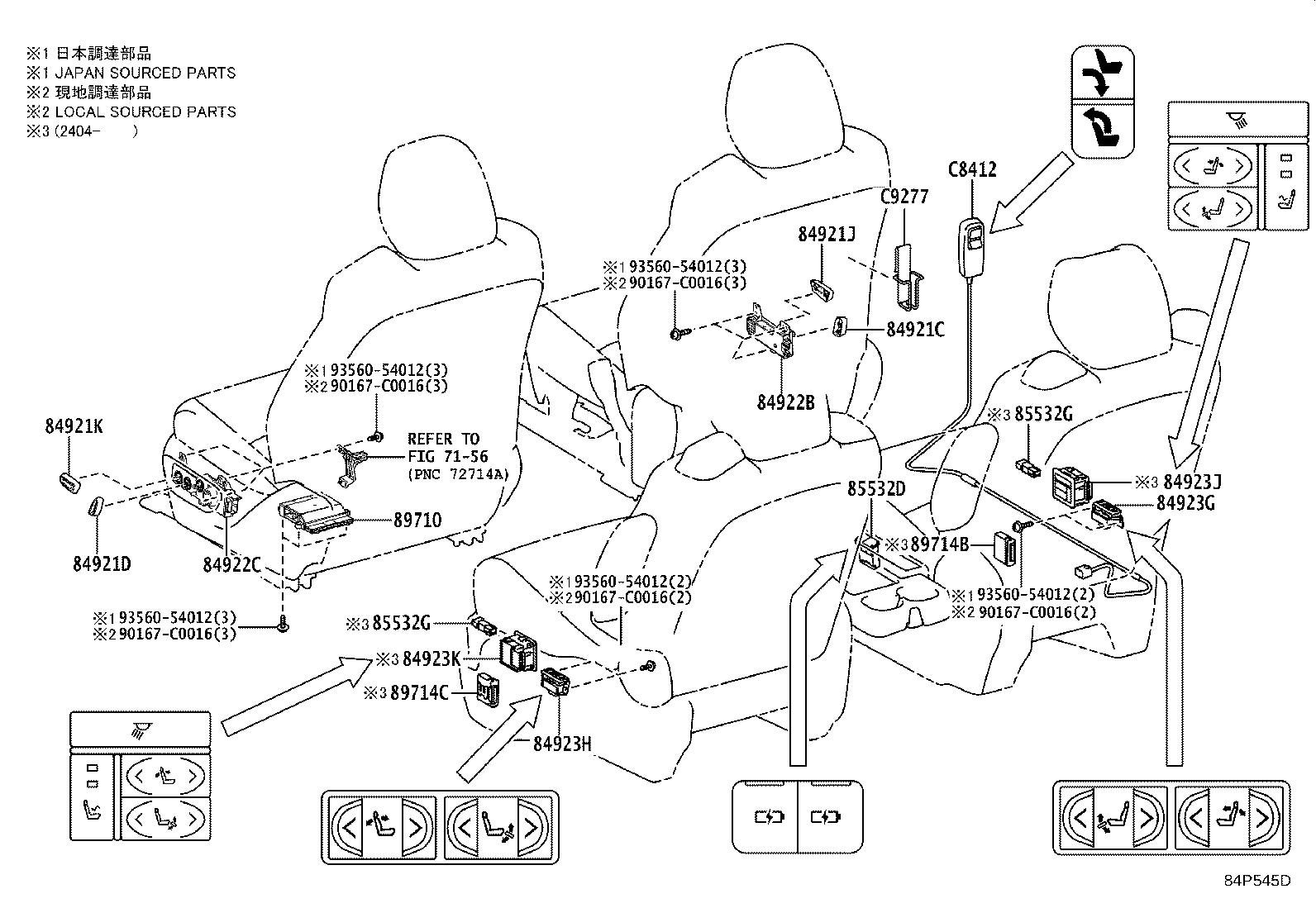

| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84921J | Knob, Power Seat Switch, RH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923G | Switch, Rear Power Seat, NO.1, RH |
| 84923H | Switch, Rear Power Seat, NO.1, LH |
| 84923J | Switch, Rear Power Seat, NO.2, RH |
| 84923K | Switch, Rear Power Seat, NO.2, LH |
| 84927 | Switch, Seat Memory |
| 84962 | Switch, Power Slide Door Main |
| 84963 | Switch, Power Slide Door Control, NO.1 |
| 84966 | Switch, Power Back Door Control |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85532D | Socket, Usb Charger, NO.3 |
| 85532E | Socket, Usb Charger, NO.4 |
| 85532G | Socket, Usb Charger, NO.5 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910E | Relay, Injector |
| 85910V | Relay, Seat Heater |
| 85912K | Relay, Vvt |
| 85924C | Relay, Igct |
| 85940 | Relay Assy, Windshield Wiper |
| 85940F | Relay Assy, Windshield Deicer |
| 85948 | Relay, Windshield Wiper |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530 | Relay Assy, Horn |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88163 | Cover, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B0 | Sensor Assy, Kick Door Control |
| 891B0A | Sensor Assy, Kick Door Control, NO.2 |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |

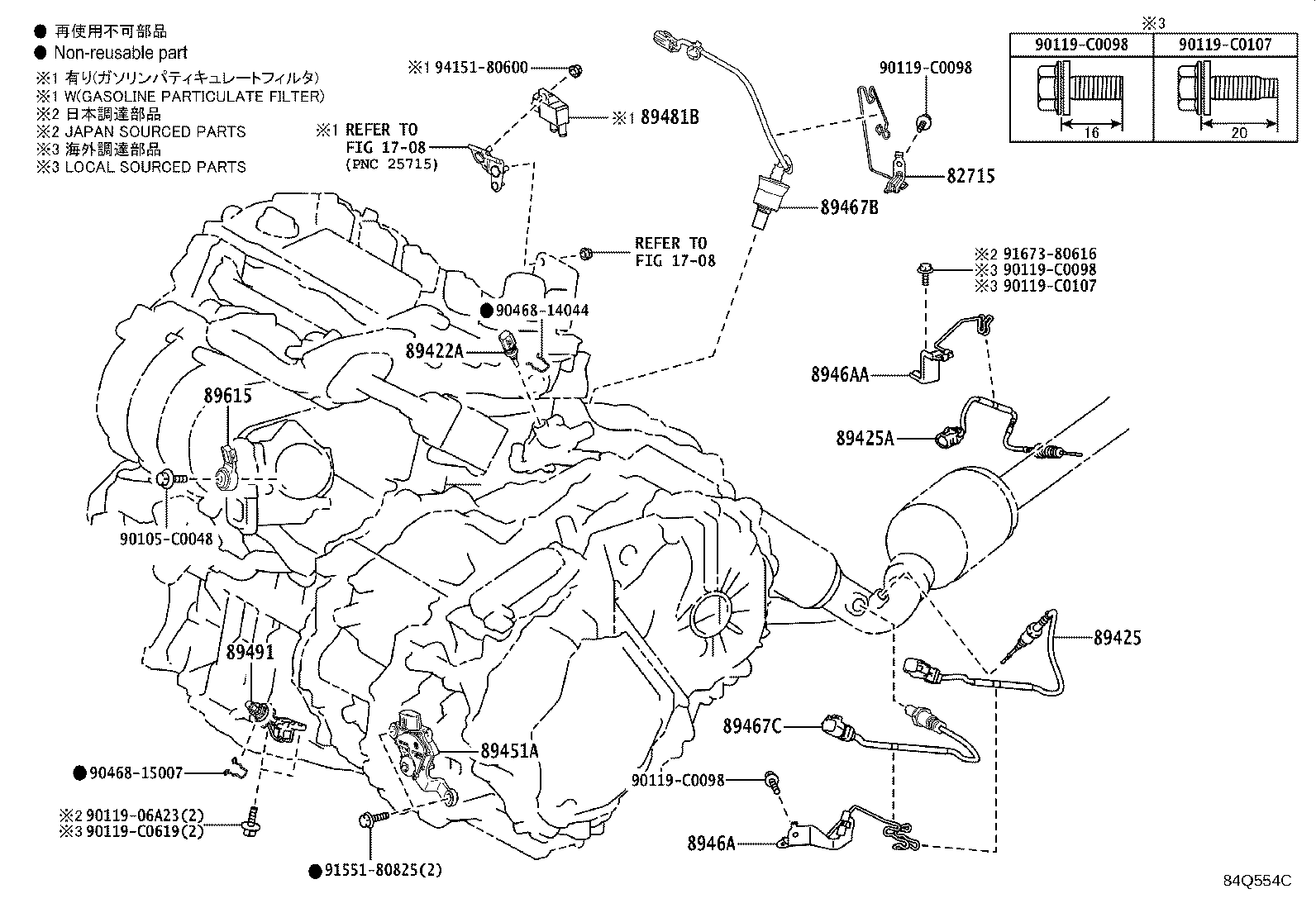

| 89422A | Sensor, Water Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89451A | Sensor, Shift Lever Position |
| 89461 | Sensor, Vapor Pressure |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710 | Computer Assy, Position Control |
| 89714B | Computer, Pneumatic Valve Control, RH |
| 89714C | Computer, Pneumatic Valve Control, LH |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| C8412 | Switch, Power Lift Control |
| C9277 | Bracket, Lift Control Switch |
| G1167A | Relay (FOR OIL PUMP MOTOR) |
| G9020E | Relay, Hybrid Water Pump |
| G9221A | Cover, Inverter, Upper |
| G9230A | Relay, Battery Fan, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
