Toyota Granvia Hybrid
2022-11 → present · chassis AXLH4# · catalogue 624310 · General
Supported model
Data version 2024-03
Heating & Air Conditioning - Control & Air Duct
42 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

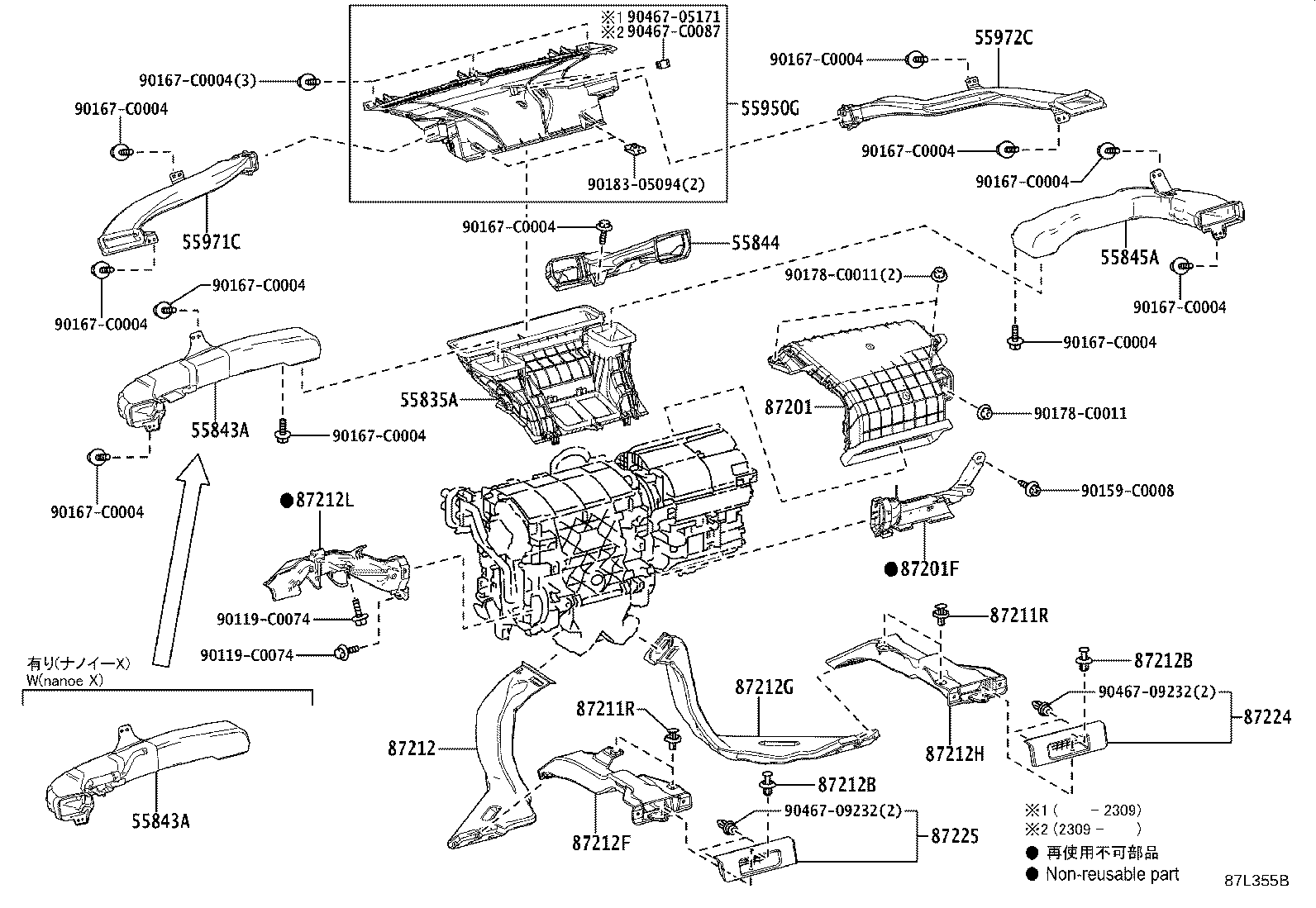

| 55835A | Duct, Heater TO Register, Center |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55871C | Seal, Air Duct |
| 55872B | Seal, Air Duct,NO.2 |
| 55900 | Control Assy, Air Conditioner |
| 55900D | Control Assy, Air Conditioner, NO.2 |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 62981B | Bezel, Roof Side Register, RH |
| 63610 | Register Assy, Air Outlet, NO.1 |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212B | Clip, Air Duct |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212L | Duct, Air, Rear NO.7 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214D | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |

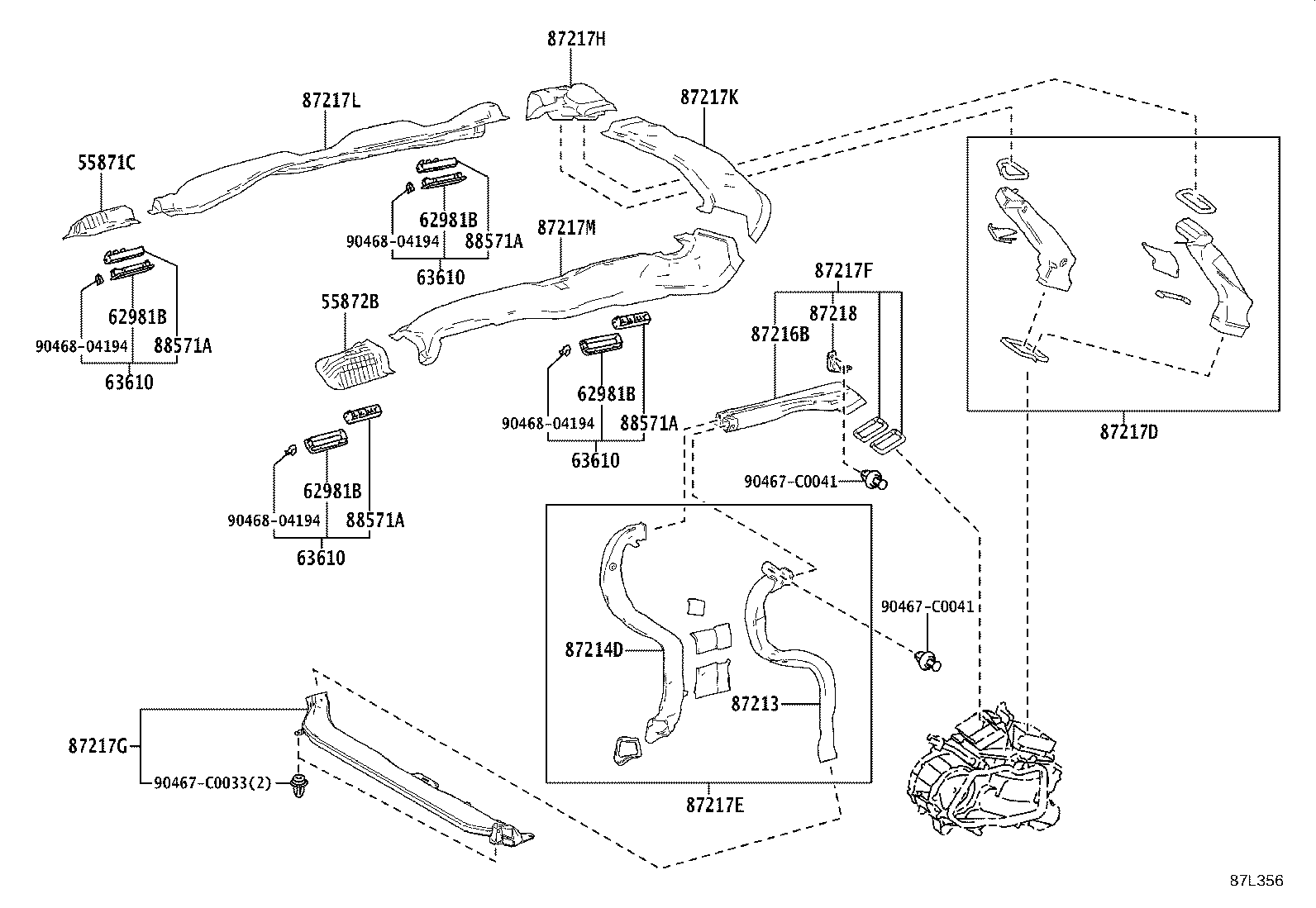

| 87217D | Duct, Air, Rear Side NO.1 |
| 87217E | Duct, Air, Rear Side NO.2 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87217G | Duct, Air, Rear Side NO.4 |
| 87217H | Duct, Air, Rear Side NO.5 |
| 87217K | Duct, Air, Rear Side NO.6 |
| 87217L | Duct, Air, Rear Side NO.7 |
| 87217M | Duct, Air, Rear Side NO.8 |
| 87218 | Bracket, Rear Air Duct |
| 87224 | Guide, Air Duct, RH |
| 87225 | Guide, Air Duct, LH |
| 88505 | Duct Sub-assy,Air Conditioner |
| 88571A | Grille, Air Outlet |

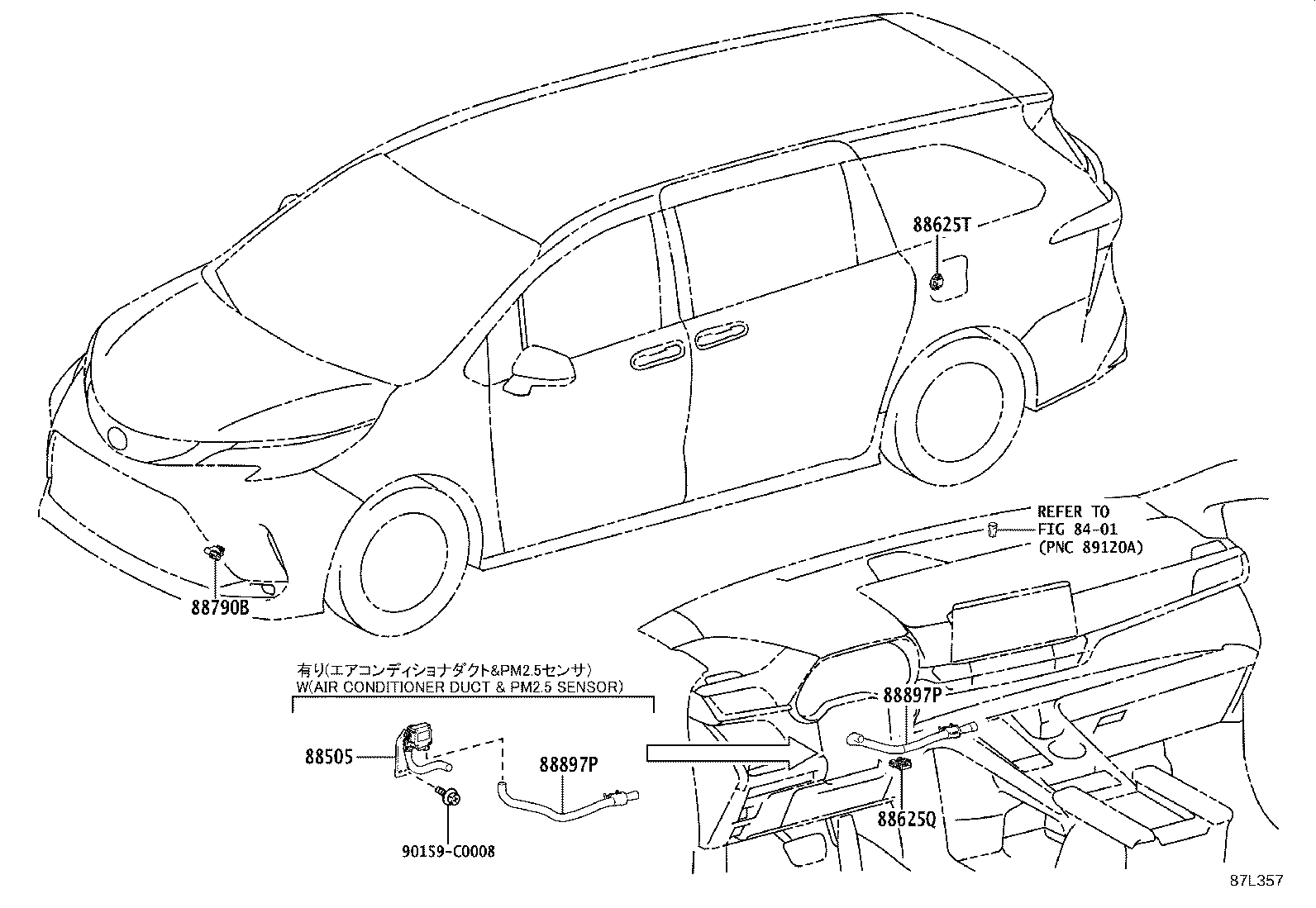

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88625T | Thermistor, Cooler (ROOM TEMP. SENSOR NO.2) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
