Toyota Granvia Hybrid

2022-11 → present · chassis AXLH4# · catalogue 624310 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

28 part groups · 8 illustrations

Illustrations

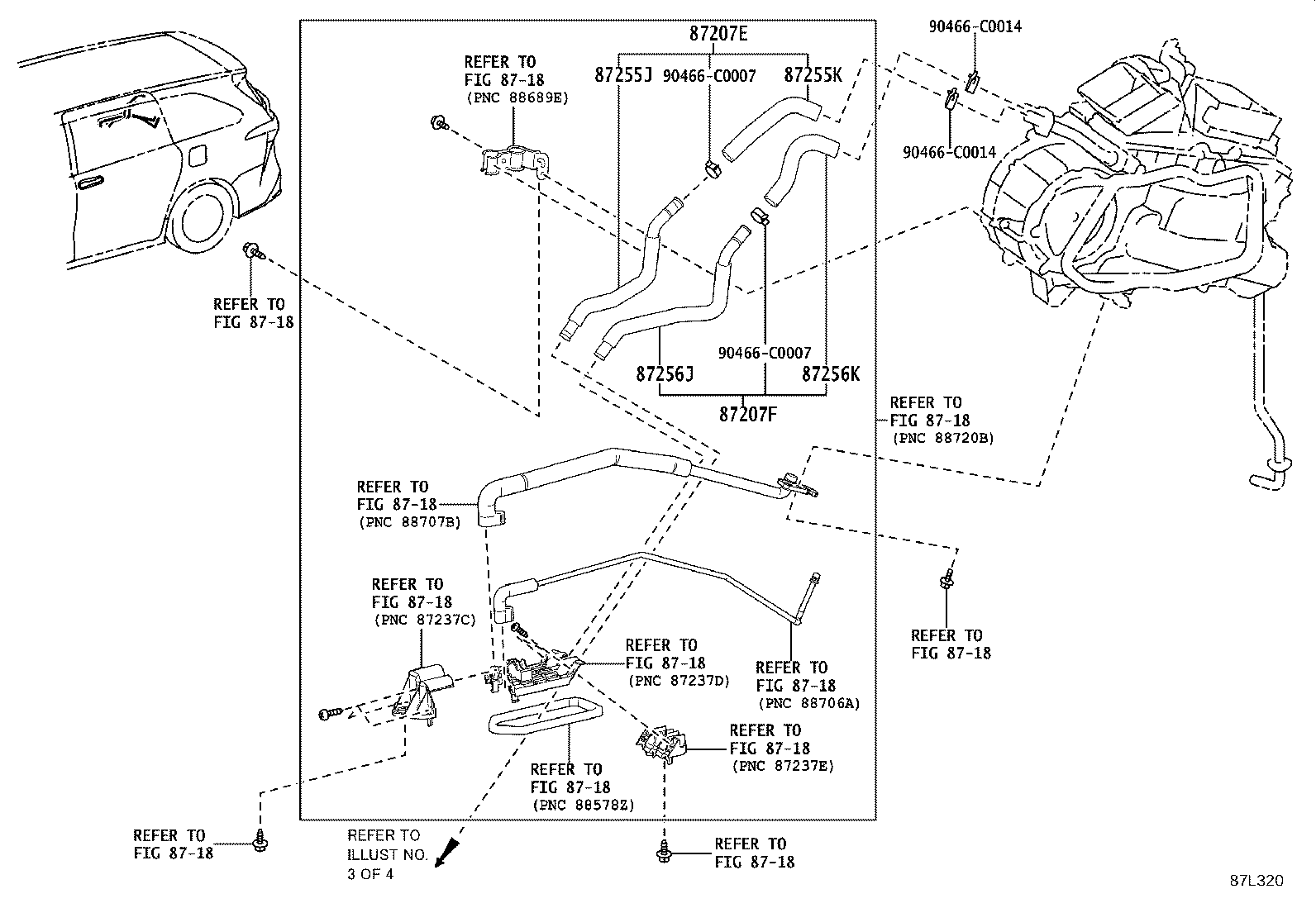

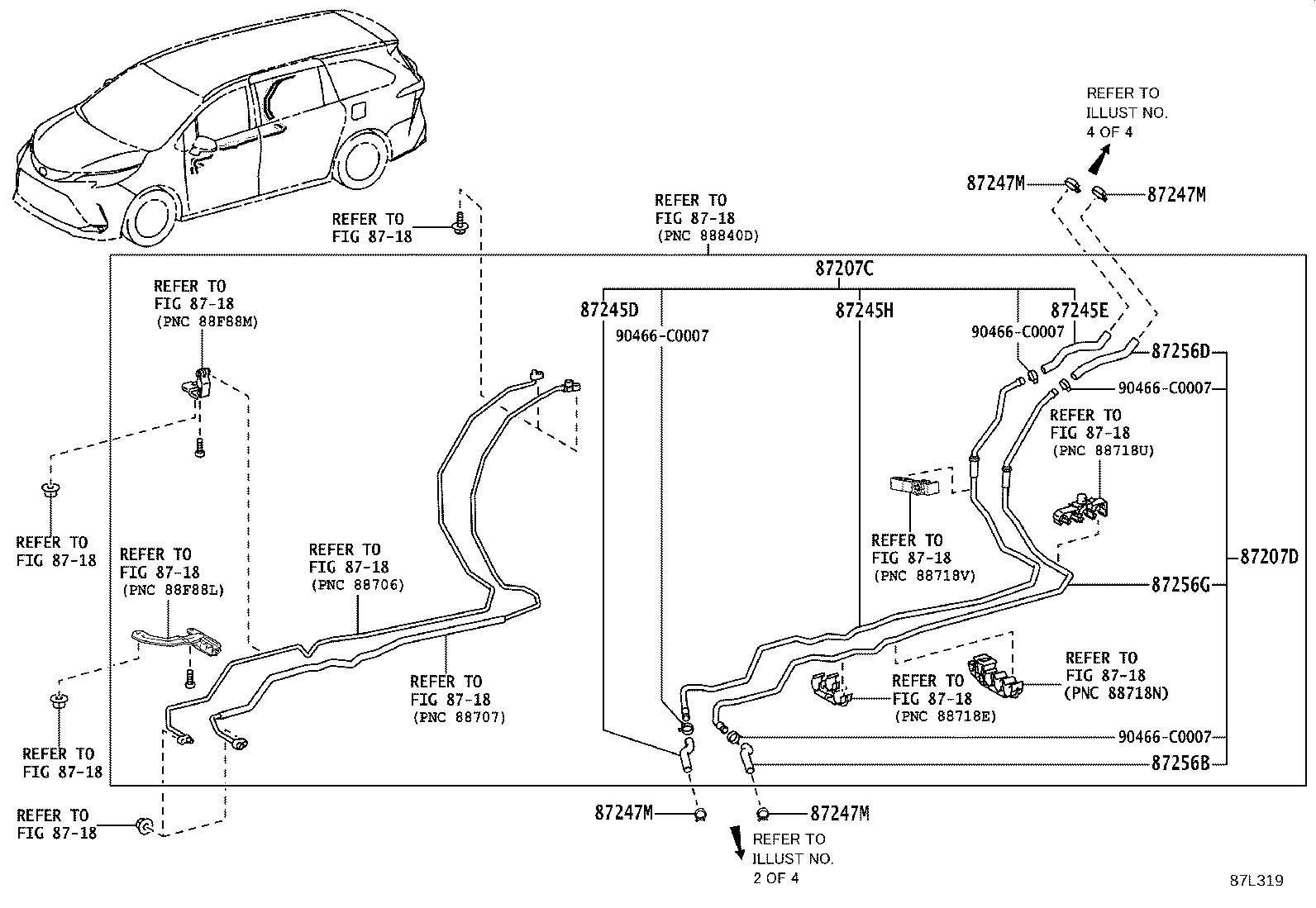

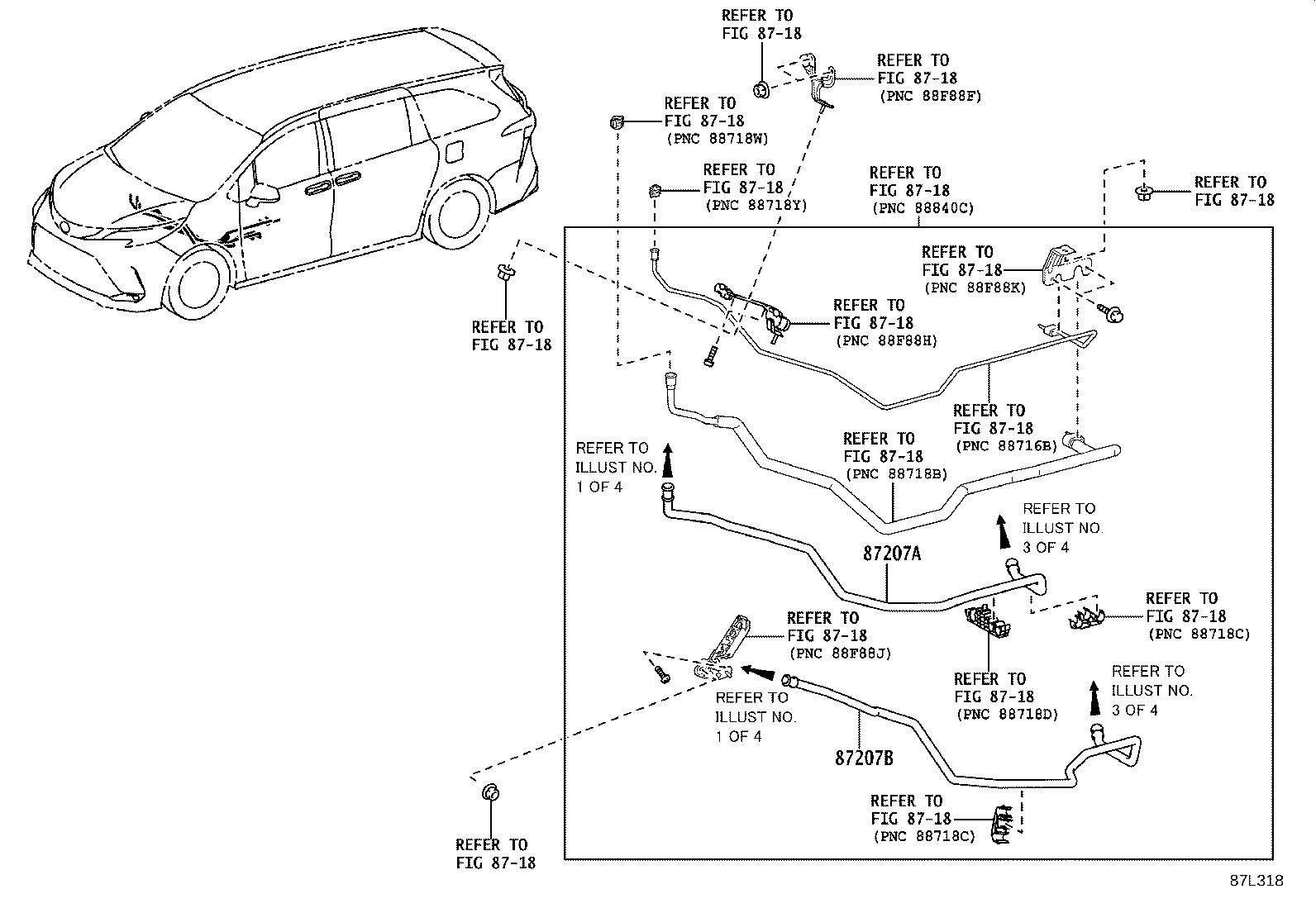

Figure 87L317 87L317 2022-11 → — Figure 87L317 87L317 2024-04 → — Figure 87L318 87L318 2022-11 → — Figure 87L318 87L318 2024-04 → — Figure 87L319 87L319 2022-11 → — Figure 87L319 87L319 2024-04 → — Figure 87L320 87L320 2022-11 → — Figure 87L320 87L320 2024-04 → —

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87207B Pipe & Hose Sub-assy, Water B
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87207E Pipe & Hose Sub-assy, Water E
87207F Pipe & Hose Sub-assy, Water F
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87247M Clip, Hose
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K
87256B Hose, Rear Heater Water Outlet, B
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
