Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · General

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

12 part groups · 2 illustrations

Illustrations

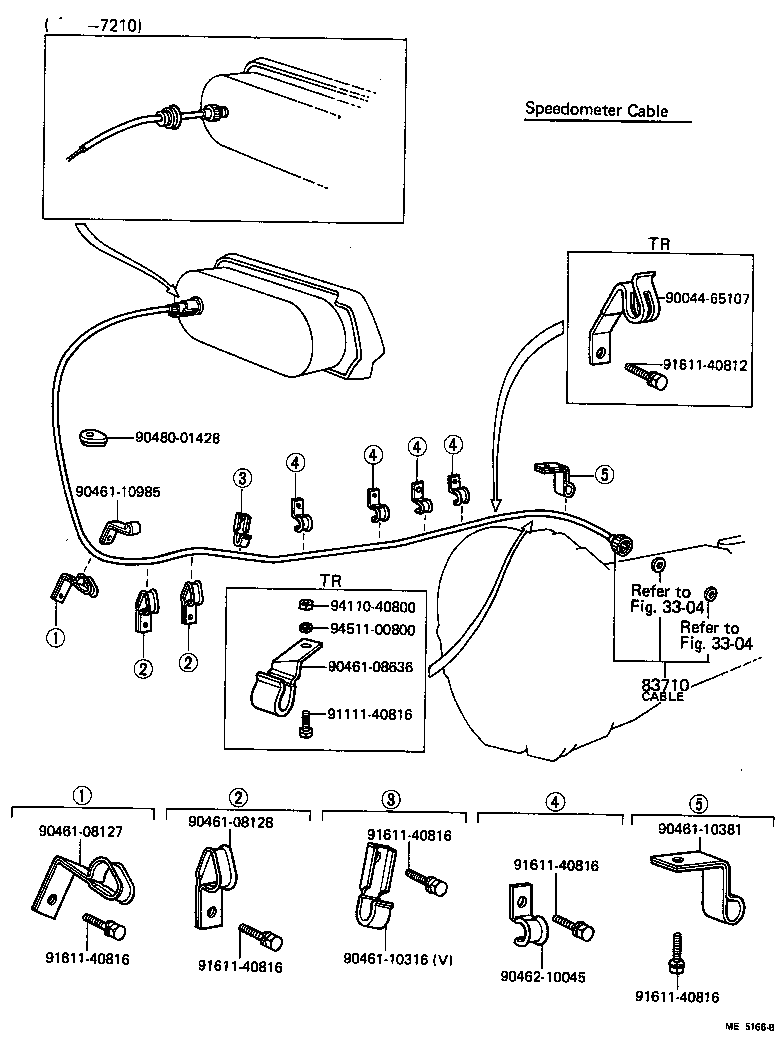

Figure ME6979 ME6979 1971-05 → 1979-09 Figure ME5166B ME5166B 1971-05 → 1979-09

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83111 Mechanism, Speedometer
83135 Pointer, Speedometer
83138 Glass, Speedometer
83310 Gage Assy, Fuel Receiver
83360 Relay Assy, Fuel Sender
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
