Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · General

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

33 part groups · 2 illustrations

Illustrations

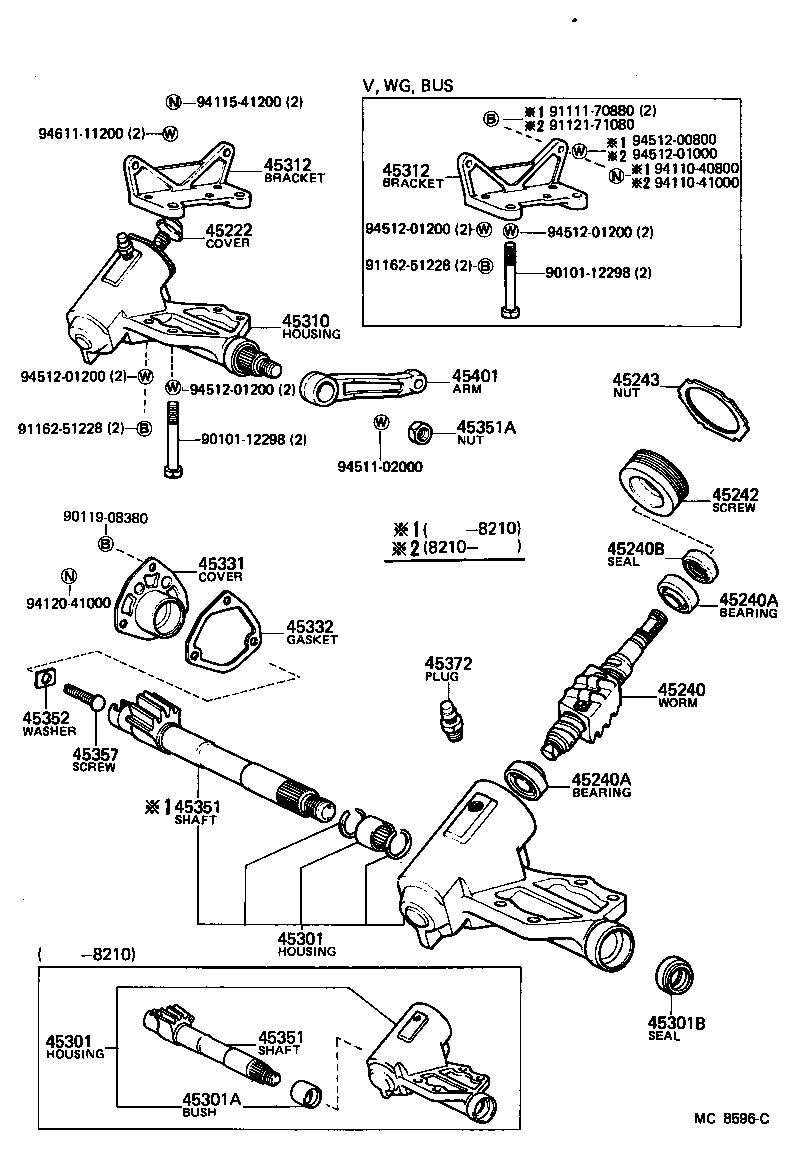

Figure MC9196B MC9196B 1979-10 → — Figure MC8596C MC8596C 1979-10 → —

Part groups

PNCDescription
33621 Plate, Control Lever Caution
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45222 Cover, Steering Gear Dust
45230 Coupling Assy, Flexible
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45243 Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45310 Housing Assy, Steering Gear
45312 Bracket, Steering Gear Housing
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
