Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · General

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

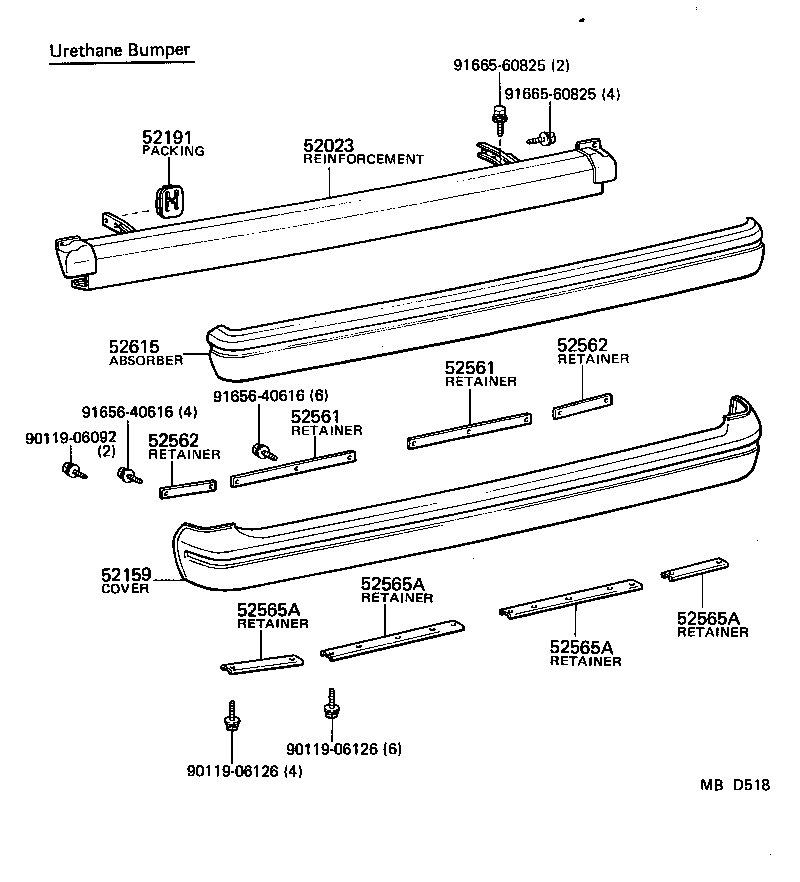

Figure MBA763I MBA763I 1979-10 → — Figure MBD518 MBD518 1981-08 → 1982-10

Part groups

PNCDescription
52011 Bumper Sub-assy, Rear RH
52012 Bumper Sub-assy, Rear, LH
52023 Reinforcement Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52158 Bracket, Rear Bumper
52159 Cover, Rear Bumper
52191 Packing, Rear Bumper Stay
52561 Retainer, Rear Bumper, Upper Center
52562 Retainer, Rear Bumper, Upper Side
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
