Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · General

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 2 illustrations

Illustrations

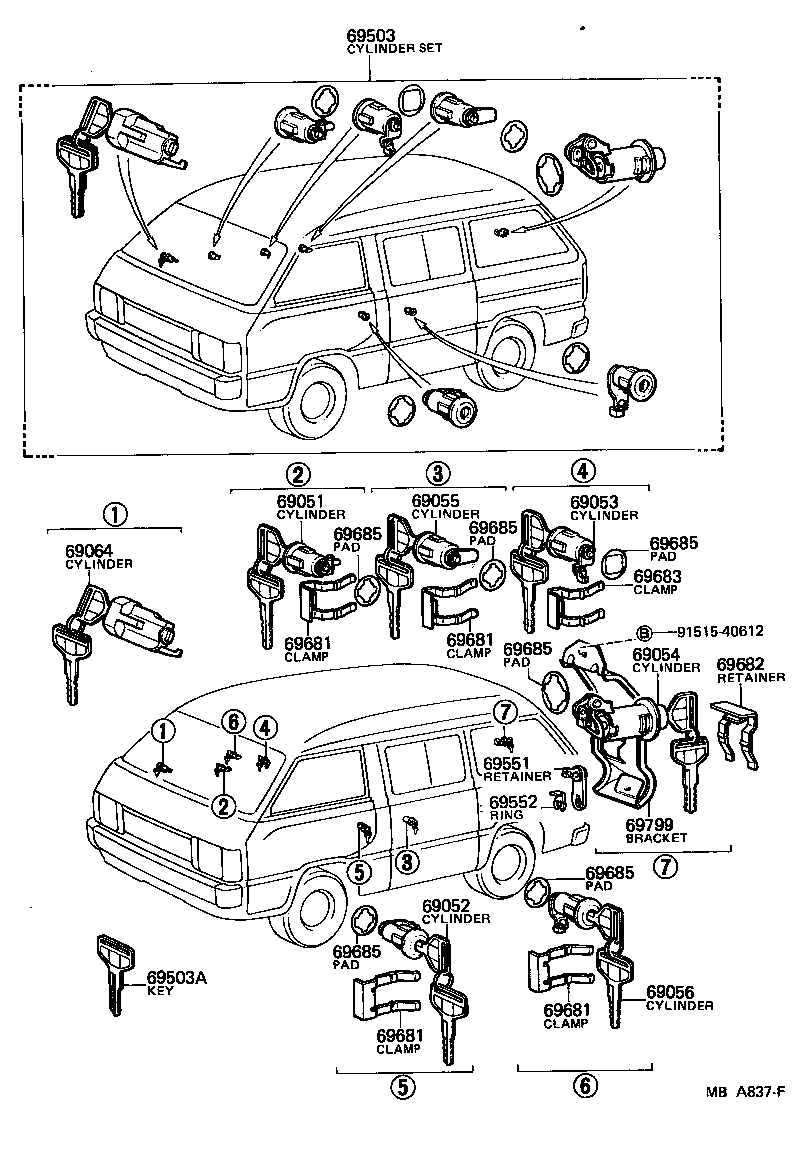

Figure MBA836A MBA836A 1979-10 → 1982-10 Figure MBA837F MBA837F 1979-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053 Cylinder & Key Set, Fuel Inlet Lock
69054 Cylinder & Key Set, Back Door Lock
69055 Cylinder & Key Set, Rear Door Lock, LH
69056 Cylinder & Key Set, Rear Door Lock, RH
69064 Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69551 Retainer, Back Door Lock Cylinder
69552 Ring, Back Door Key Cylinder Lever
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
69799 Bracket, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
