Toyota Liteace

1979-10 → 1985-08 · chassis KM20,YM2#,CM20 · catalogue 631220 · General

Discontinued model Data version 1986-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

36 part groups · 8 illustrations

Illustrations

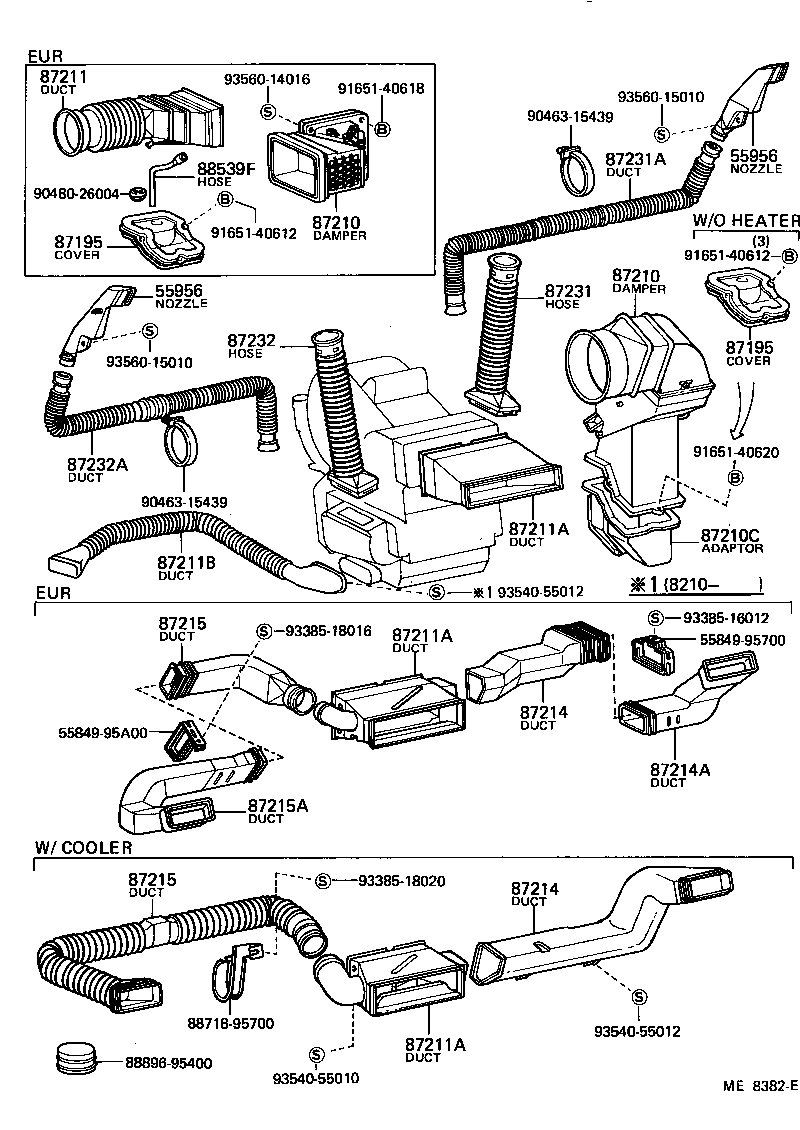

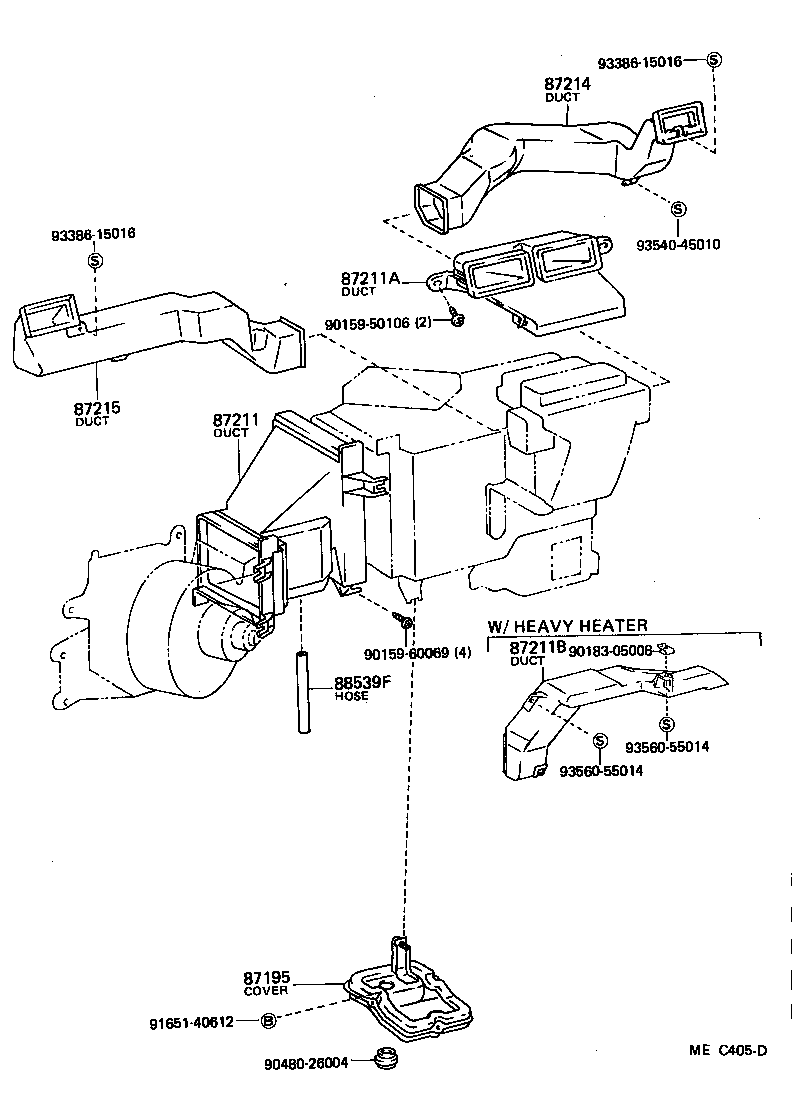

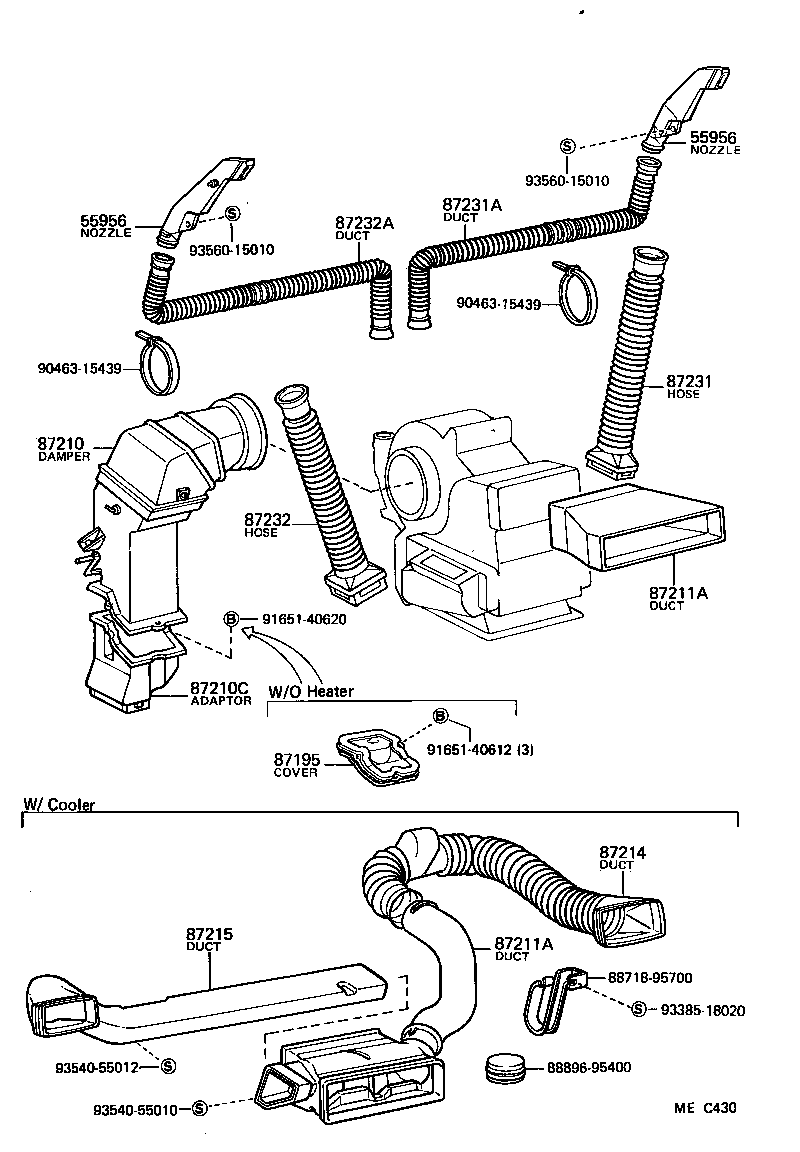

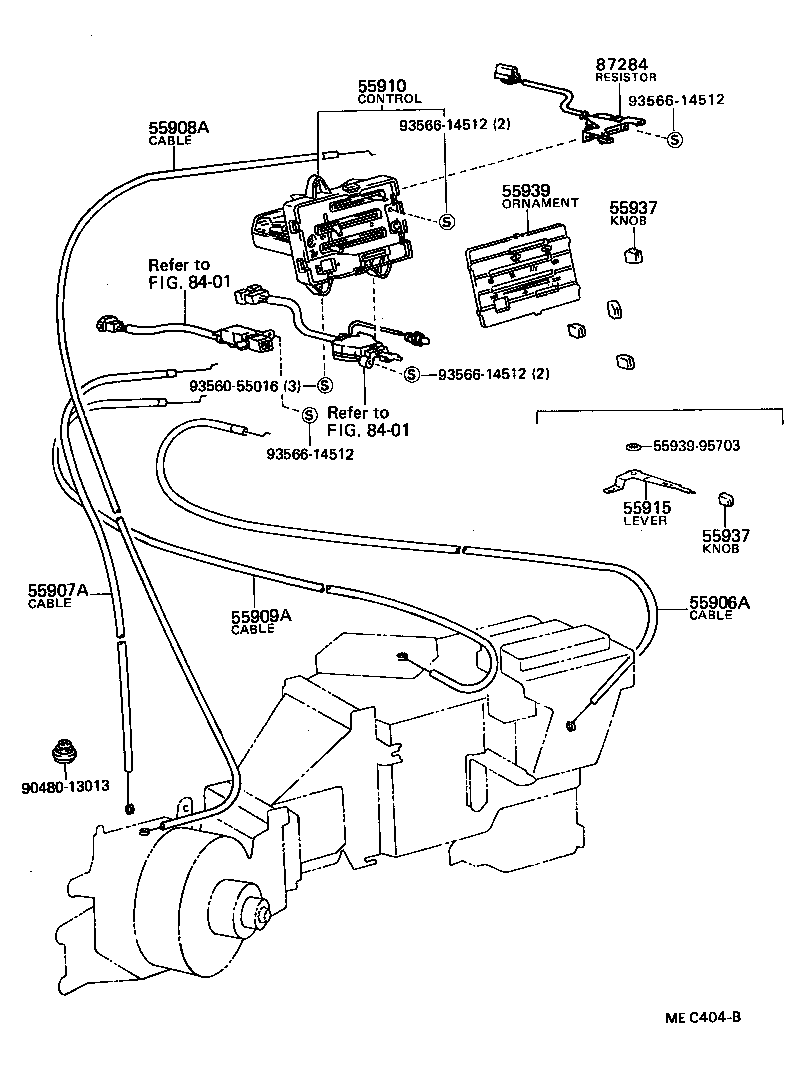

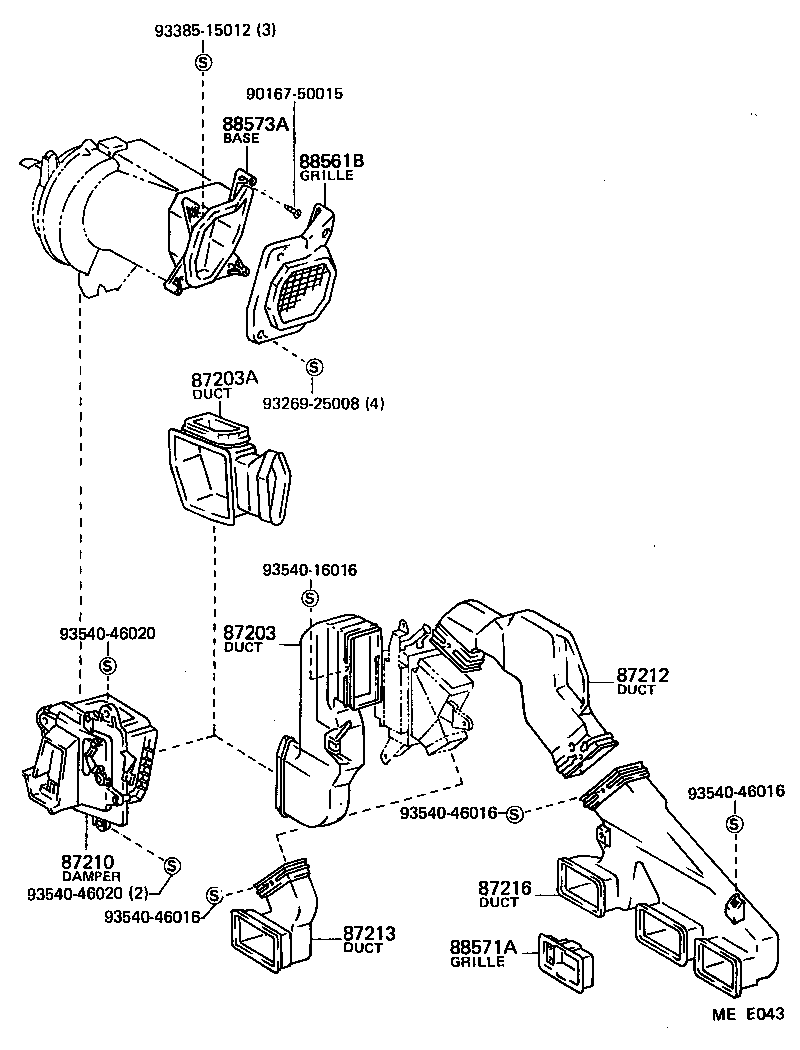

Figure ME8524F ME8524F 1979-10 → 1982-10 Figure ME8524F ME8524F 1982-10 → — Figure MEC404B MEC404B 1982-10 → — Figure MEA283E MEA283E 1981-01 → — Figure MEC430 MEC430 1979-10 → 1982-10 Figure MEC405D MEC405D 1982-10 → — Figure ME8382E ME8382E 1979-10 → — Figure MEE043 MEE043 1983-11 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910A Control Assy, Rear Heater
55915 Lever, Cooler Control
55931 Clamp, Heater Control Wire
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
55941A Guide, Heater Control
55956 Nozzle, Side Defroster
87195 Cover, Hole
87203 Duct, Heater Air, Rear NO.1
87203A Duct Assy, Heater Air, Rear
87210 Damper Assy, Air
87210C Adapter, Heater Air Damper
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87216 Duct, Heater Interior Air (TO REAR)
87231 Hose, Heater Defroster, RH
87231A Duct, Heater Defroster, Side NO.1 RH
87232 Hose, Heater Defroster, LH
87232A Duct, Heater Defroster, Side NO.1 LH
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
88561B Grille, Cooler Air Inlet
88571A Grille, Air Outlet
88573A Base, Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
