Toyota Liteace

1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 11 illustrations

Illustrations

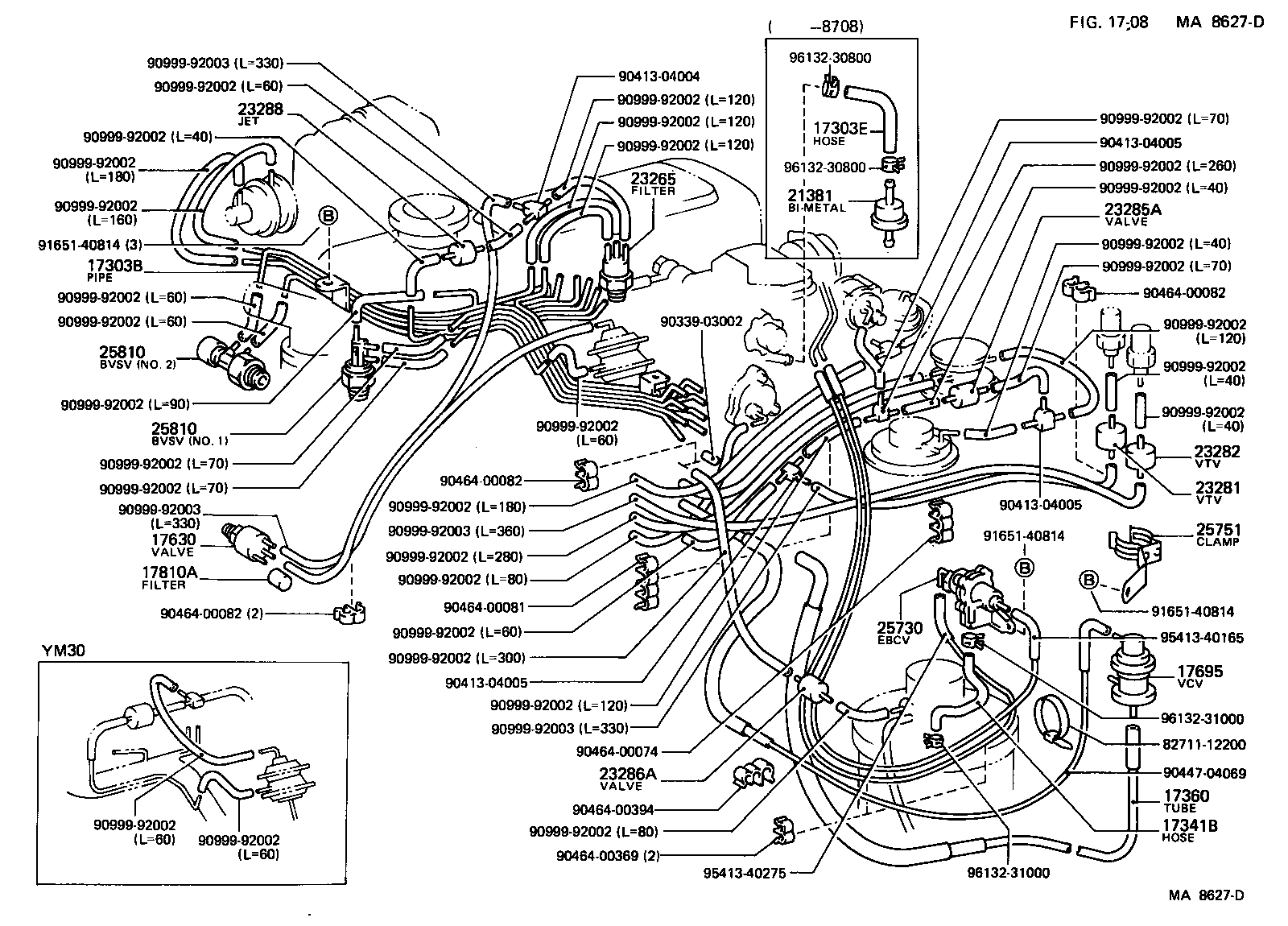

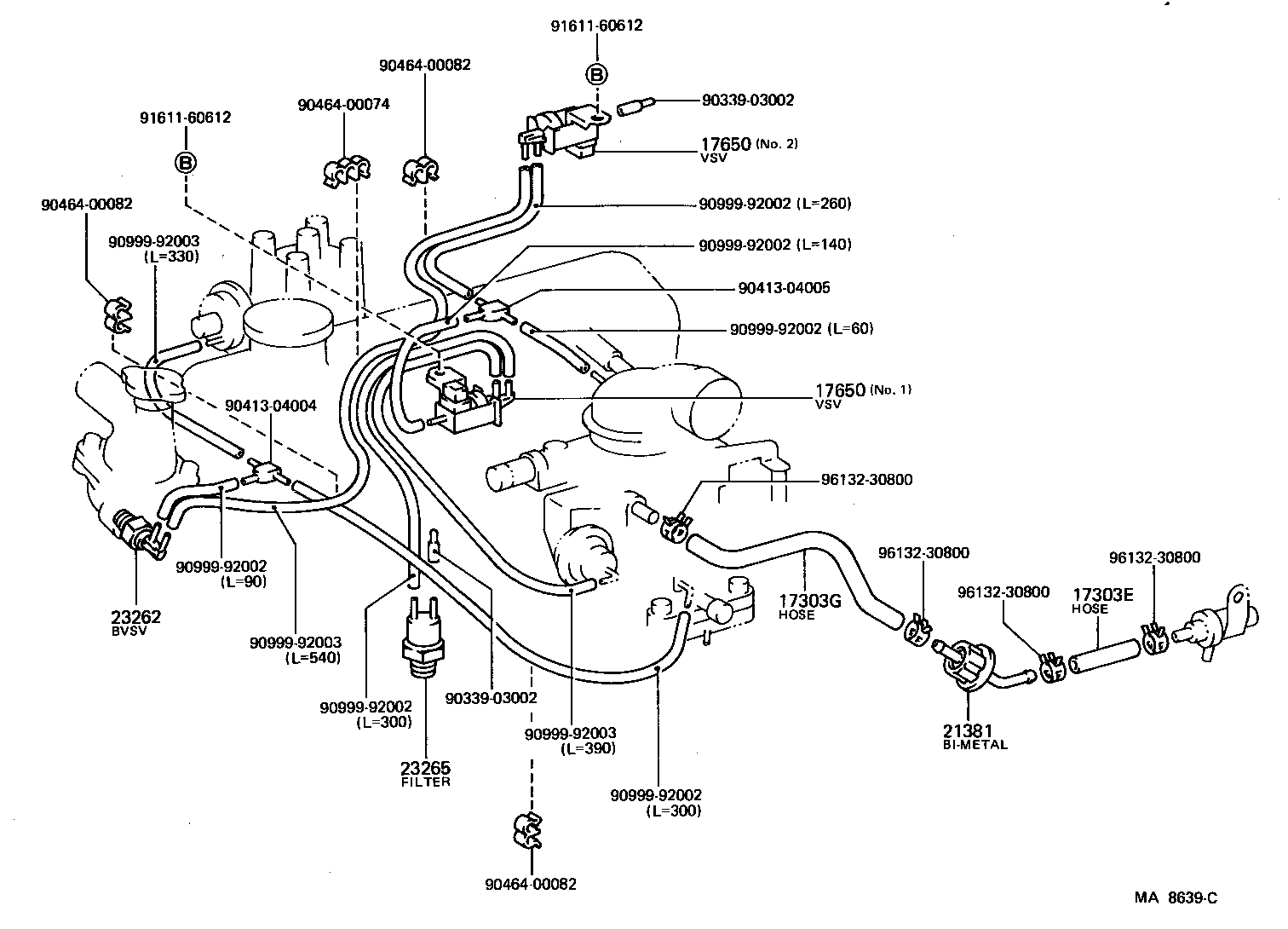

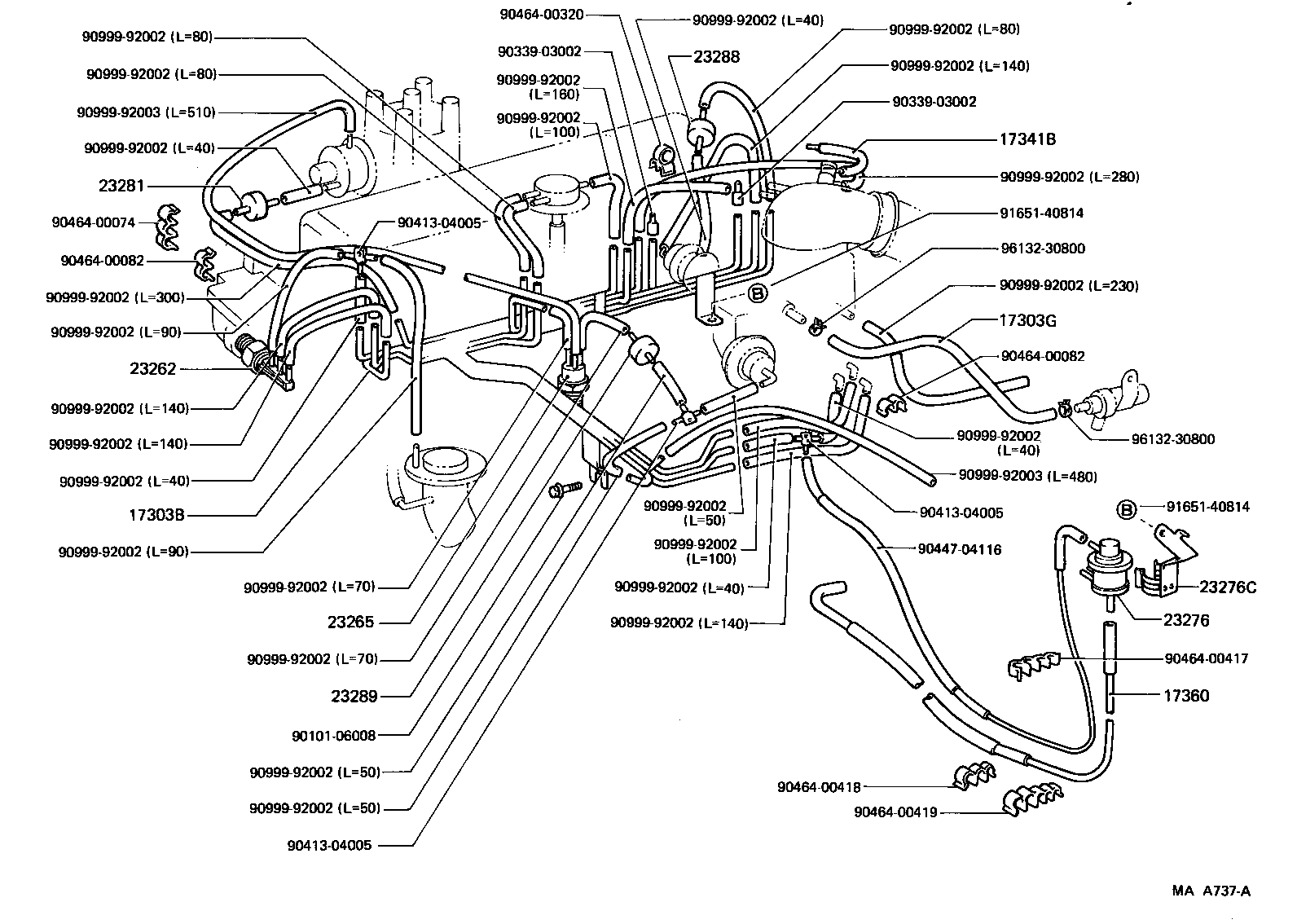

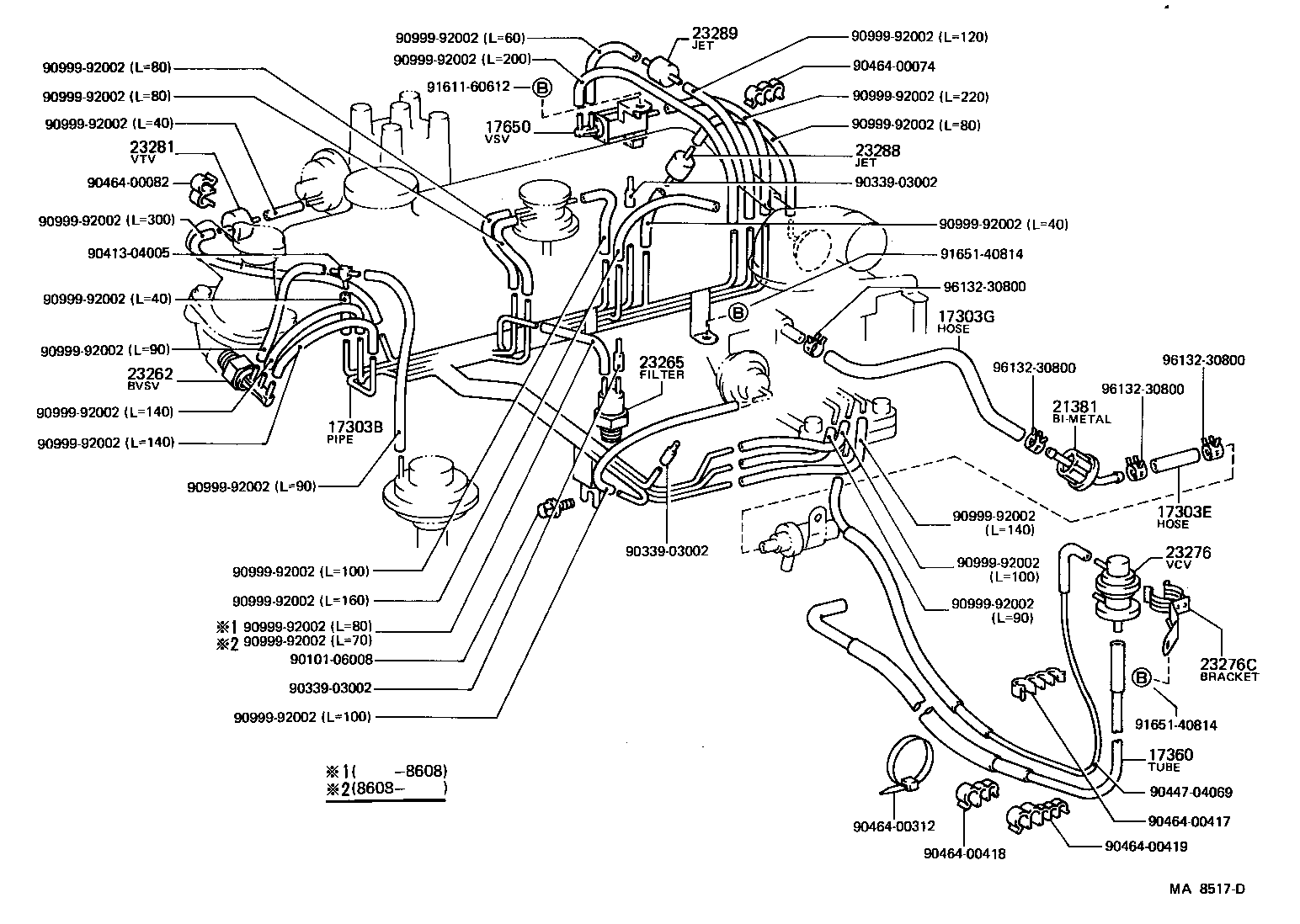

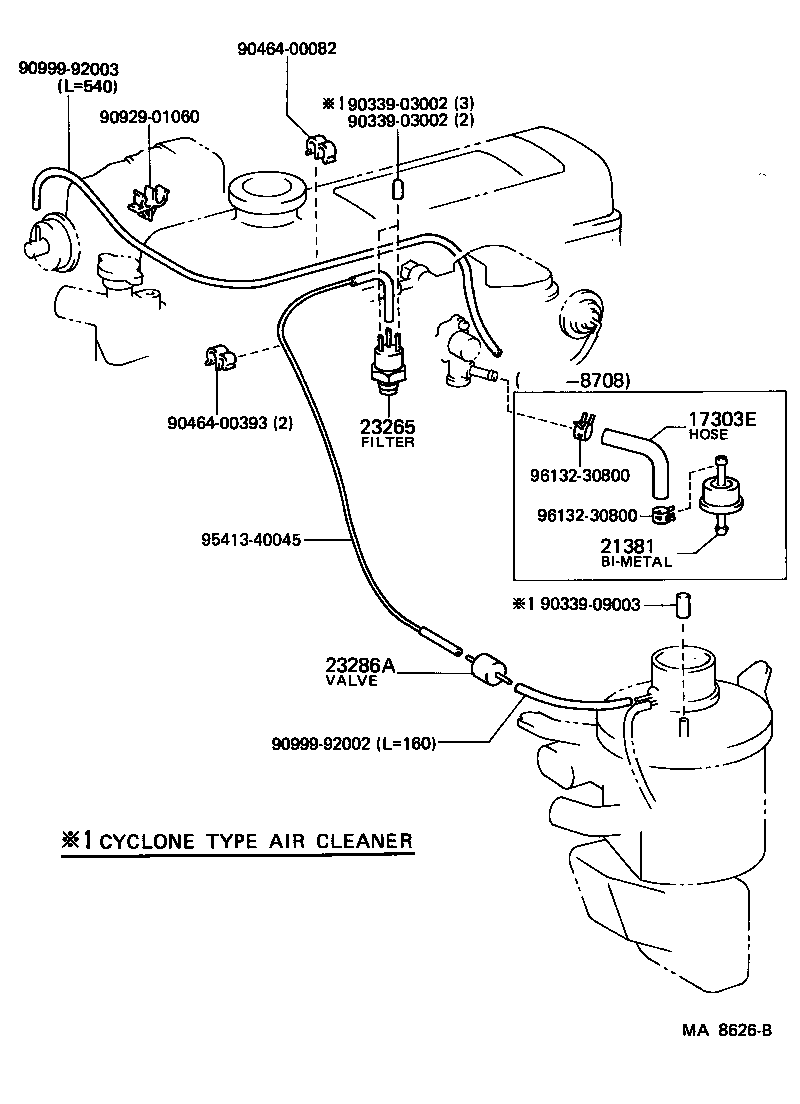

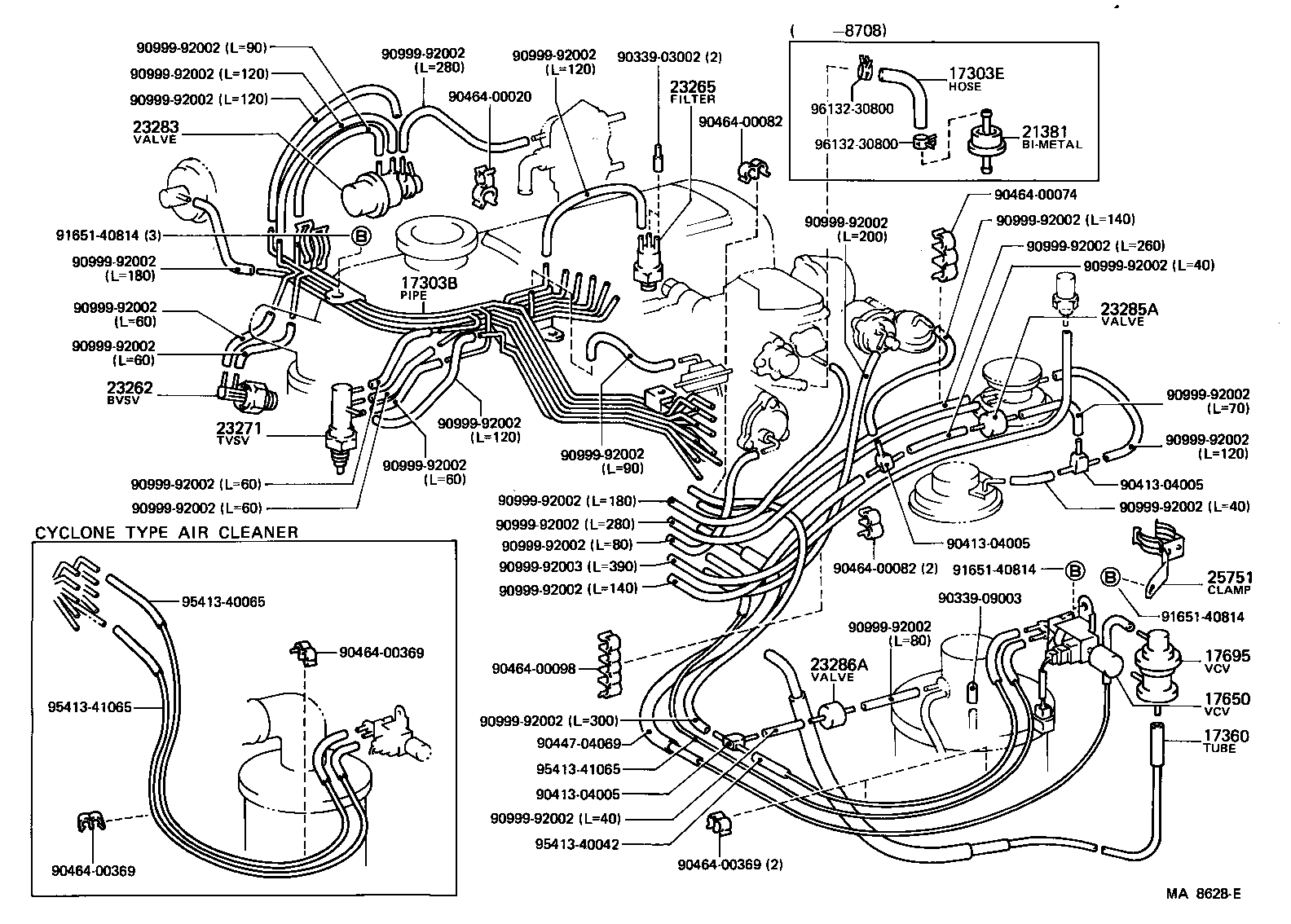

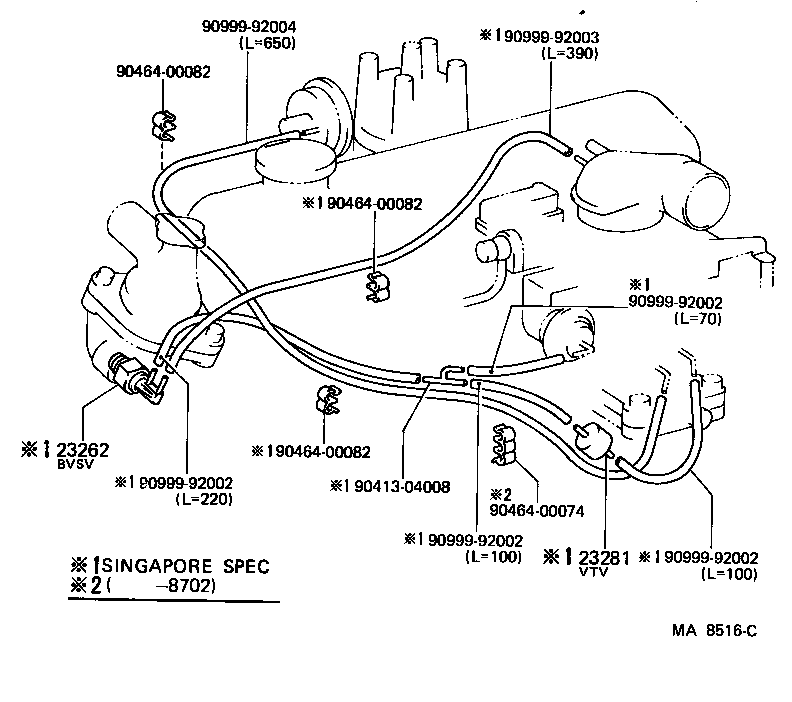

Figure MA9504B MA9504B 1985-09 → — Figure MA9504B MA9504B 1985-09 → — Figure MA8516C MA8516C 1985-09 → — Figure MA8517D MA8517D 1985-09 → 1988-05 Figure MAA737A MAA737A 1988-05 → — Figure MA8639C MA8639C 1985-09 → 1988-05 Figure MA9504B MA9504B 1985-09 → — Figure MA8626B MA8626B 1985-09 → — Figure MA8627D MA8627D 1985-09 → 1988-05 Figure MA8627D MA8627D 1988-05 → — Figure MA8628E MA8628E 1985-09 → 1988-05

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17695 Valve Assy, Vacuum Control
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23276 Valve, Vacuum Control, NO.2
23276C Bracket, Vacuum Control Valve, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25730 Valve Assy, Electric Bleed Air Control
25751 Clamp, Vacuum Control Valve, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
