Factory parts data · Europe

Toyota Liteace

1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General

Discontinued model Data version 1988-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

5 part groups · 2 illustrations

Illustrations

Figure MF3703A

MF3703A 1985-09 → —

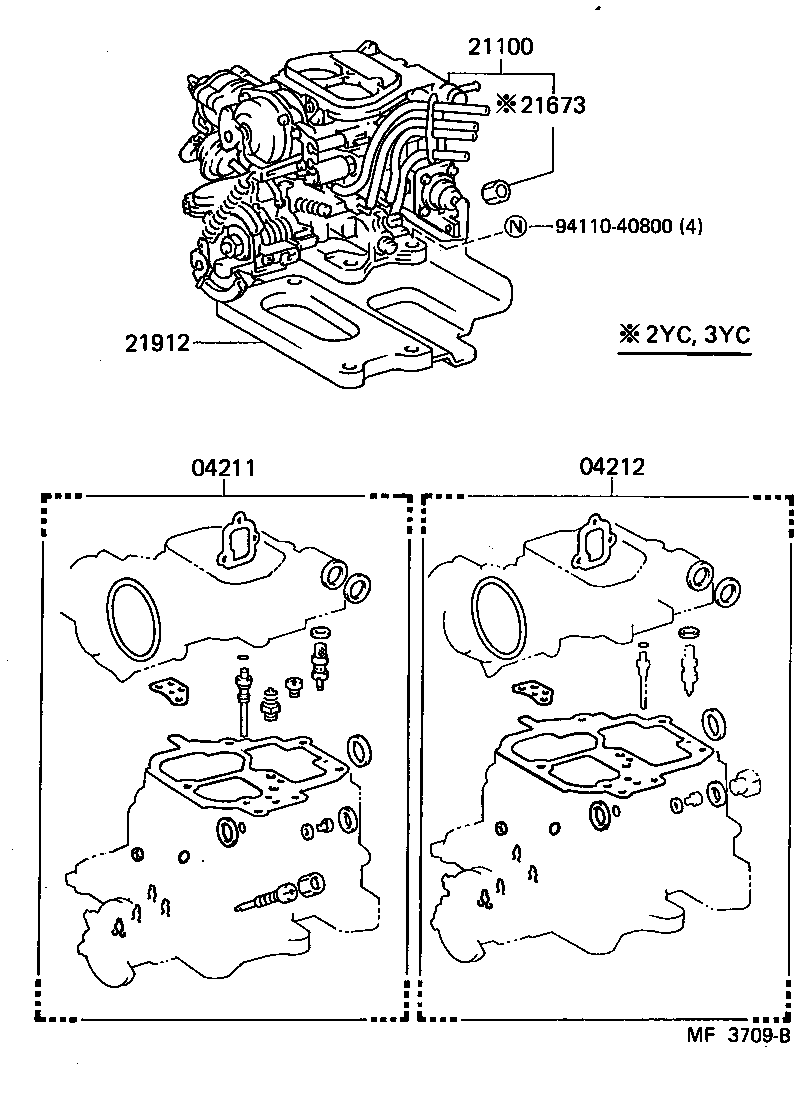

Figure MF3709B

MF3709B 1985-09 → —

Part groups

PNC	Description
04211	Carburetor Kit
04212	Gasket Kit, Carburetor
21100	Carburetor Assy
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
