Toyota Liteace

1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 2 illustrations

Illustrations

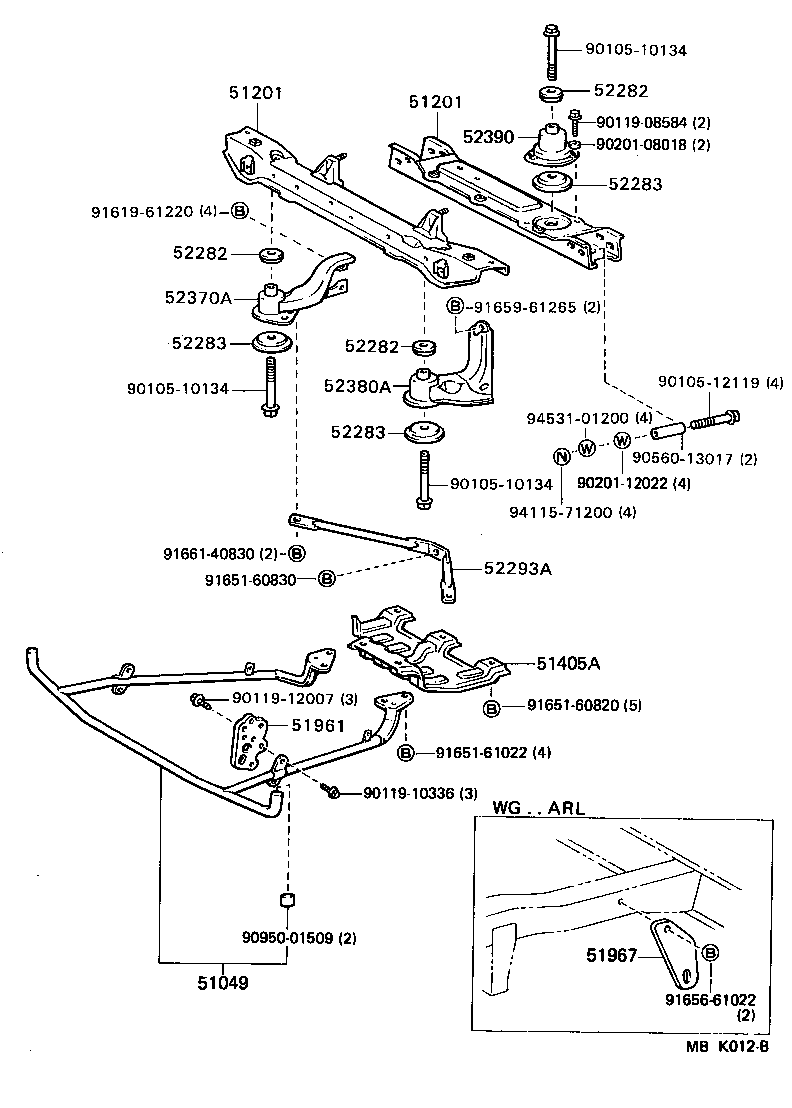

Figure MBJ934B MBJ934B 1985-09 → — Figure MBK012B MBK012B 1986-01 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51961 Hook, NO.1
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
