Toyota Liteace

1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

29 part groups · 3 illustrations

Illustrations

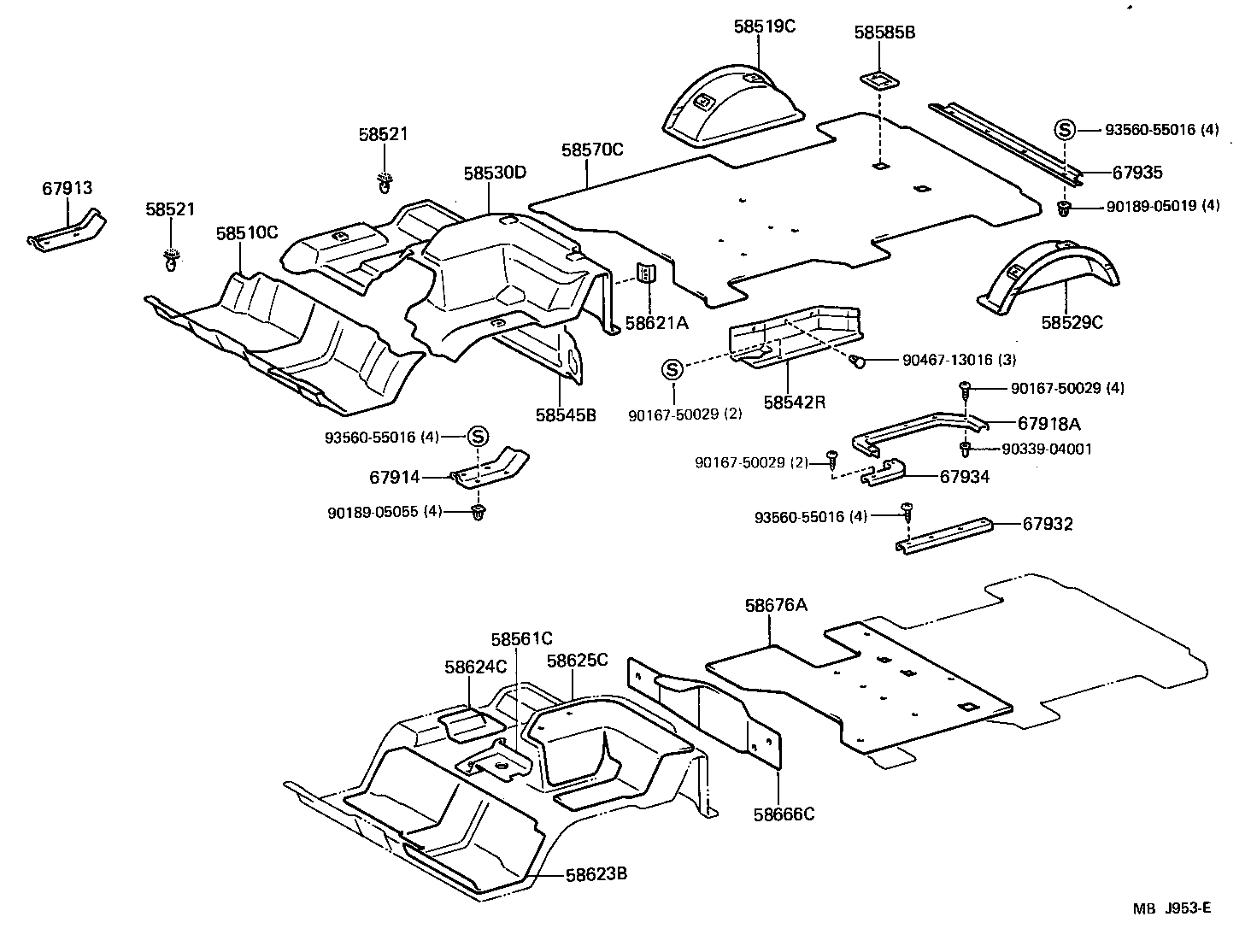

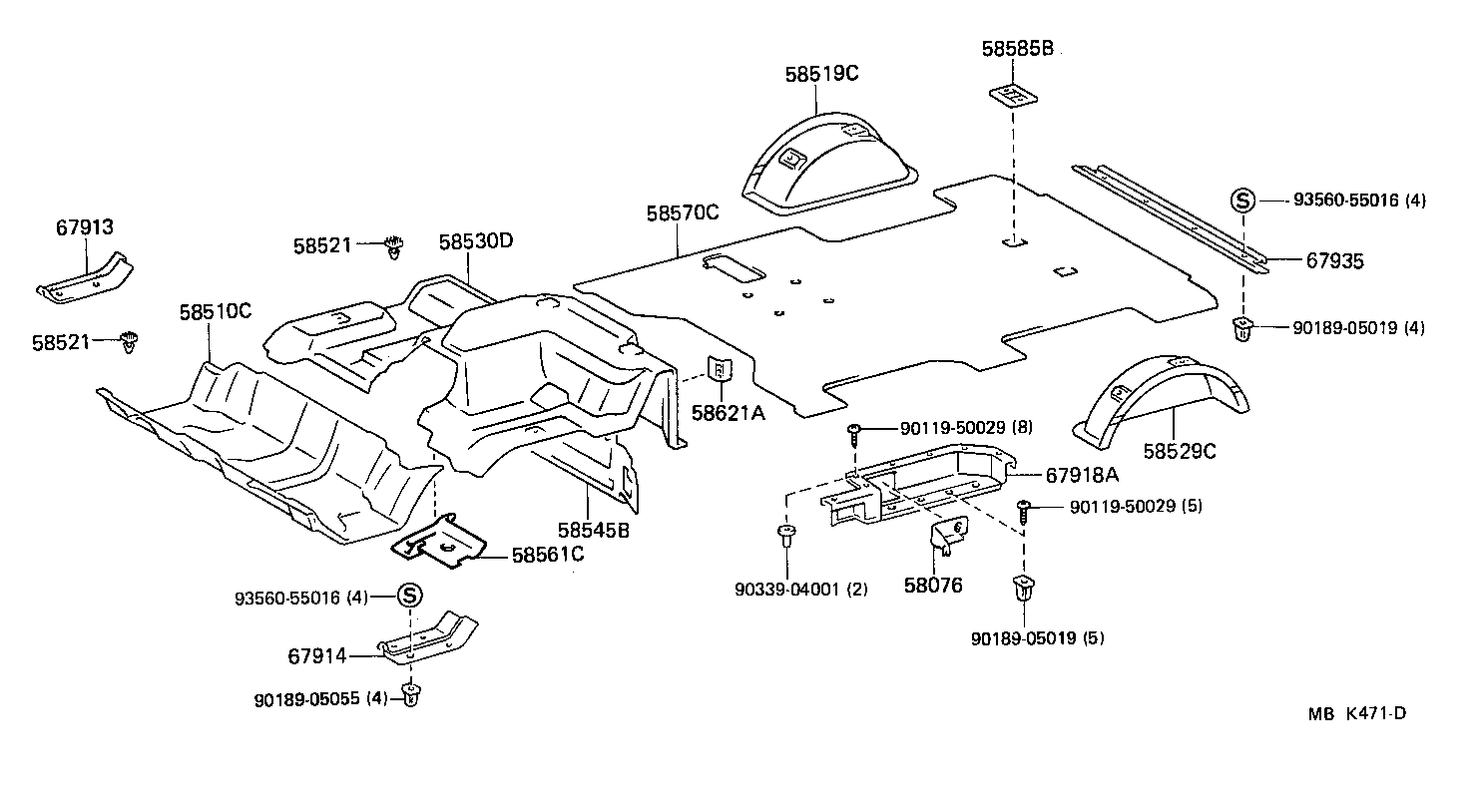

Figure MBJ952E MBJ952E 1985-09 → — Figure MBJ953E MBJ953E 1985-09 → — Figure MBK471D MBK471D 1985-09 → —

Part groups

PNCDescription
58076 Cover Sub-assy, Jack Box Hole
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58512H Mat, Floor, Front LH
58519C Carpet, Rear Wheel House, RH
58521 Hook, Male, NO.1
58529C Carpet, Rear Wheel House, LH
58530C Mat, Front Floor, Rear
58530D Carpet, Front Floor, Rear
58542R Carpet, Step, LH
58545B Silencer, Header Panel
58561C Silencer, Front Floor, NO.1
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58585B Cover, Rear Floor Seat Lock
58621A Plate, Mat Set, NO.1 LH
58623B Pad, Front Floor Silencer, Center
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58666C Pad, Header Panel Silencer
58676A Pad, Rear Floor Silencer
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67932 Plate, Quarter Scuff, Outer LH
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
