Toyota Liteace
1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General
Discontinued model
Data version 1988-08

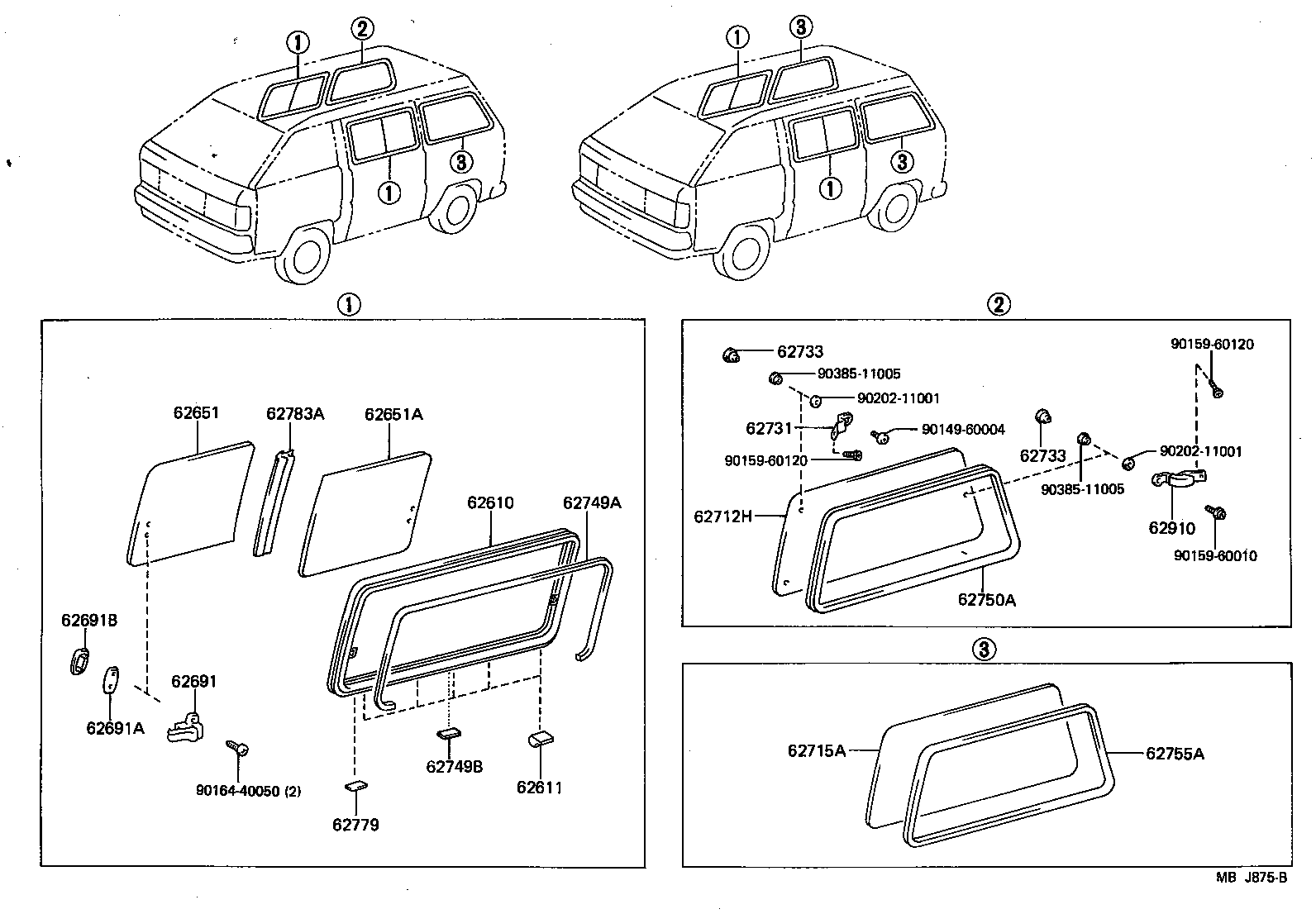

Side Window
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62610 | Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE) |
| 62611 | Spacer, Side Window Support, NO.1 |
| 62651 | Glass, Side Window, NO.1, Front (FOR SLIDE TYPE) |
| 62651A | Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE) |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691B | Retainer, Side Window Lock, NO.1 |
| 62712H | Glass, Side Window, NO.2(FOR HINGE TYPE) |
| 62715A | Glass, Side Window, NO.2(FOR FIXED TYPE) |
| 62731 | Plate, Quarter OR Side Window Hinge |
| 62733 | Retainer, Quarter OR Side Window Hinge |
| 62749A | Seal, Side Window, Upper |
| 62749B | Seal, Side Window Frame |
| 62750A | Weatherstrip, Side Window, NO.2(FOR HINGE TYPE) |
| 62751 | Stop, Side Window Fix Glass |
| 62755A | Weatherstrip, Side Window, NO.2(FOR FIXED TYPE) |
| 62779 | Packing, Side Window Glass, NO.1 |
| 62783A | Sash, Side Window, Center |
| 62883 | Guard Assy, Side Window |
| 62910 | Lock Assy, Quarter OR Side Window, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
