Toyota Liteace

1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 8 illustrations

Illustrations

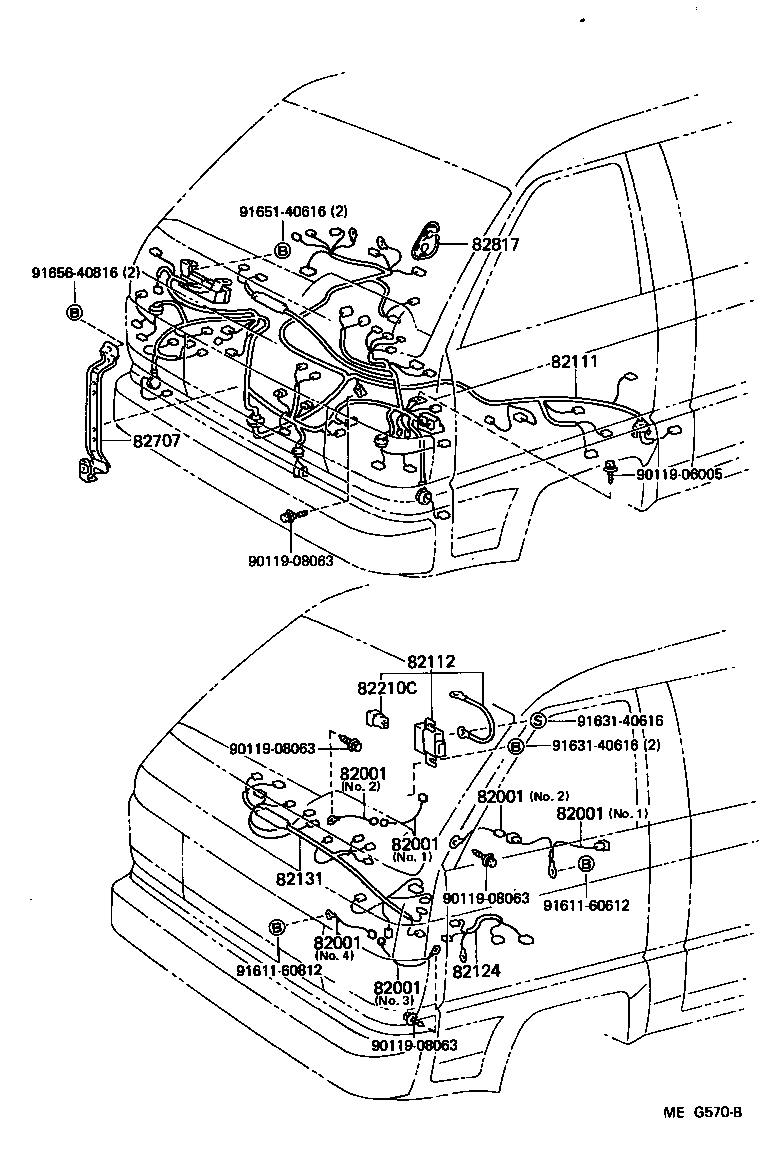

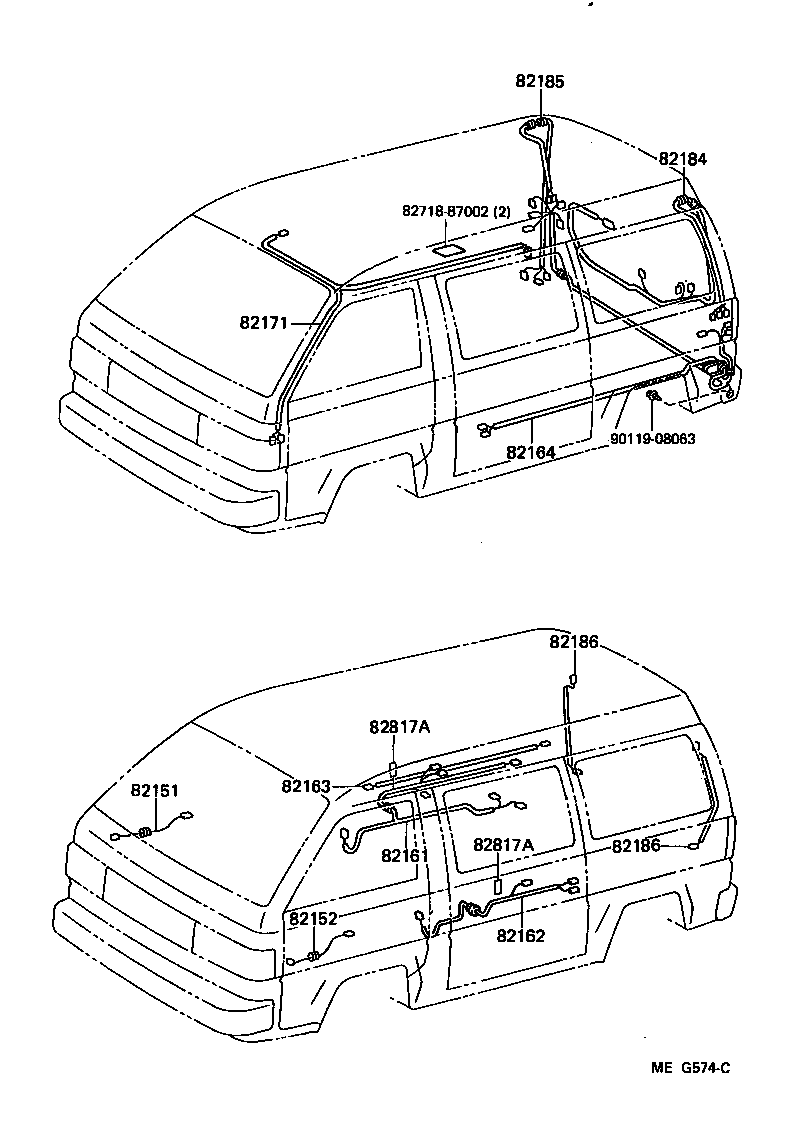

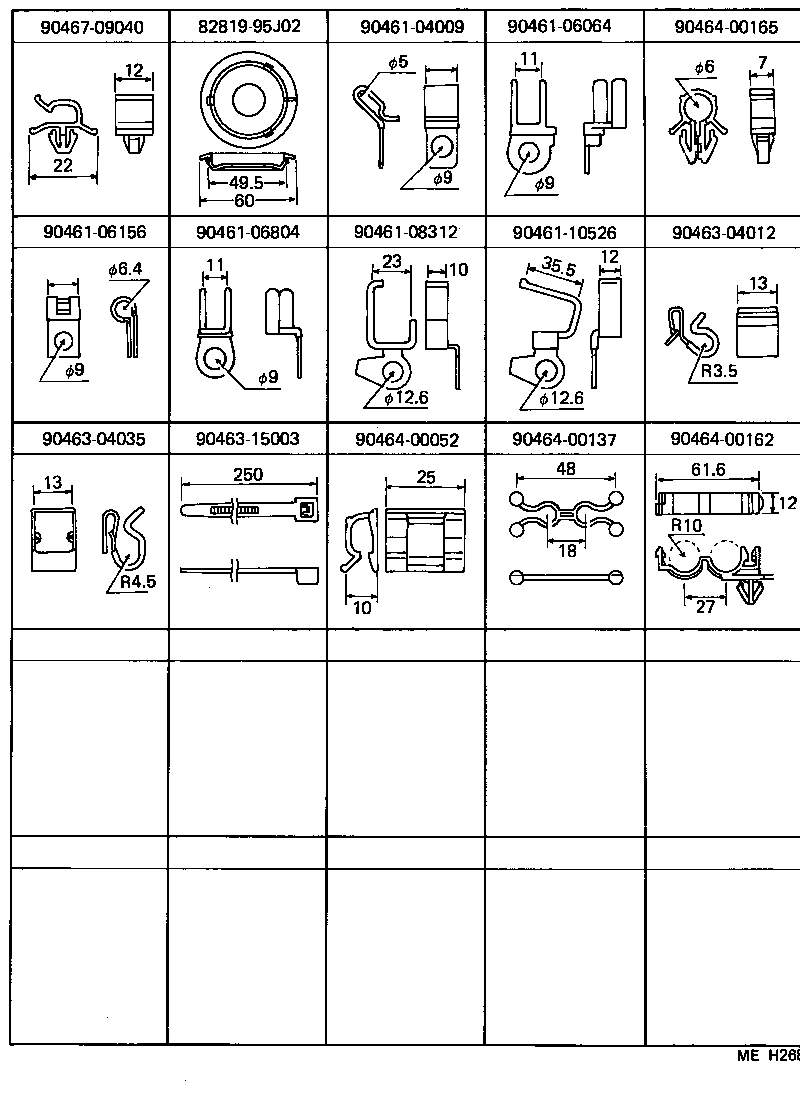

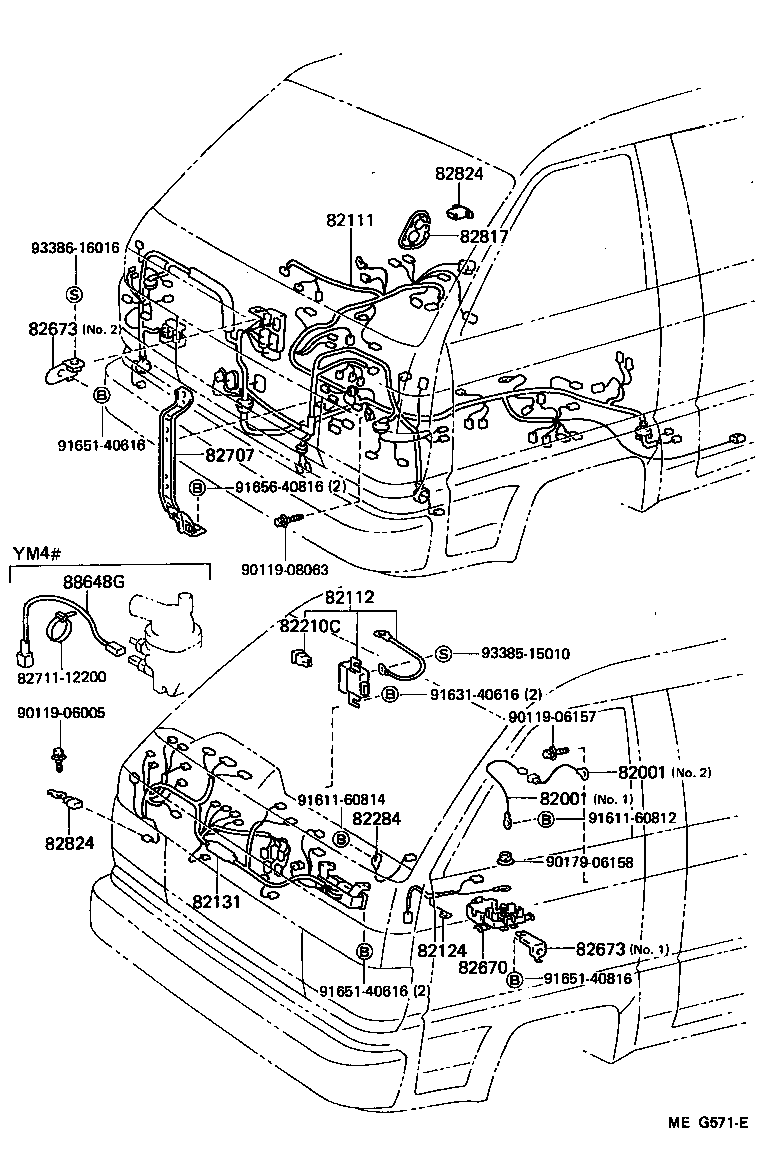

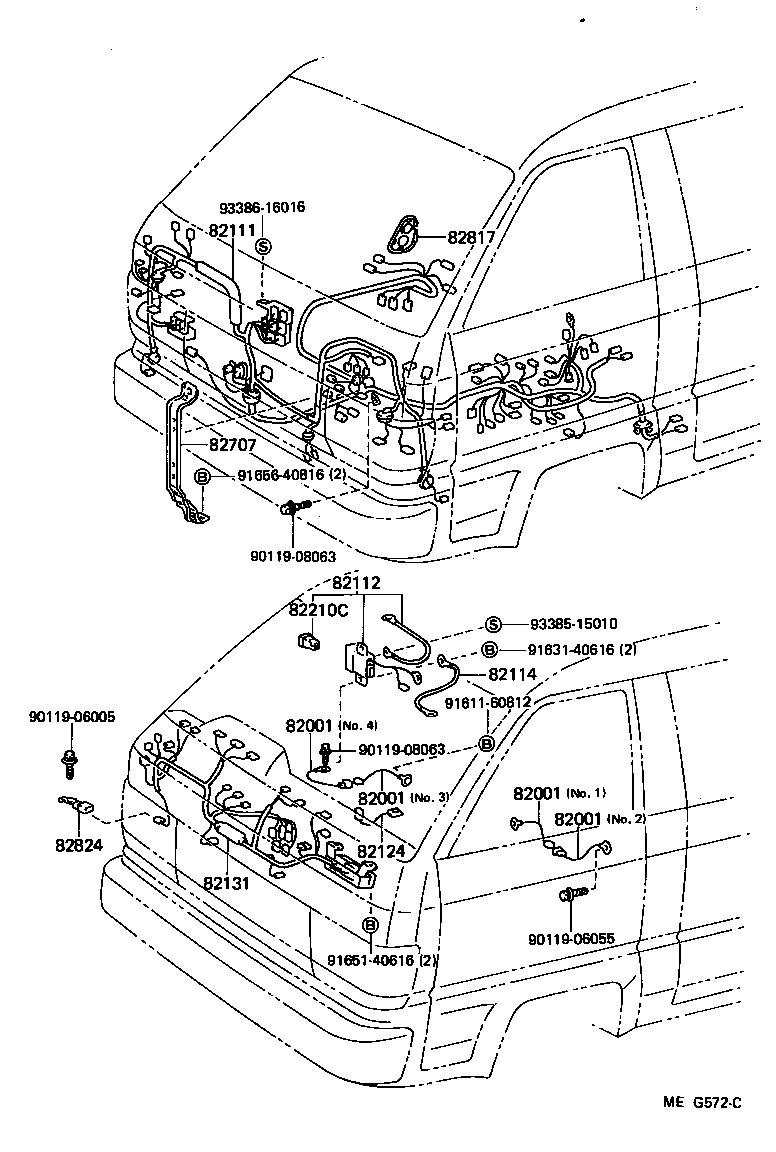

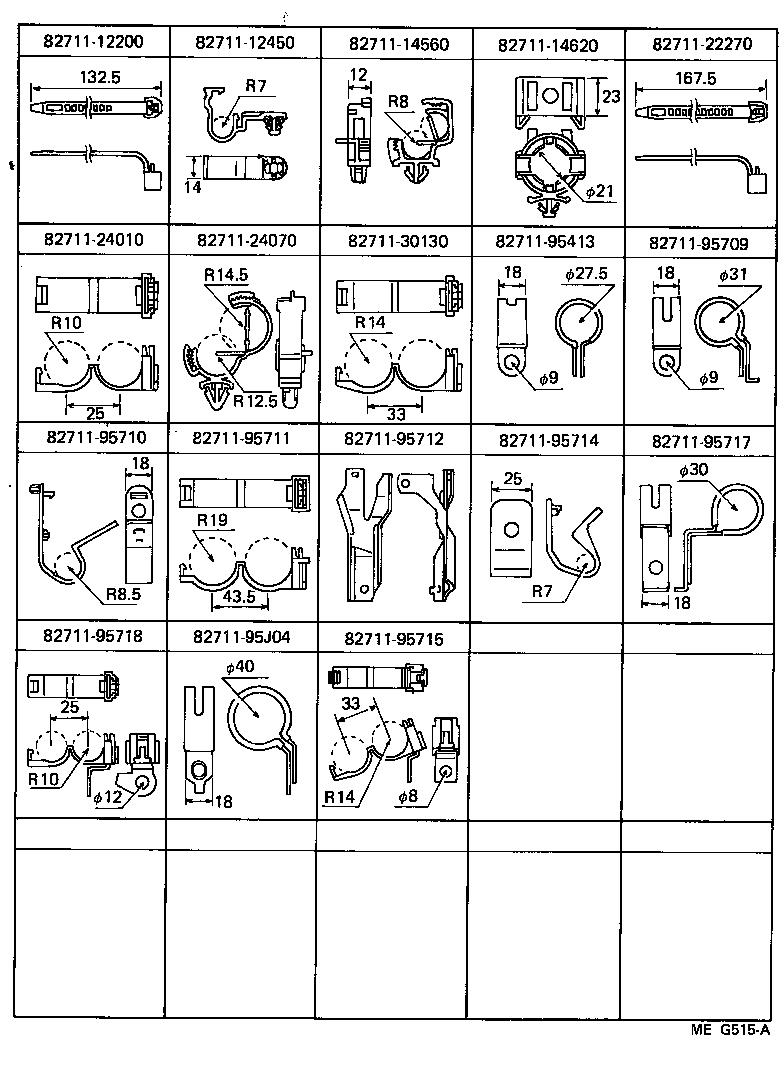

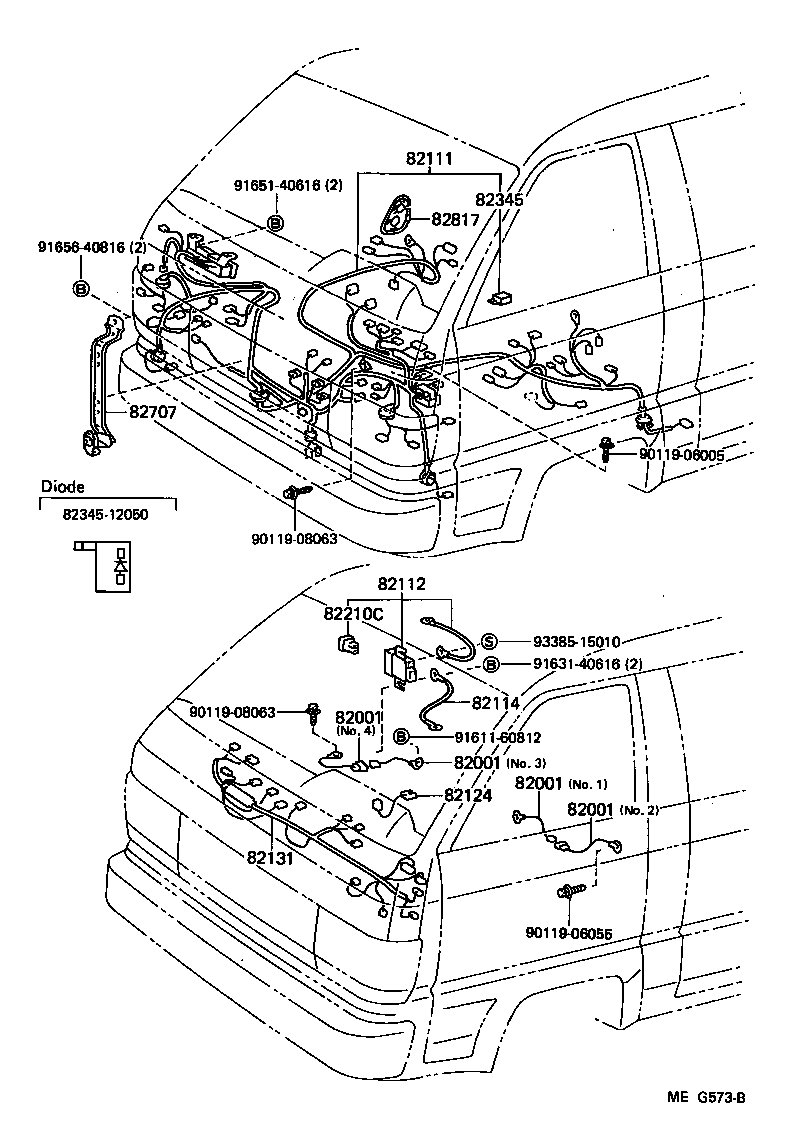

Figure MEG569C MEG569C 1985-09 → — Figure MEG570B MEG570B 1985-09 → — Figure MEG571E MEG571E 1985-09 → — Figure MEG572C MEG572C 1985-09 → — Figure MEG573B MEG573B 1985-09 → — Figure MEG574C MEG574C 1985-09 → — Figure MEG515A MEG515A 1985-09 → — Figure MEH268 MEH268 1985-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82284 Wire, Earth
82345 Diode
82670 Block Assy, Junction, NO.1
82673 Bracket, Junction Block
82707 Support Sub-assy, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82824 Connector, Wiring Harness
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
