Toyota Liteace
1985-09 → 1988-08 · chassis KM3#,YM3#,4#,CM3# · catalogue 631330 · General
Discontinued model
Data version 1988-08
Heating & Air Conditioning - Cooler Unit
32 part groups · 7 illustrations
Part groups

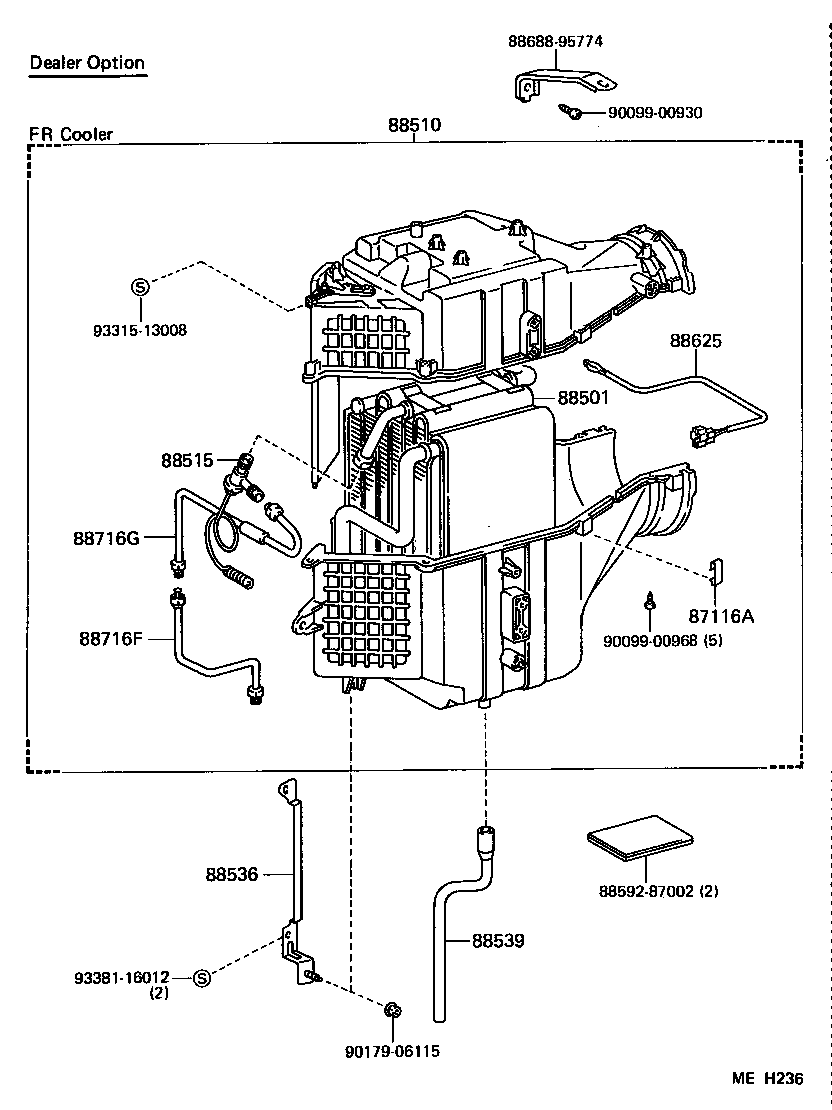

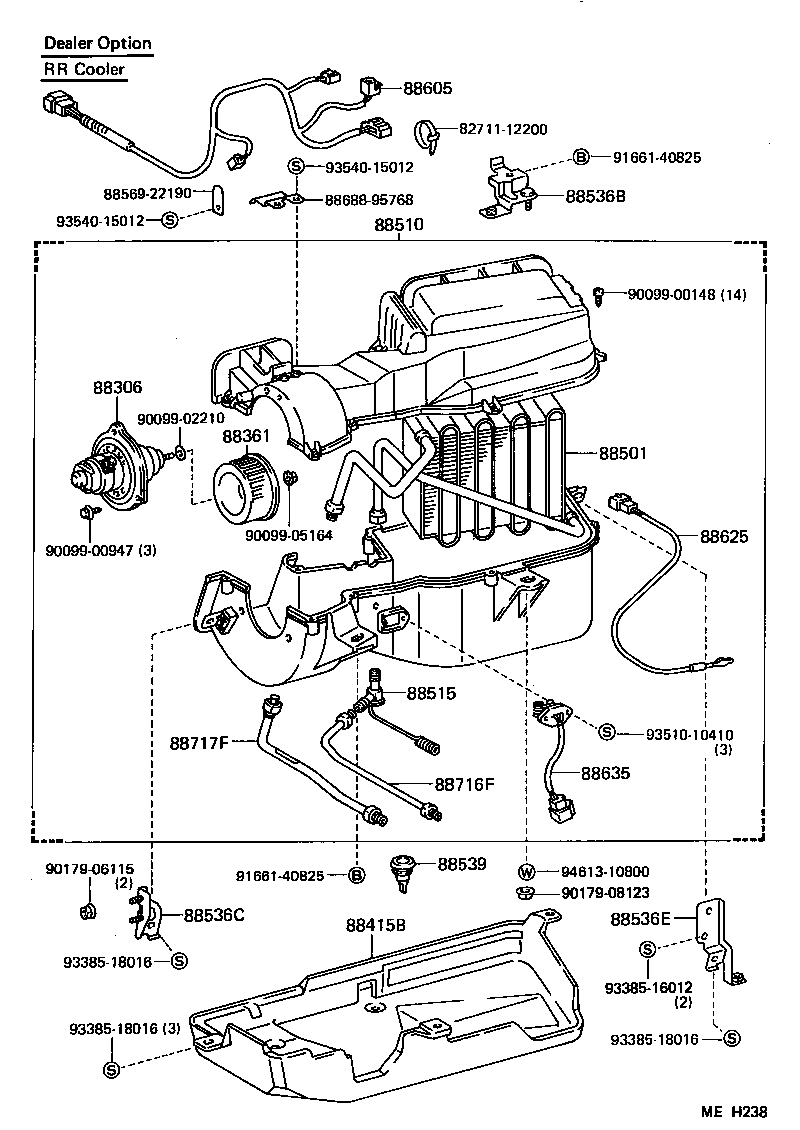

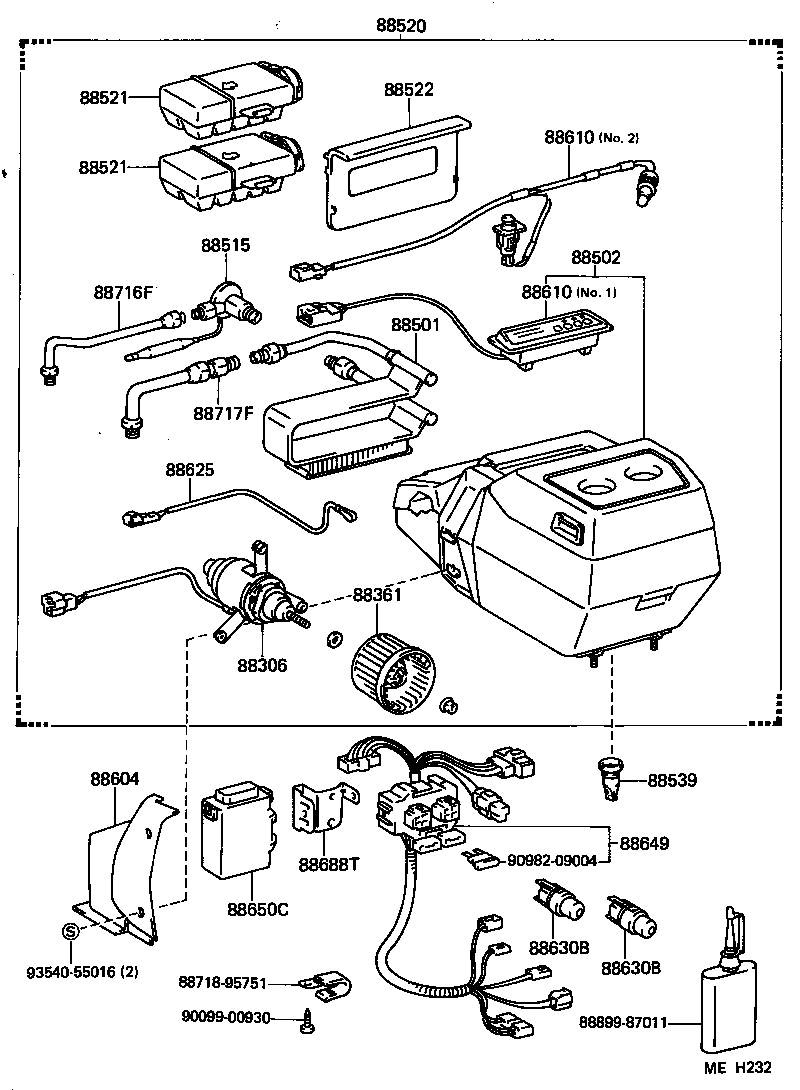

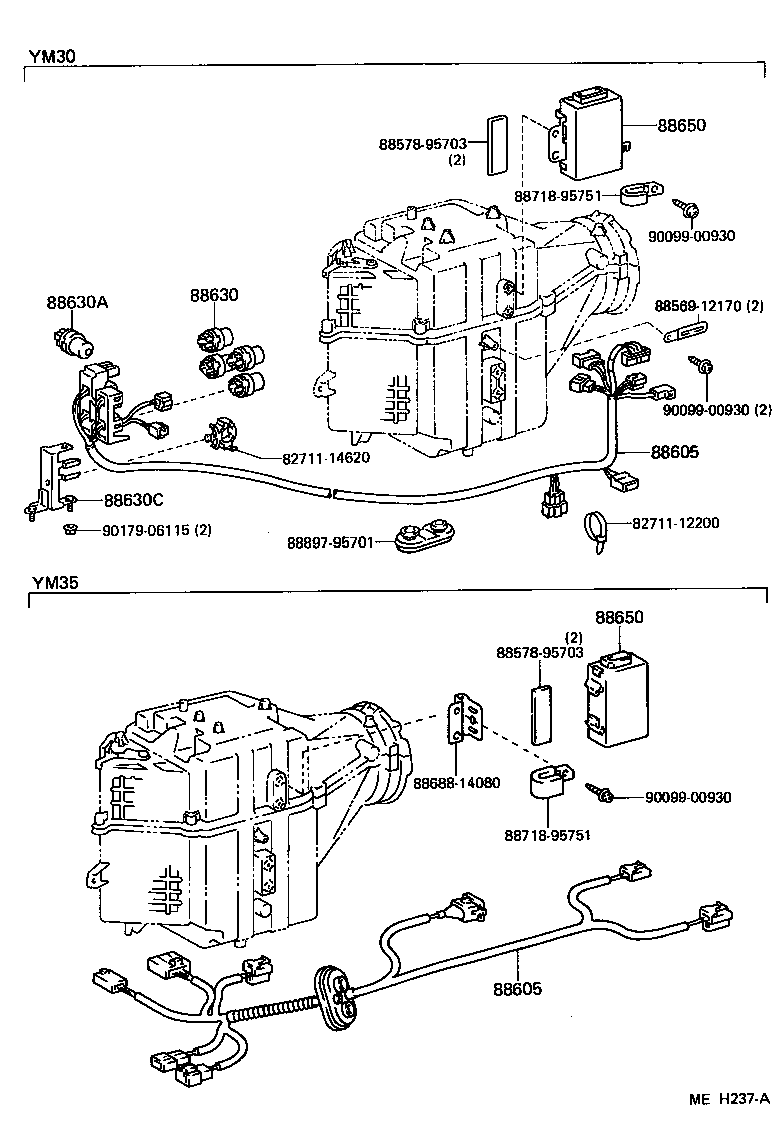

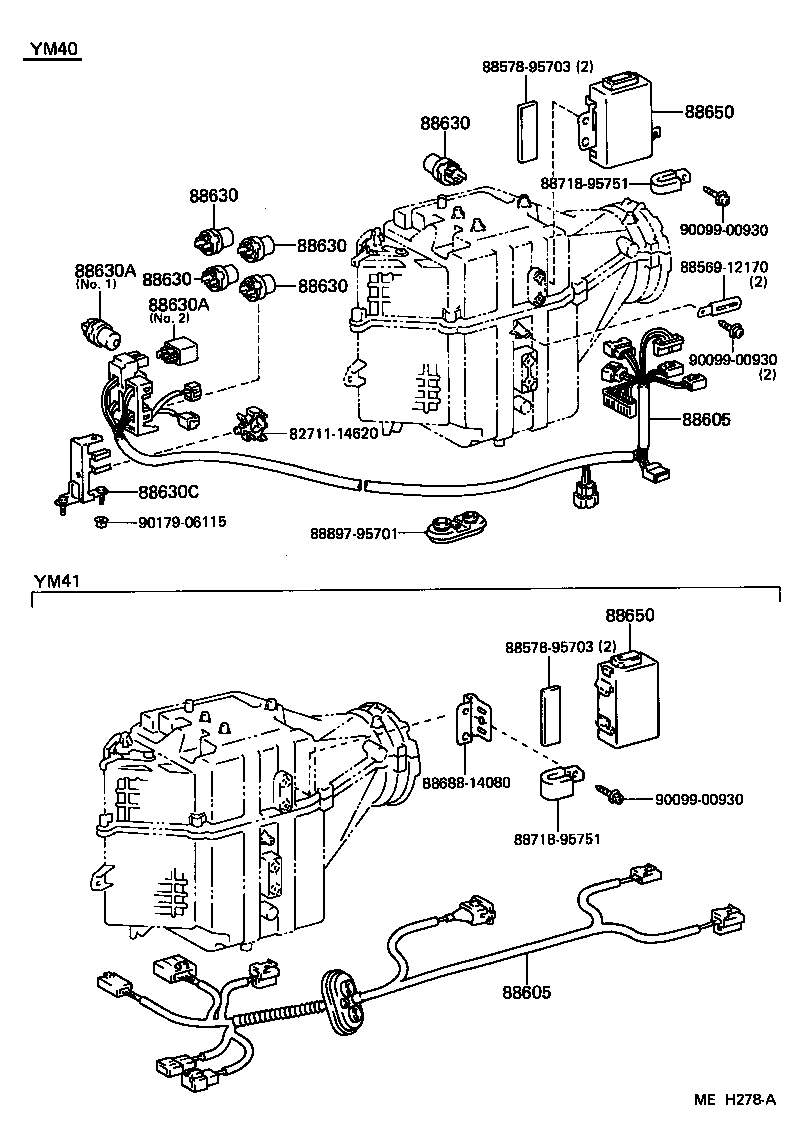

| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88415B | Cover, Dust |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88502 | Case Sub-assy, Cooling Unit |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88520 | Box Assy, Cooling |
| 88521 | Case, Cooler Unit |
| 88522 | Door, Cooling Unit |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88536C | Bracket, Cooling Unit, NO.4 |
| 88536E | Bracket, Cooling Unit, NO.5 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88604 | Panel Sub-assy, Cooler Control |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88630C | Bracket, Cooler Relay |
| 88635 | Resistor, Cooler Unit Blower |
| 88649 | Wiring, Cooler, NO.2 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88650C | Amplifier Sub-assy, Airconditioner |
| 88688T | Bracket (FOR COOL BOX) |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88716G | Pipe, Cooler Refrigerant Liquid, G |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
