Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

21 part groups · 4 illustrations

Illustrations

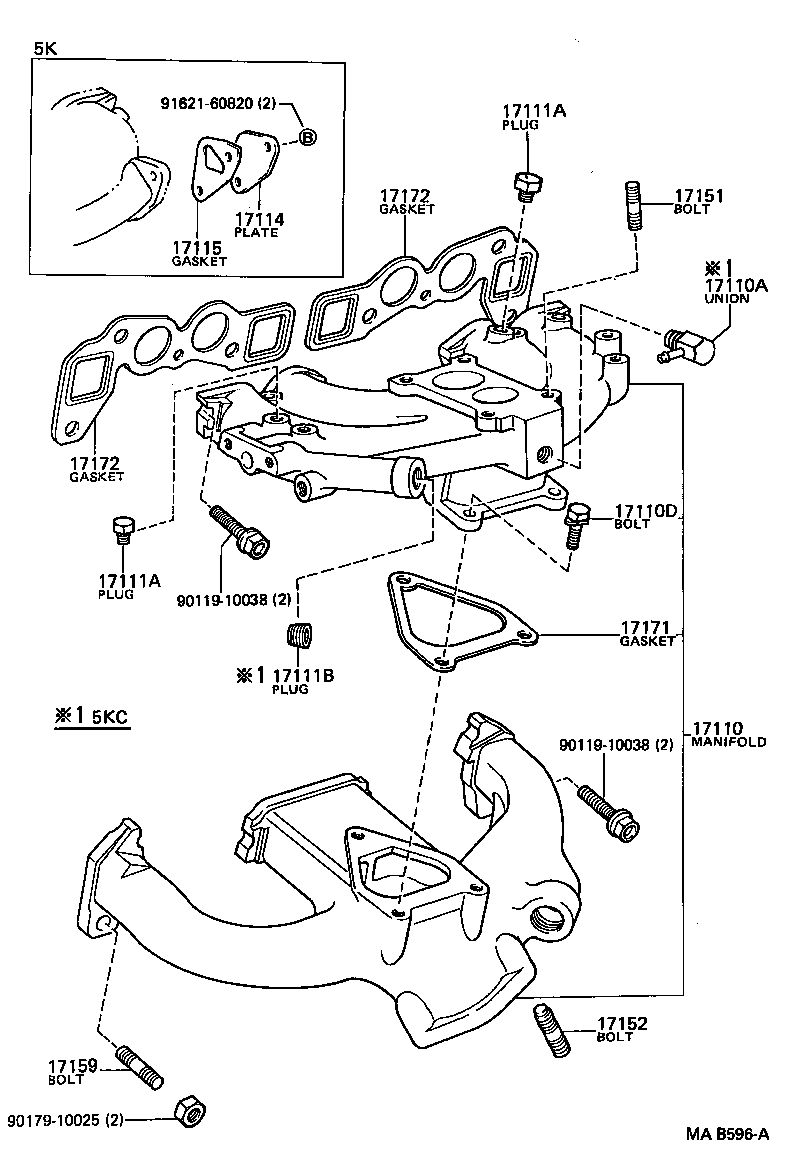

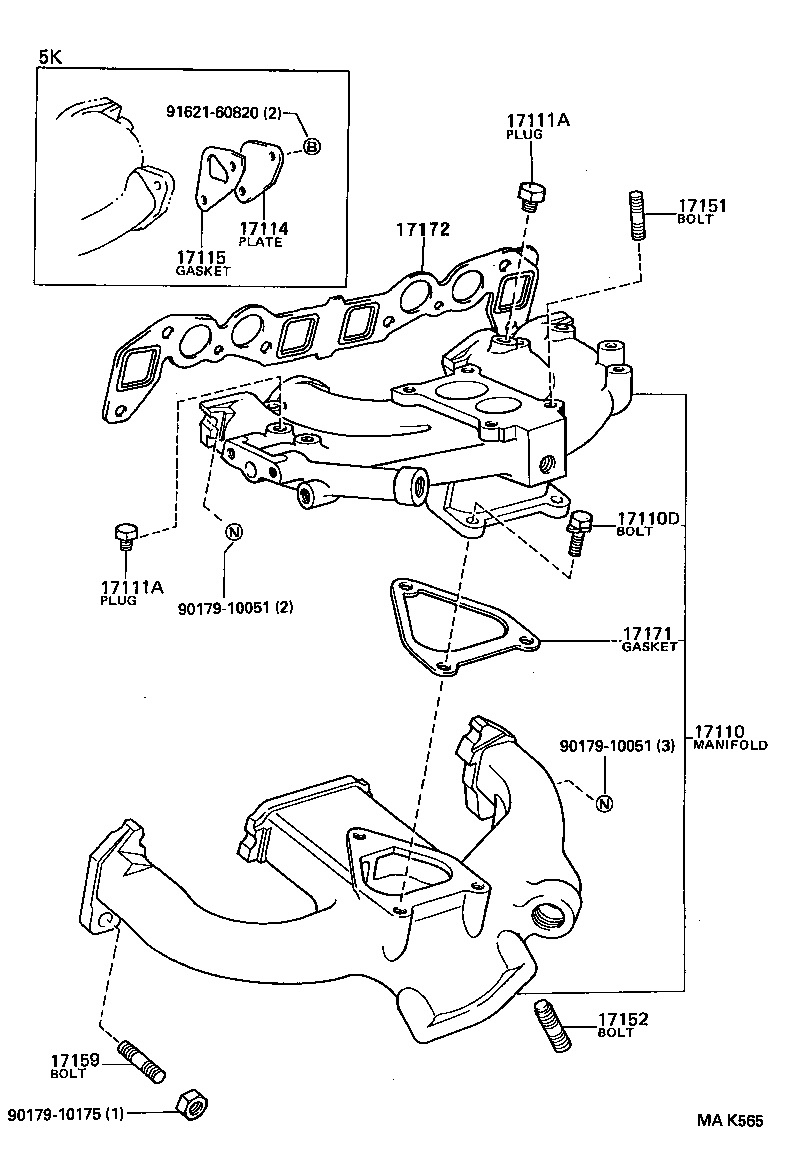

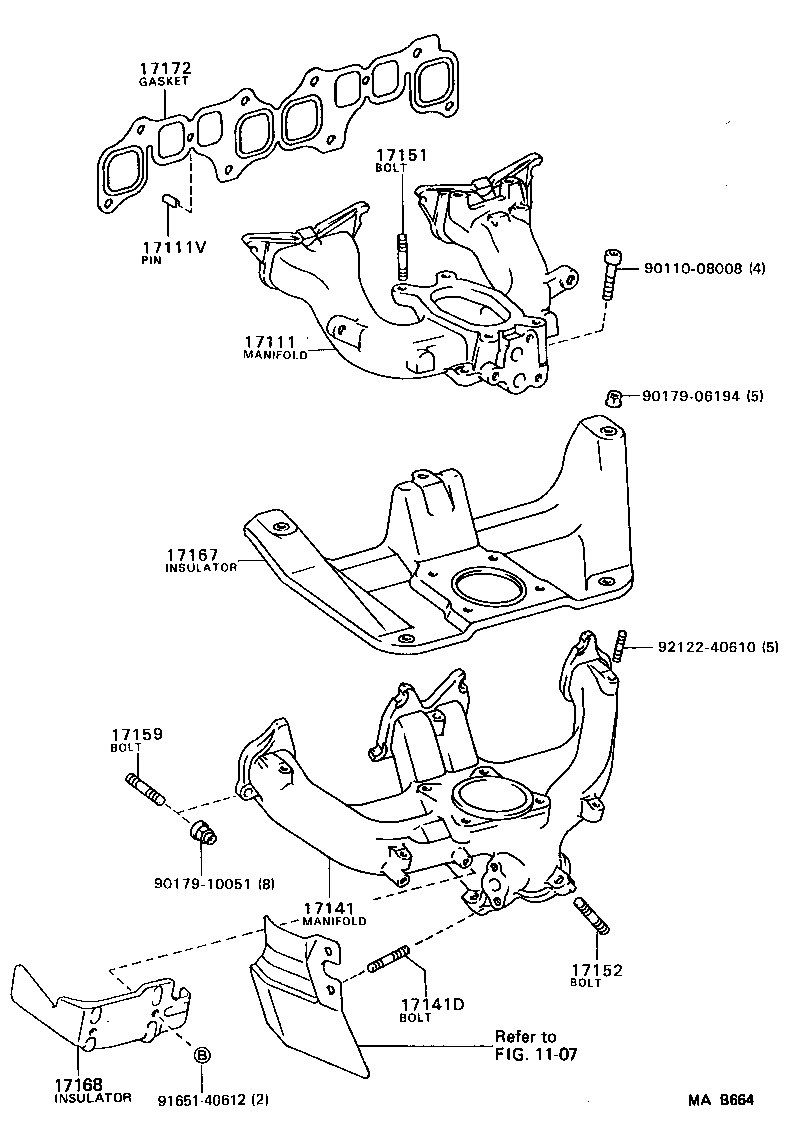

Figure MA8577B MA8577B 1988-08 → — Figure MAB596A MAB596A 1988-08 → 1996-10 Figure MAK565 MAK565 1996-10 → — Figure MAB664 MAB664 1988-08 → —

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111S Gasket(FOR MANIFOLD PLUG)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
