Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 3 illustrations

Illustrations

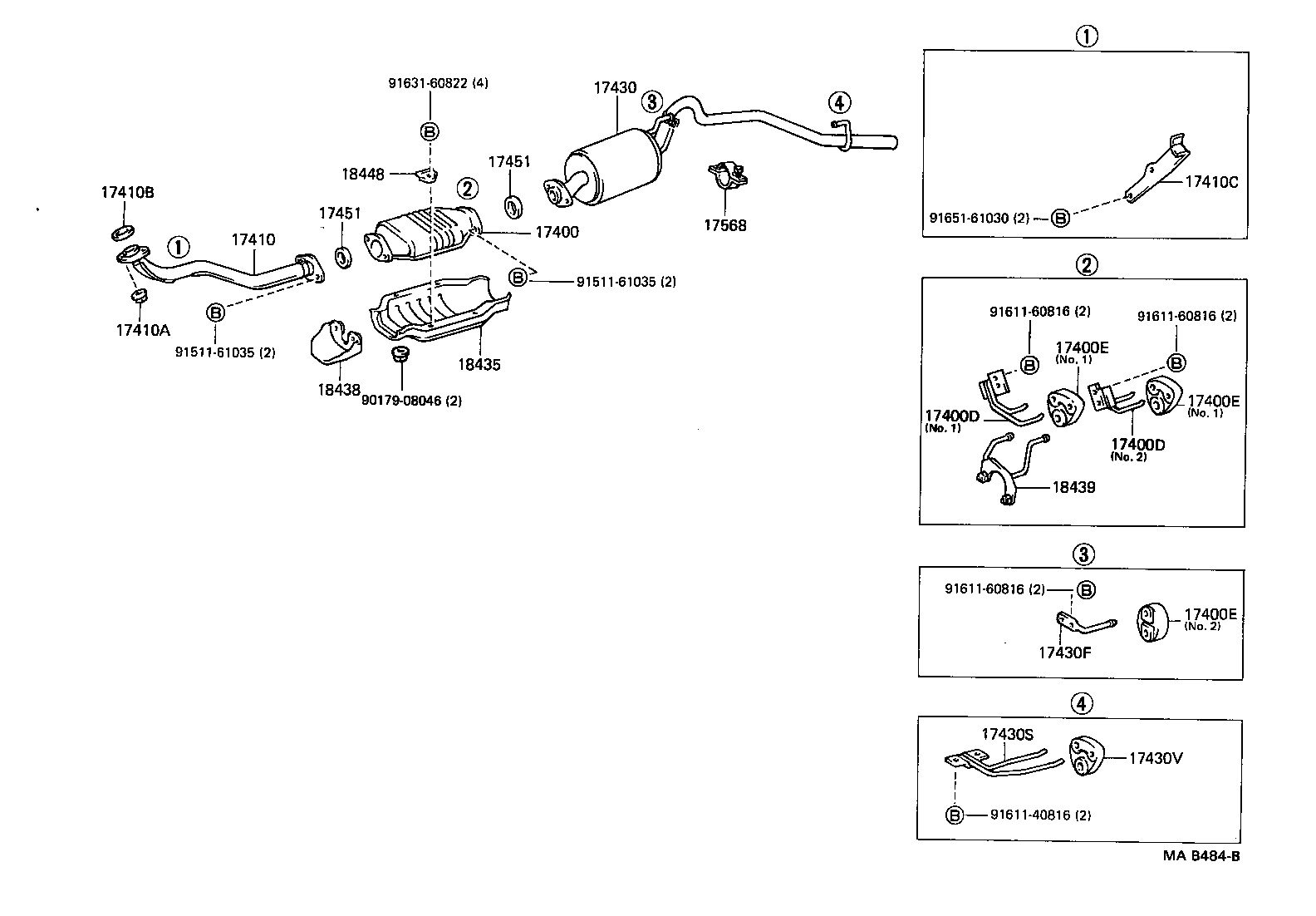

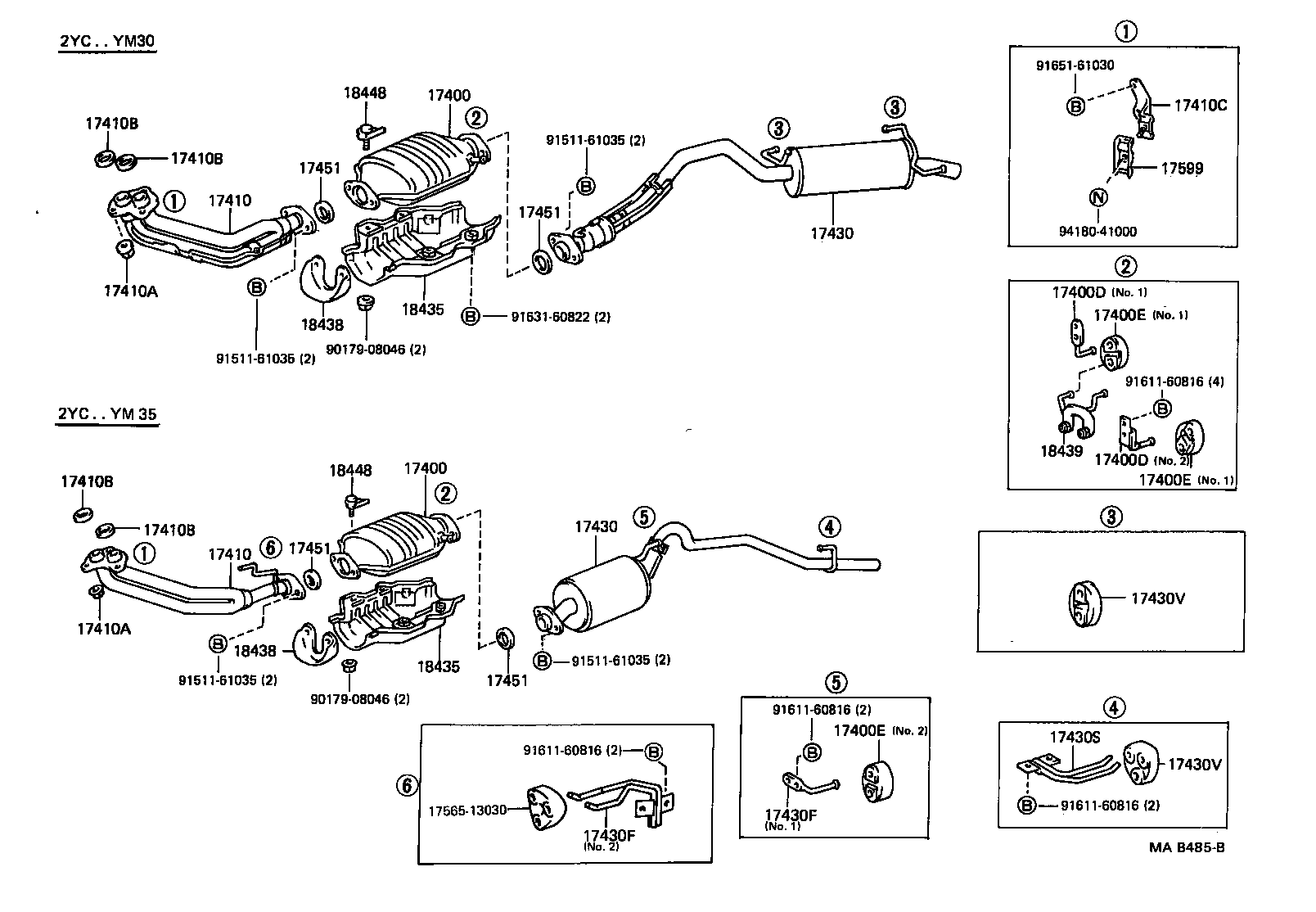

Figure MAB483C MAB483C 1988-08 → — Figure MAB484B MAB484B 1988-08 → — Figure MAB485B MAB485B 1988-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17400E Ring, Catalytic Converter
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17568 Stay, Exhaust Pipe Support
17574 Bracket, Exhaust Pipe Support, NO.4
17599 Holder, Exhaust Pipe Support Stopper
18435 Protector, Catalytic Converter
18438 Bracket, Connector Protector, Front
18439 Bracket, Convertor Protector, Rear
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
